Bill of Materials

List other parts
  • Keyring x 1:

Description

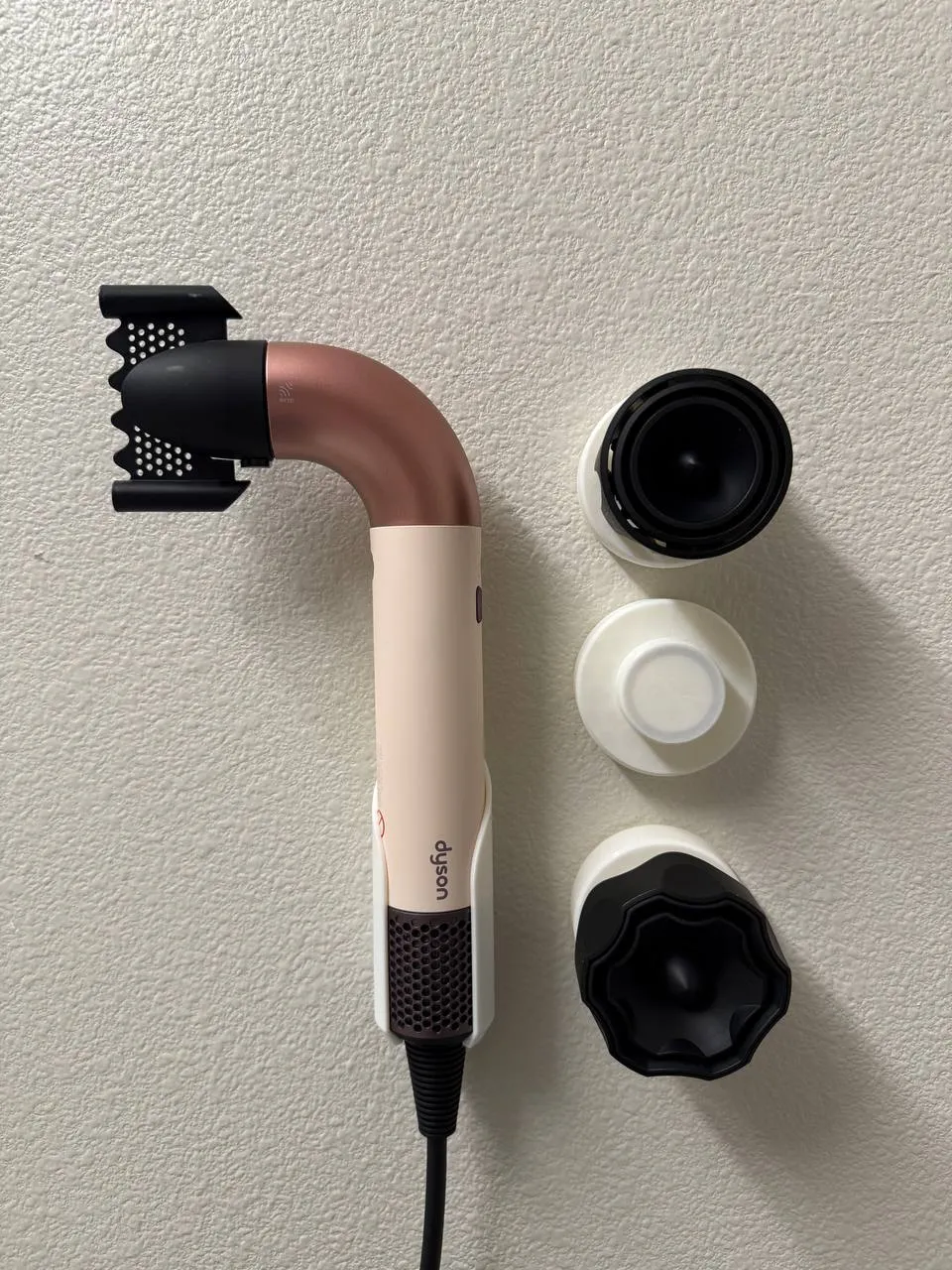

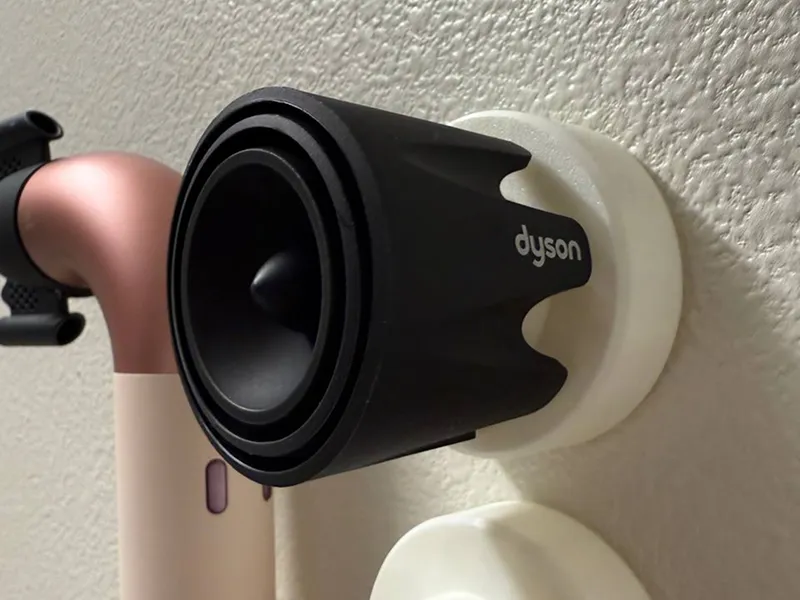

Wall mount designed for the Dyson Supersonic™ r hair dryer accessories. Attaches securely to the wall using a large Command™ strip (~18mm x 75mm) with no screws needed, making it lightweight, renter-friendly, and easy to reposition as needed.

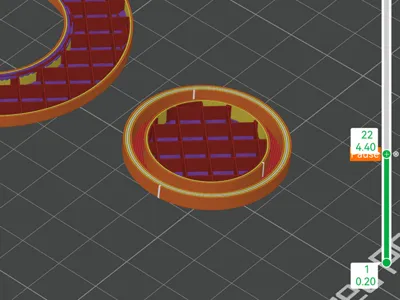

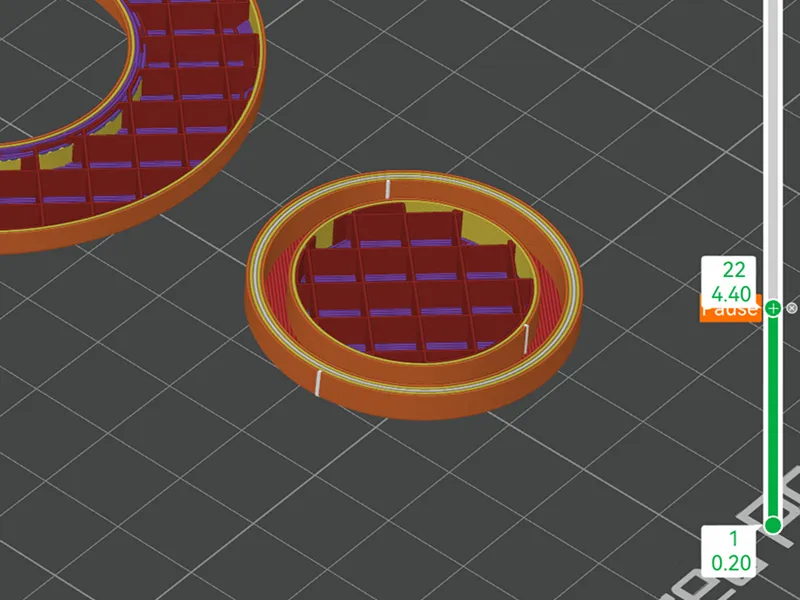

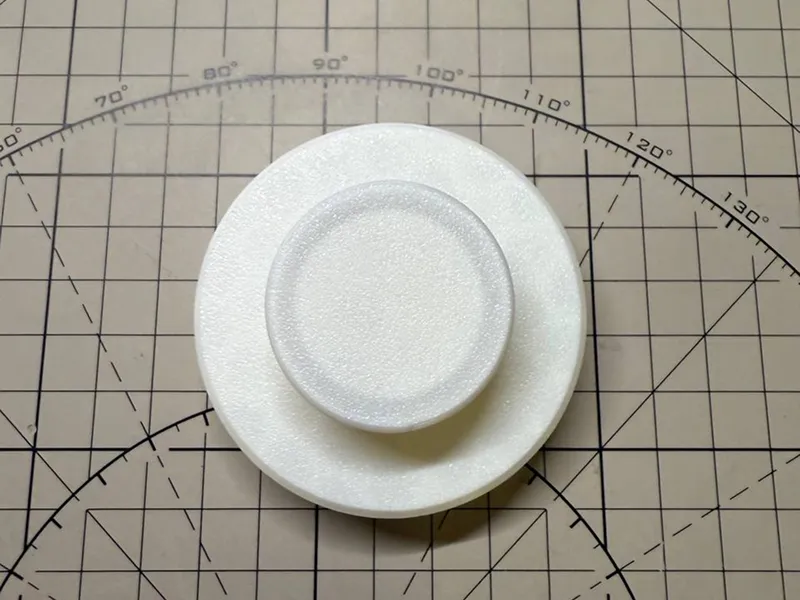

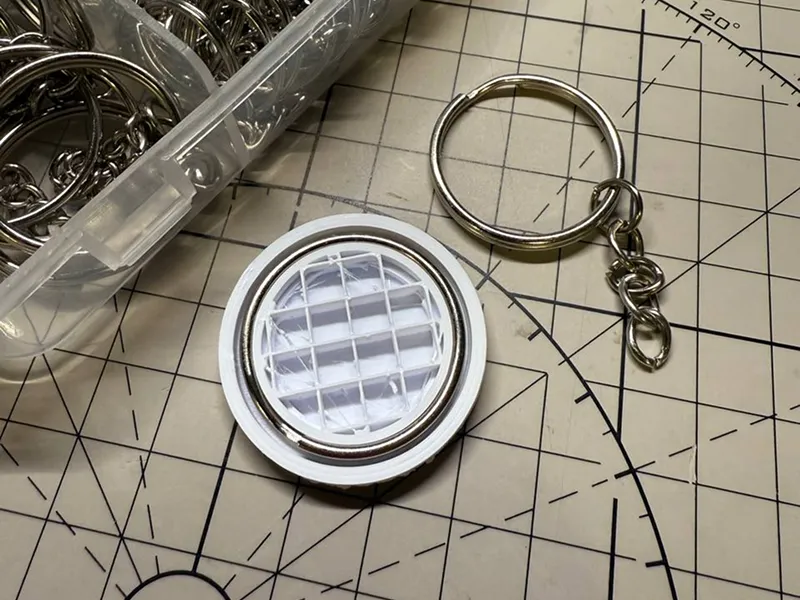

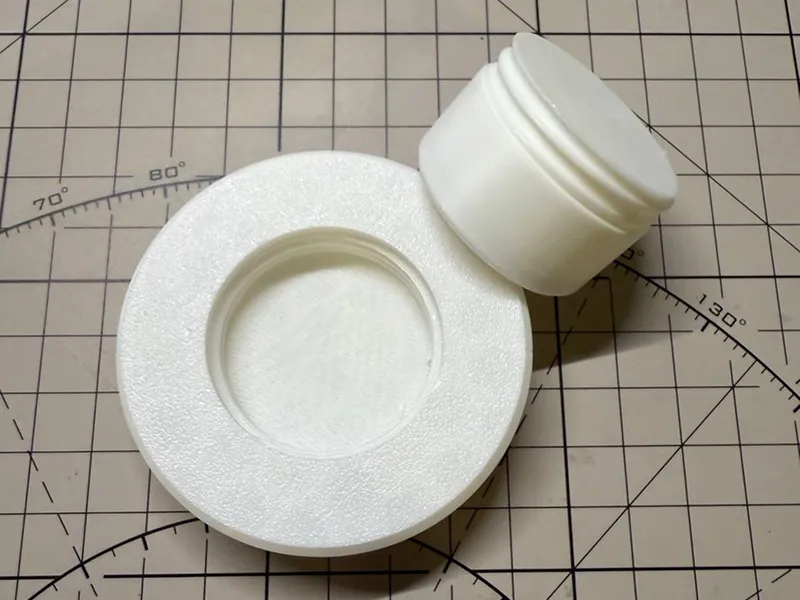

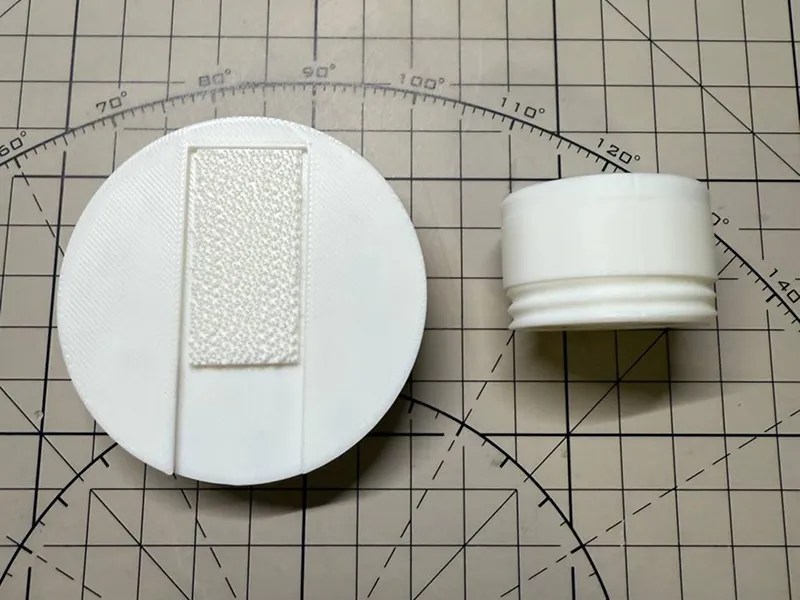

I designed this a while back and finally had time to upload it. No magnets are needed since the new Dyson Supersonic R accessory heads are already magnetic. The only additional component required is a key ring or a bendable iron wire, which should be inserted into the holder during printing. The print profile is set to pause at layer 22 for easy insertion. I used a generic key ring set from Amazon—typically, you can find something like a 100-piece sets for around $5. You may need to adjust the ring size slightly to ensure it fits into the gap (see one of the uploaded images for reference). The two parts of this model connect via threads.



Since I’m currently renting and I am a huge command strip lover, I prefer using them rather than screws and nails, but I know many people don’t mind drilling into their walls. I plan to create a screw-mounted version when I have more time.



You can find the wall mount for the dryer itself here: Dyson supersonic r hair dryer wall mount by msz0063 - MakerWorld
