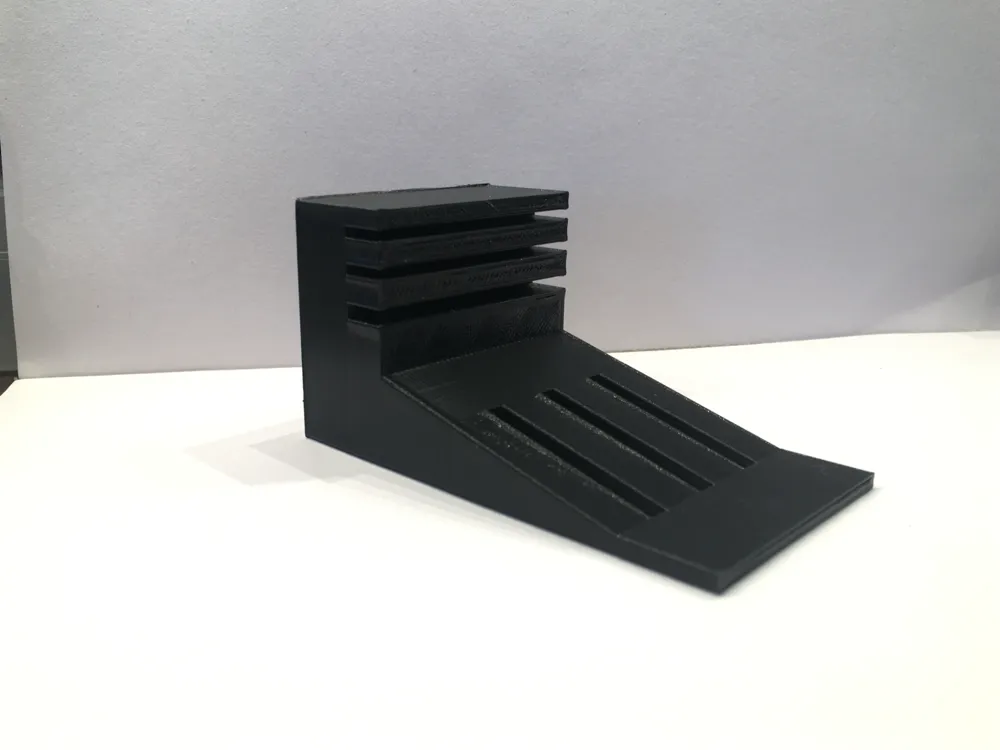

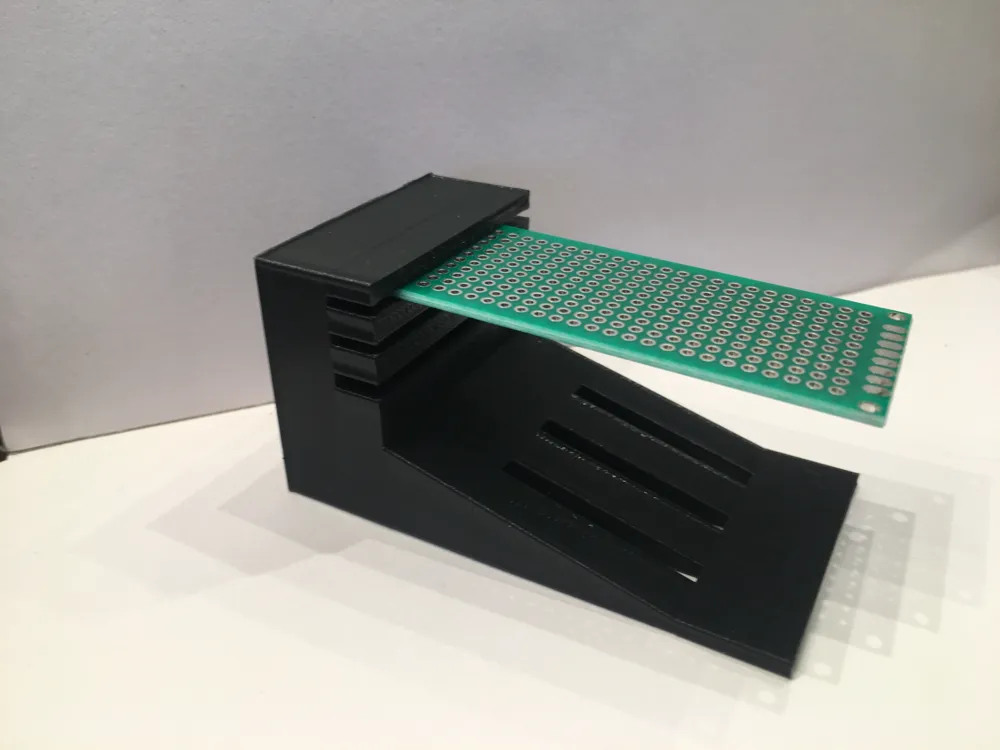

The PCB Holder is designed to secure small PCB's and protoboards while soldering.
It has 3 slots, the top 2 with a size of 1.8mm and the bottom a size of 2.5mm. These slots all have a depth of 8mm, holding the board securely.

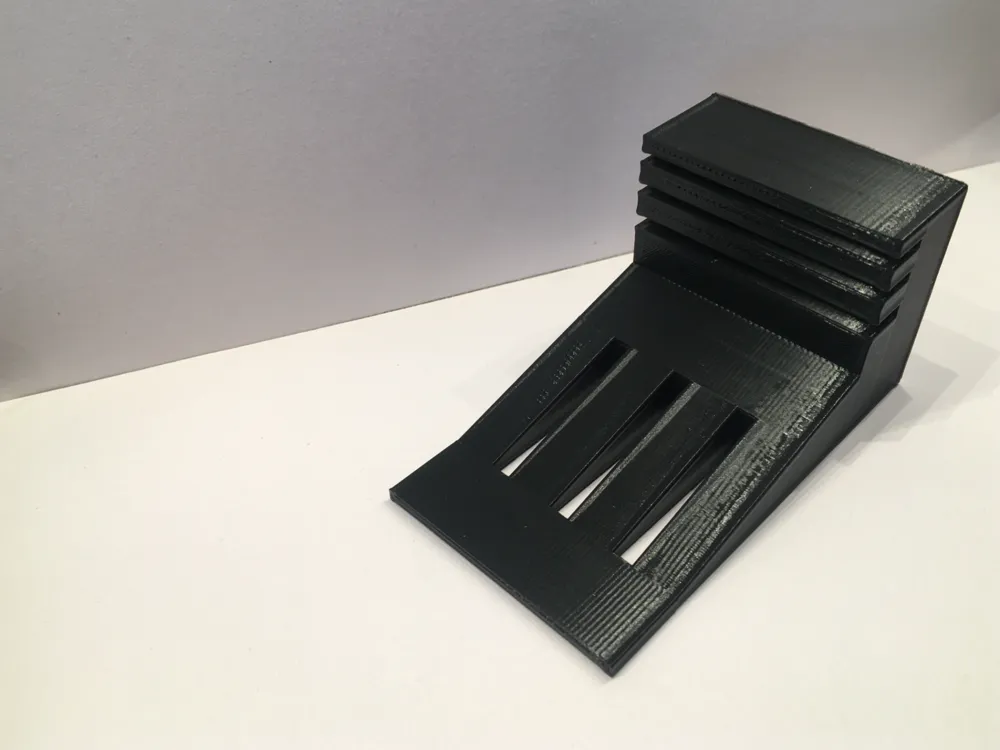

It must be printed on its sides to avoid overhangs, as illustrated:
Print Settings:
Walls - 2
Infill - 15%
Brim - If necessary (optional)
Support - Not needed if printed in proper orientation.
Uses around 20g of filament.
