1" Ball Mount for Suunto EON Core Dive Computer

1" Ball Mount for Suunto EON Core - Dive Computer

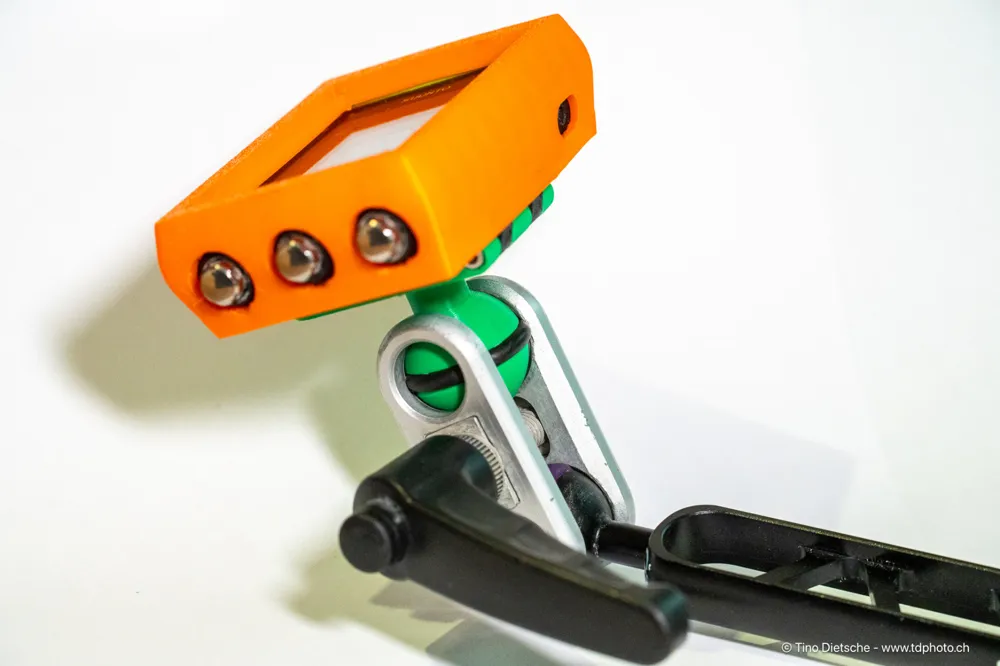

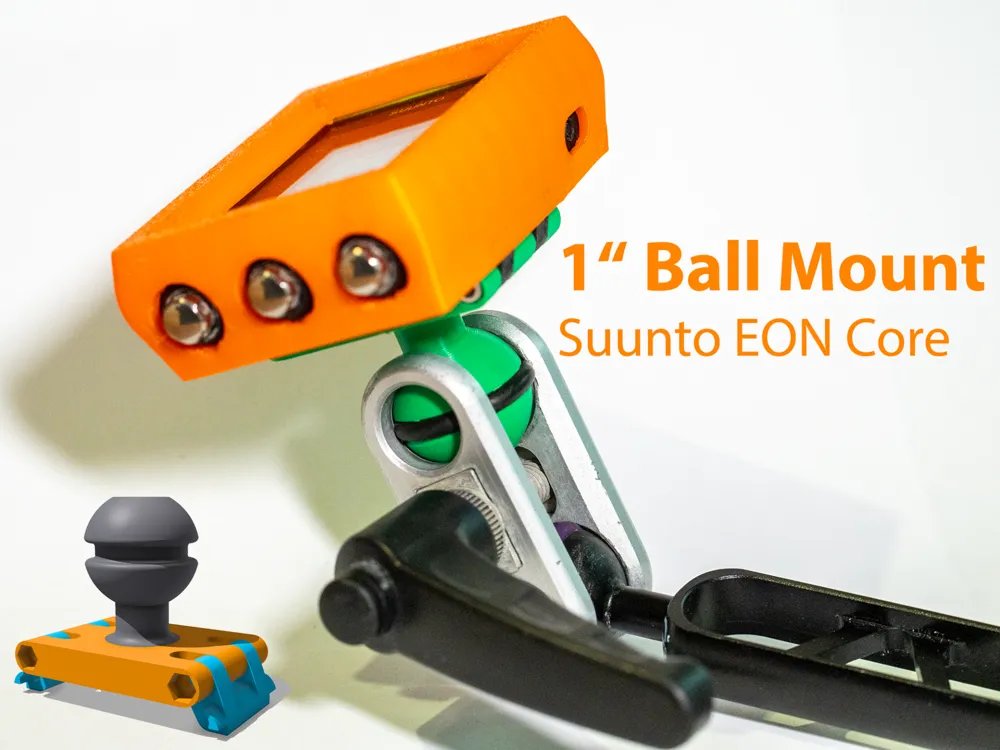

1" ball mount for the EON Core dive computer. The mount allows the dive computer to be mounted on flash arms or ball adapters on the underwater housing using clamps.

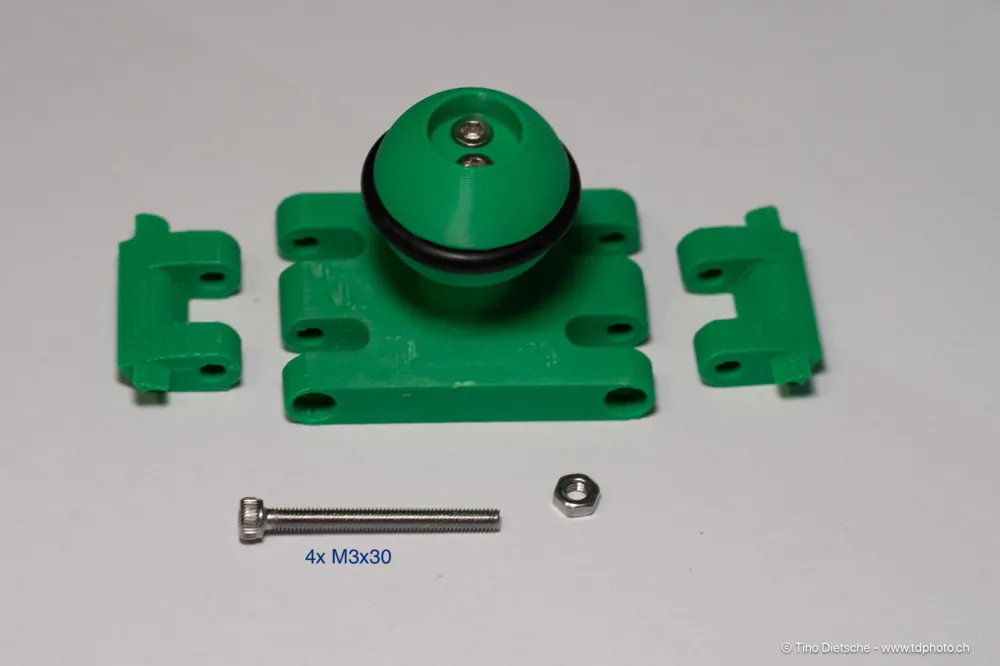

The adapter consists of 3 parts, 2x the side base of the mount which is used instead of the original wristbands with the spring pins. The main base with the ball is screwed to the side base parts. Two more screws are also integrated into the main base, which should give the component additional stability.

The part should be printed with support to ensure a nice hole. It is best to remove the supports in the hole with a 2.5mm drill.

PLA, PETG, ABS etc. can be used as materials, depending on where it is used.

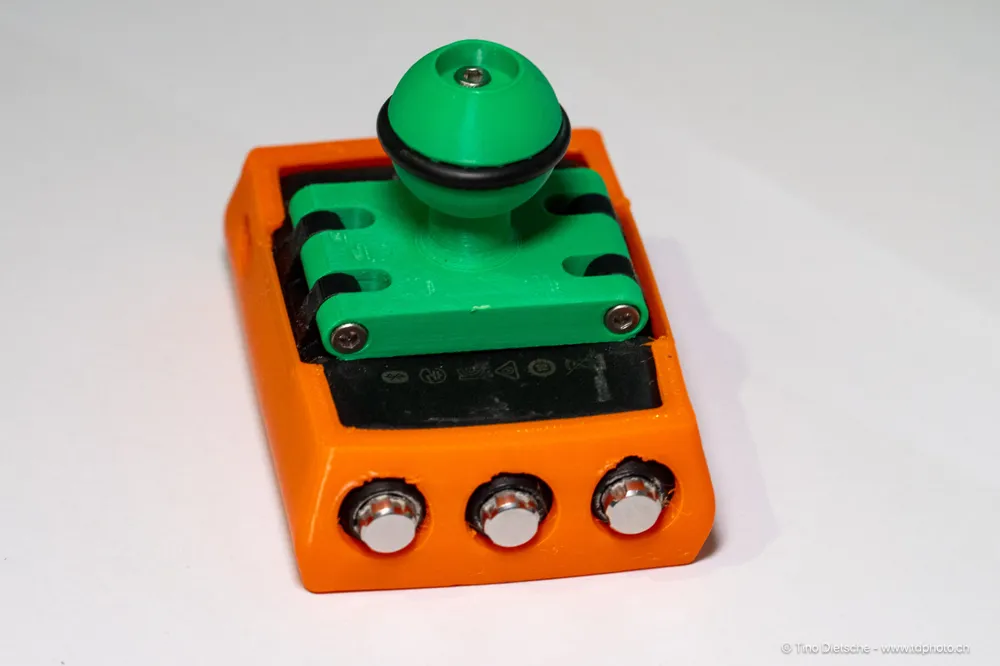

In order to mount the holder on the EON Core, you need the following material:

• 4x M3x30 screw
• 4x M3 nut
• O-ring for 1" ball
