InterCityExpress (ICE) for BRIO Railway
Print Profile(2)
Description

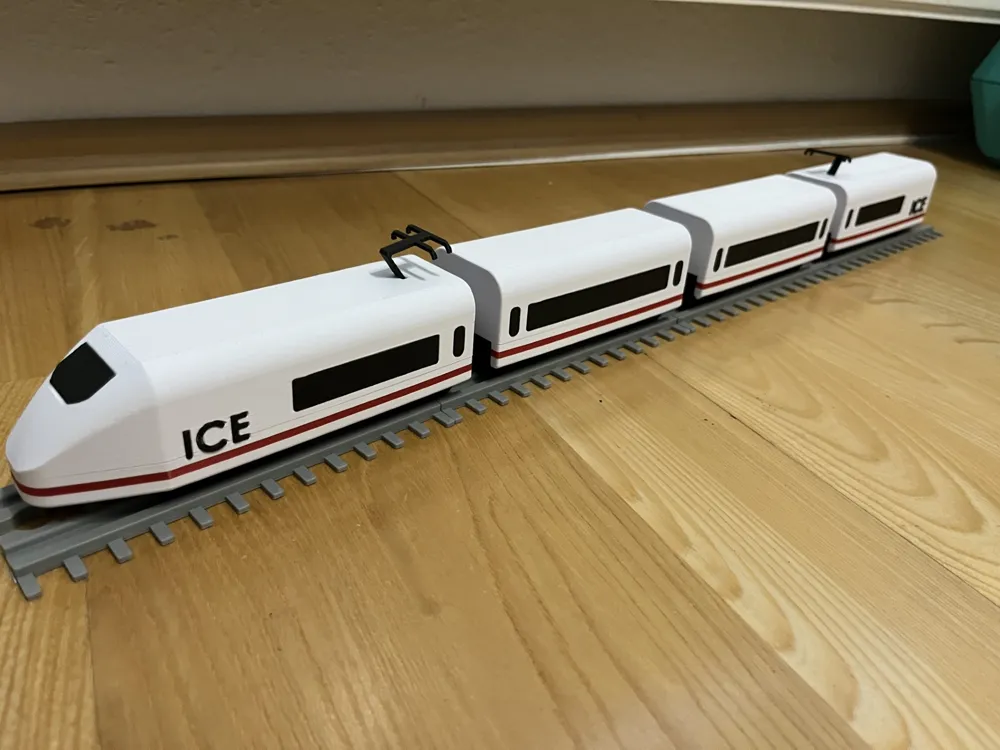

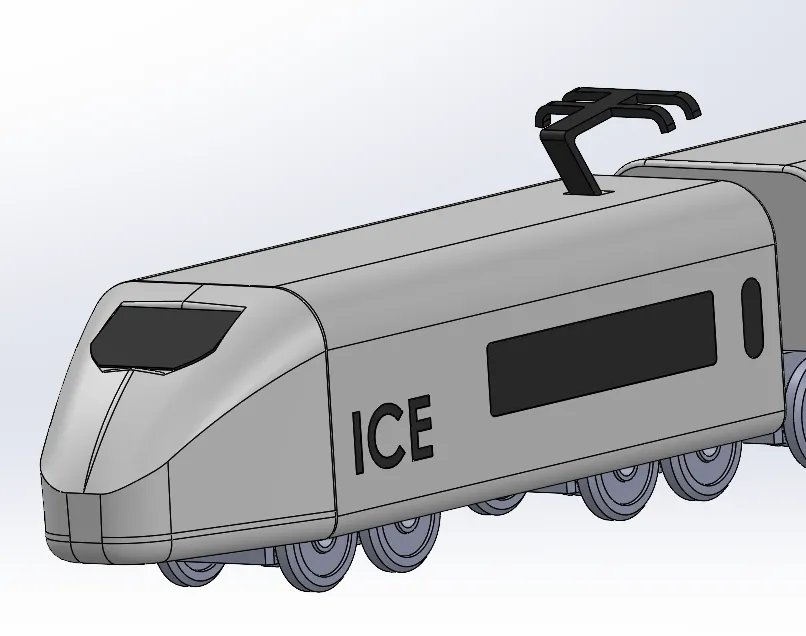

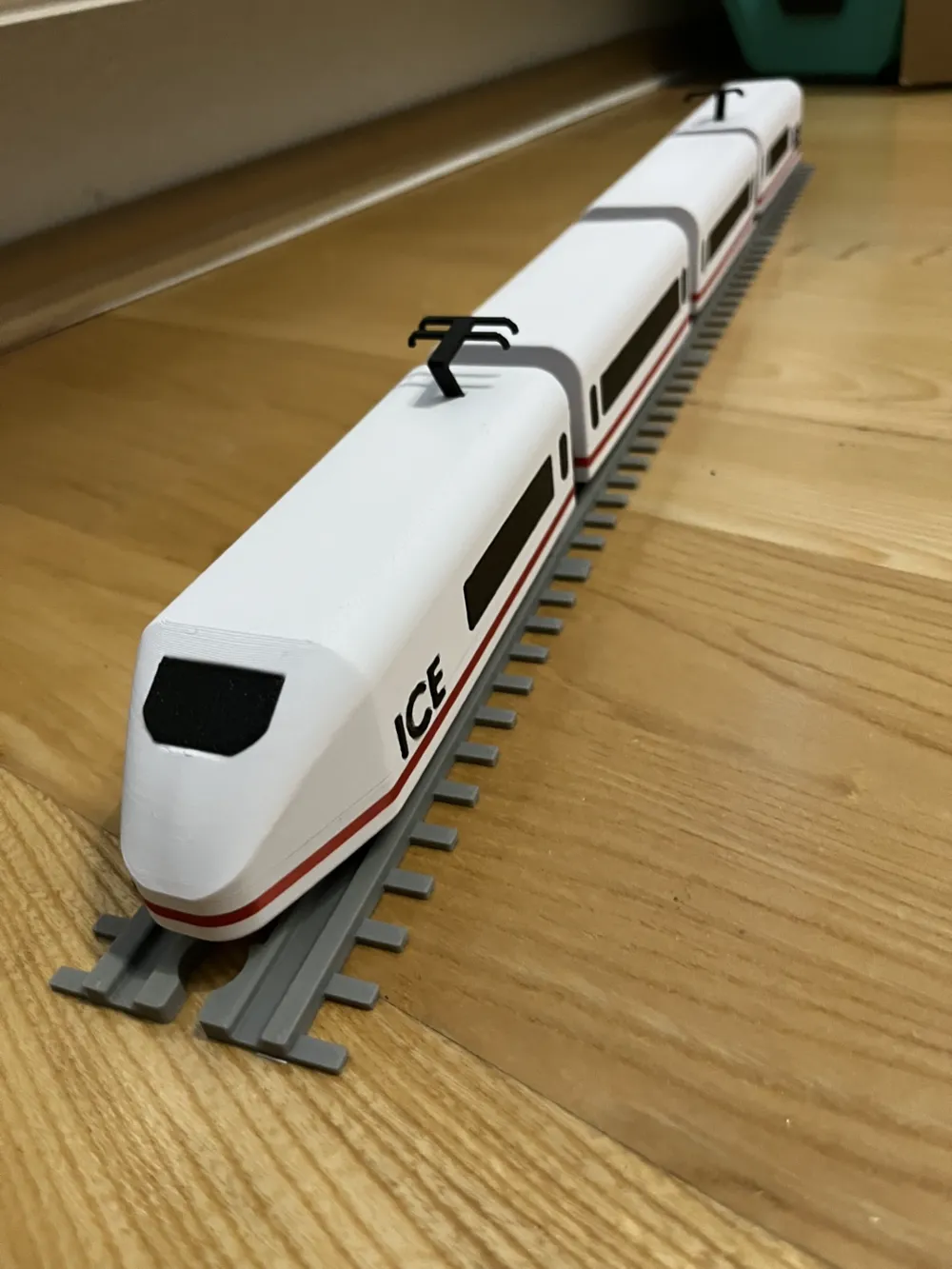

I have designed an InterCityExpress for a wooden toy railway (Brio/Eichhorn/Playtive/Playland/Lillabo).

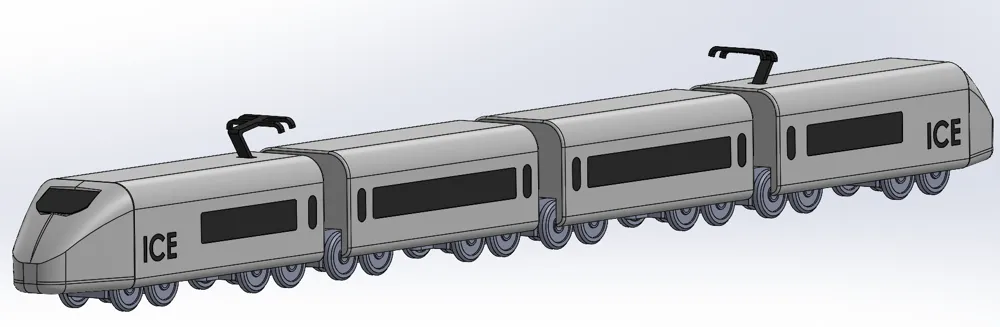

The ICE is modeled after the model series 2 of the high-speed train. The ICE can be expanded as desired and includes, in the smallest variant, two power cars and a passenger car.
The train can be arbitrarily extended with passenger cars or a BoardBistro.
Assembly instructions:
Undercarriage:
- Screw the wheels onto the chassis using M4x12mm countersunk screws
- Screw the chassis to the cars. The power car requires a chassis without couplers and one with couplers. Passenger cars or the BoardBistro require chassis with couplers. Ensure that the couplers are positioned correctly so that the cars can be coupled together.
- Glue the windows and lettering onto the trains; a small amount of super glue is sufficient.
- Glue the pantograph into the power cars.
Couple the train parts together and have fun with it
Thank you and enjoy the 3D model
Cheers
Screws:
M4x12mm countersunk head - for wheels
M4x18mm cylinder head - for connecting the chassis and upper part
Super glue:
Suggestion Pattex Ultra Gel Matic
