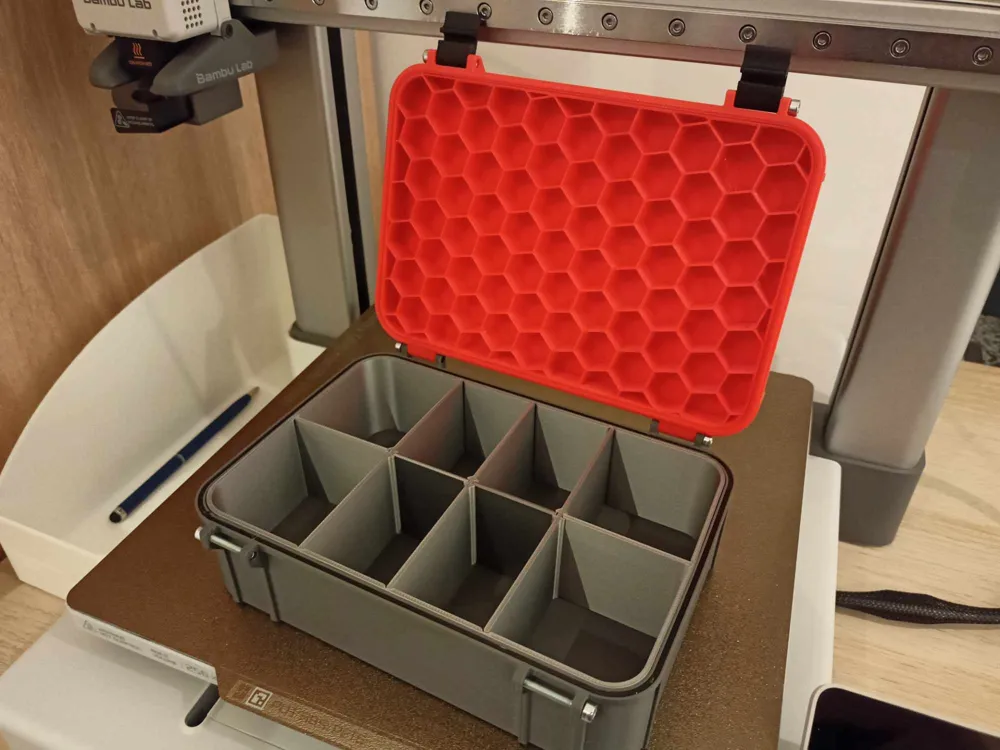

Modular Storage box 170x115x42mm
This modular storage box will keep all of your stuff safe and at their place.
You can download STEP files and change it to your needs.
Boost Me (for free)
If you like boxes and storage solutions You can Boost me to help me create more of designs like this
How to print it ?
Materials:
- TOP / BOTTOM / INSERTS → PLA|PETG|ABS etc (excluding TPU)
- Closing things → if possible carbon reinforced is recommended if not use PLA|PETG|ABS
- Seal → TPU (if you don't have TPU don't print it out of other material)
Model doesn't require any supports and everything should be snug fit.
How to use it with other boxes ?

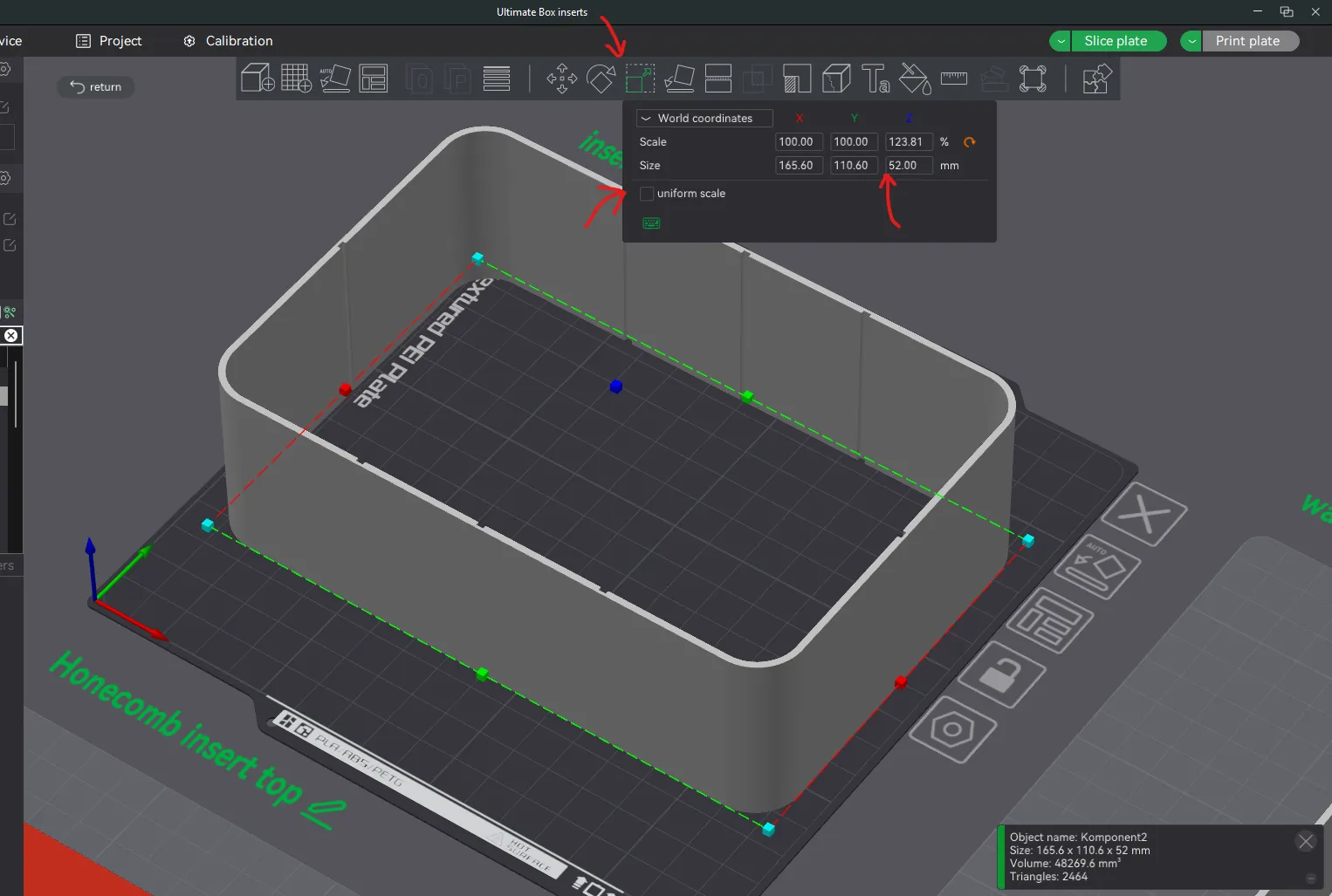

To use it with other boxes you just need to scale Z axis to match parameters of your bottom
for example for box 170x115x52mm scaled model looks like this:
Don't forget you need to scale walls and this insert !
How to set it up ?
To put everything together you will need 6x M3x20 screws and all the 3D printed parts (seal is optional)
Dont forget to share your results in comments 👌😊❤️
