A Plethora of Parametric Multiboard Hooks

If you're looking for a vast selection of easily printable pre-made hooks with tuned print profiles: Behold! My Plethora of Multiboard Hooks!

If you're here for Parametric Hooks that are fully customizable, continue reading!

Ever downloaded a plethora of hooks and found that you still just don't have the right hook for the job?  Fret no more!  I've taken most of the Plethora of Hooks profiles and made them parametric and customizable!  That's right, there are now INFINTY HOOKS!  I've also gone and added a semi-circular hook perfect for spray-cans, pop-cans, and other circular stuff (I don't make the rules - just the hooks).

Feel free to upload profiles of your best hooks!

YOU NO LONGER NEED FUSION!!!  MakerWorld has integrated parametric Fusion model customization and you can now customize these hooks directly on the website!

If you'd still rather work in Fusion (they have a free version for makers) then scroll down and follow the five steps below.

Current included hooks are:

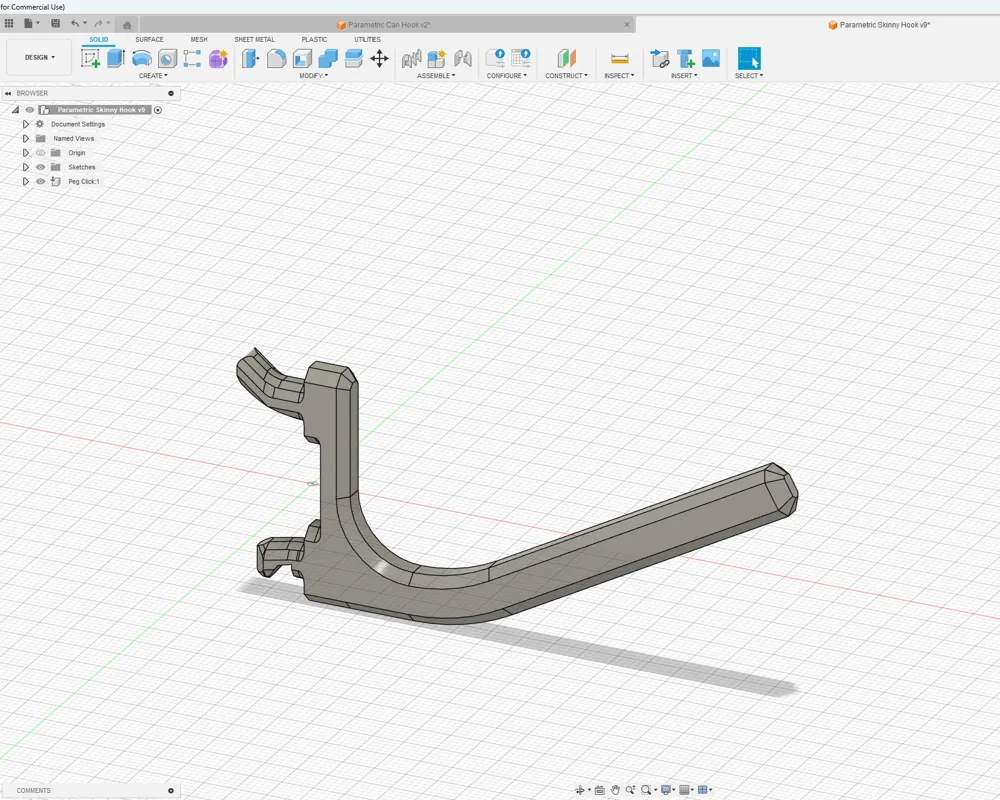

• Super Skinny Hook  -  Thinnest profile peg-back hook but still very strong when kept to a reasonable size.
• Skinny Hook  -  Medium profile for the peg-back hook.
• Long Hook  -  I guess it's not necessarily long any more but its the thicker profile from my long hook in the OG Plethora

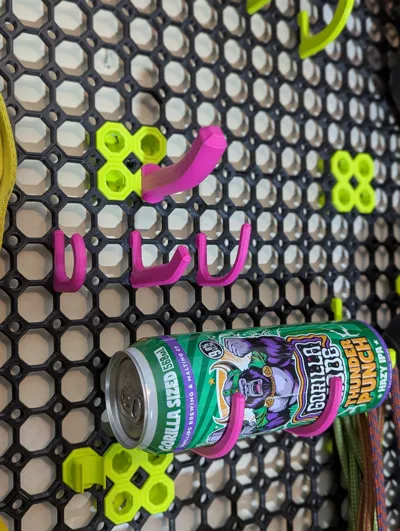

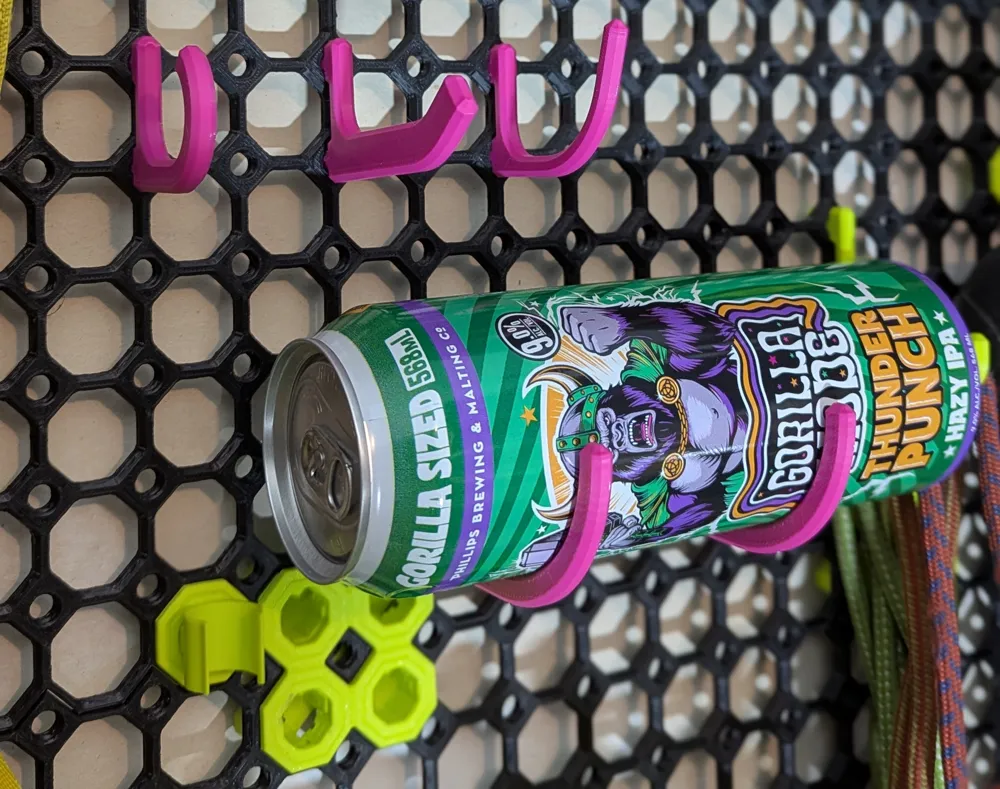

• Can Hook  -  Brand New for this collection.  Just enter the diameter of the can you'd like to store and the model does all the work for you.

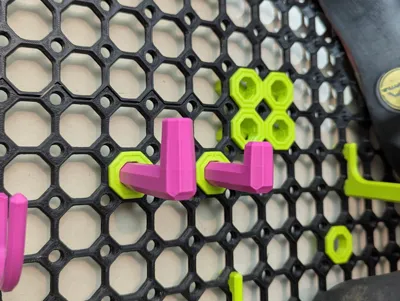

• L-Hook  - Makes a hook with a 90 degree turn.  Way more useful than it might sound.
• Press-Fit Hook  -  Makes a thicker hook that press-fits into snaps.  I'd suggest using Moderate Weightbearing Snap or the snaps that you used to mount the board.
• Bolt-Locked L-Peg  -  Is a peg a hook?  This is a bolt locked peg that has a 90 degree turn and can have a taper added to the vertical portion if desired.  You'll need Snaps and Multipoints for this one.

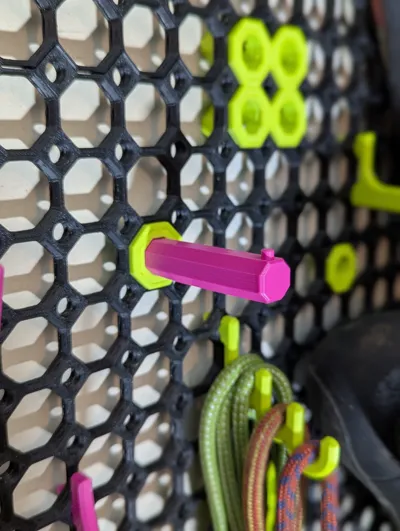

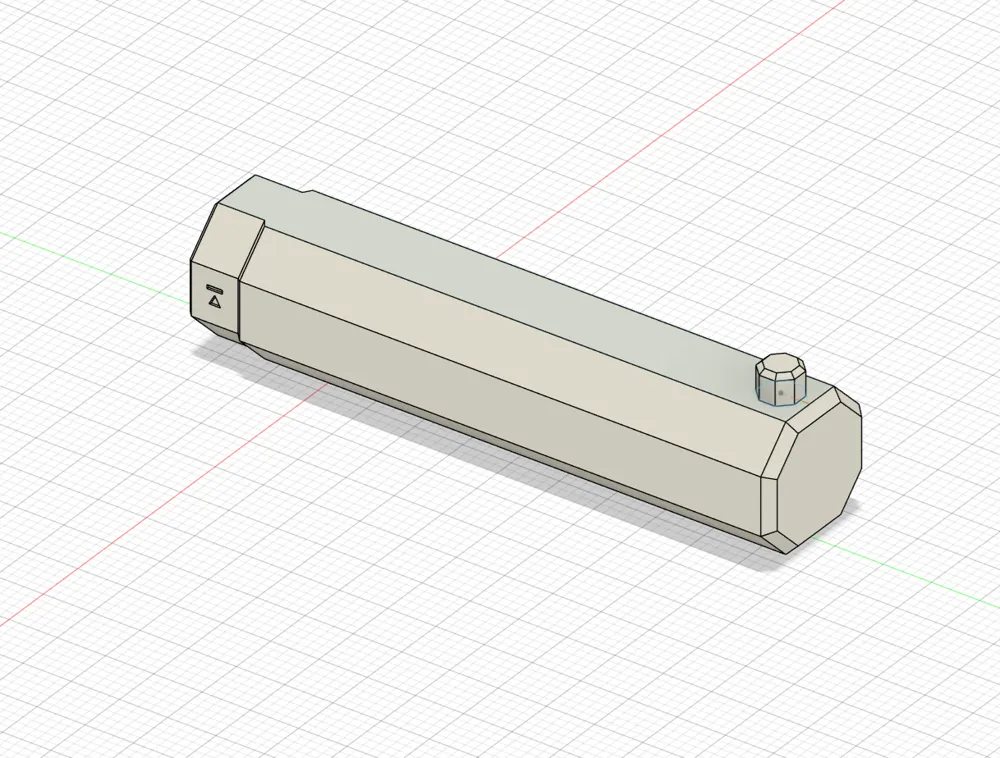

• Bolt-Locked Straight-Peg  -  Might not be a hook but its a straight version of the above peg that can have a small retaining peg added to the upper surface.  To remove it just select “-1” for the "length2" parameter and then ignore the chamfer warning.  You'll need Snaps and Multipoints for this one.

Multiboard is a fantastic peg-board style system with a thriving remix community.  Learn more at the website and read the licence here.

FUSION INSTRUCTIONS:  (Some of this may still be useful when working on MakerWorld's Customize Tool)

To adjust the size of the hook:

1.  Download and open the .F3D file in Fusion.
2.  On the Solid Body editing tab select the “MODIFY” drop down menu and then “Change Parameters” as shown below.
3.  Within the "Parameters menu you can adjust the length of the two bars that form the hook.  You'll be able to see your changes in real time.
4.  On the file menu, select “EXPORT”.  Choose an export location and file type (STL, STEP, 3mf are all fine) and then click export.
5. Load the file into your slicer software / BambuStudio and print your hooks!

Step 1 - Below print profiles select: "Download CAD Files" and choose model or “Download All”

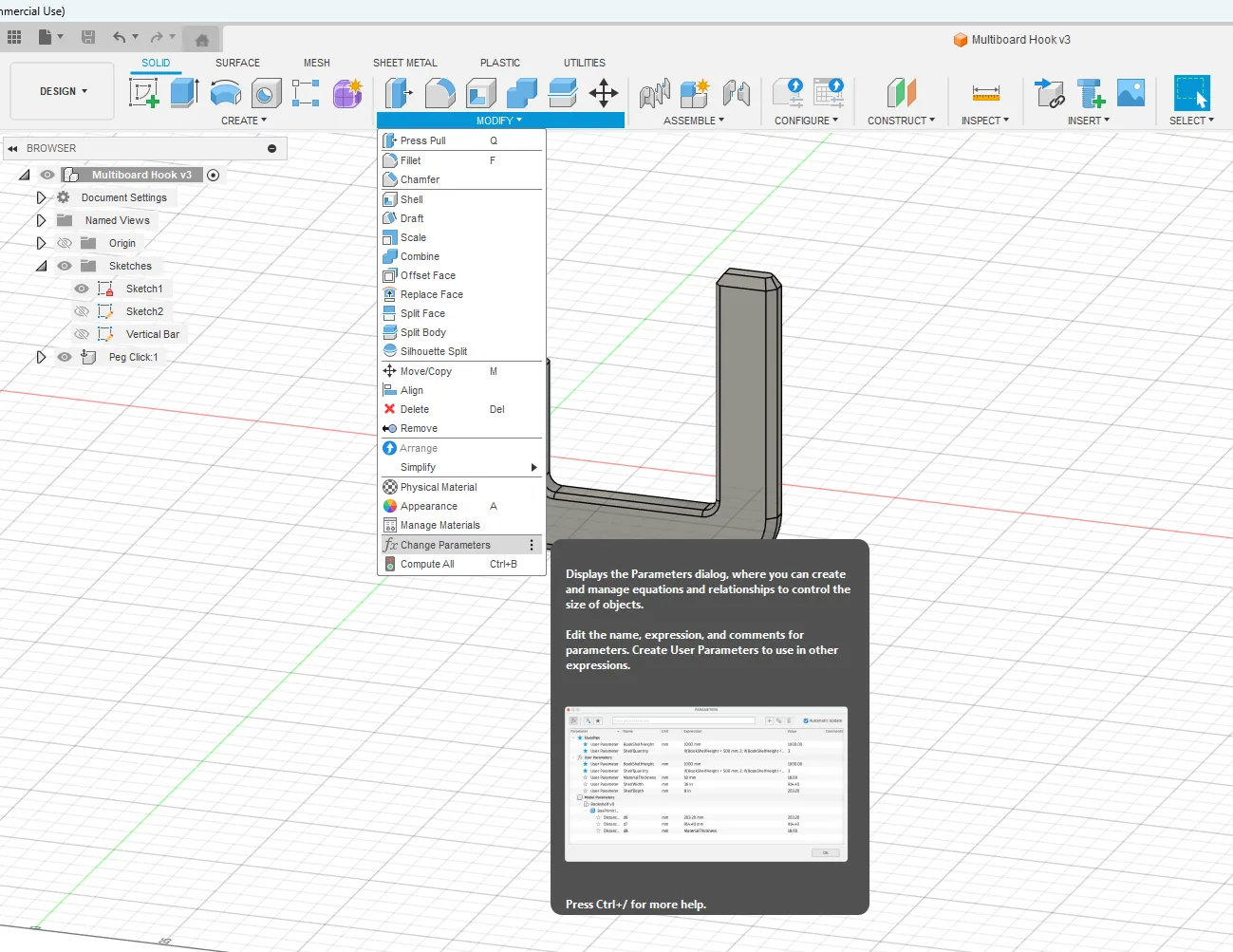

Step 2 - “Modify” > “Change Parameters”

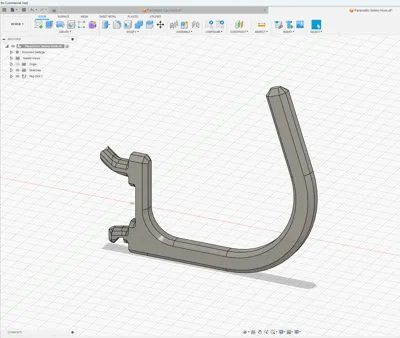

Step 3 - Adjust your parameters and check the results

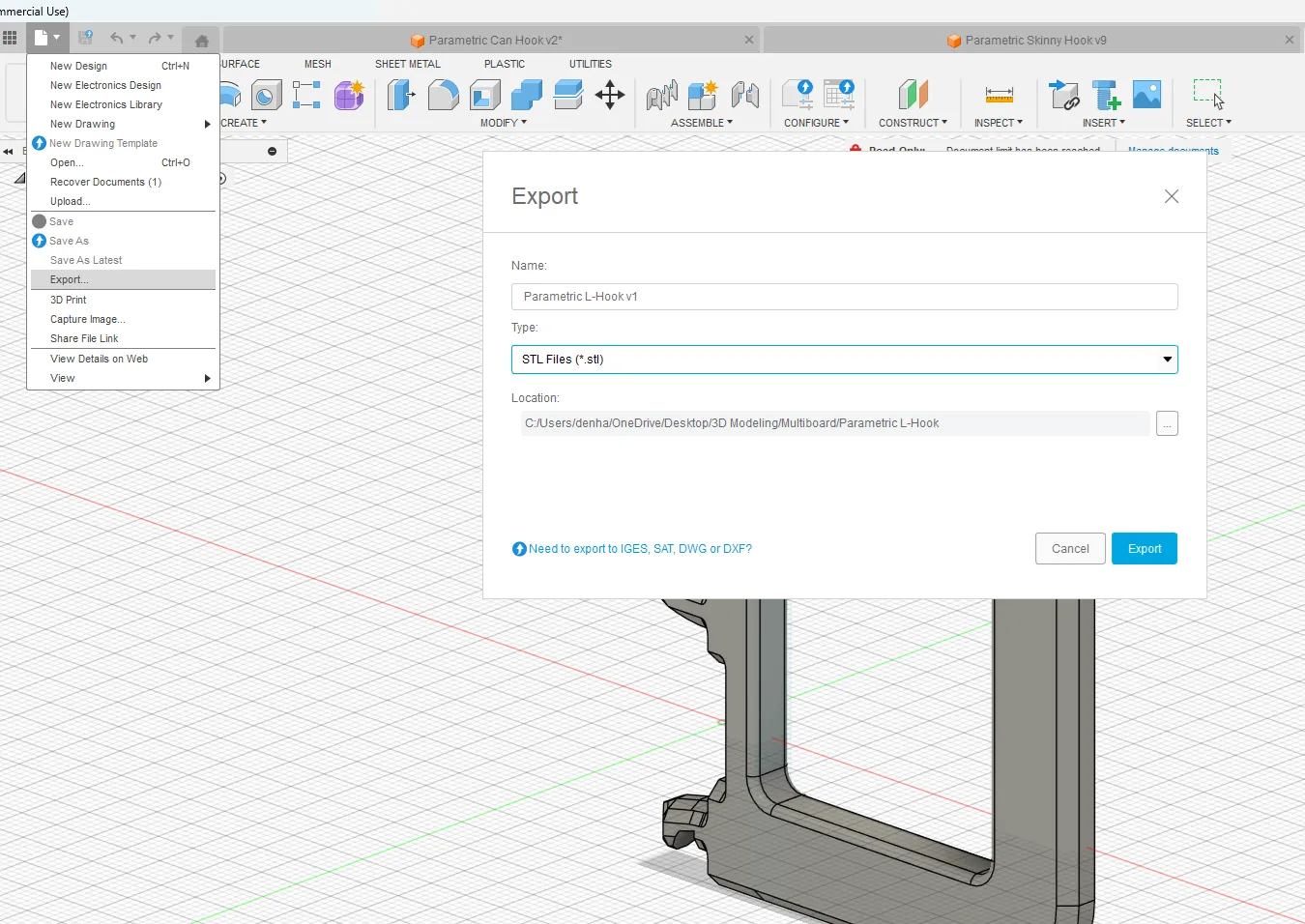

Step 4 - “Export”
