3DPrototech

cosmetic cotton pads

cover

Build Plate CLeaner_(1).png


WhatsApp Bild 2025-01-29 um 18.19.32_cb881bc1.jpg

Build Plate CLeaner.png




Multicolor with logo and adaptive layers for smoother top


single color, fast print

M3Dattsson



<ul style="list-style-type: disc"><li>0,2 mm lagerhöjd</li><li>4 väggar, 15% gyroidfyllning</li><li>Inga stöd</li><li>Ingen AMS</li></ul>

<ul style="list-style-type: disc"><li>0.2mm layer height</li><li>4 walls, 15% gyroid infill</li><li>No supports</li><li>No AMS</li></ul>

0.2mm layer, 4 walls, 15% infill

ThePrinterPrinted

Build Plate Cleaner-P1S.jpg

Slowed down first layer for better adhesion0.2mm layer, 2 walls, 5% gyroid infill

Two Color

MuuSer

Modified Build Plate Cleaner.jpg

Since the original wiper edge is very low, I added 1.4 millimeters of height in Bambu Studio to the middle part to raise the edge a little higher for better prevent scratching the print bed.

1.4 mm raised midhub - 0.2mm layer, 2 walls, 15% infill

ThreeDimensionalThings



A small tray to hold the cleaner.10% Rectilinear infill.

Tray to keep the cleaner in.

Slowed down initial layer for better adhesion0.2mm layer, 2 walls, 5% gyroid infill

2 Color (A1 Mini)


Exactly fitting the IKEA Skadis grid and allowing the cotton pad to dry after cleaning. <img class="image_resized" style="width: 12.77%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-02-09_86aab36082d1.jpg" width="4032" height="3024"> <img class="image_resized" style="width: 12.91%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-02-09_46c9c5e0fd449.jpg" width="4032" height="3024"> The entire description can be found <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1089556#profileId-1082773">here</a>

Holder for IKEA Skadis

LT Dan

Screenshot 2025-04-02 073537.png

Revised to print slower at 0.12 layer height and PETG. Also added the Bambu logo.

0.12mm, Bambu logo (PETG)

Minniprof

Skadis Halter Wattepad.PNG


Skadis Cotton Pad Holder

3DNexus



Here is a simple 2 x 2 x 3 gridfinity tray to neatly store the bed cleaner<ul><li>PLA</li><li>0.2mm Layer height</li><li>2 Walls</li><li>10% Gyroid infill </li></ul>Printed on an A1 Mini

Gridfinity Tray




Skadis Halter

GFPIYA


Original design with cavity for a 20x4mm magnet to be embedded during the print.  (Pic with magnet on top is to show size, actual print will not have a visible magnet)&nbsp;Check the slice to ensure there is a pause at 41.80mm height.  When print is paused, insert magnet and then resume the print to finish the final 3 layers.  Watch the final 3 layers in case the magnet grabs onto the tool head as it passes over and pause/stop the print if necessary.&nbsp;*IMPORTANT* DO NOT USE A HARDENED STEEL NOZZLE AS IT WILL LIKELY PULL THE MAGNET OUT OF THE PRINT AS IT PASSES OVER.

{For Deke] embedded 20x4 magnet with pause

Dracorex


Will work with reusable cotton rounds approximately 81mm in diameter.0.2mm layer, 2 walls, 15% infillCotton Rounds used - https://a.co/d/3jPrgAp

Scaled for Reusable Cotton Rounds

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

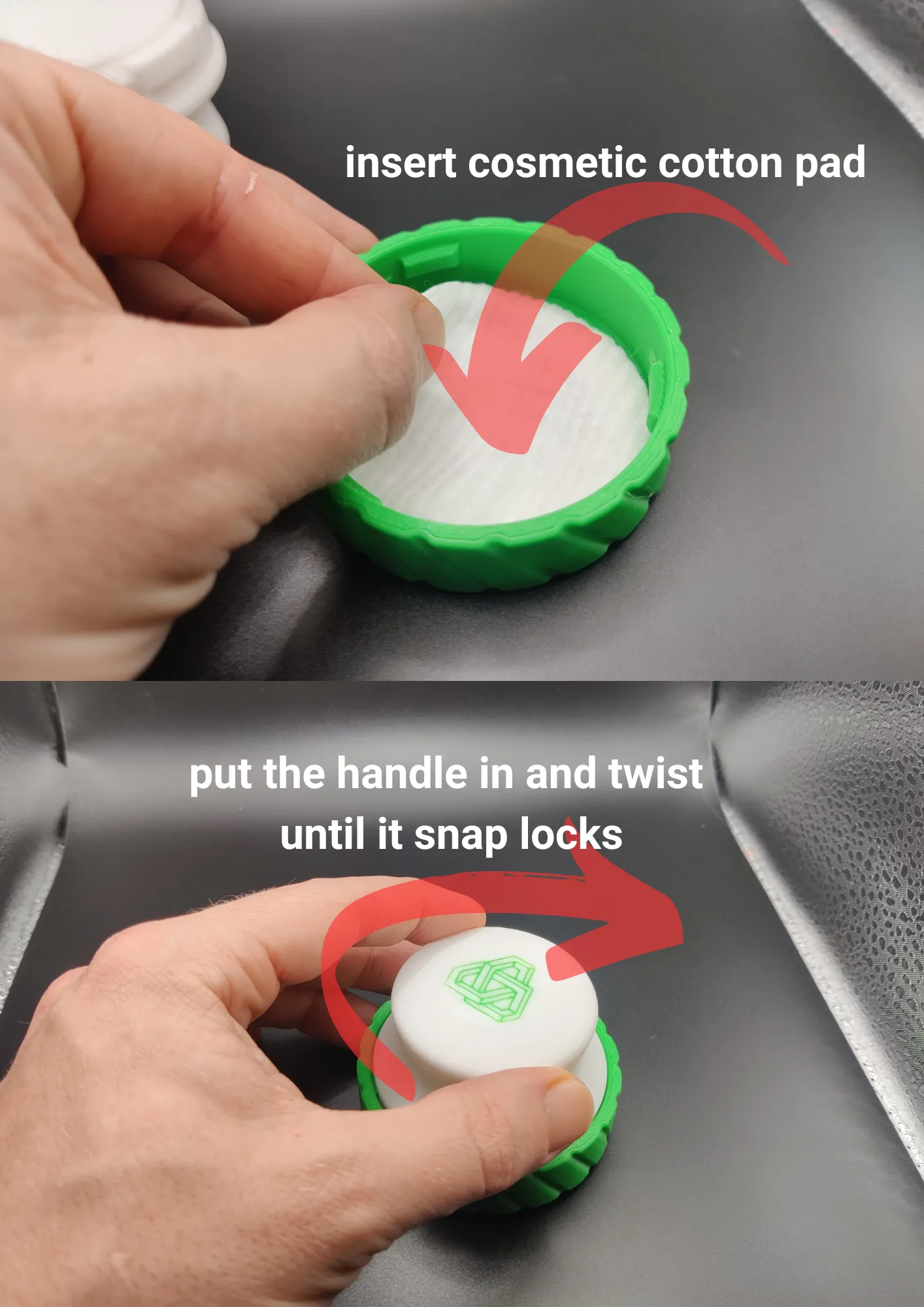

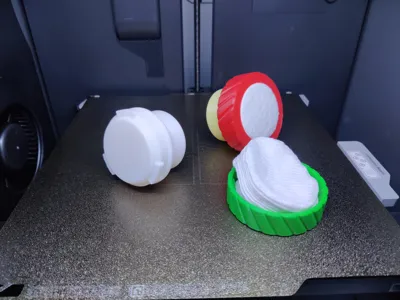

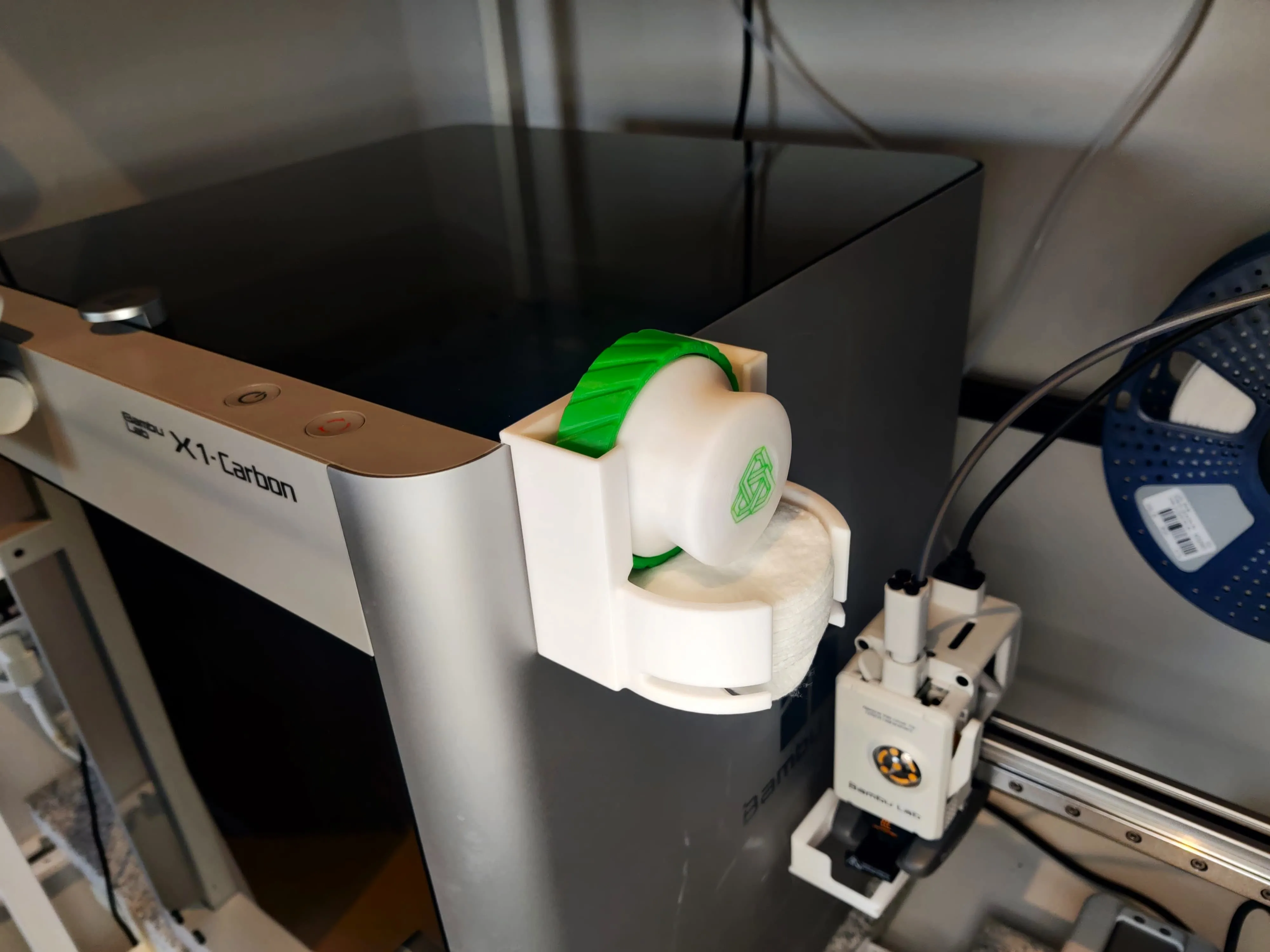

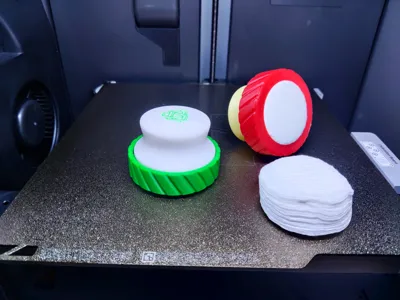

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Leave me a boost if you like it!</boostcontent></boostme><a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1332807-v2-0-build-plate-cleaner-cosmetic-cotton-pads#profileId-1371485">Updated Version available!</a>  <figure class="image image_resized" style="width: 30.83%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-04-18_aa5990991446a.png"></figure>&nbsp;&nbsp;Tired of using toilet paper or linting cloths? This build plate cleaner uses disposable cosmetic cotton pads you can find at any store! Simple two part design. No need to cut cloth or tedious assembly, just drop in a cotton pad and twist it until it snaps shut.Spray a bit of IPA on your build plate and wipe it with the cleaner. For 55-60 mm cotton pads (can be scaled within reason) Please use quality PLA and calibrate your extrusion for a nice snap. <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1065336#profileId-1054291">Check out the holder:</a><figure class="image image_resized" style="width: 35.77%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-02-02_86ed3b56e9b408.jpg"></figure> <figure class="image image_resized" style="width: 35.69%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-01-29_01538ea90dfa4.png"></figure> <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/collections/4672152">Check out my coffe clips with the same snap lock design</a><figure class="image image_resized" style="width: 13.92%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001052329/design/2025-01-29_f1fca4e7f2ffc.jpg"></figure>

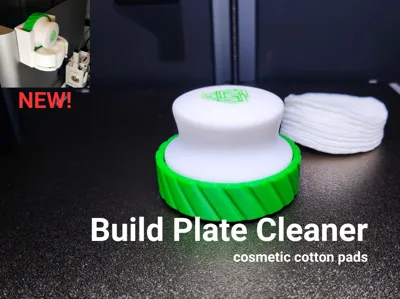

Build Plate Cleaner (cosmetic cotton pads)
