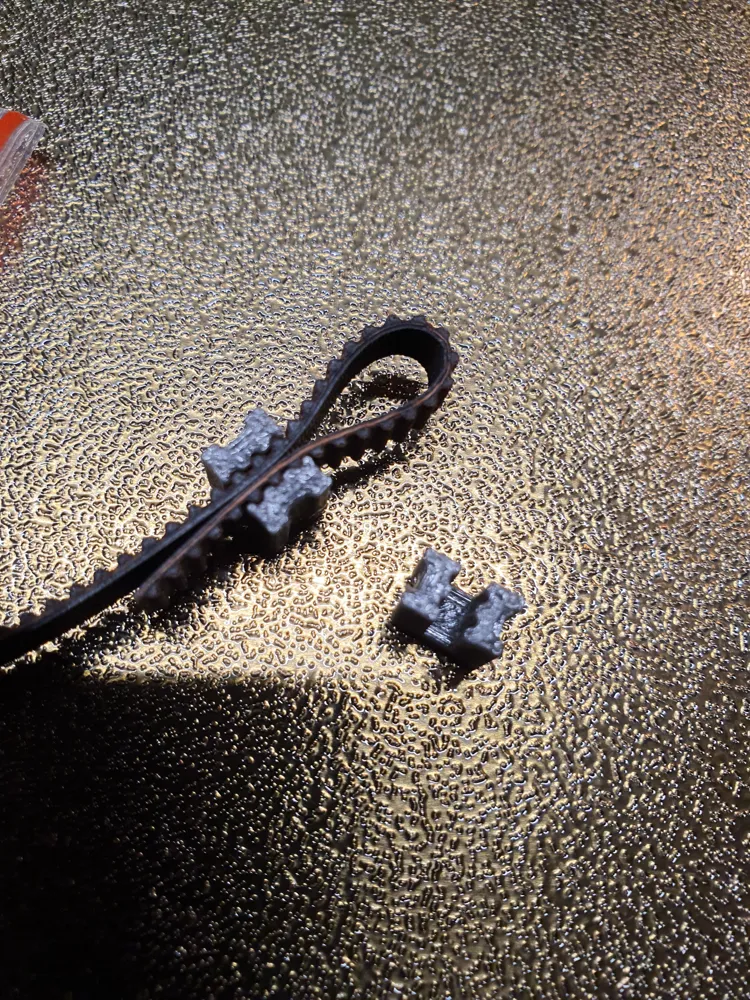

Belt clip gt2 in short and long version.
Requires a zip tie width of max. 2.5mm.
The clip teeth have the original gt2 profile.

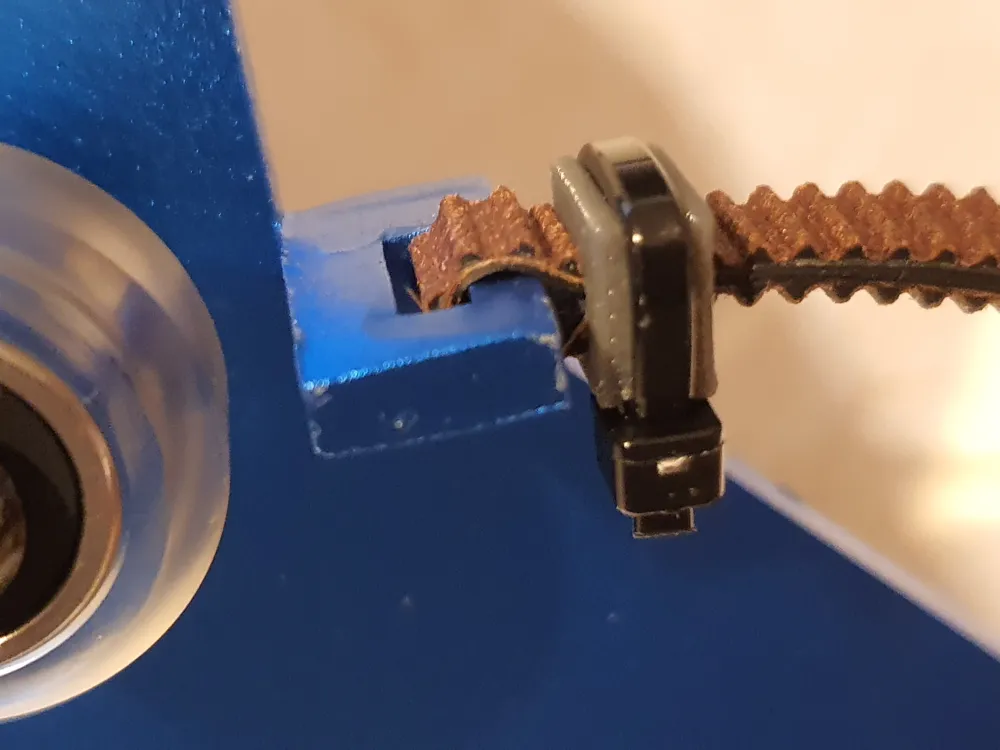

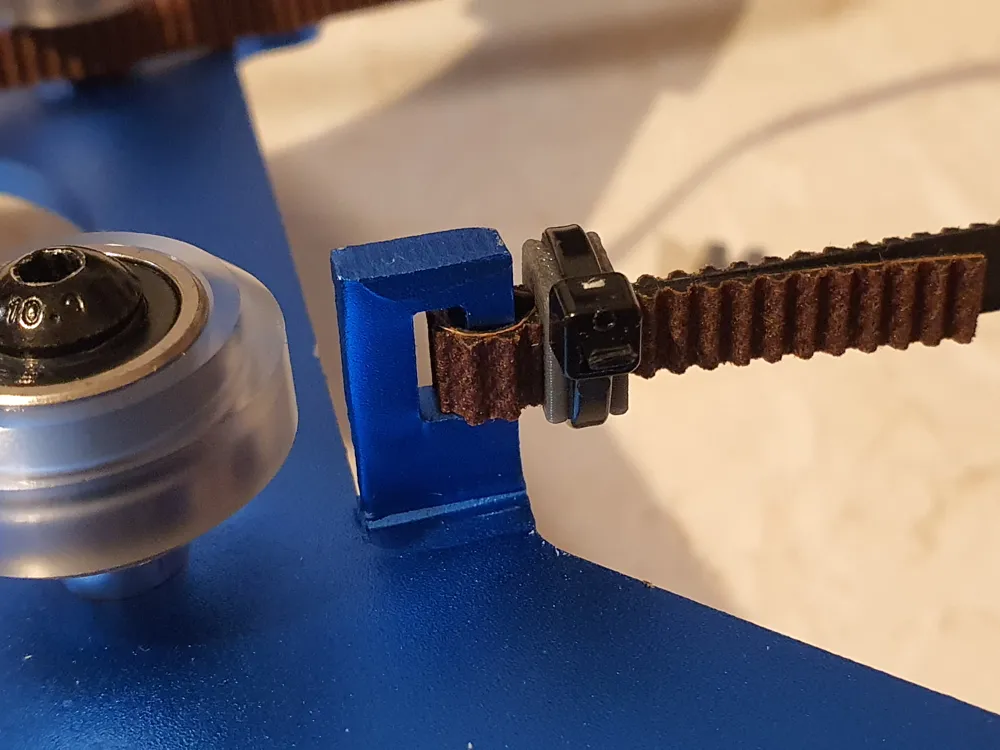

I designed the clip for the Y-axis and X-axis of my Artillery Sidewinder X2 printer but it may also apply to other printers.

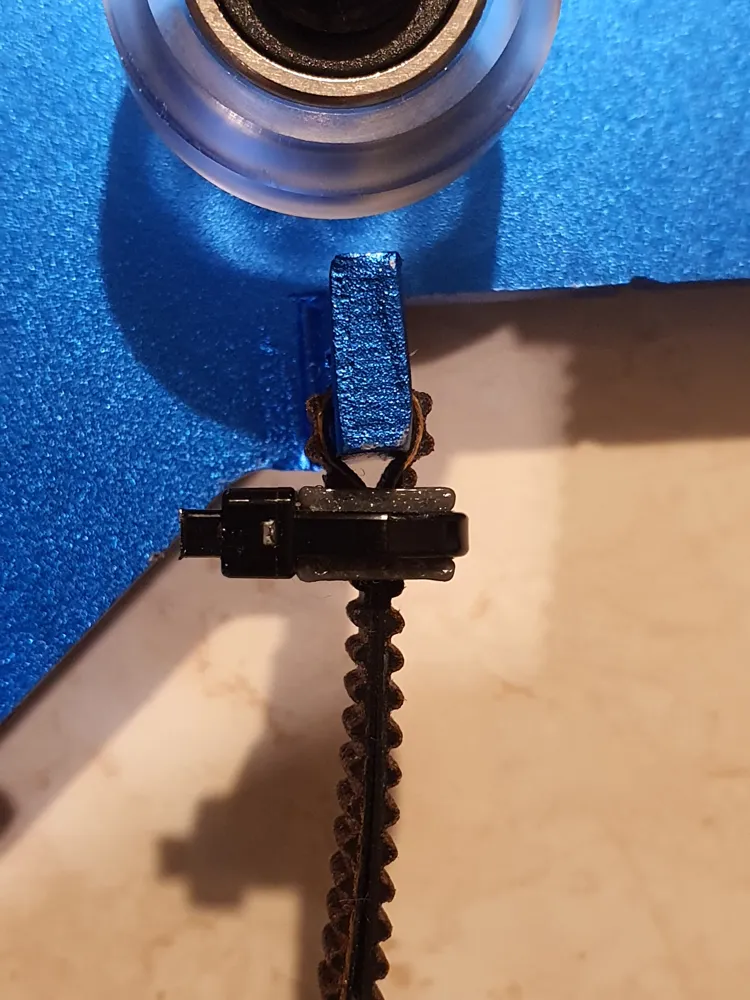

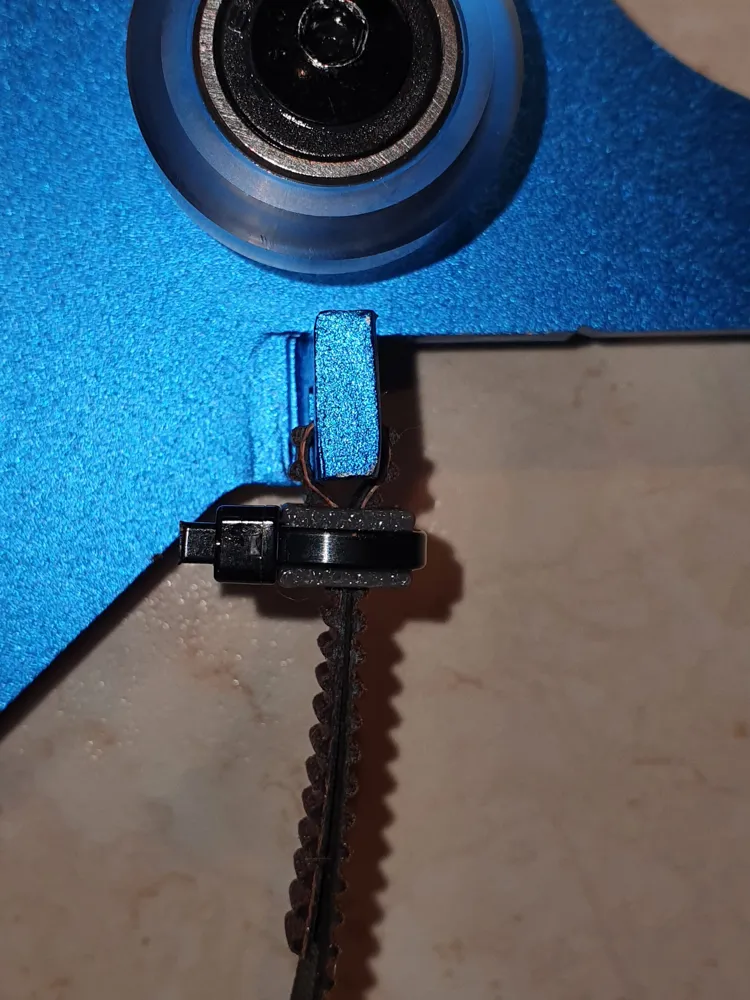

On the Y-axis I use the narrow version with 2 teeth, on the X-axis I use the wider version with 3 teeth.
The clip does not damage the gt2 belt.

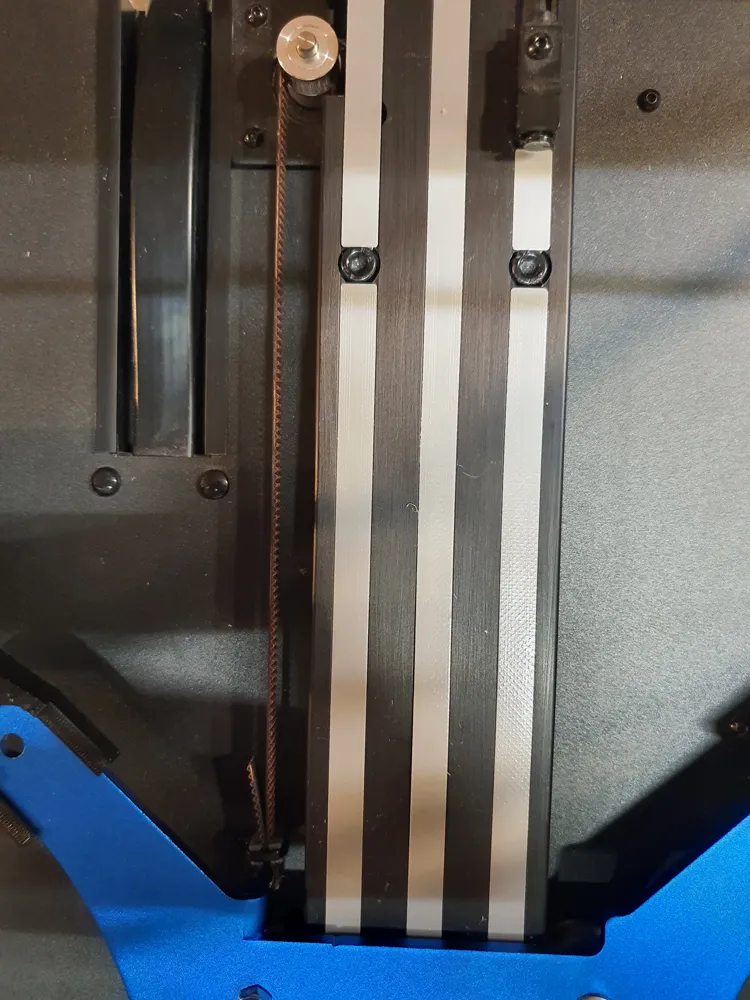

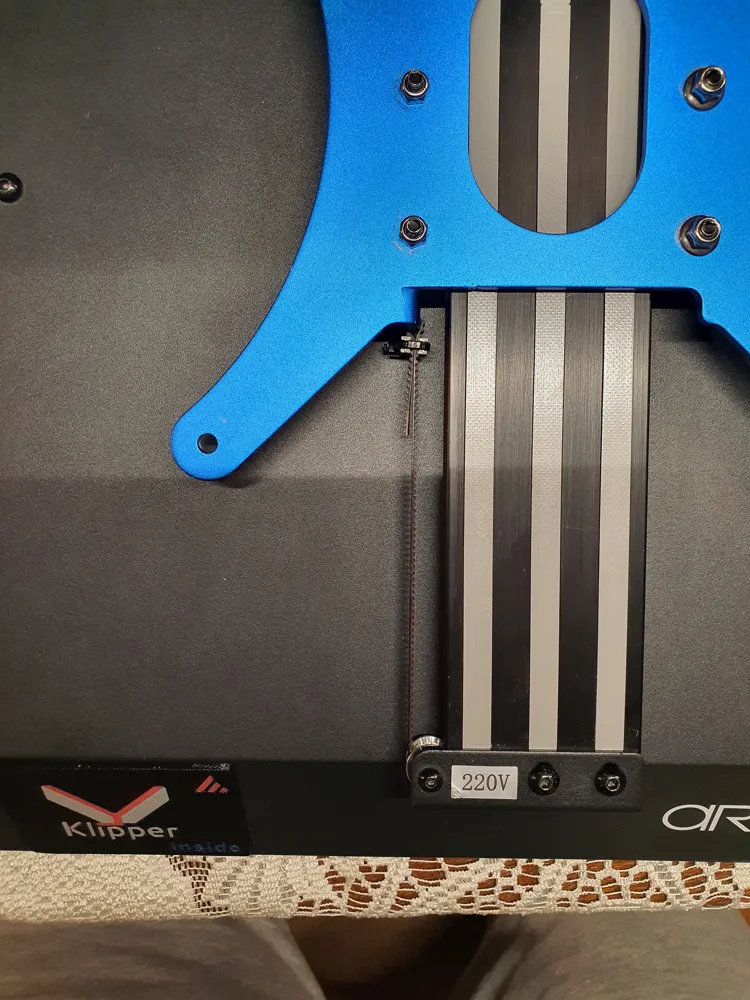

When fitted to the sidewinder x2, it improves the parallelism of the GT2 belt alignment between the drive gears.
I printed with PETG or ABS(PLA not recommended)
nozzle 0.4
layer 0.12-0.2
CONCLUSION
👍👍👍If you enjoyed the project please like it.👍👍👍
If anyone has any comments about them - I'd be happy to listen and improve the models.
