Tool Creeper
Print Profile(1)
Description

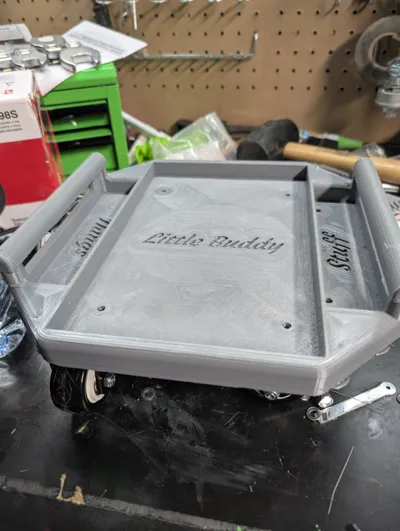

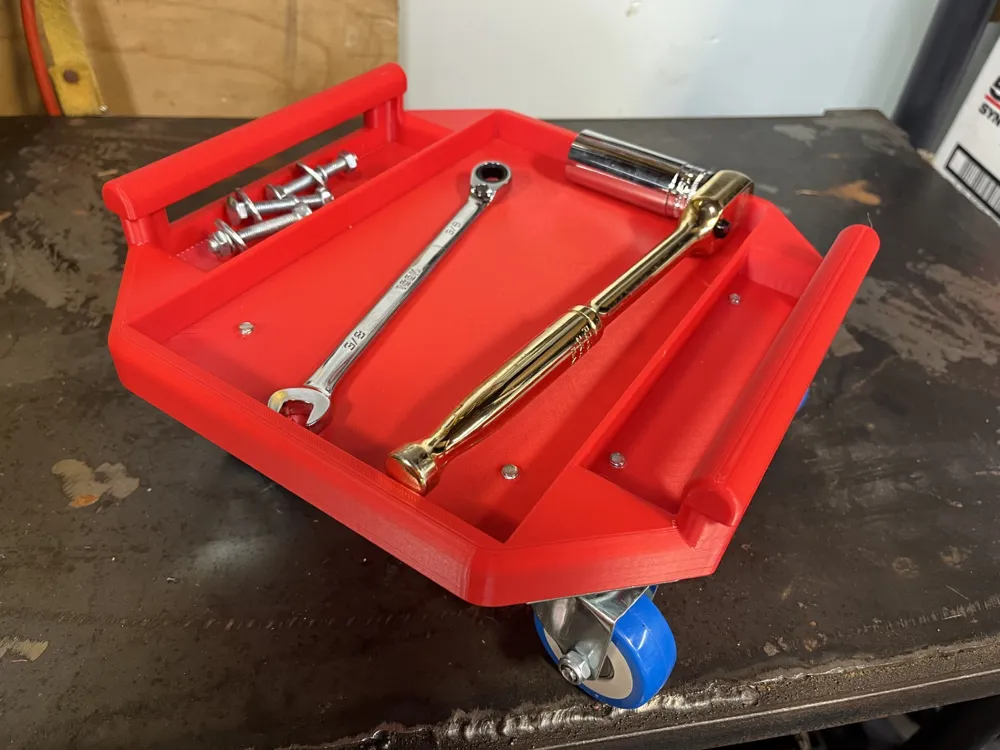

Tool creeper for holding tools, fasteners, parts, etc. while working under your vehicle. It has a main center tray for tools and larger things like oil filters, and it has a smaller tray on each side for smaller things like nuts/bolts, sockets, etc. It is designed to attach casters(linked below) with 4 M6 screws per caster. The M6 screws I used are 8mm in length, be sure not to use a screw longer than 10mm in length or it will bottom out on the outside holes and could potentially damage your print. Be sure not to run them down too tight. Just snug is all you need.
A clean bed is a must. This is definitely a good test of your bed adhesion. I maxed out the print bed to make the largest size creeper possible to fit more tools onto it. You will need to set your support style to snug or the supports will go beyond the build plate. Normal supports work best.
The model is designed to work with 2 inch, non brake swivel casters found here: https://www.amazon.com/gp/product/B01HN0IA1U?ie=UTF8&th=1
Settings: 3 walls, 15% infill, snug supports
