GBA SP Pi Battery Expansion
IP Report
Print Profile(1)
0.08mm, 100% infill
Designer
55 min
1 plate
Open in Bambu Studio
Boost
11
18
2
1
10
3
Released
Description

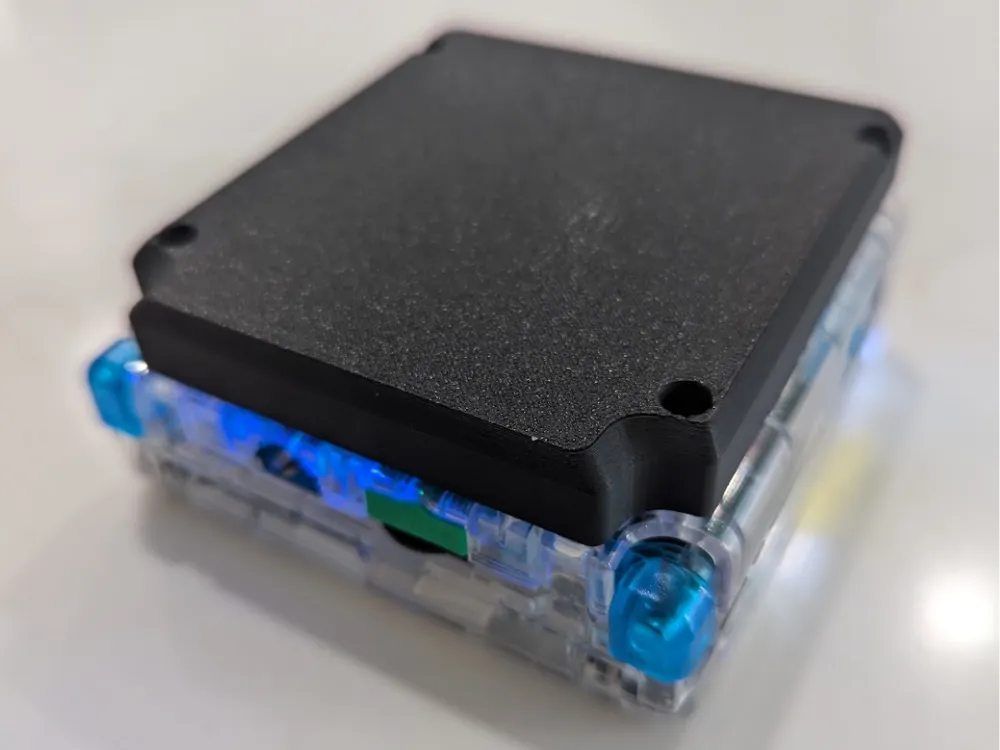

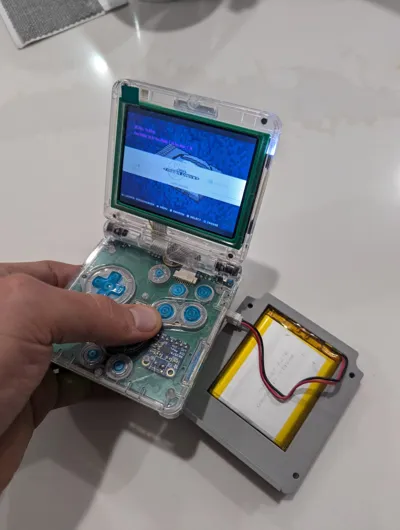

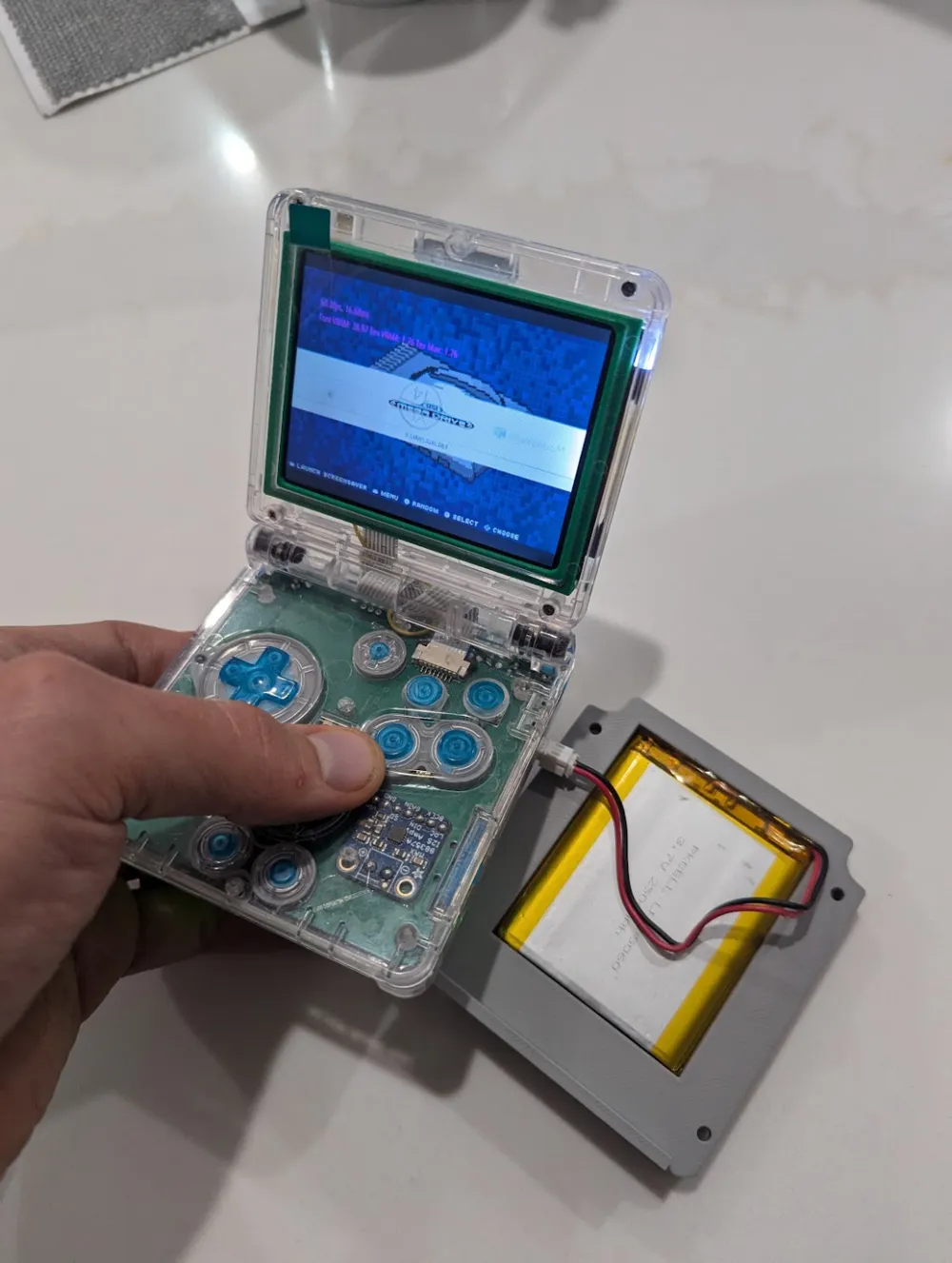

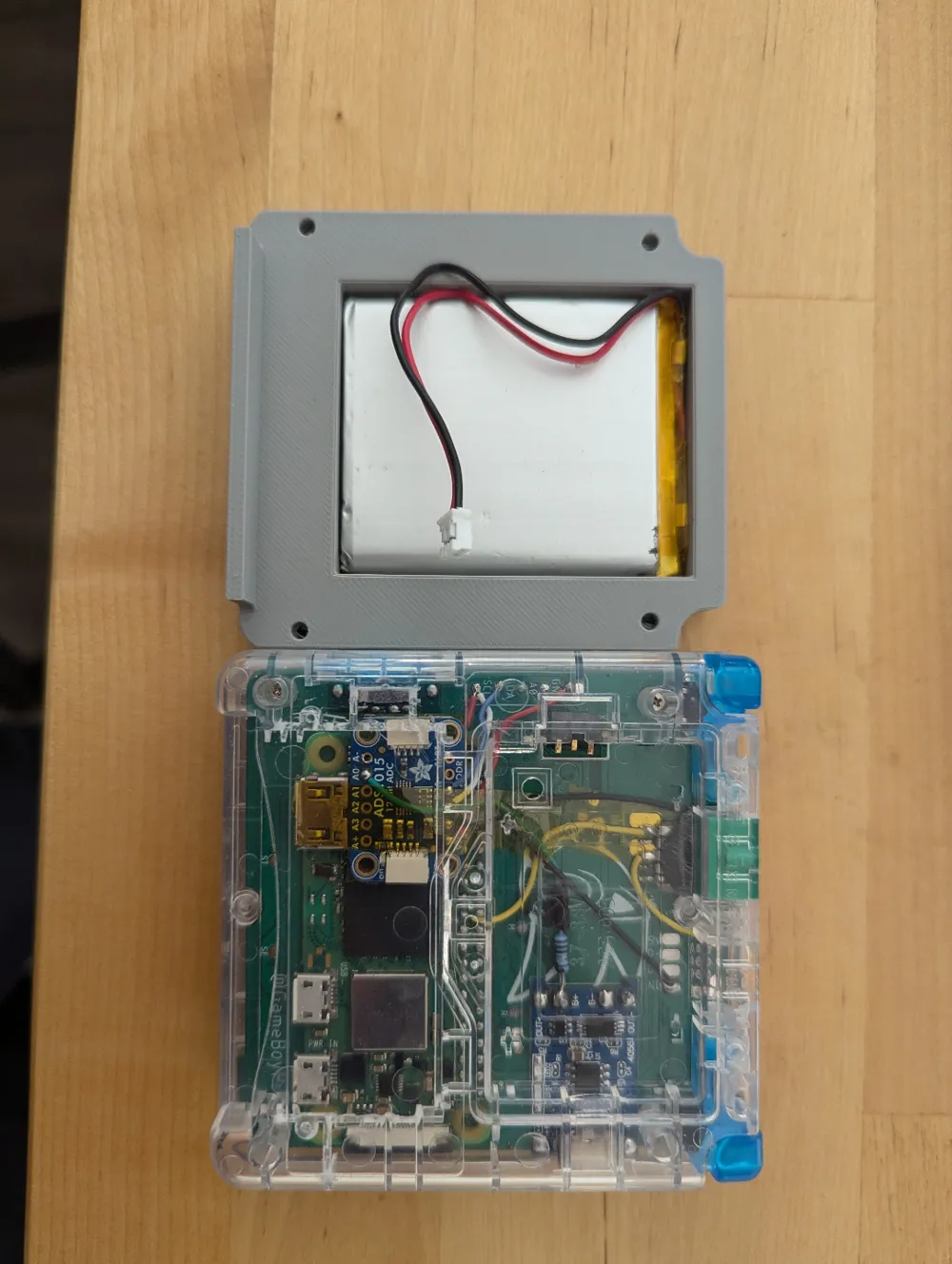

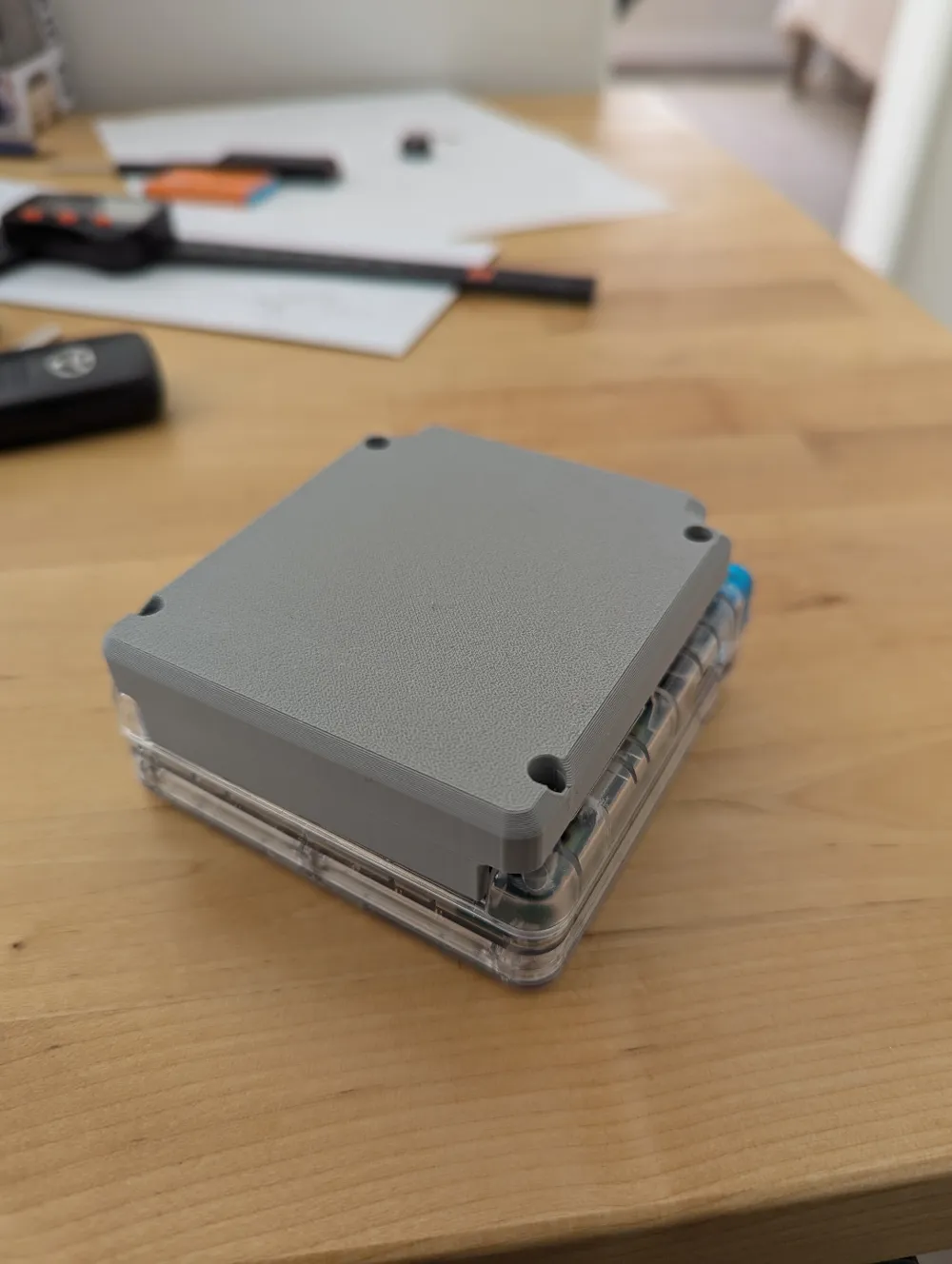

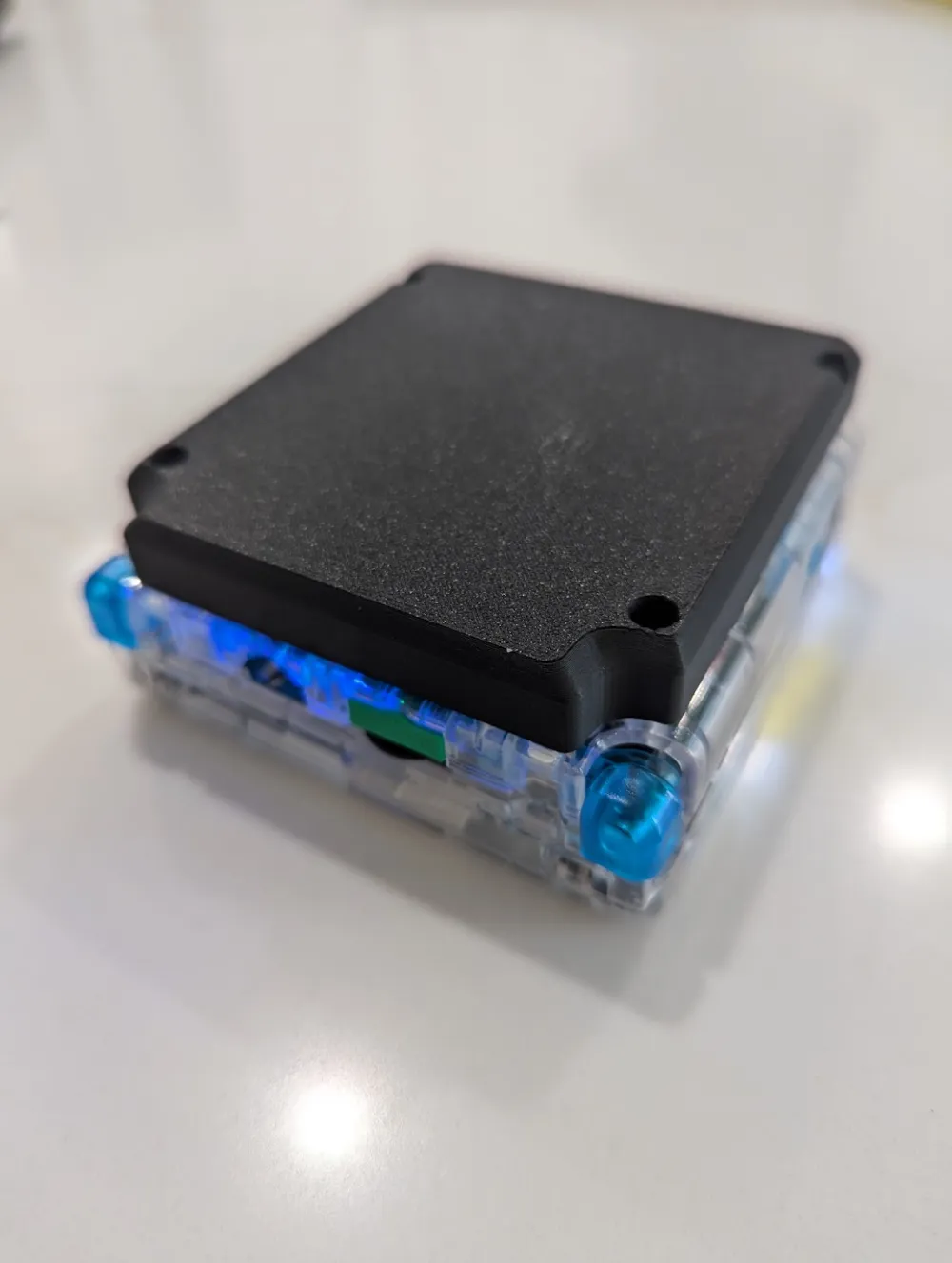

I built a handheld using a Pi Zero 2W in a GBA SP shell. The standard GBA SP sized battery(800mah) I was using had pretty bad battery life, so I added a rear expansion to accommodate a 2500mAh LiPo battery. It does increase the thickness but I think it improves the overall ergonomics. My battery dimensions are 7.5mm,50mm,60mm but there is definitely room in the model to make that bigger.
Photos of my build
https://photos.app.goo.gl/ApU66M8uM8Tntj6r8
This project based on the GBA SPW Pi project:
https://github.com/Gameboypi/SPW
Modeled over 3D scans provided by Wesk:
https://bitbuilt.net/forums/index.php?threads/gba-sp-shell-scan.4769/
I used these screws
https://www.amazon.com/dp/B07YFN634C?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
