Small Cutter

Descripción

• Design Overview:

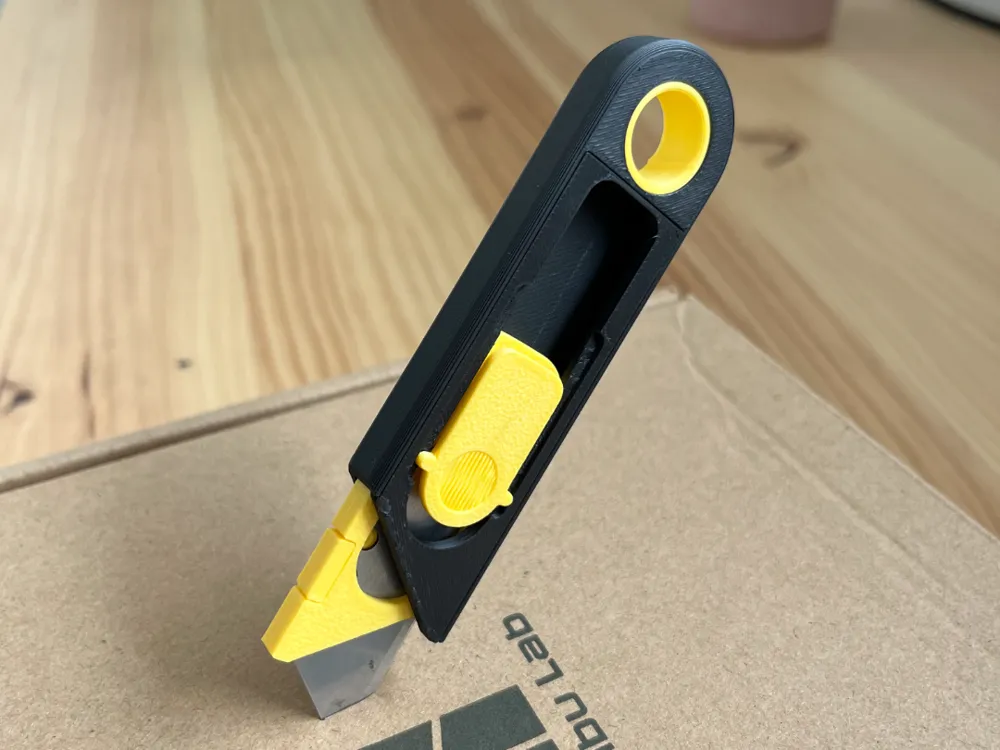

  This is a compact slider cutter, measuring less than 10 cm. It is highly practical for opening cardboard boxes and filament protective films with ease.

• Assembly Instructions:
  No glue is required for assembly. Simply follow these steps:

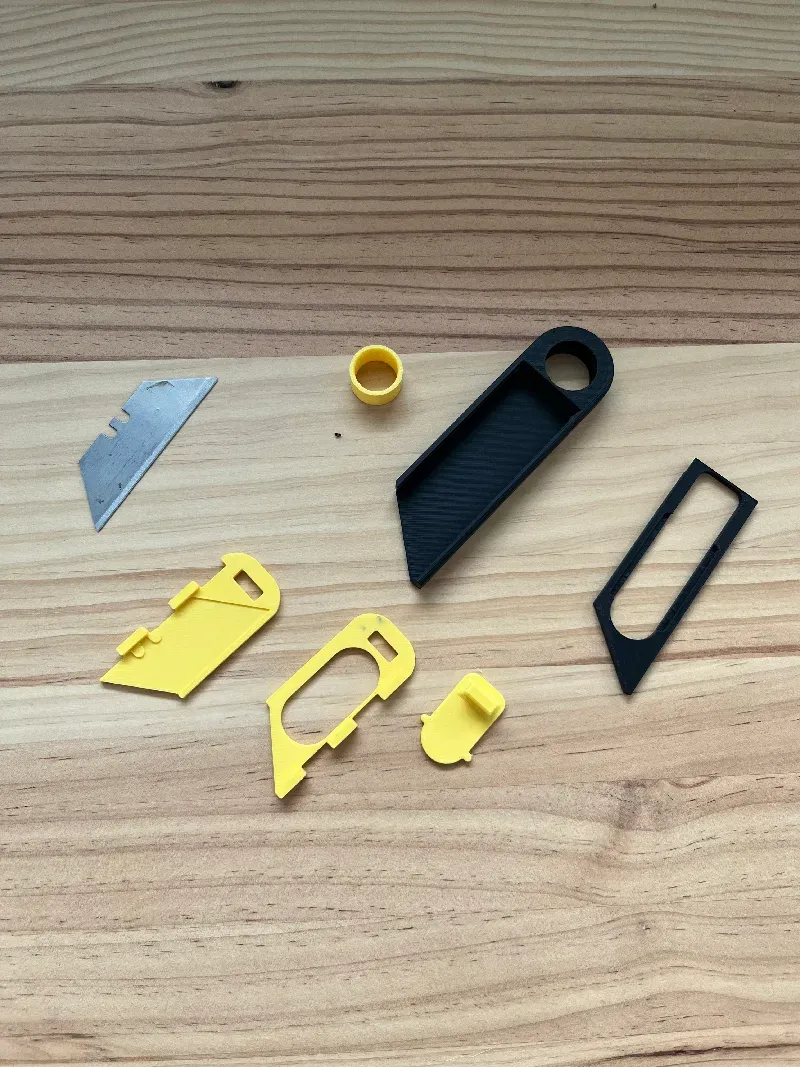

1. Print all the required parts.
2. Purchase a compatible knife blade (link provided below)

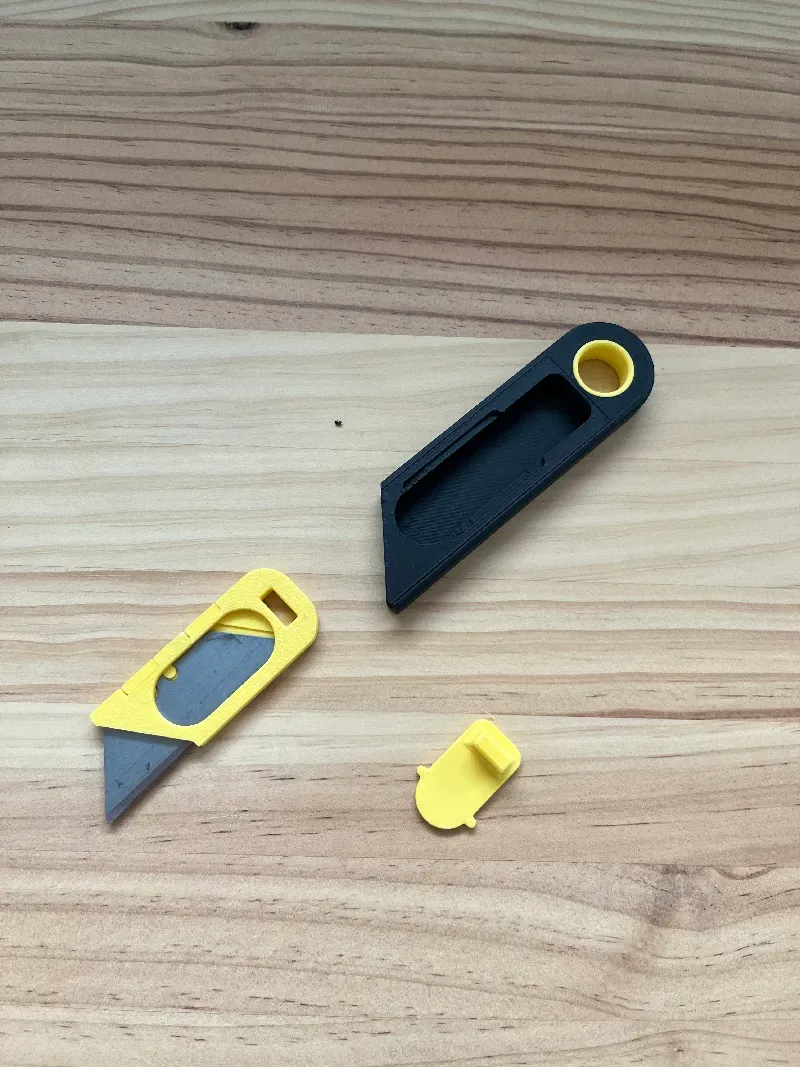

3. Put the decorative ring into the hole and the knife blade over the slider:

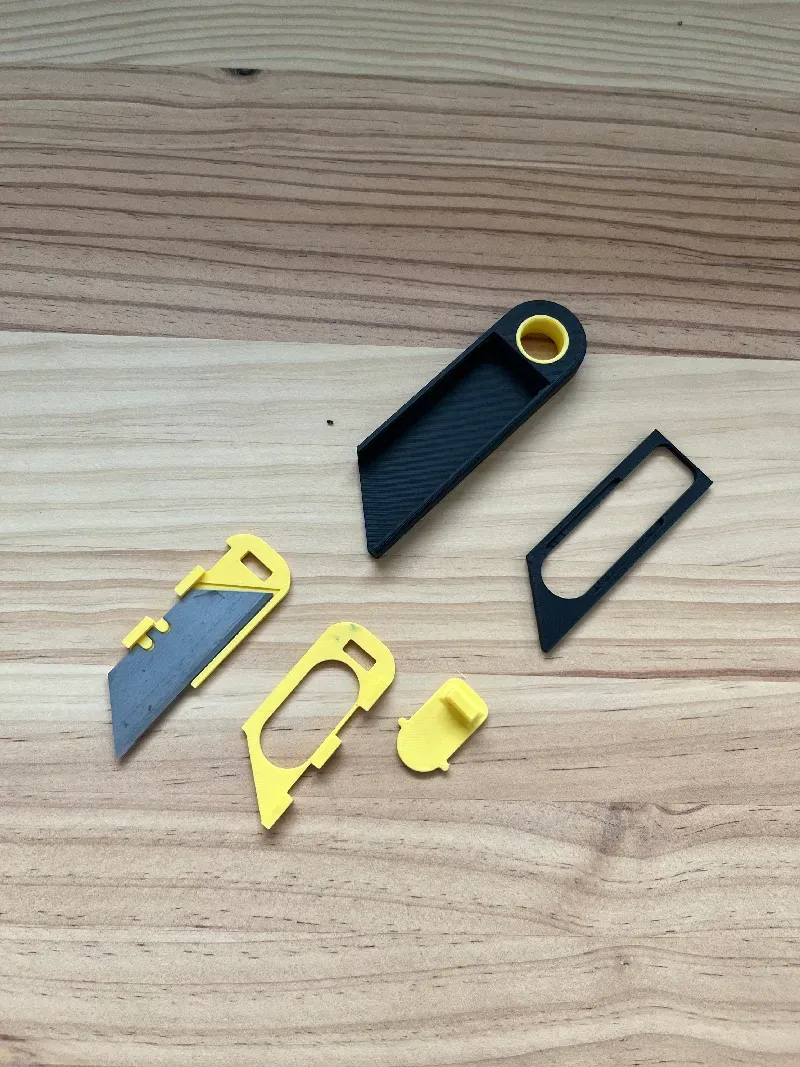

4. Close the slider assembling the top part:

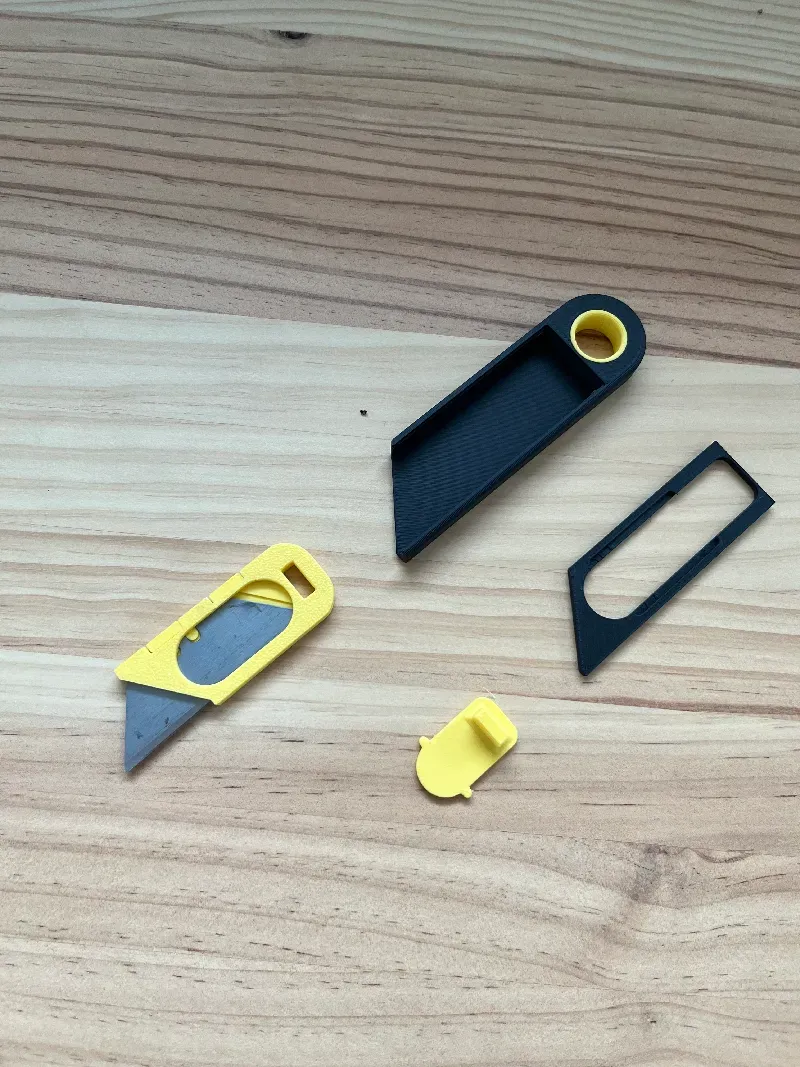

5. Close the cover assembling the top part:

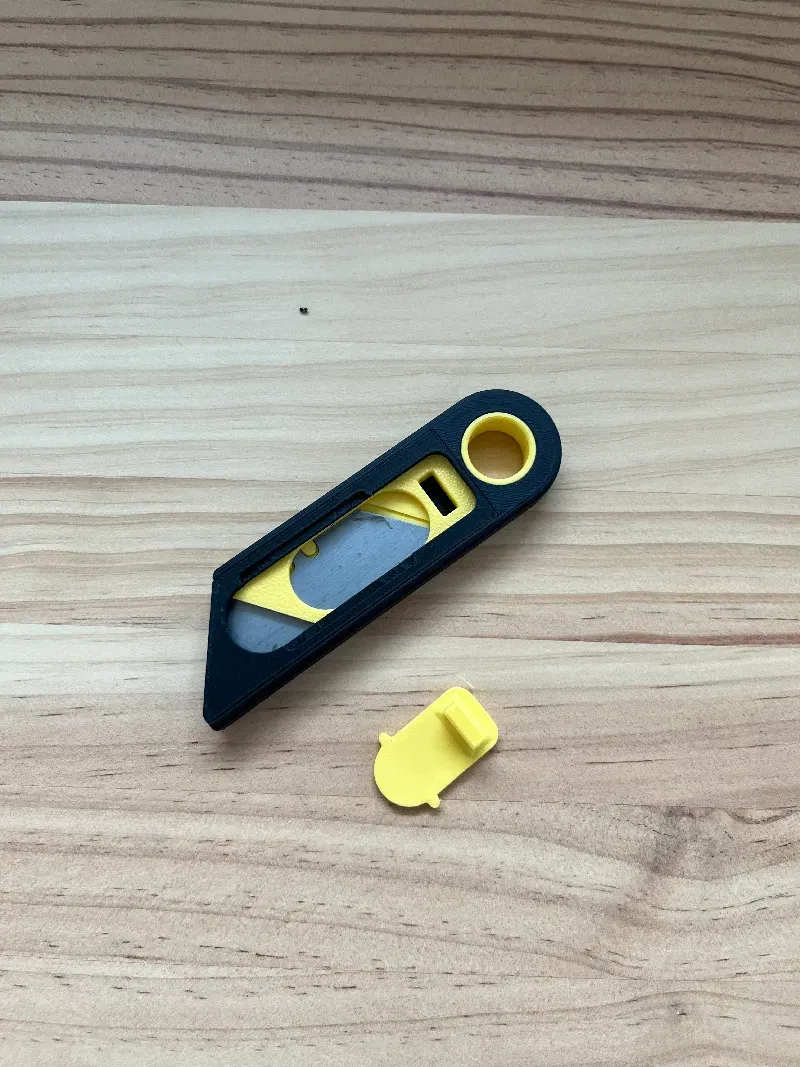

6. Slide the slider inse the cover, do not put the clip yet!:

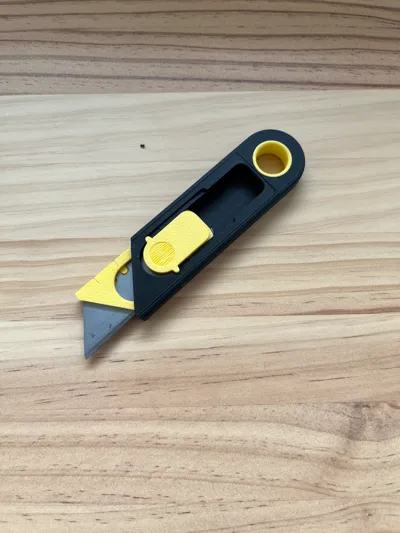

7. Put the clip in the square hole, and that's all!:

• 3D Printing:

0.2mm layer.

No supports required.

• Knife blade:

https://a.co/d/g4QhJYi
