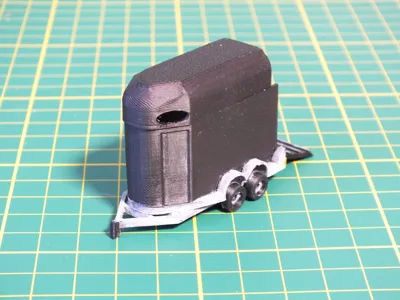

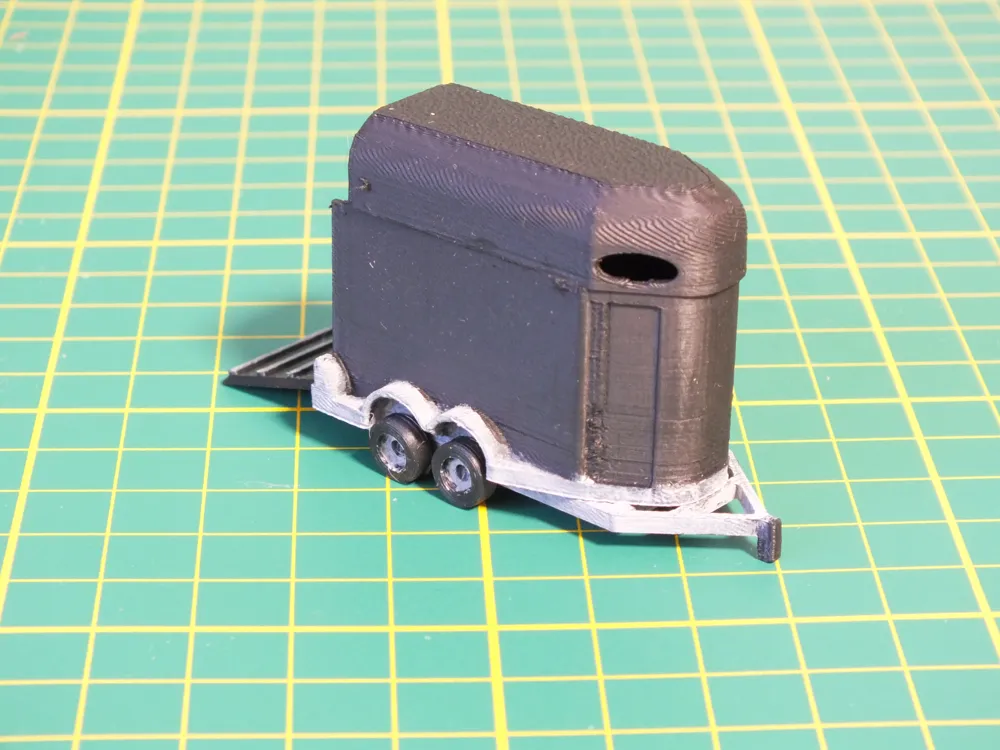

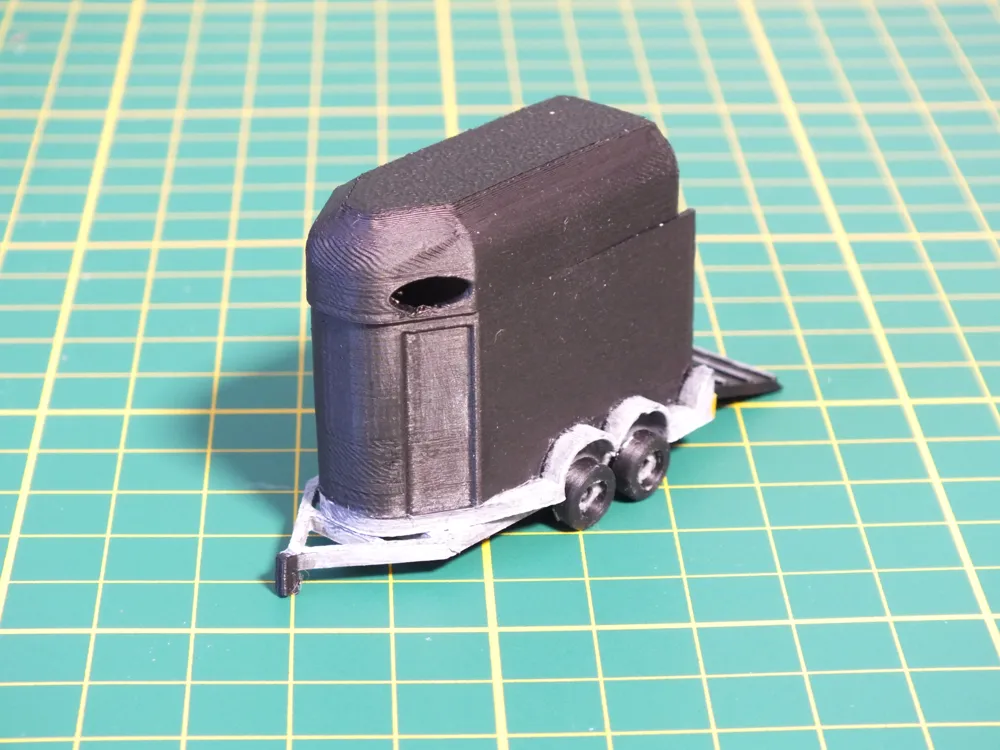

HO scale Horsebox Trailer

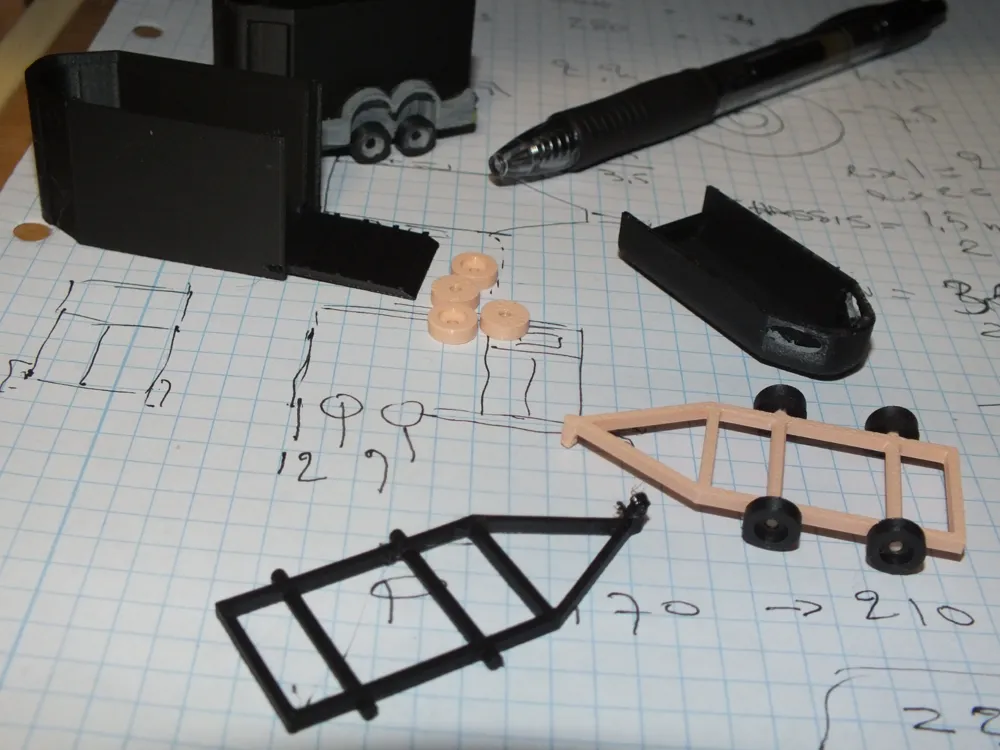

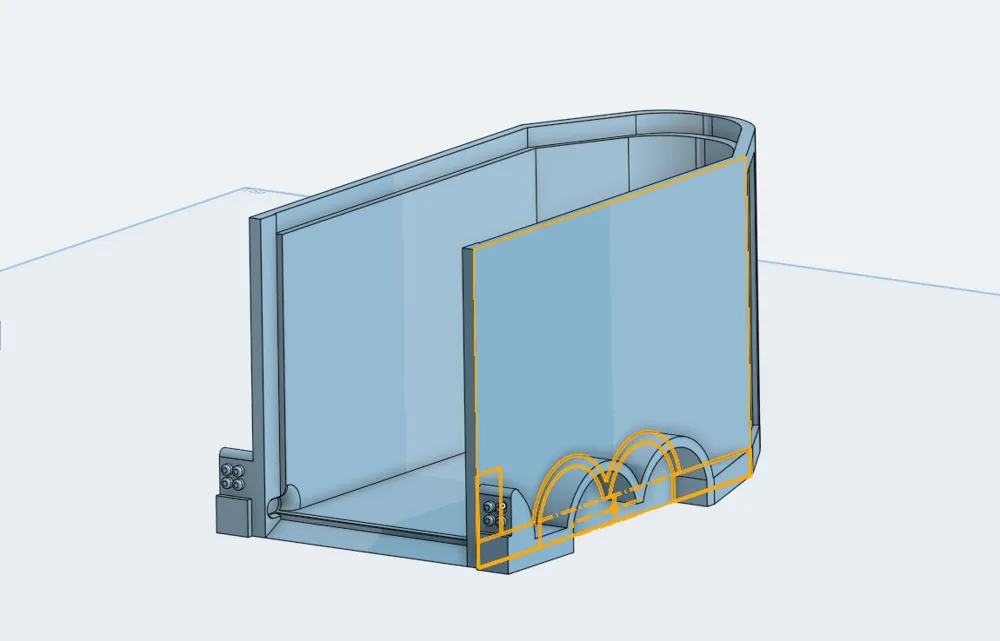

This is a model of a horsebox trailer I made in Onshape.

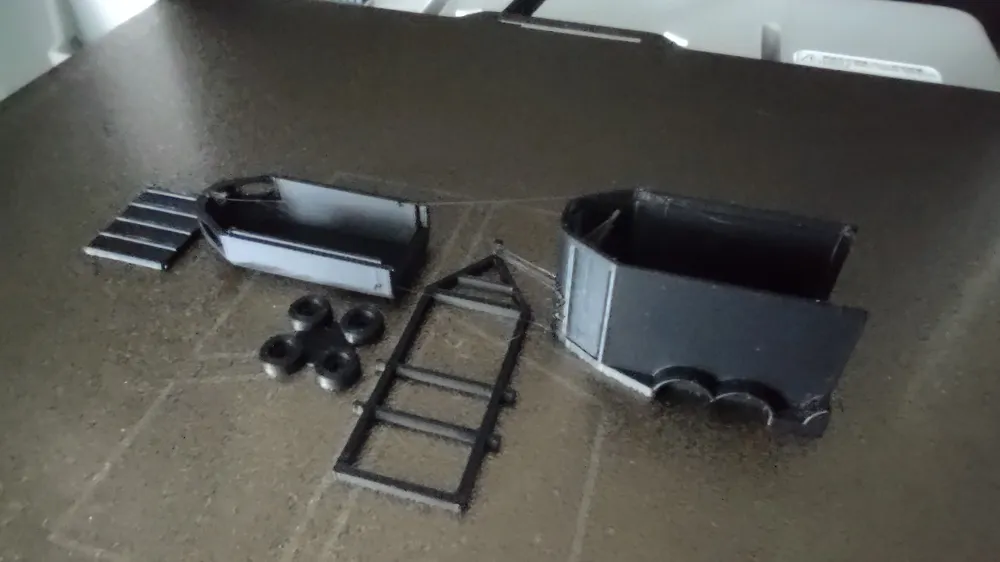

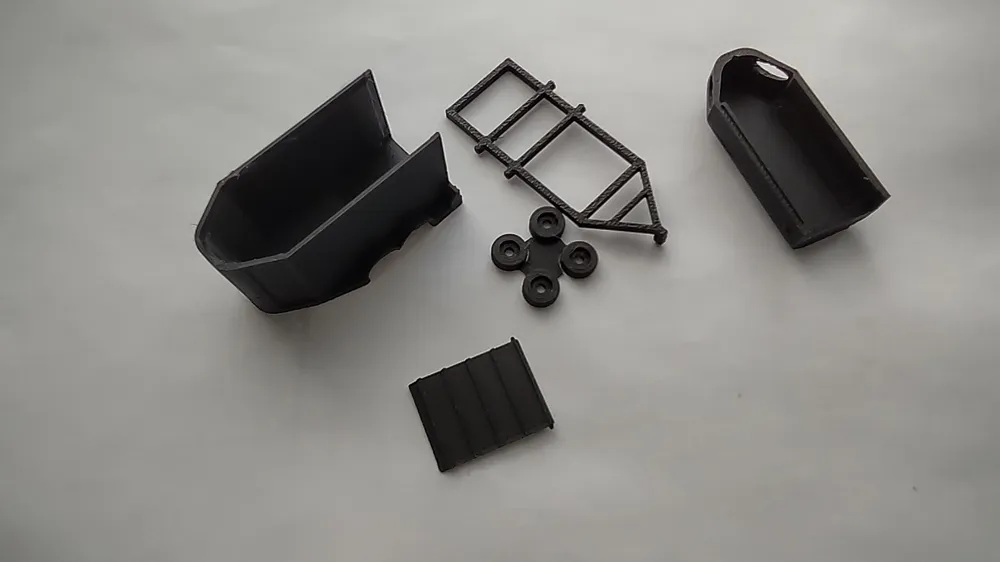

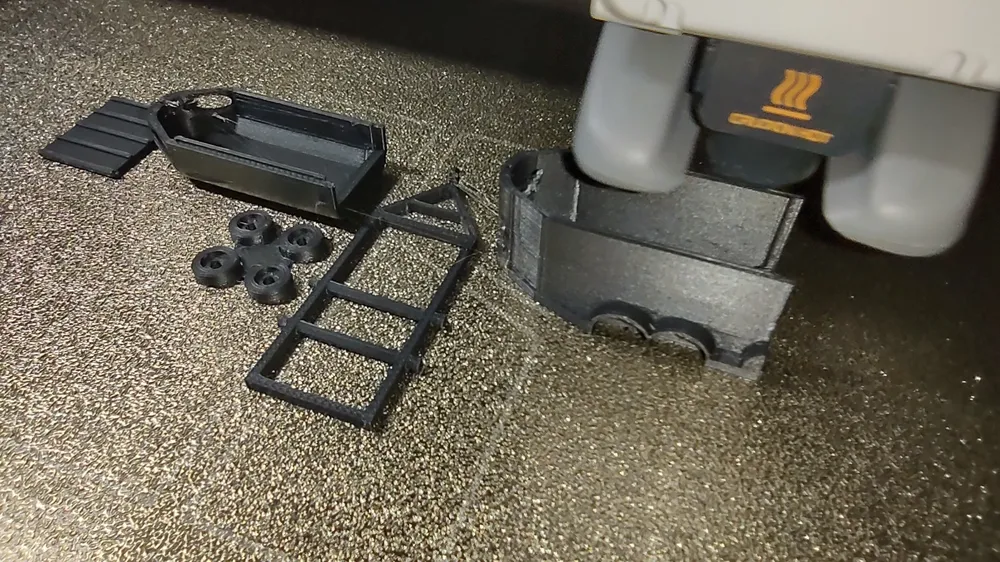

All parts come on 1 print plate, with no need for supports.
The 4 wheels and tyres are held together with a 0.5mm lip to prevent coming off the heatbed.

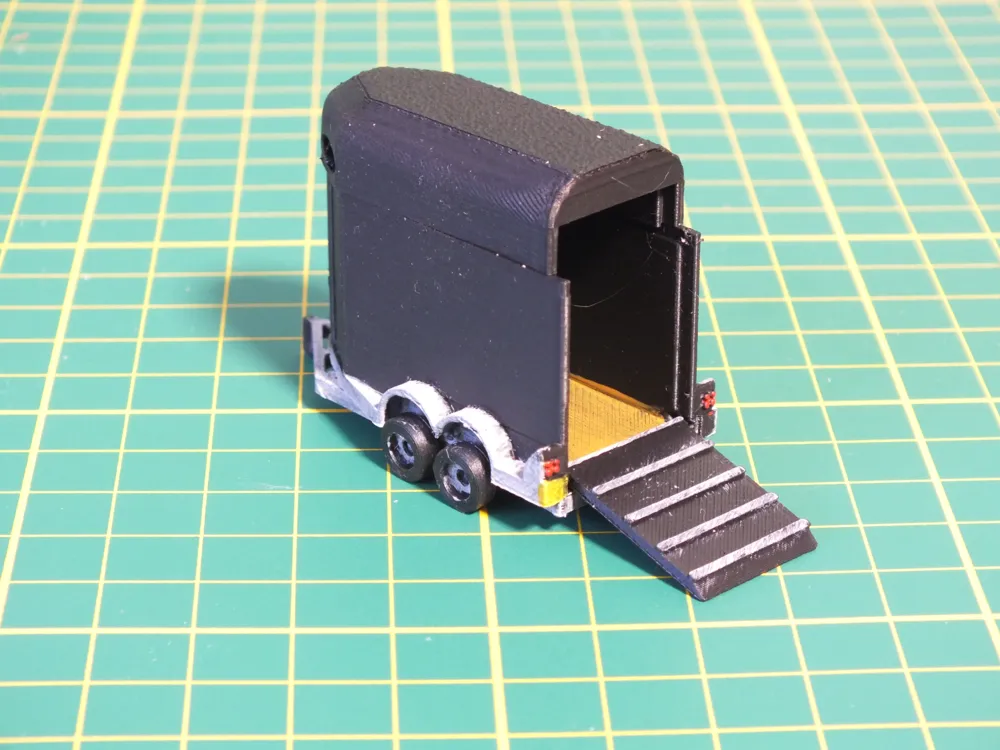

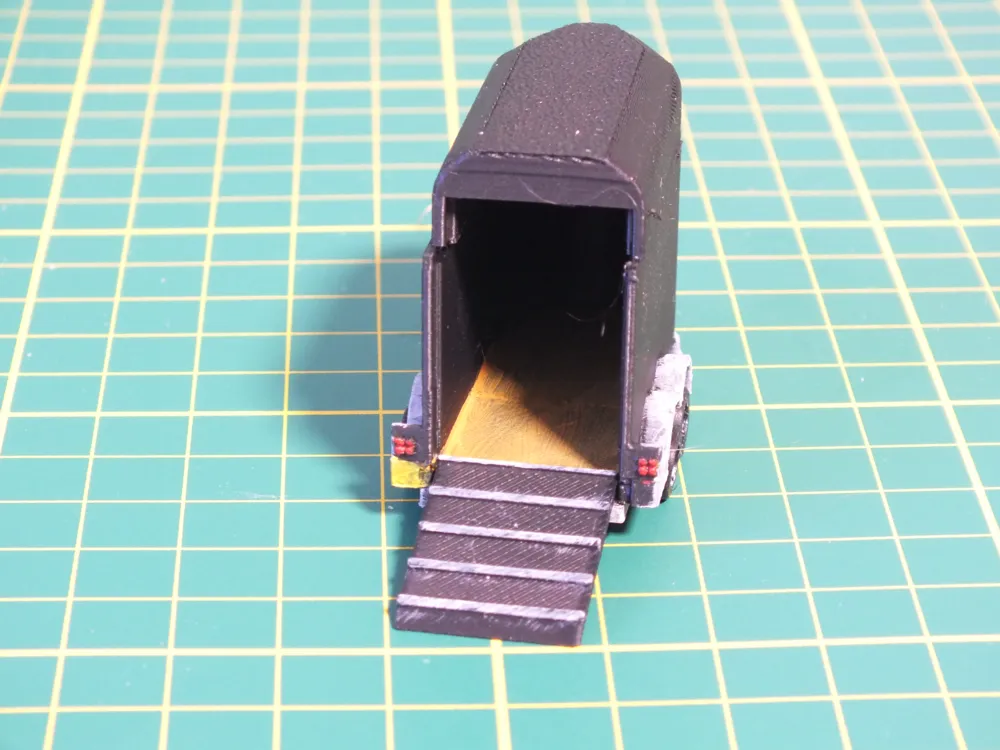

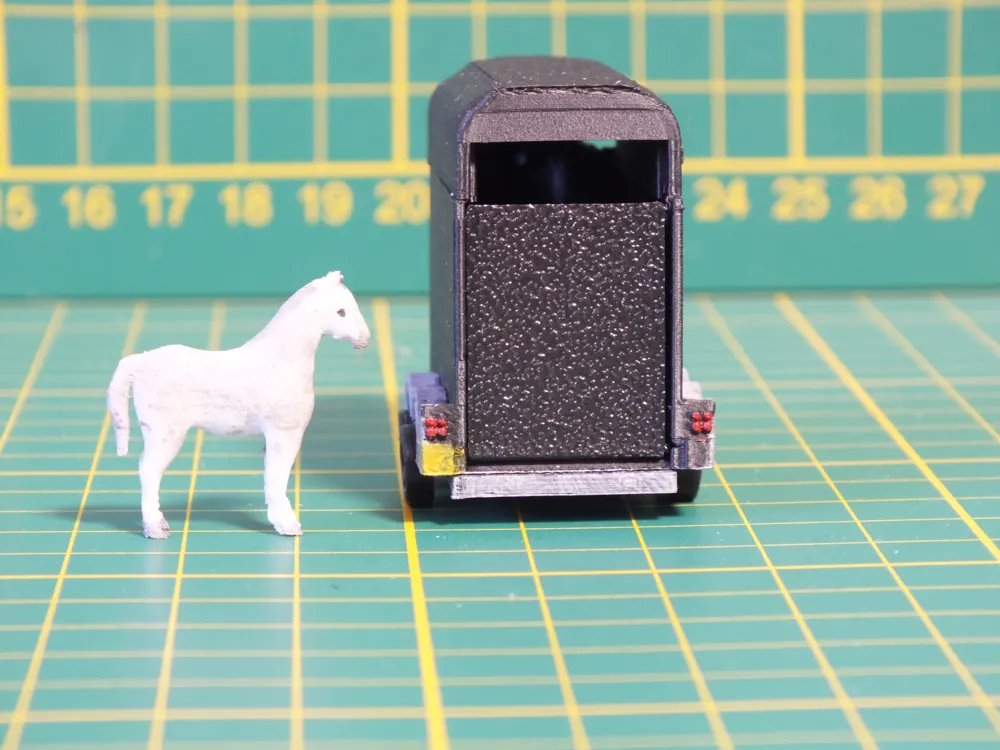

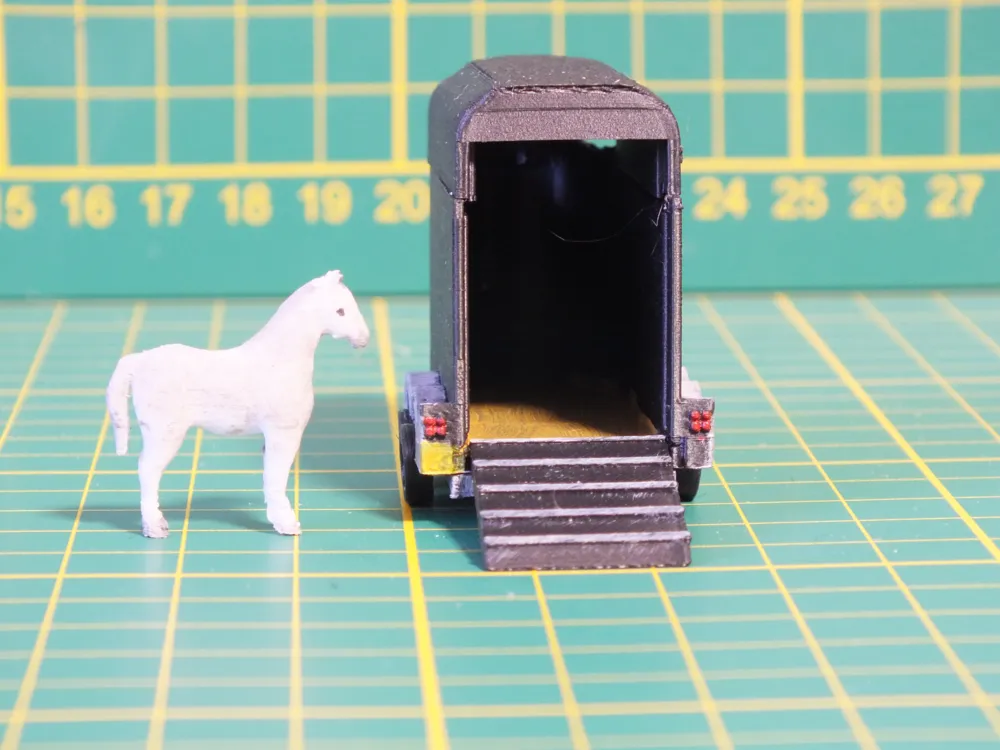

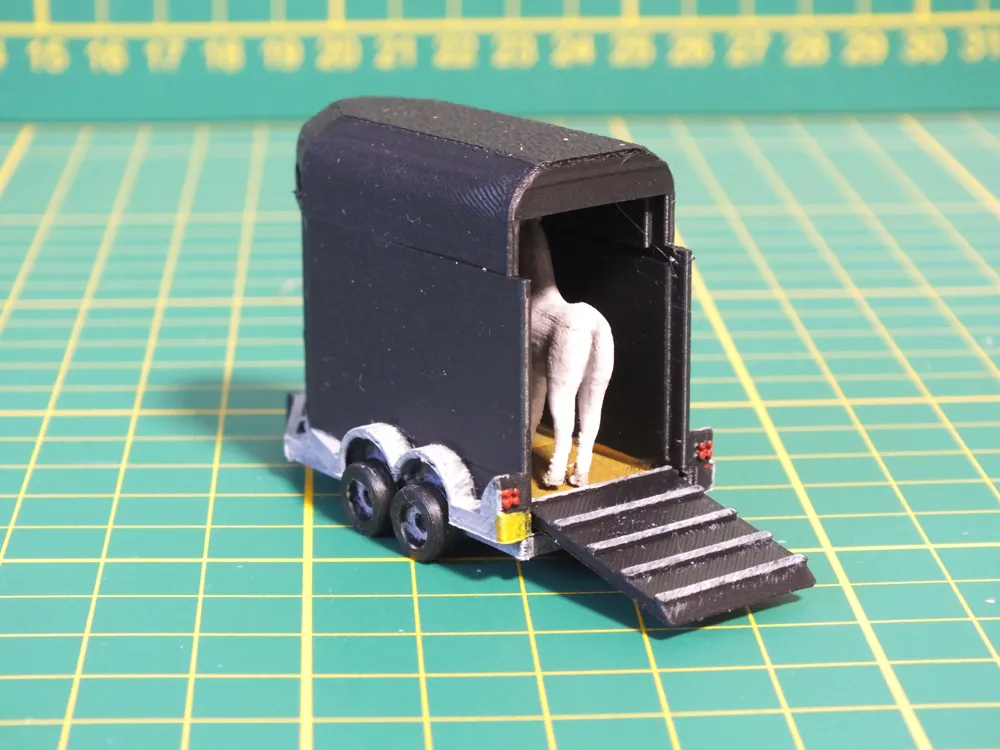

The tailgate is fully functional, it needs to be inserted in the slots of the body with some gentle manipulation, as the tabs are tiny ( Ø 0.8 mm)

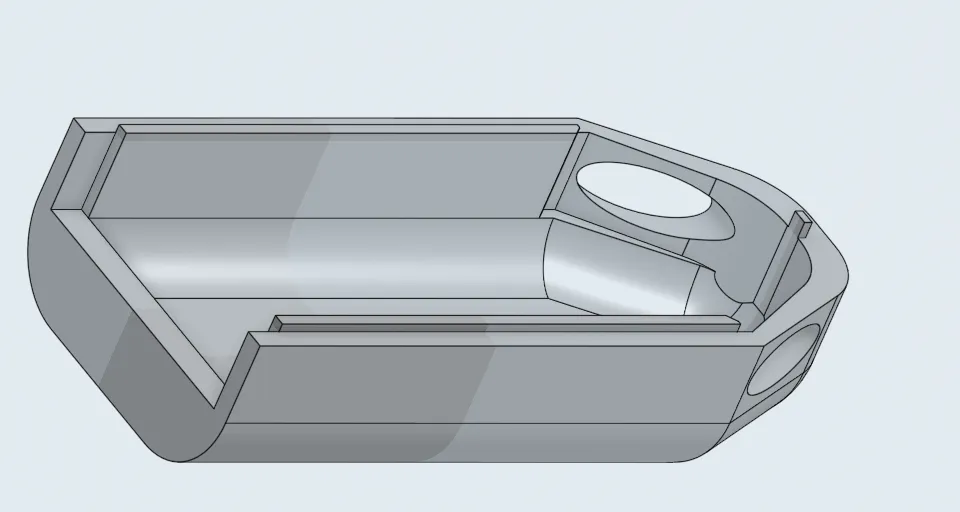

The roof part has tabs on the front and sides to help alignment when gluing it to the trailer body.

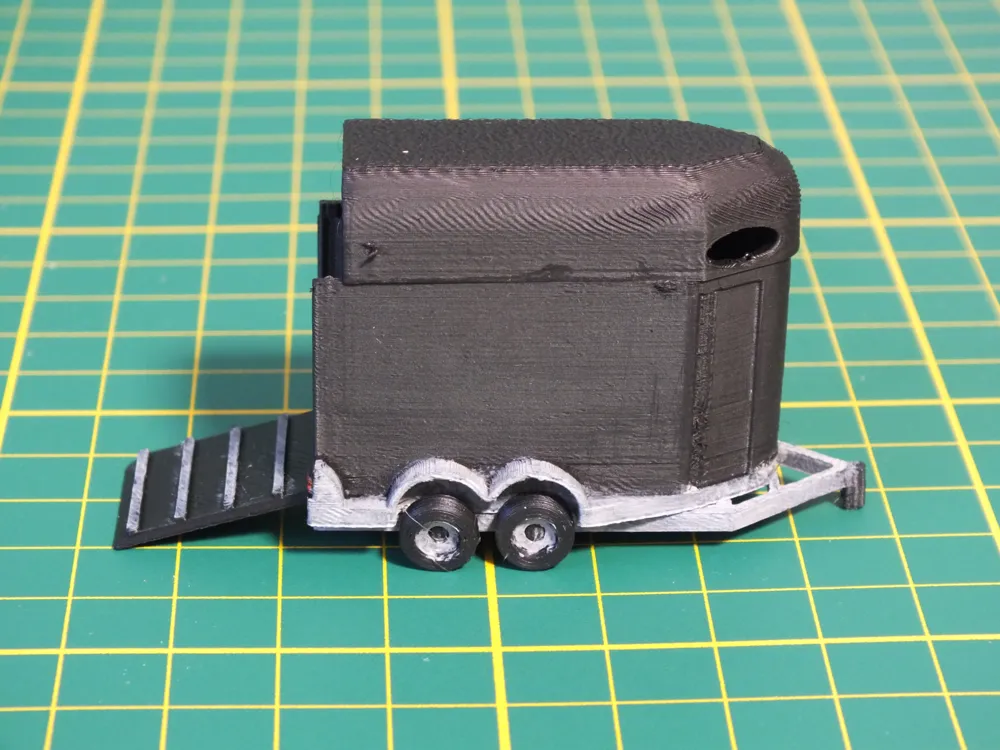

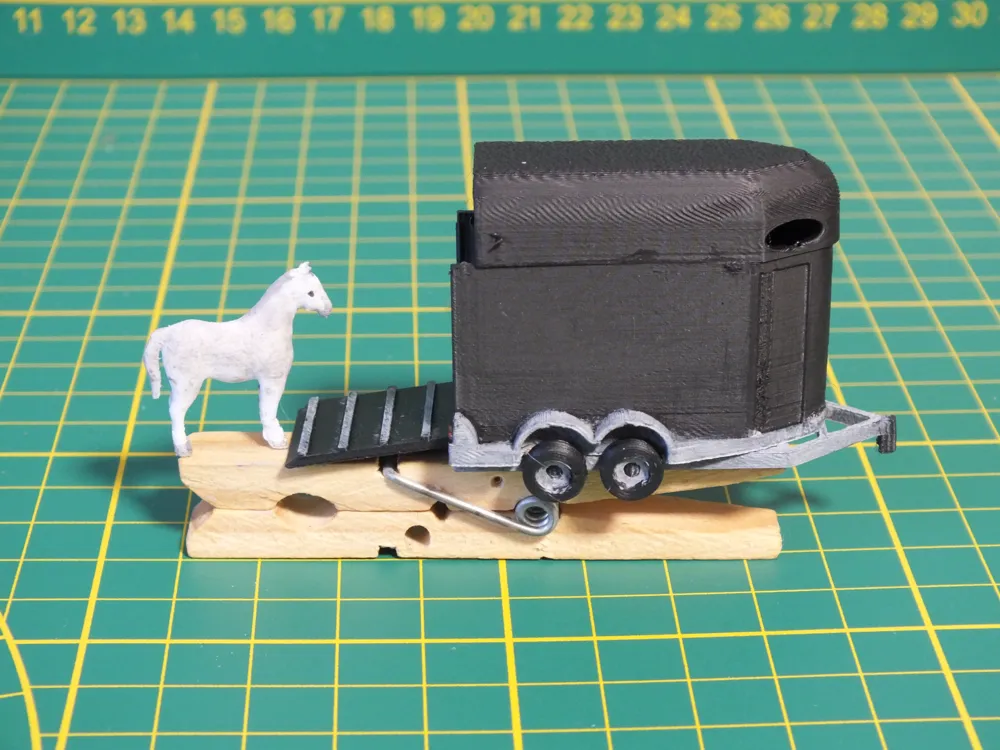

The overall dimensions are 54 x 26 x 38 mm
To complement the model I designed a horse in scale HO, that can be downloaded as well
If you like this model, please give me a thumbs up.
Thank you.
