Deburring Tool: Quick Lock
Print Profile(1)
Bill of Materials
- Deburring Blade x 1: 49mmx3mm
Description

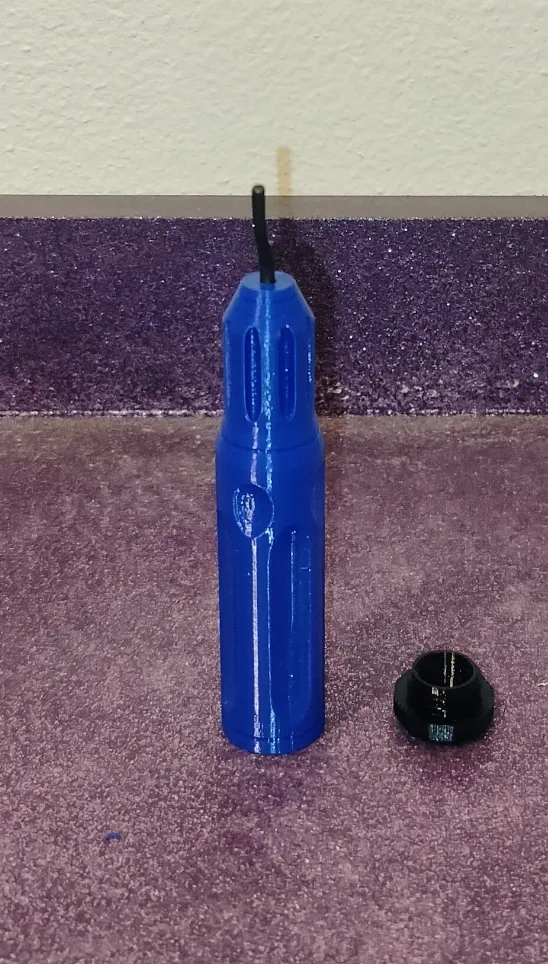

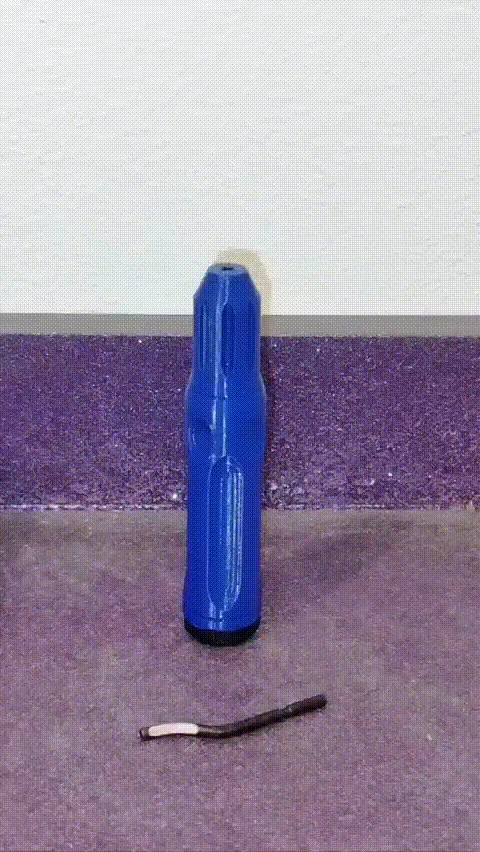

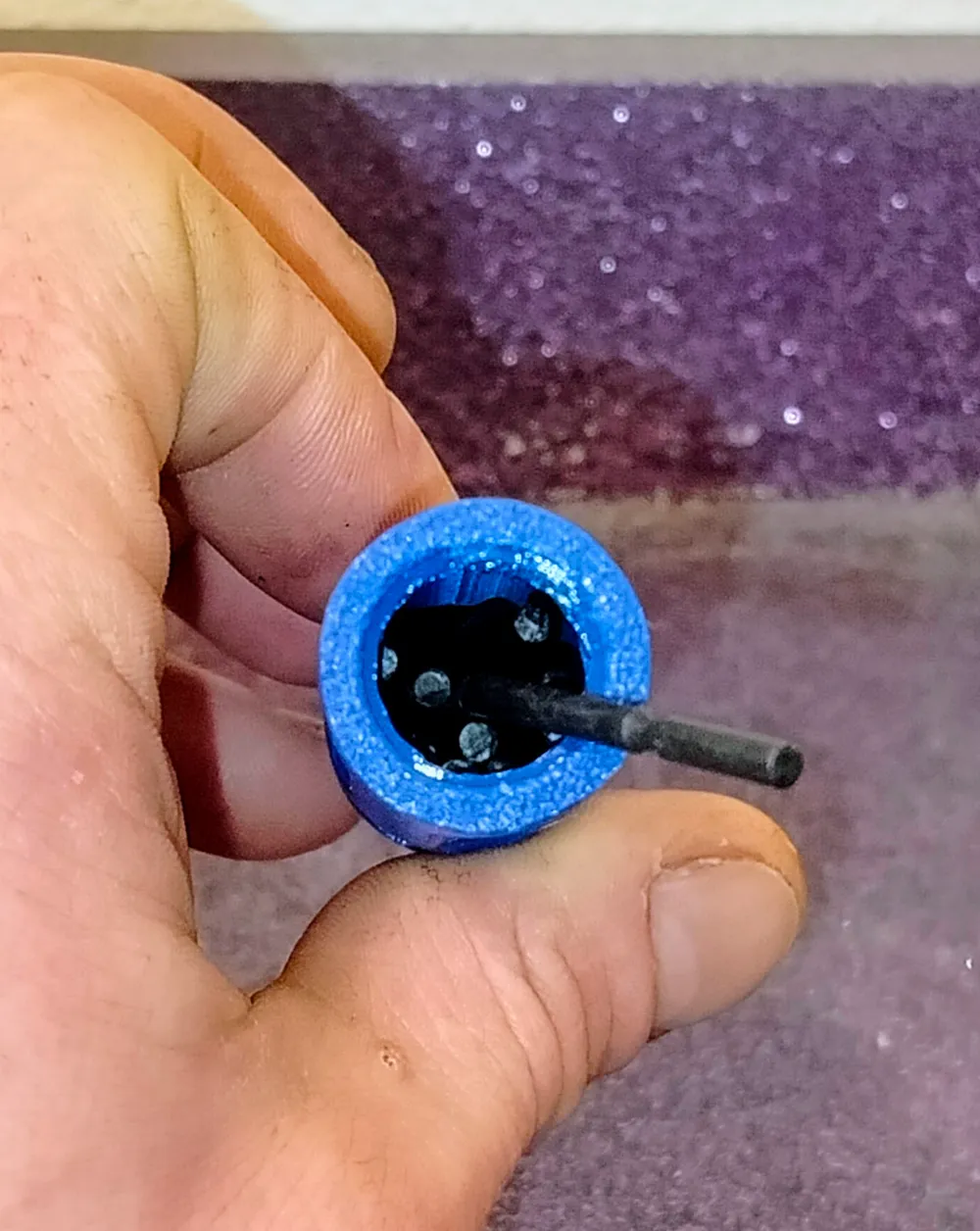

This Deburring Tool stands out from traditional models thanks to its push-pull blade locking system. No need to press buttons or tighten clamps: simply push to lock and pull to unlock. Additionally, up to 10 blades can be stored inside the tool by unscrewing the cap at the bottom.
I personally tested the mechanism, inserting and removing the blade more than one hundred times, and the locking grip remained unchanged.
The layer height is set to 0.16 mm, and I used adaptive layers to accelerate printing in the central section. I recommend using PETG to ensure the locking mechanism functions correctly and lasts over time. Finally, make sure the supports only originate from the base.
Blade Dimensions
Diameter: 2.8mm
Small Diameter: 2.2mm
Length: 49mm
Locking distance from bottom: 12.5mm
