Doobloader Cone Packer Regular Size

**Important Notice**

 Just to be clear, you cannot sell or redistribute my models. I don't give permission for this on any version. If you do, I will file a DMCA takedown request and take appropriate legal action. You are free to print my models for personal use ONLY.

New Release

I'm happy to release the latest version of the cone packing jig. I've dubbed this the Doobloader and it's aimed to fix a few things. Here is what's new.

New Features

• Rubber Feet I added support for 8mm rubber feet.
• No Ejector Needed This version doesn't need an ejector. I lowered the height of the jig so the cones stick out the bottom into the catch tray. To get them out, just lift the jig off the tray and set it on a flat table. The cones push right up.
• Pin Storage There is a specific spot to keep the packing pin now so you don't lose it.

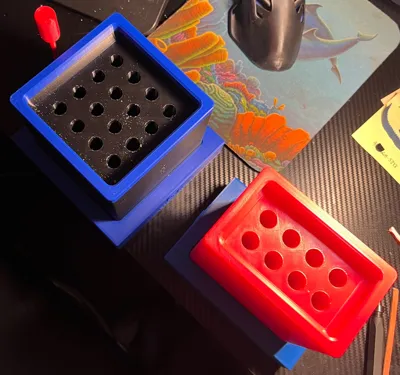

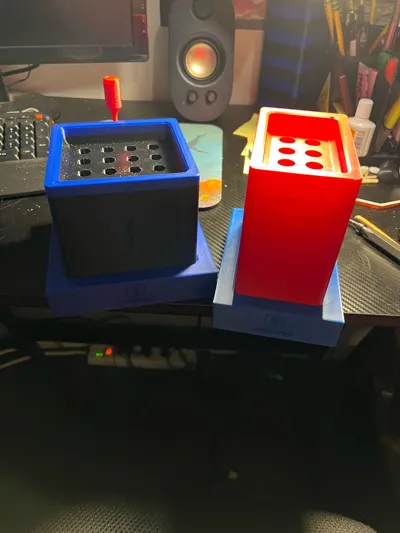

• Universal Trays I designed this so you can swap trays between different cone types. For example, a 4x4 tray for Regular cones now works with the packer for 98 Special or King Size. This saves a lot of printing. You only need one catch tray and one pin to use with all your different packing jigs.

Improvements

• Better Bowl: I made the top look more like a rolling tray. The corners are rounded (filleted) so material doesn't get stuck.
• Better Fit: The tray and jig fit together much better now.
• Labels: I put labels on the front so you can easily see which jig is which.

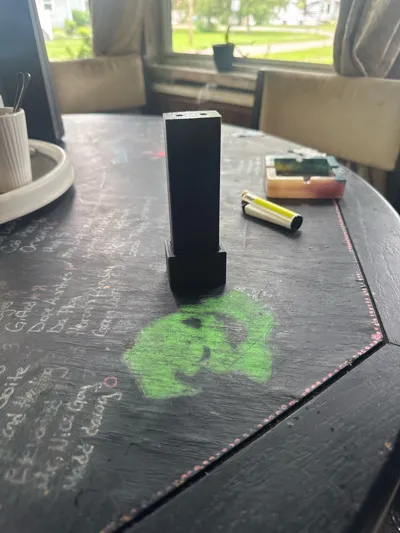

• Bigger 1x Bowls: The single packers used to be too tight, so I made the bowl area larger to make them easier to use.

Supported Cones

• Dogwalker 70/30
• 53mm Shorty
• King Size
• Regular
• Lean
• 98 Special

Free Version (This)

This version is free and includes:

• 1x1, 2x2, 2x4, 4x4

Full Pack

If you want other sizes, they are on my Cults3D profile. Buying it gets you all future updates too.

The full version includes:

• 1x2, 1x3, 1x4, 1x5, 1x6
• 2x3, 2x6
• 3x3, 3x4, 3x5, 3x6
• 4x5, 4x6
• 5x5, 5x6
• 6x6

Mega Pack

If you need to pack a huge amount at once, I have a Mega Pack on Cults3D.

It costs a bit more because it's for high-volume jobs. Most people honestly don't need to do 100 or 144 cones at a time. But if you do, these can work with a vibration table to go faster.

Note on vibration tables: I haven't personally tested the fit on specific tables, so please do your homework before buying one to make sure it works with these dimensions.

The Mega version includes:

• 7x7
• 8x8
• 9x9
• 10x10

Feedback & Roadmap

I'm always trying to make these better. If you have ideas, send me a DM on Makerworld.


Coming soon:

• 70/24 Dogwalker
• King Plus (Larger filter)

Printing Tips

I tested these a lot on an X1C and P1S to make sure they fit right. If you have issues with the parts fitting, check that your printer and filament are calibrated correctly.
