Nozzle Alignment Tool
Print Profile(1)
Description
Nozzle alignment tool for all Bambu X1 nozzles/hotends.
Whether for maintenance or after a crash, a straight nozzle is the foundation of every good print.

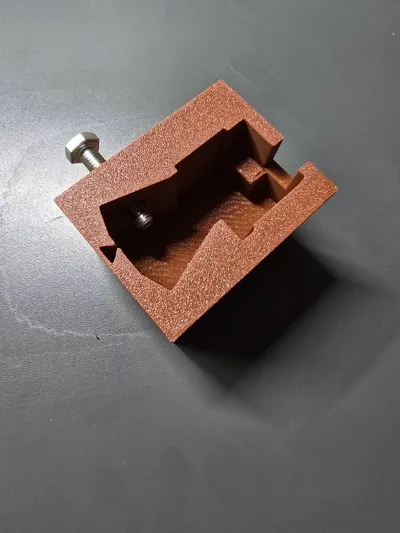

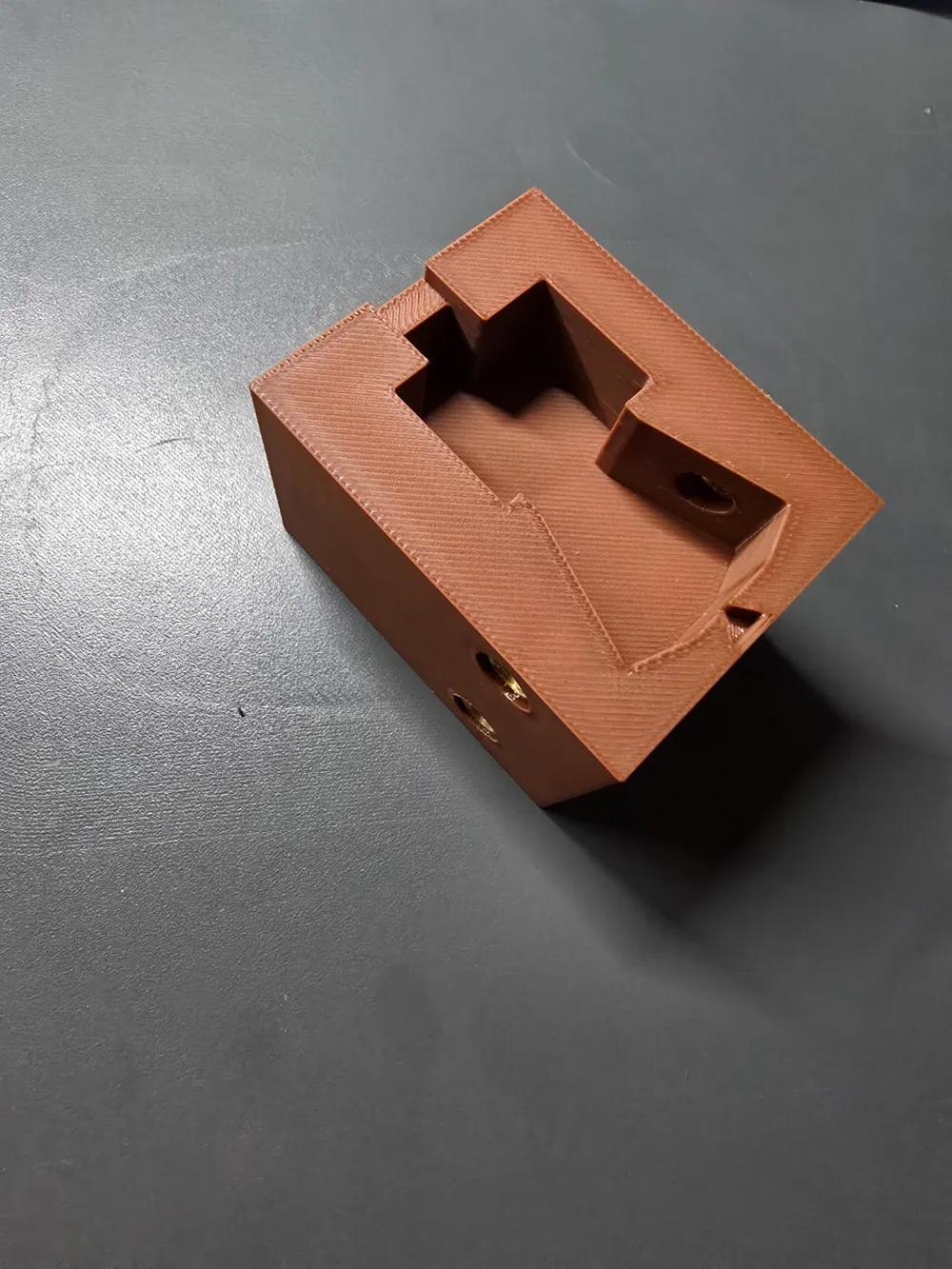

The tool is usable on both sides. By rotating the tool, the nozzle can be correctly adjusted in the X and Y axes.

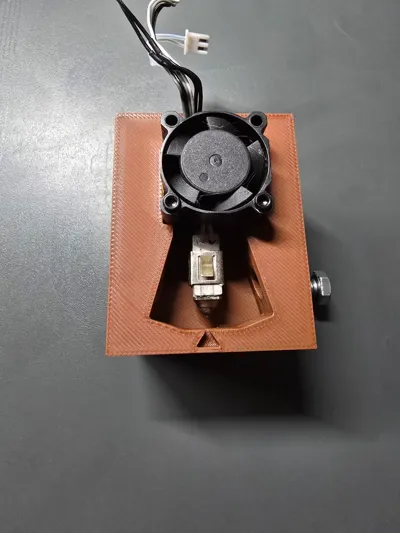

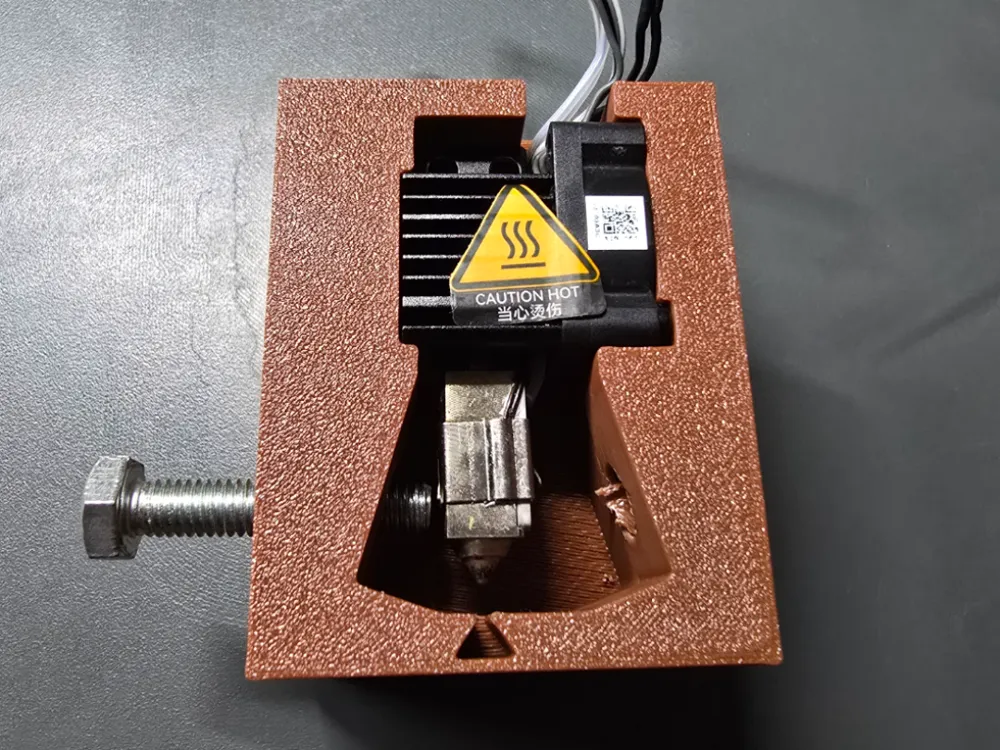

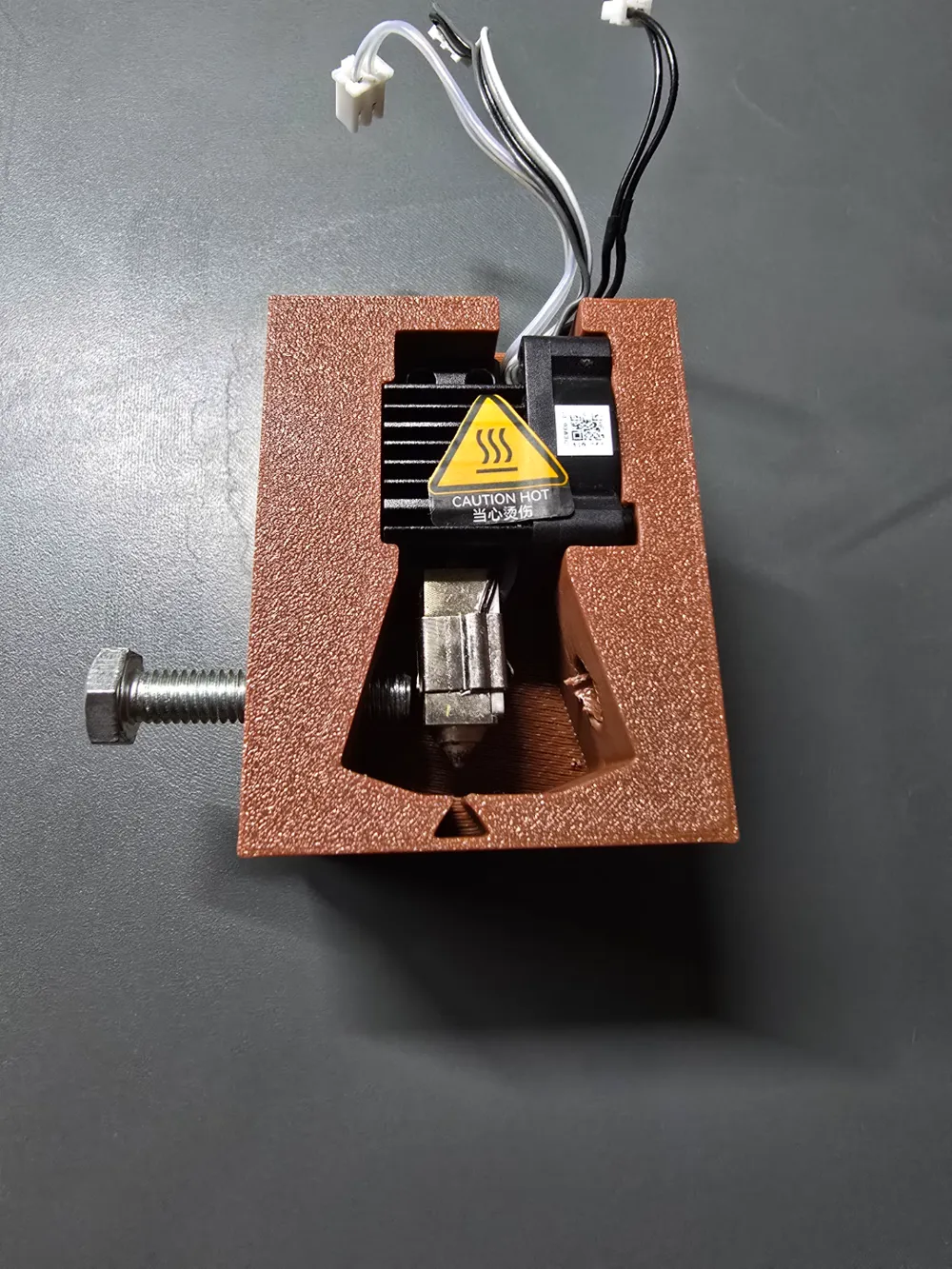

The complete hotend WITHOUT the silicone sock is inserted, and the alignment is checked against the arrow marking; if necessary, it is pushed into position using the screw.

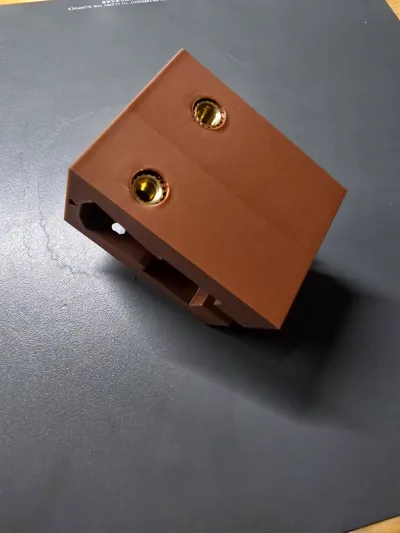

Four threads for melting in (M6x8x8) and any M6 screw are required.
Printed with 0.20mm layer height
15% Gyroid infill
With tree supports (upper Z-distance 0.215mm)
Wall generator Arachne
