KTM LightBox
Print Profile(1)
Description
Another gift for a motorcycle enthusiast, for his garage.

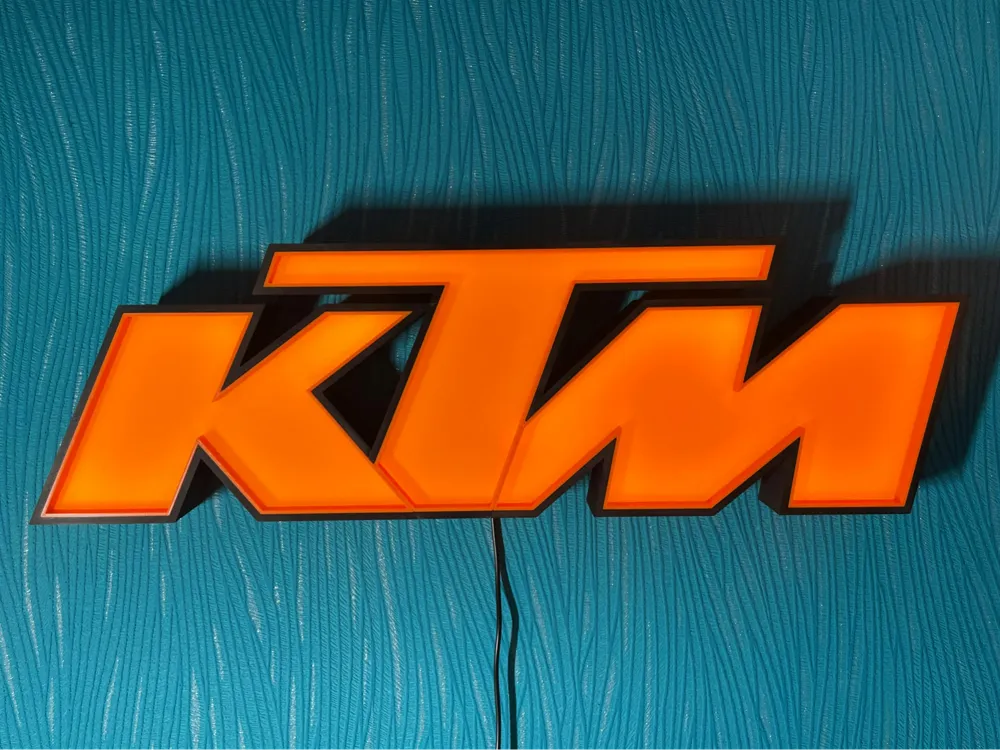

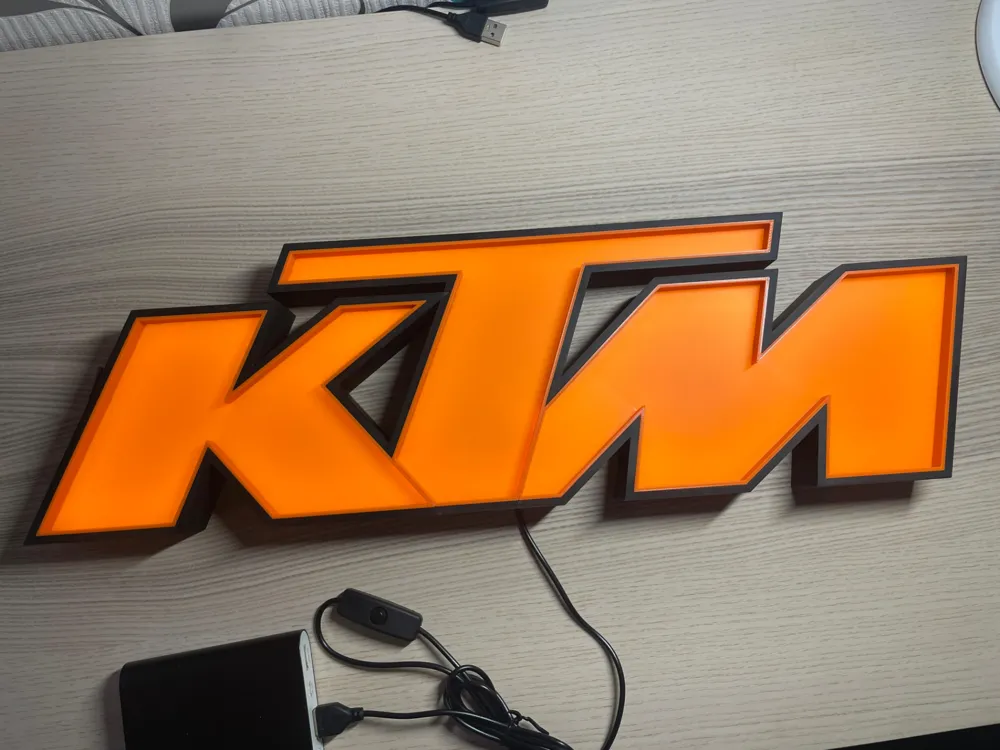

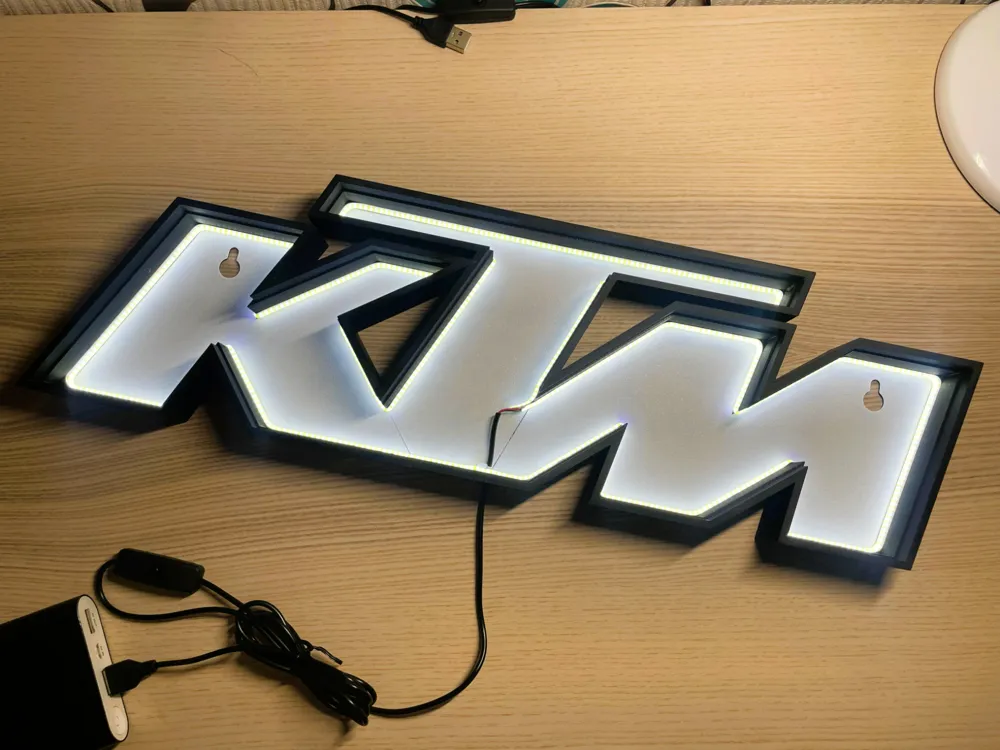

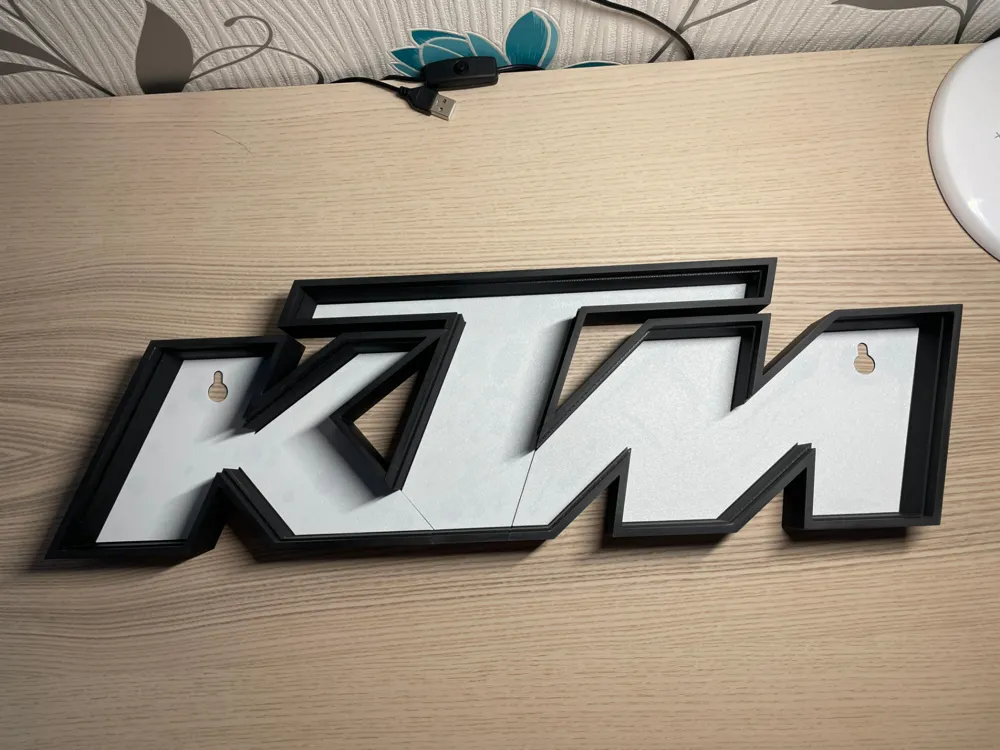

KTM Logo LightBox
Total length ~50cm, height ~15cm

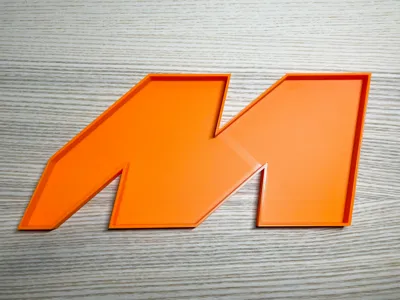

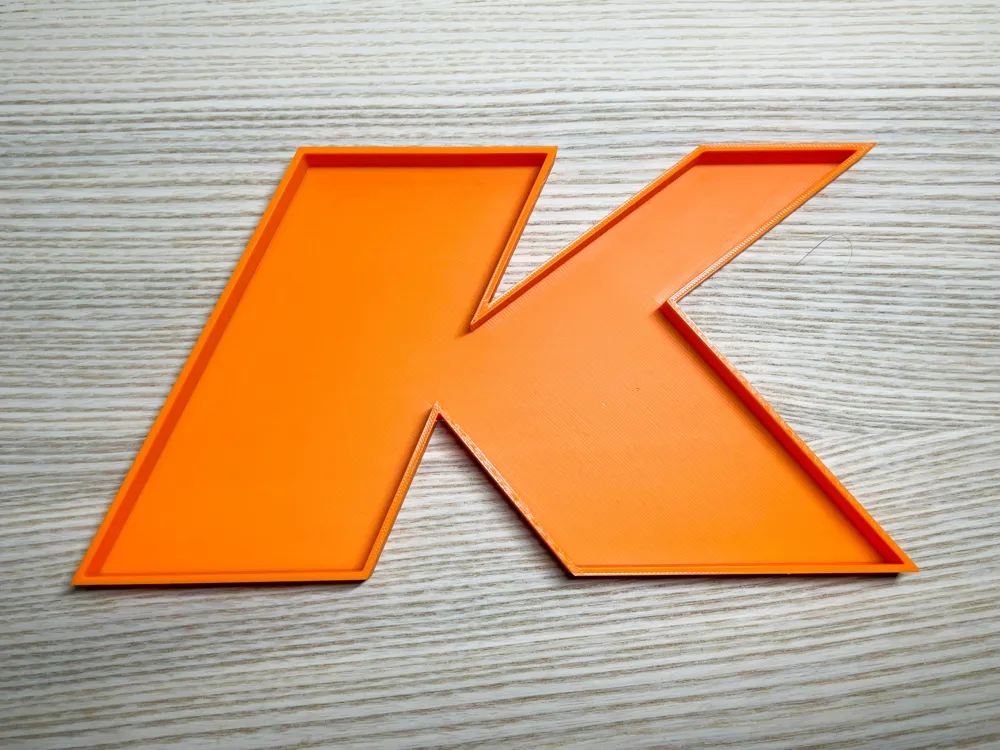

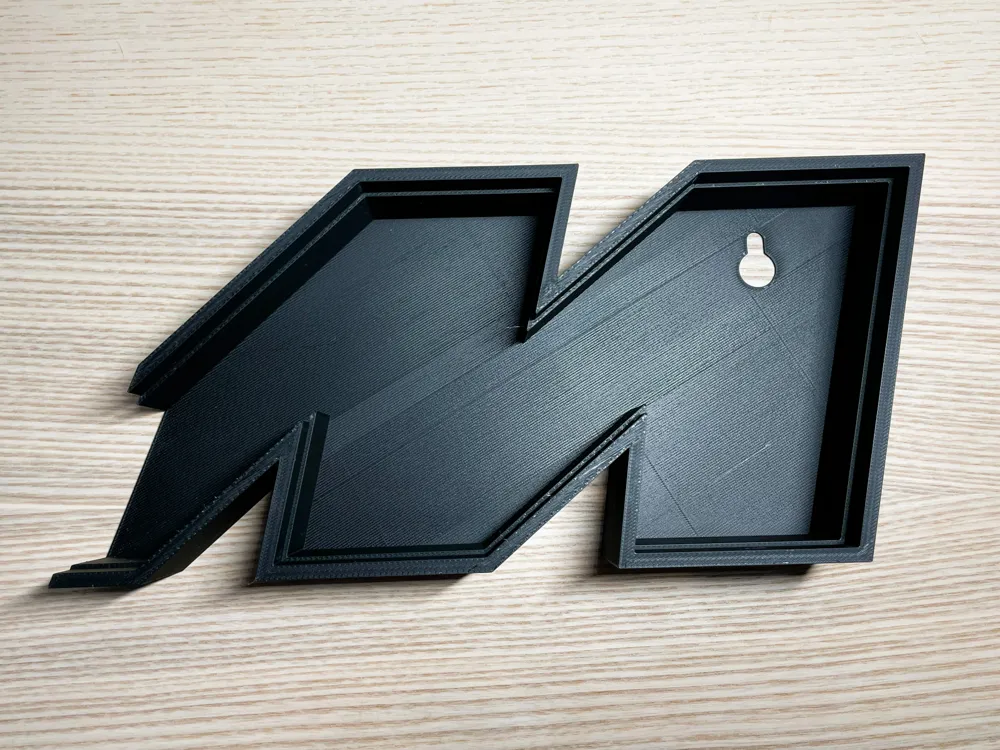

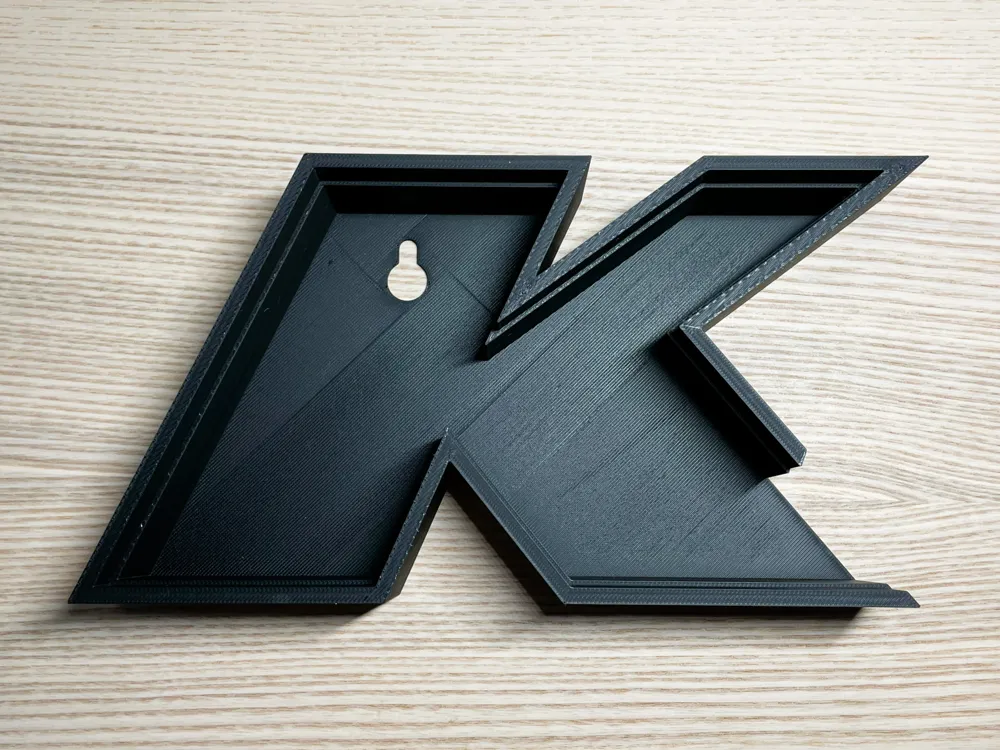

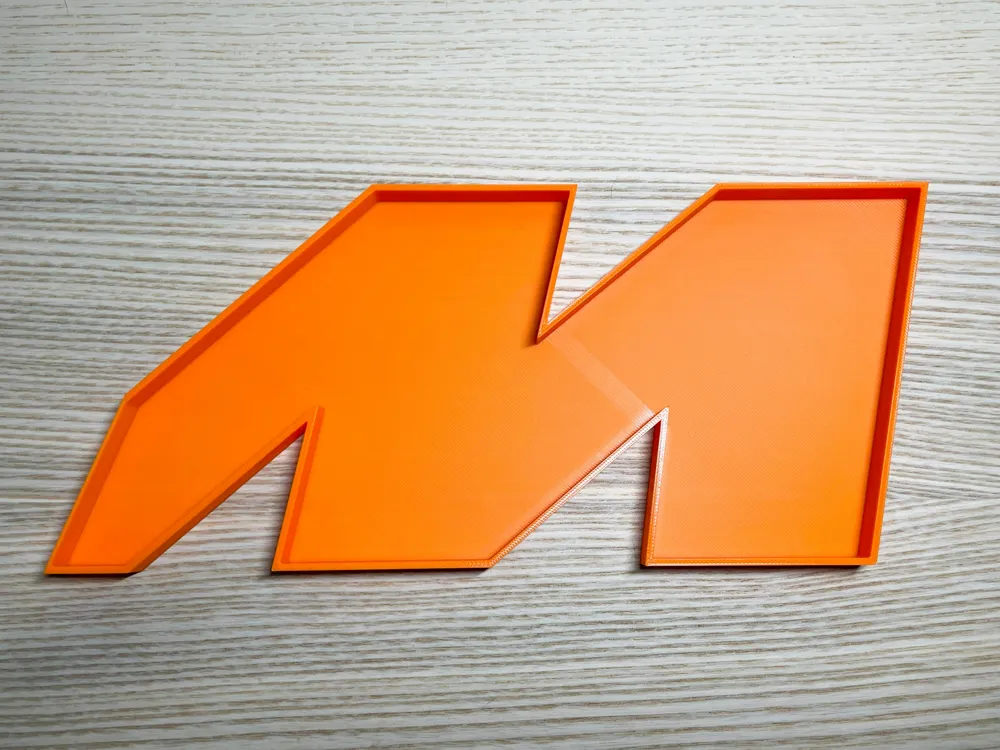

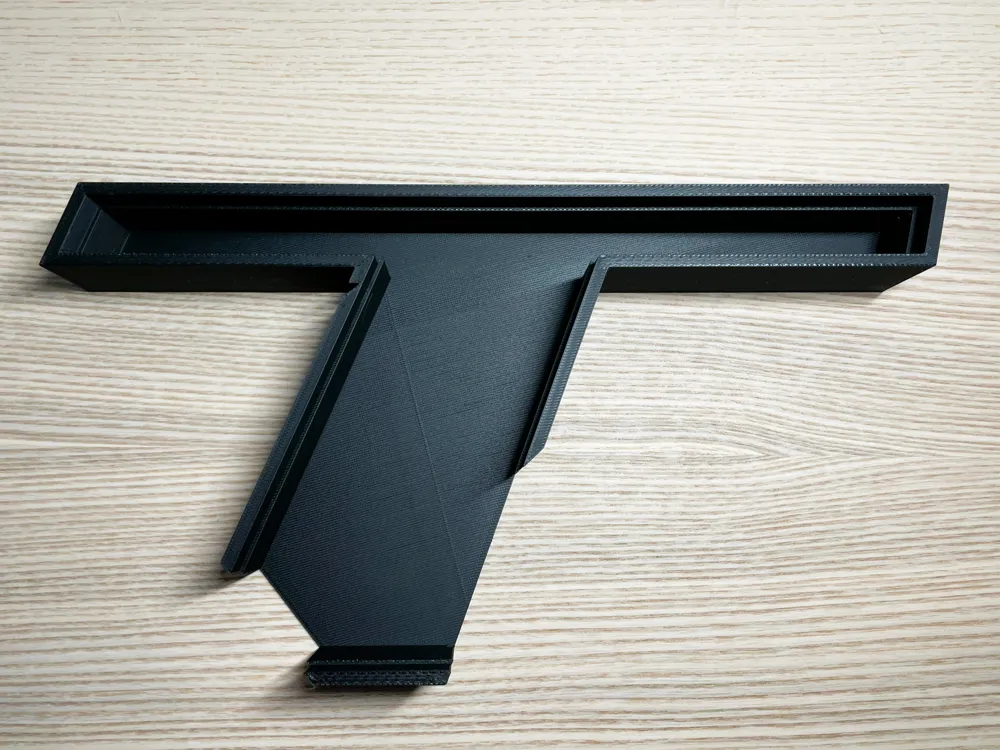

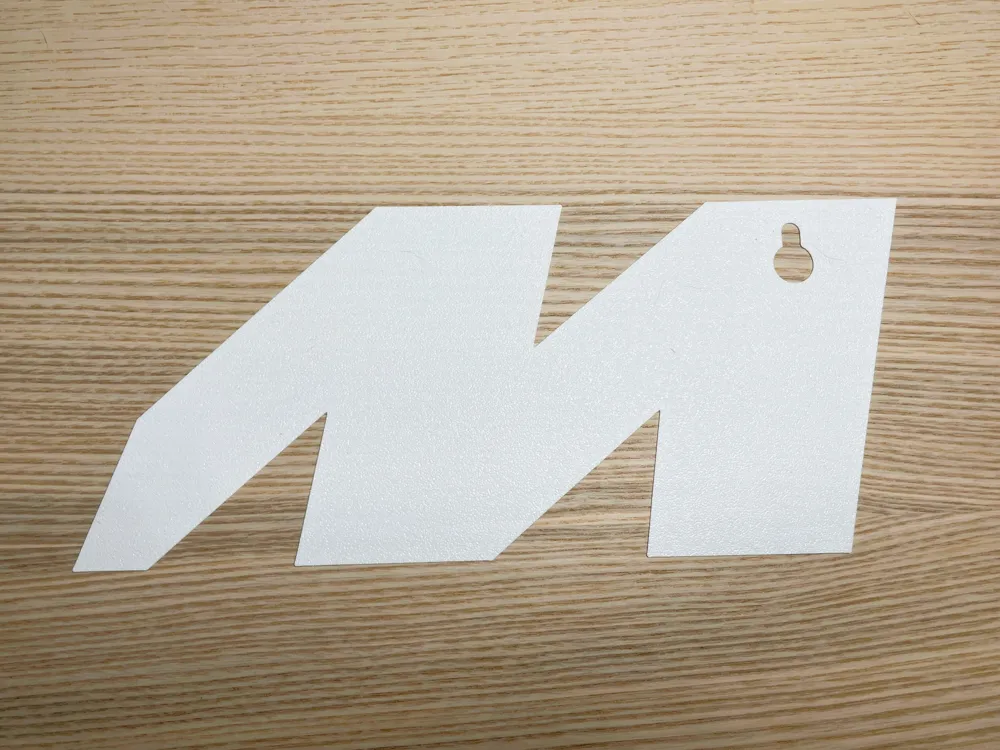

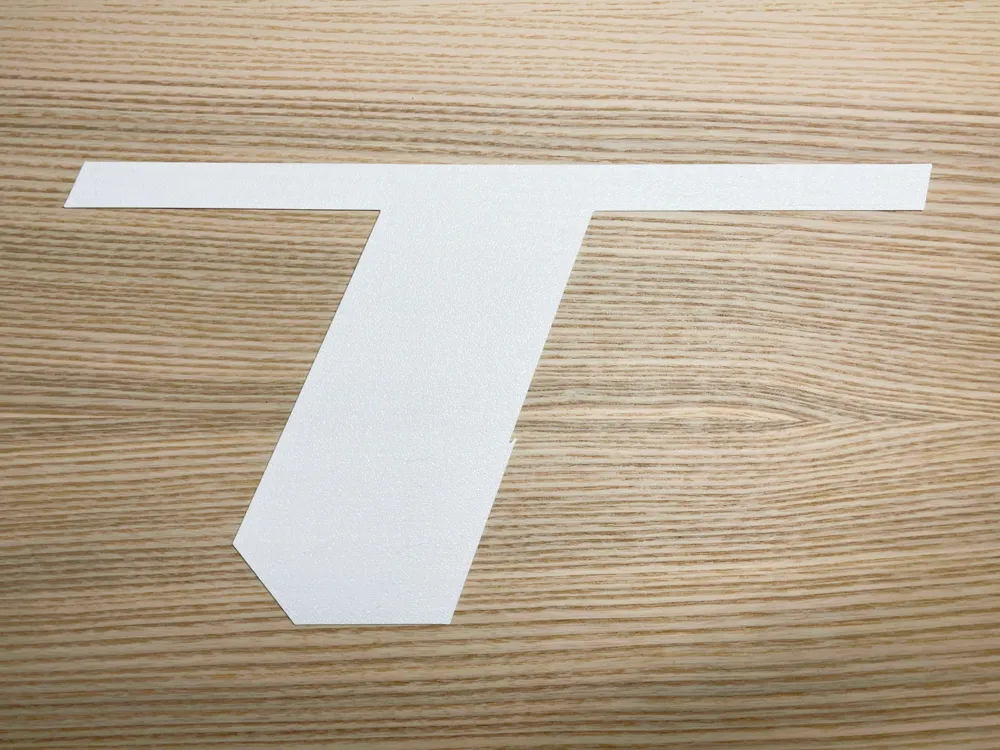

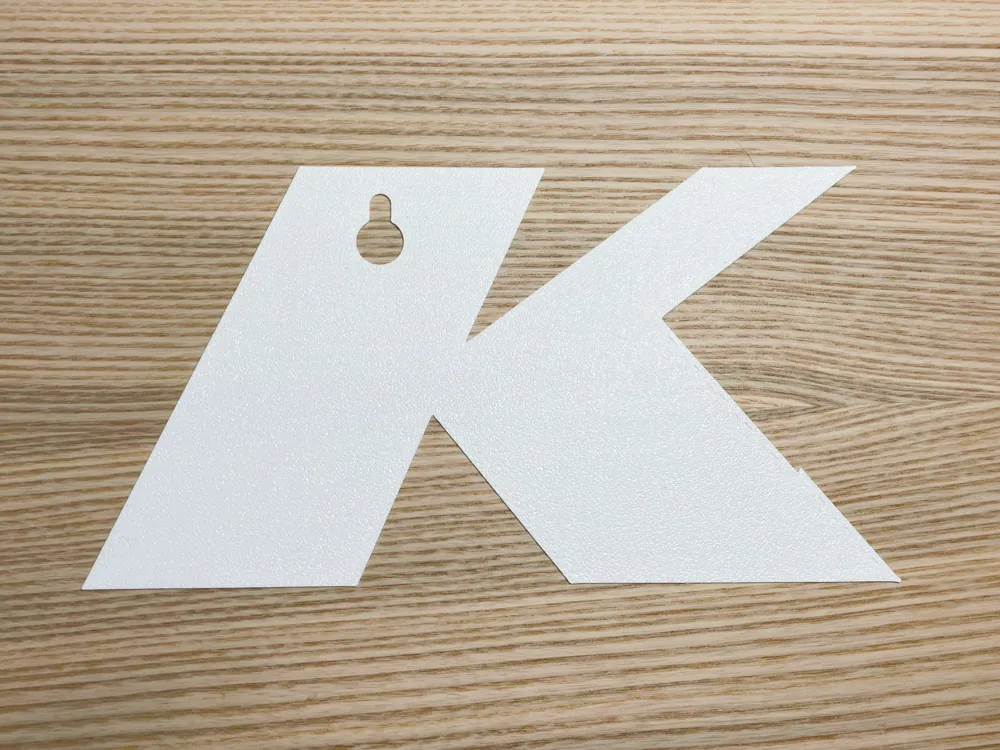

Each letter is printed separately. Then glued with super glue. White backgrounds in the bases of the letters for better light dispersion. White backgrounds are fixed with glue.

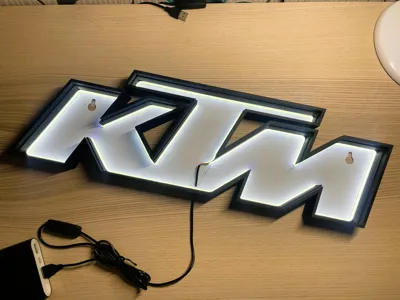

For lighting, I used a around 3 meter long white led strip.

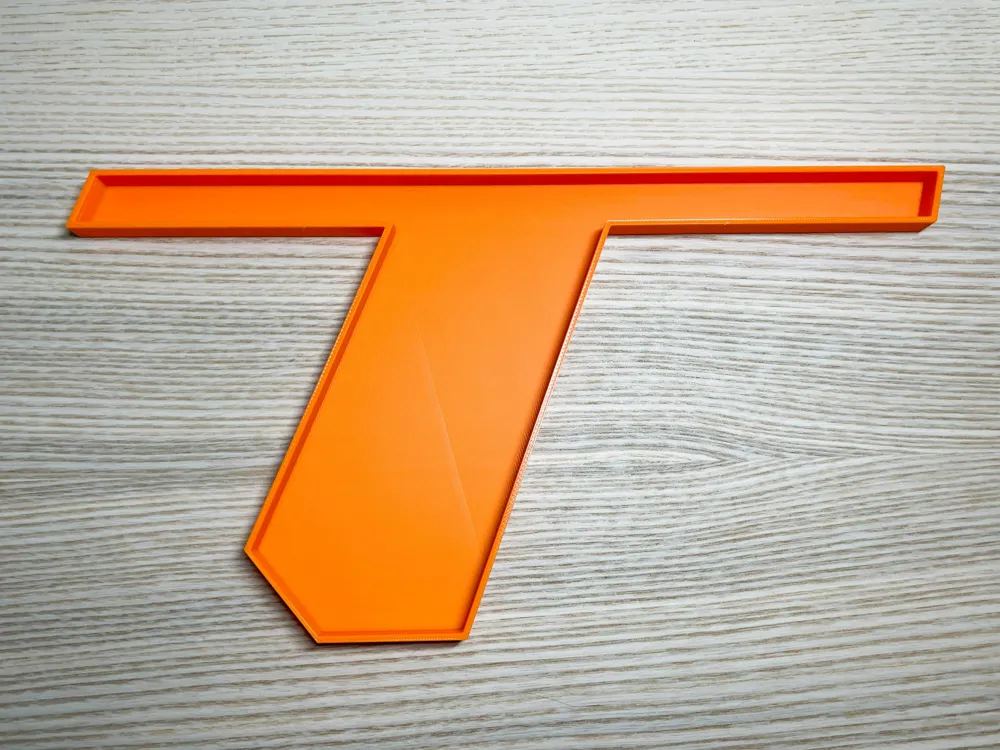

Before gluing the white front sides of the letters, make sure that the LEDs are fixed correctly and that everything is working.
For the cable, there is a hole in the letters T and M, designed for a 3,5mm cable. If a larger one is needed, it can be melted with a soldering iron.
Printed with a 0.4 nozzle, with standard settings on PEI plate.
I sanded the front edges of the black letters for a perfect result. Use water sandpapers on the flat surfeca in the following order P180 - P240 - P600 - P1000 - P2000
Part List:
+/- 3meters of 5V USB LED COB Strip
5V Switch Power Supply Wire 1.5M
https://www.aliexpress.com/item/1005005840496129.html?spm=a2g0o.order_list.order_list_main.59.b8dd1802t2cBJl
