Stackable Gridfinity - X1 Complete Hotend
Print Profile(1)
Description

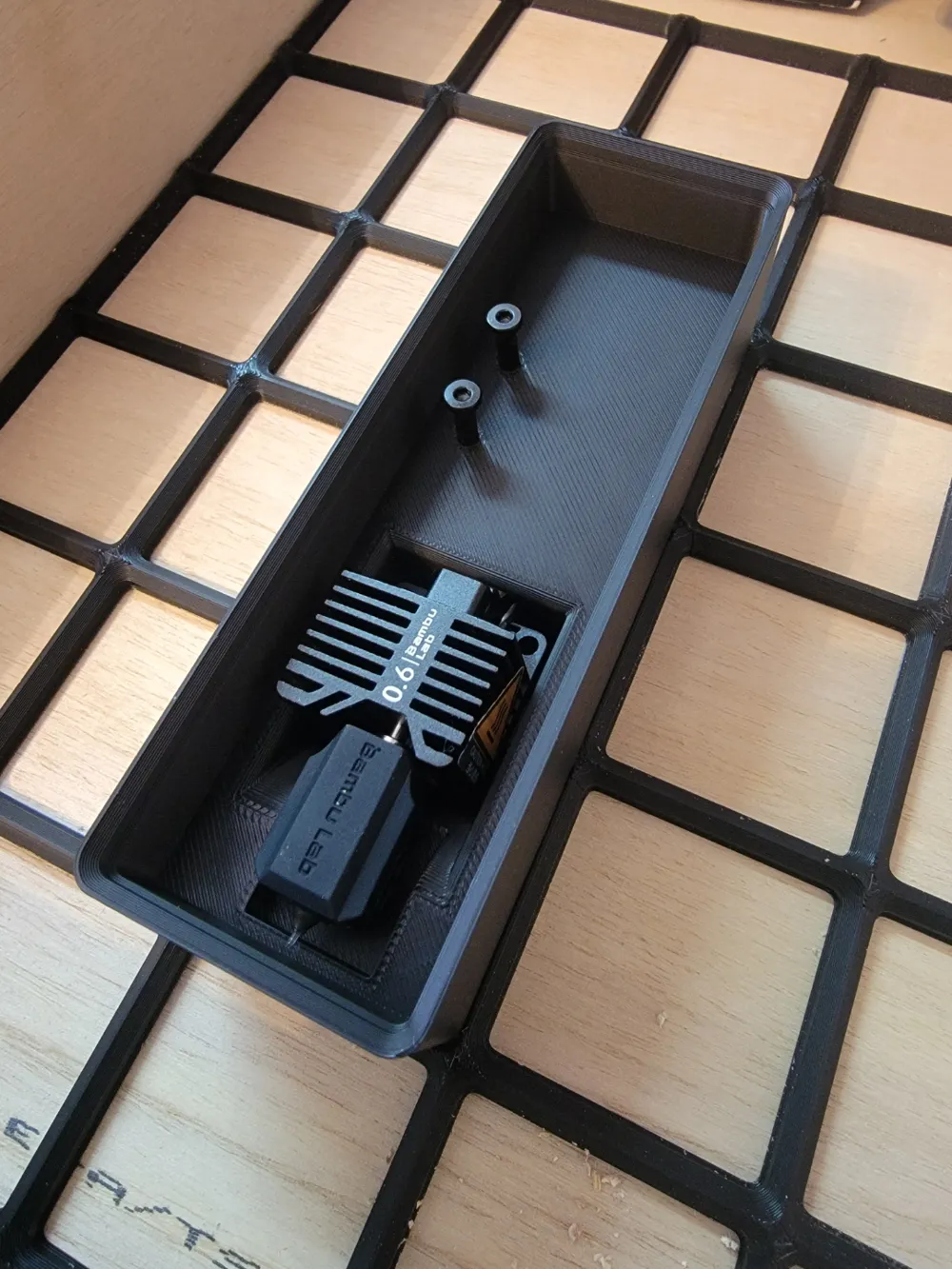

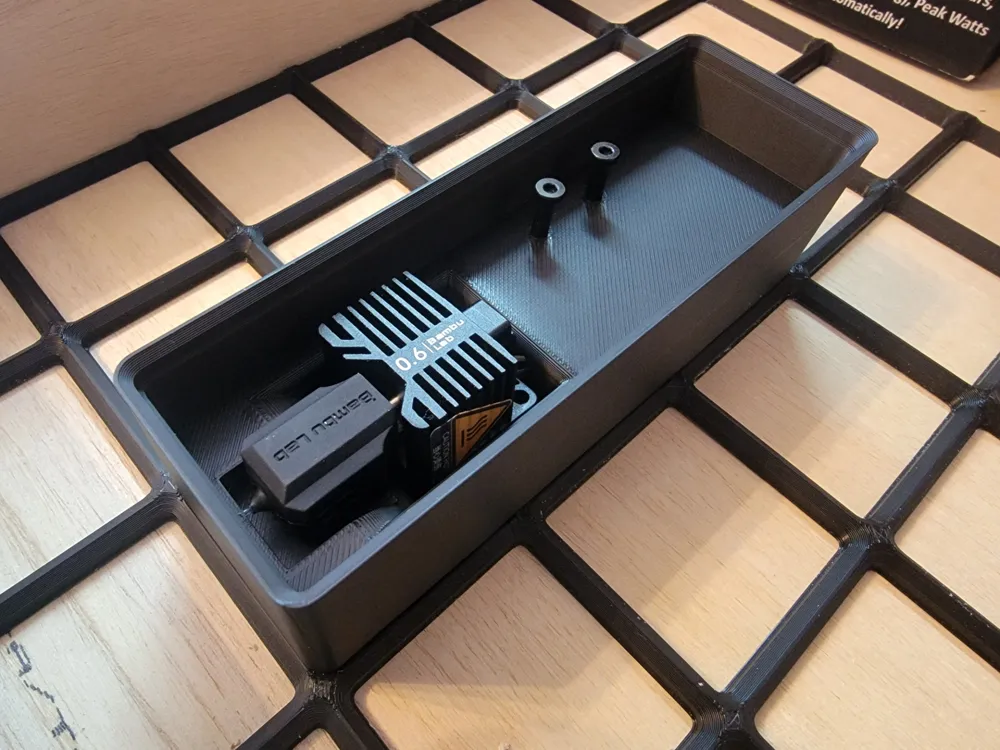

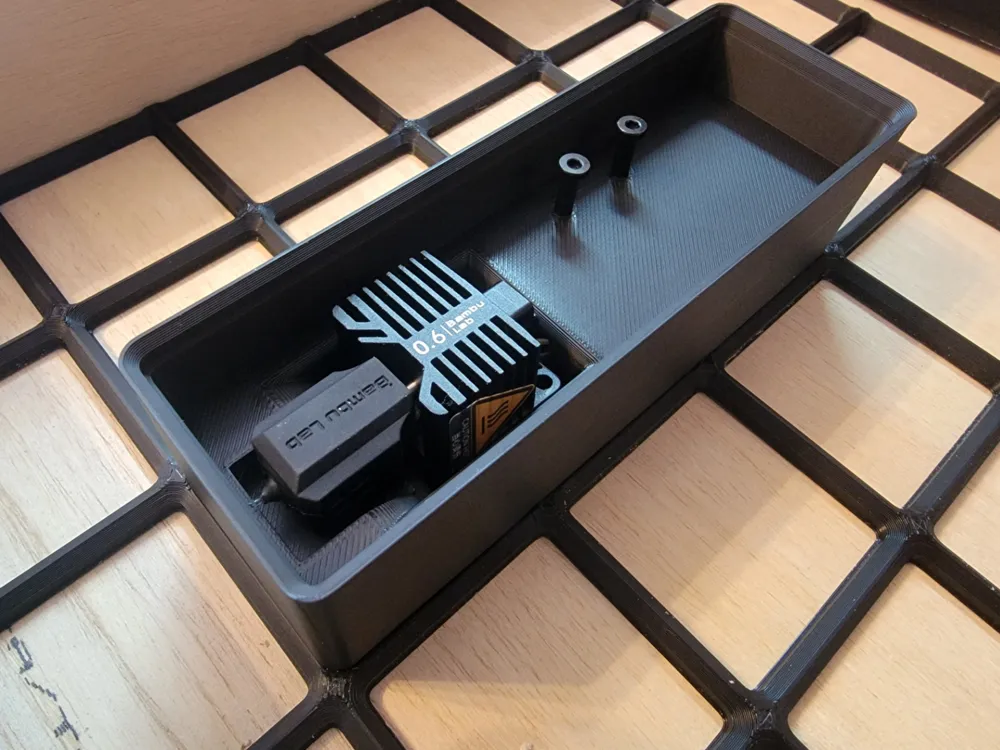

This model was made for myself to be a clean way to store and stack Bambu Labs x1c Complete Hotends. Other models online seemed to want to bend the wires to fit the hotend in a smaller space, and as an electrical engineer, that made me pretty sad.

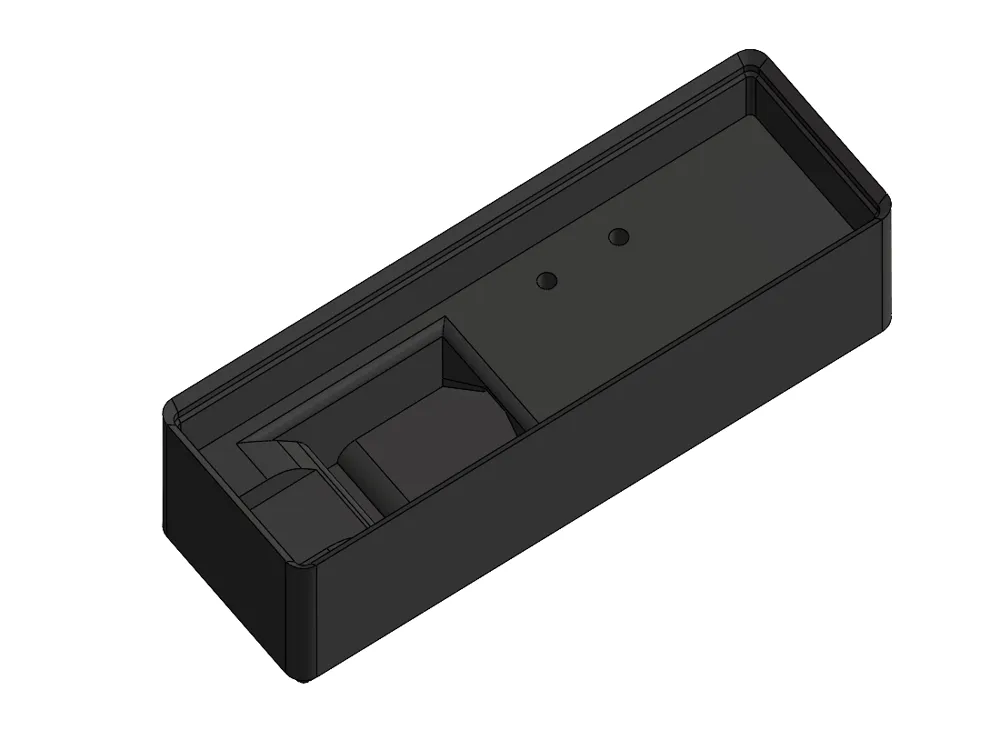

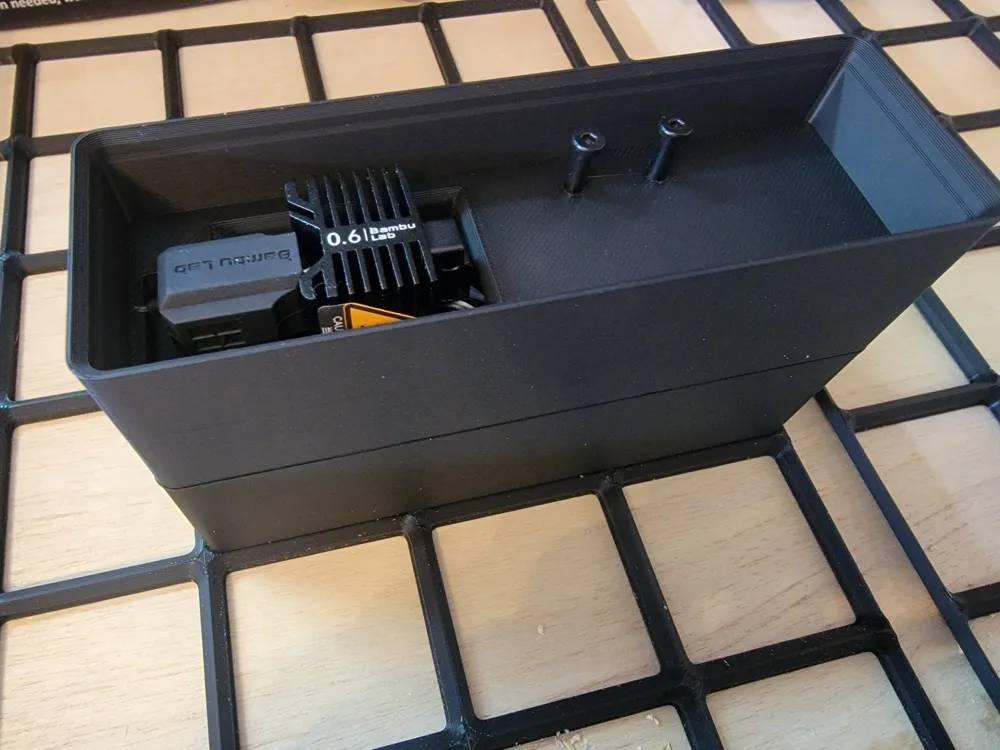

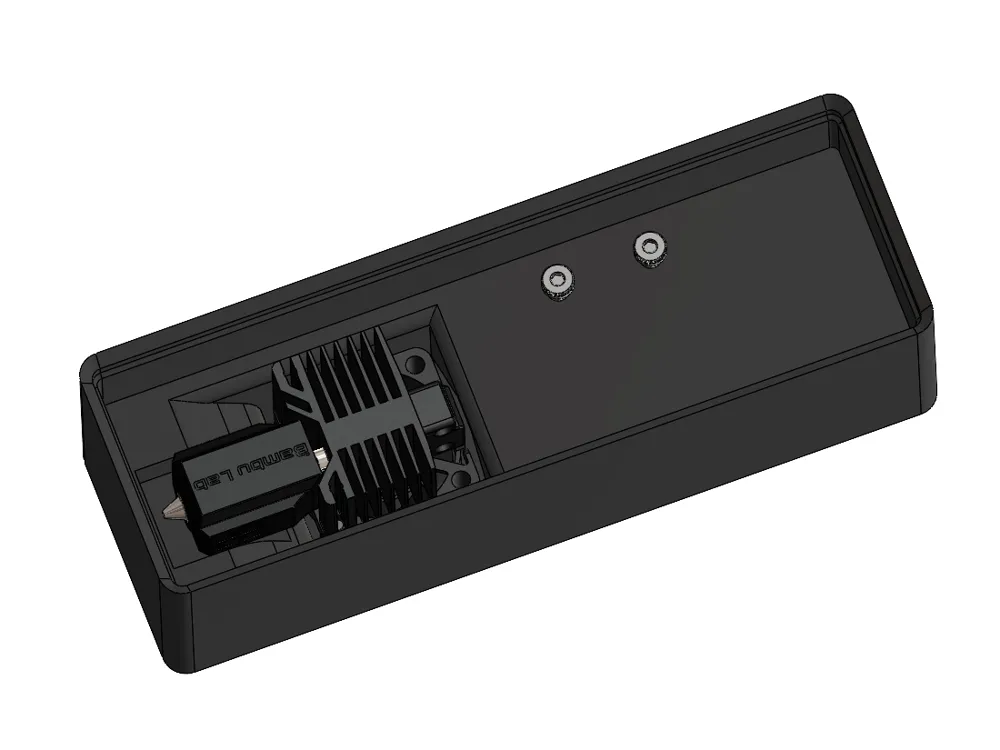

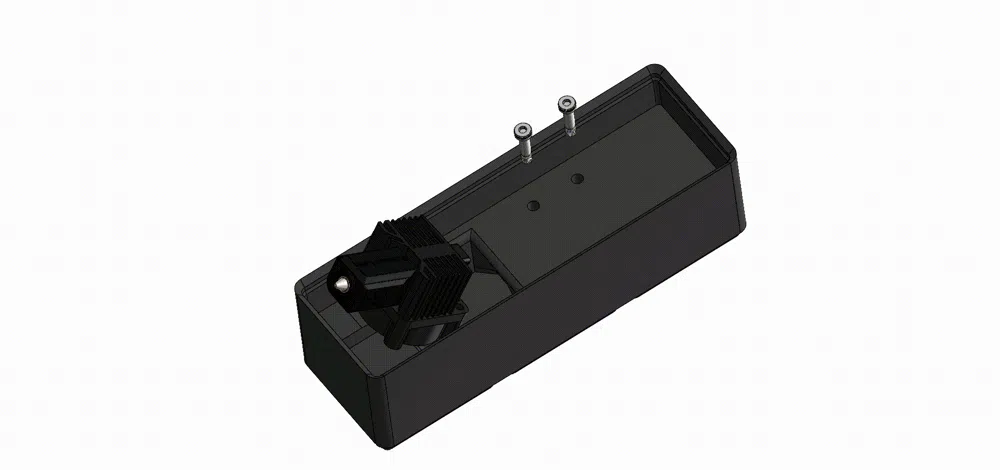

This model's Gridfinity dimensions are 3u x 1u x 5u. The container contains and hides the wires in an enclosed channel above the Hotend. It does make the container 1 additional unit it length, but the wires are tucked in nicely without bending them at all. Also when you stack the units, there is no need to make sure the wires are tucked in.
There are variations with labels or without nozzle diameter labels.
Let me know what you would like to see updated or if there are any oversights in the design and I can revise the model.
