Blast Gate

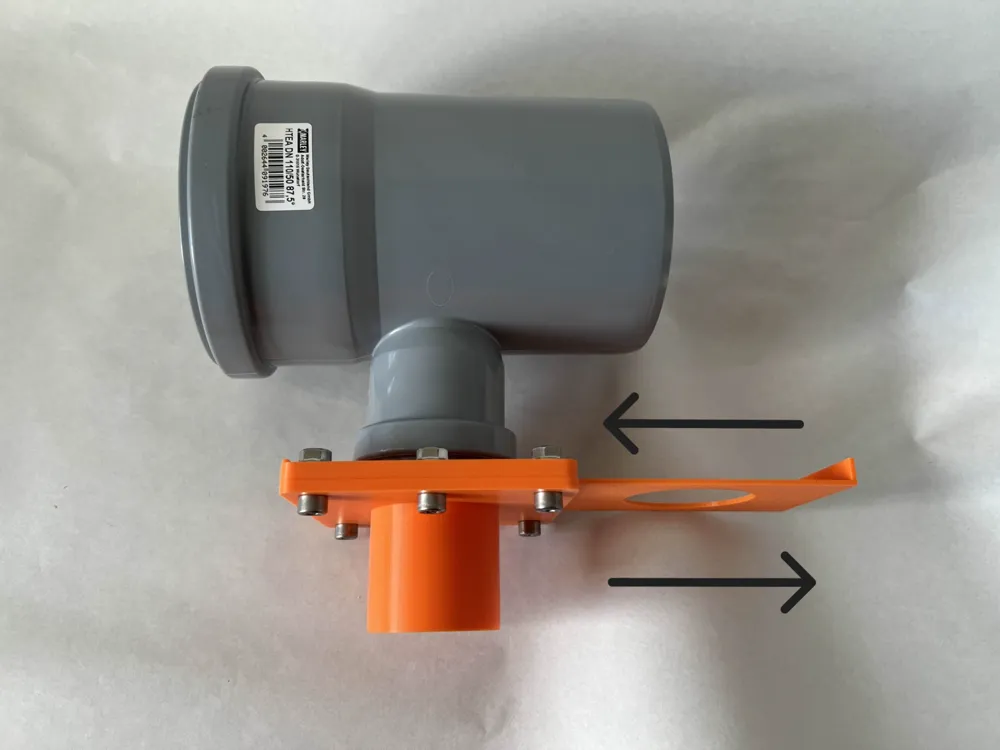

This blastgate (DIN50/DIN50) is designed for efficient airflow control in ducting systems, making it ideal for dust collection.
Quick Assembly Guide

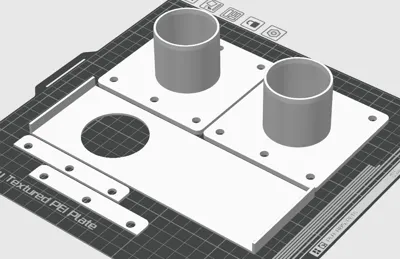

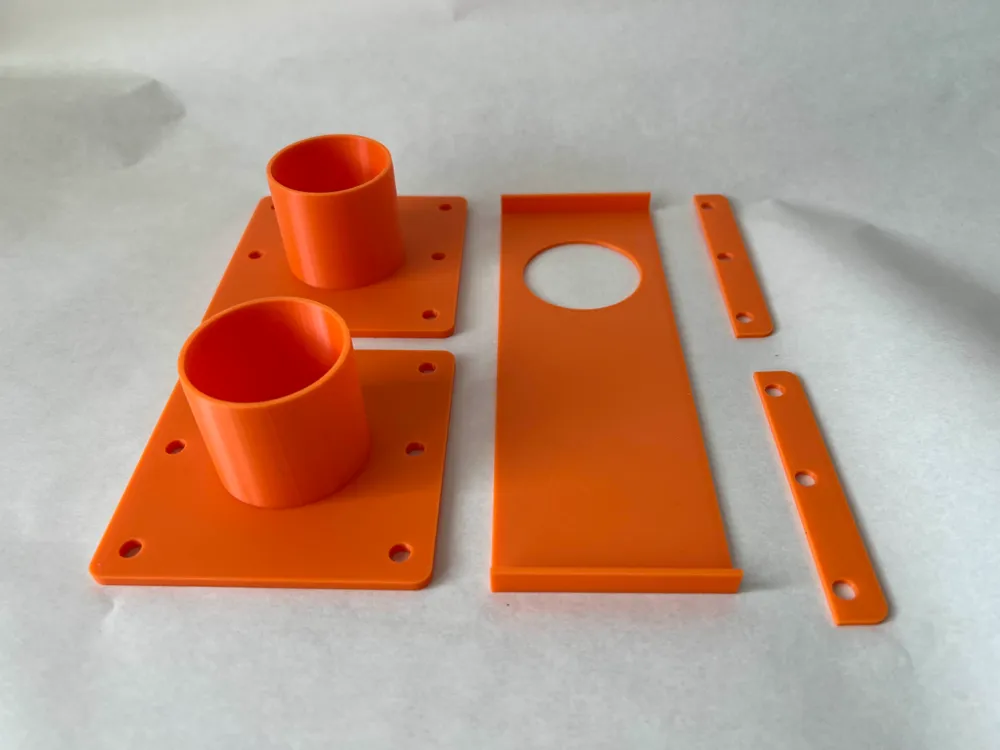

- Prepare the Components: Gather the two placeholders, slider, two DIN50 ducts, and six (M6x20) screws as well as 6 (M6) nuts.

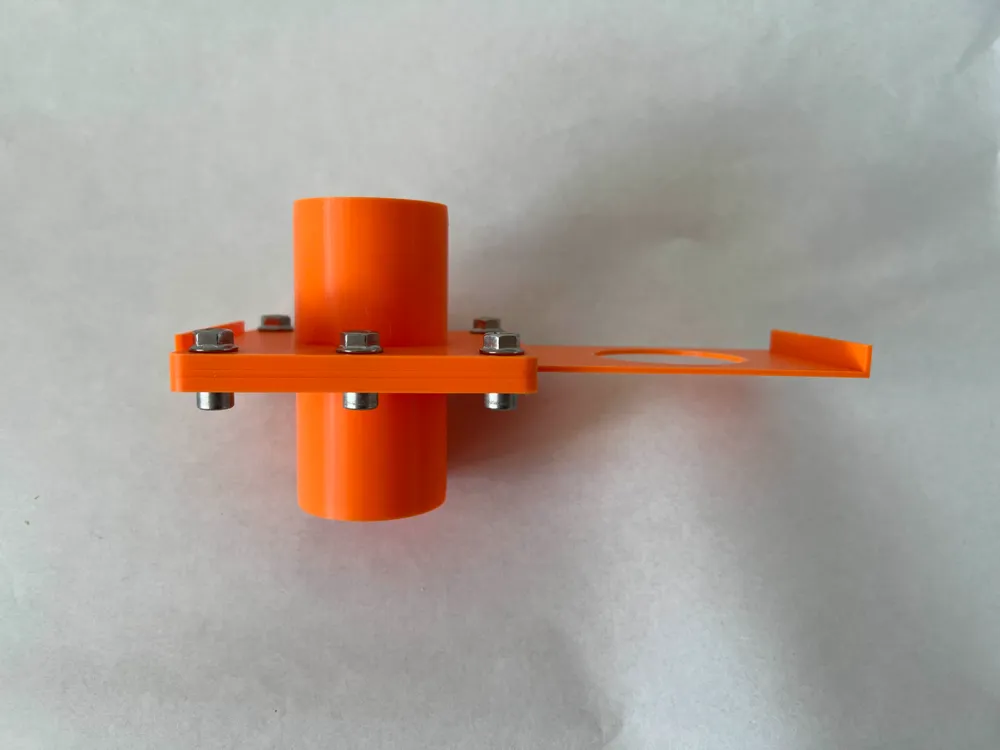

- Assemble the Blast Gate: Position the placeholders and slider between the two ducts, then secure them using screws. Be careful not to overtighten to maintain smooth slider functionality.
