Vacuum pad
Print Profile(1)
Bill of Materials
- Vakuumpumpe x 1:
- 6MM EPDMRundschnurGummi x 1:
- Anschlusskit6mm x 1:
Description

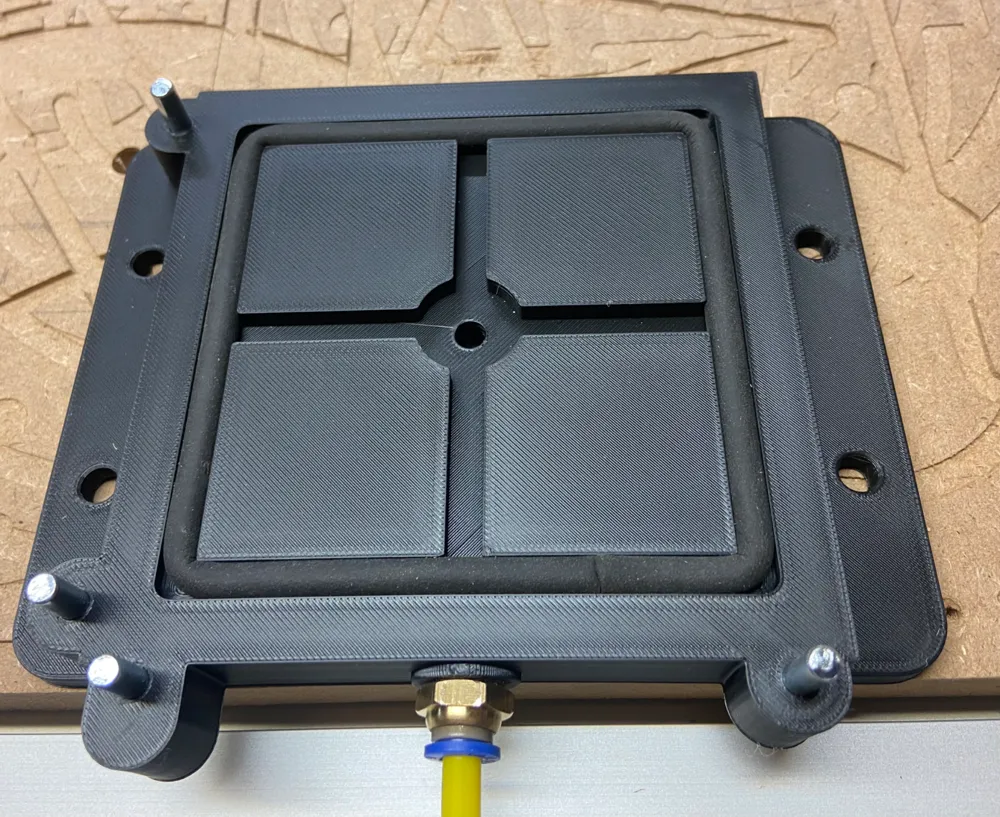

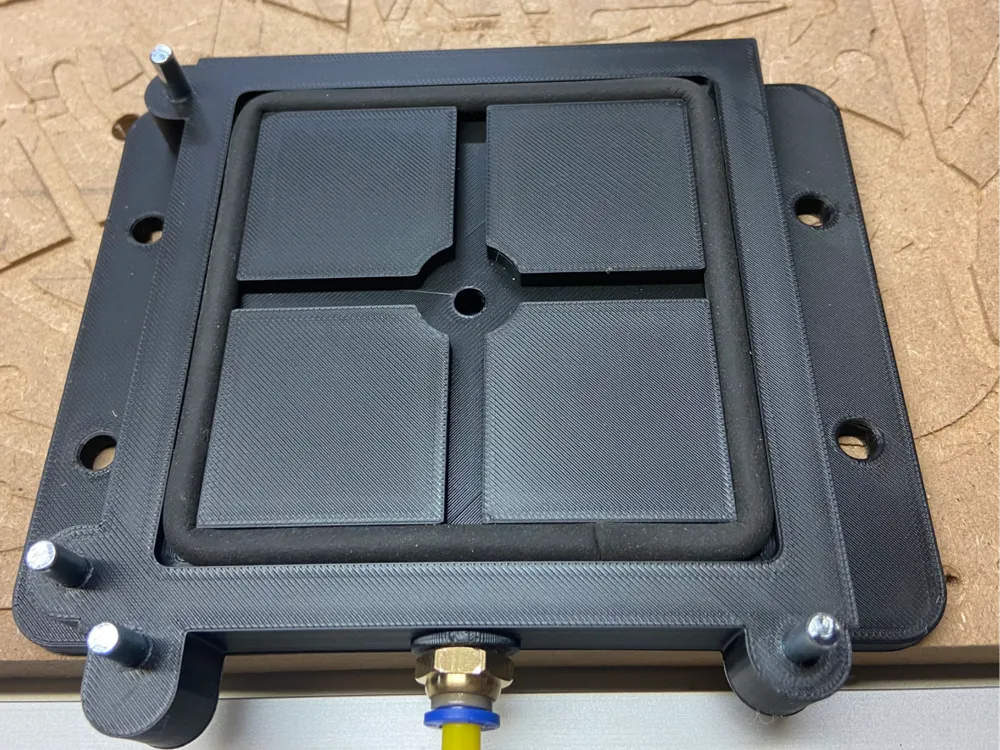

A vacuum pad, either for the CNC or just for the workbench, to hold workpieces for grinding.
Accessories would be 6mm EPDM round cord, a connection kit for 6mm hose and a 12 Volt vacuum pump.
I have not activated smoothing to obtain a slightly rougher surface.
I have chosen a 50mm screw mounting grid for the CNC - because it fits my machine.
Construction height 20mm. With 5mm bore holes for base supports to have the xy zero point at the bottom left.
PLA and 0.4 nozzle
