Moon Clock

Hello,

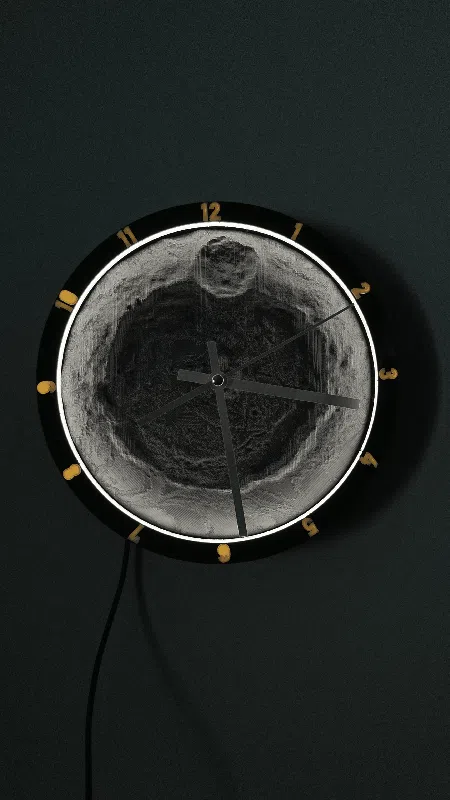

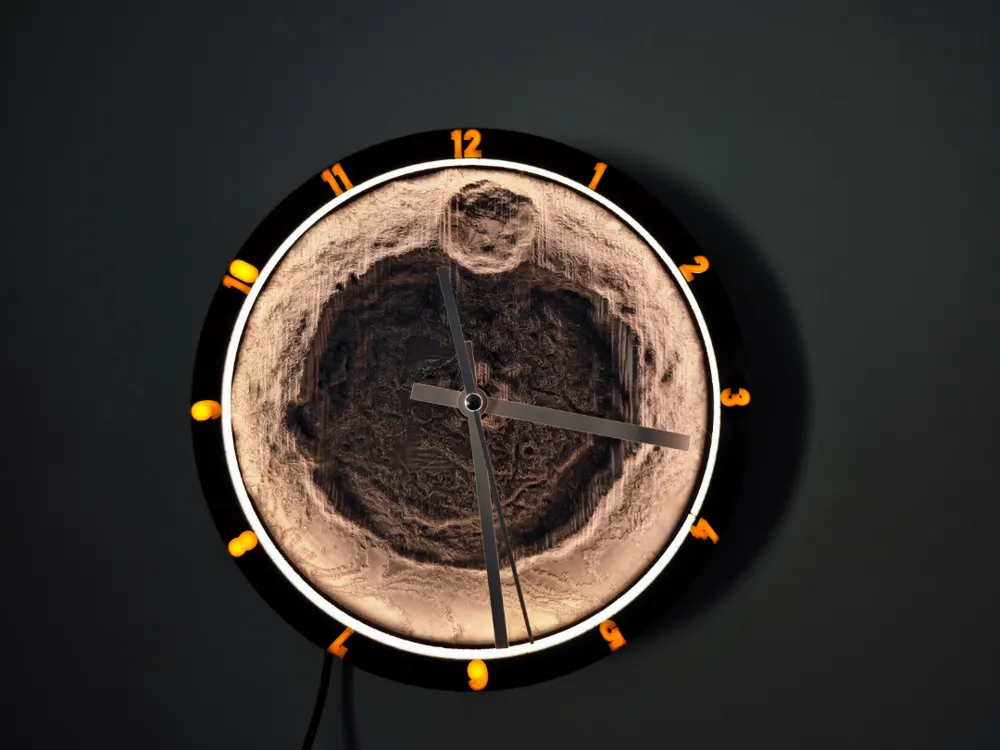

I present to you my newest project the Moon clock!

Parts:

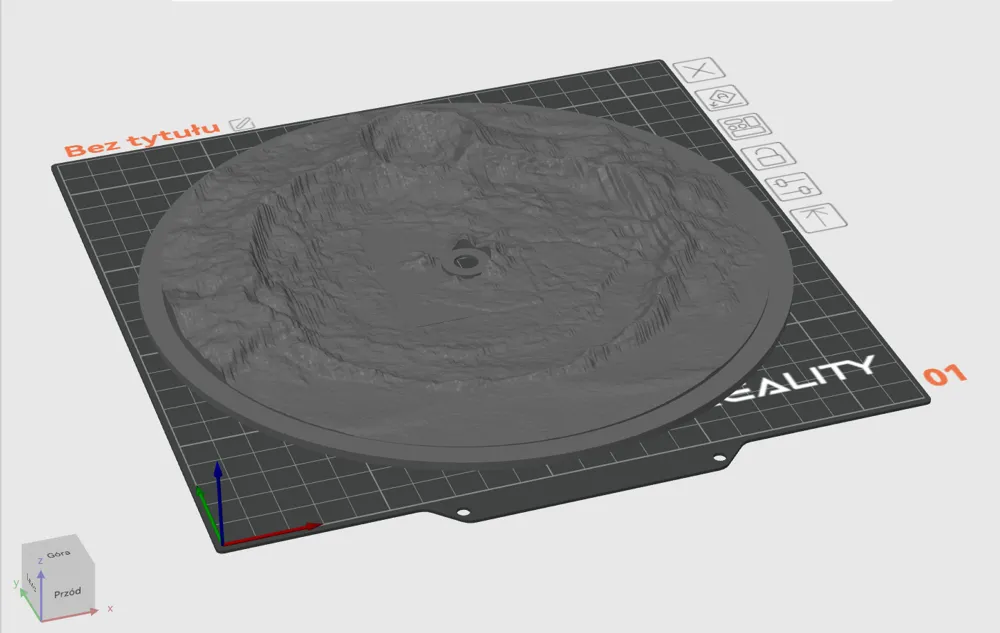

• Clock Plate. This is the main part of the clock. It is like moon surface. standard support needed for recess for clock mechanism. I recommend you to set more top layers.

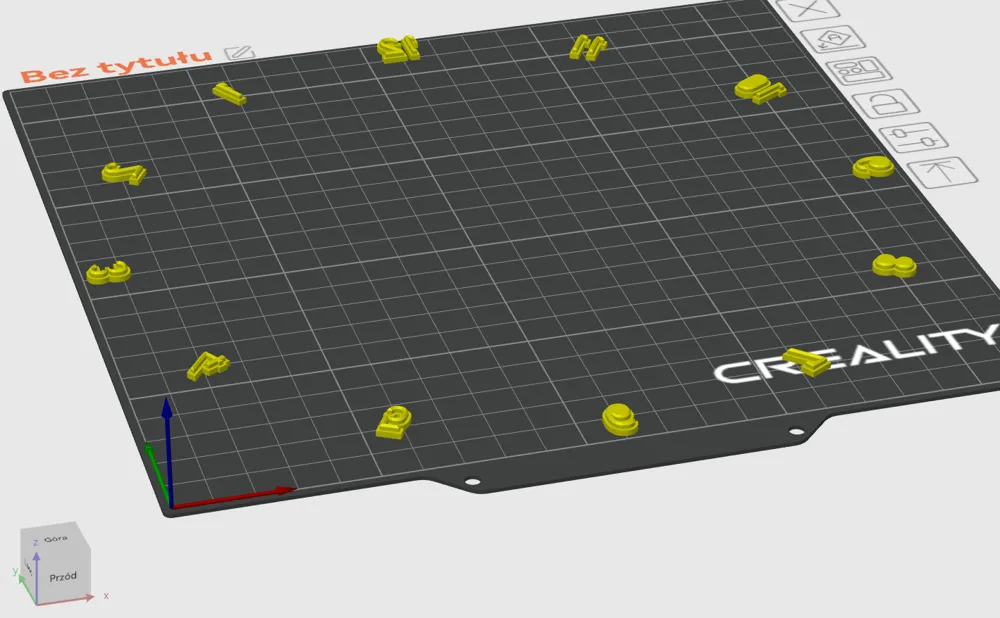

• Numbers Tight. i print those numbers and they fit perfectly to the ring. I didn't even have to glue them to the outer ring. 0% infill to make it permeable to light



• Numbers. I didn't print these numbers because tight one fit perfectly in my case but I made them if You have a problem to fit them into outer ring. I made a bigger bevel on the side that goes into the outer ring so i guess you have to glue them if You choose them.

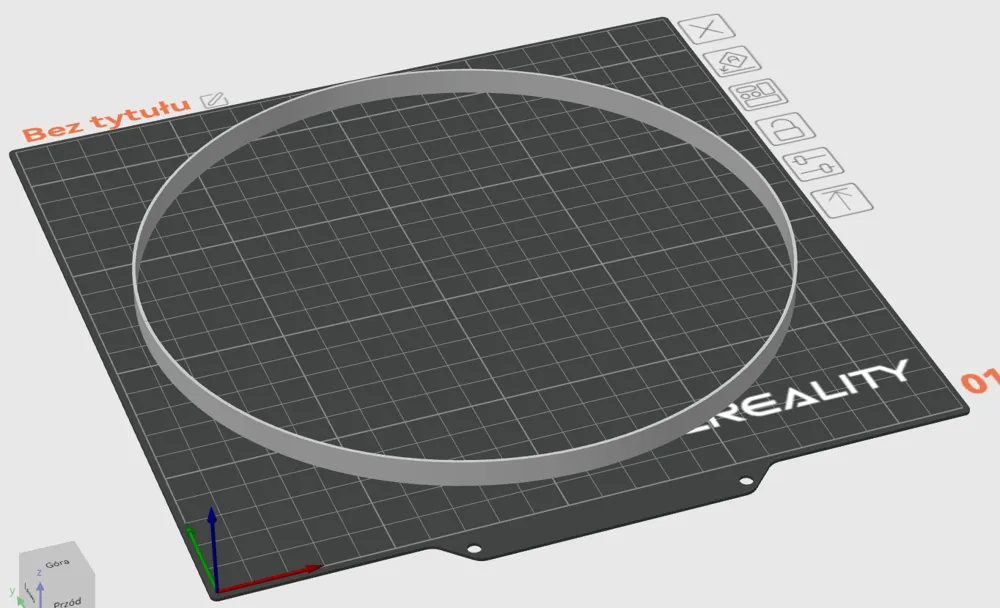

• Transparent strip. It is a thin strip that covers the led strip.

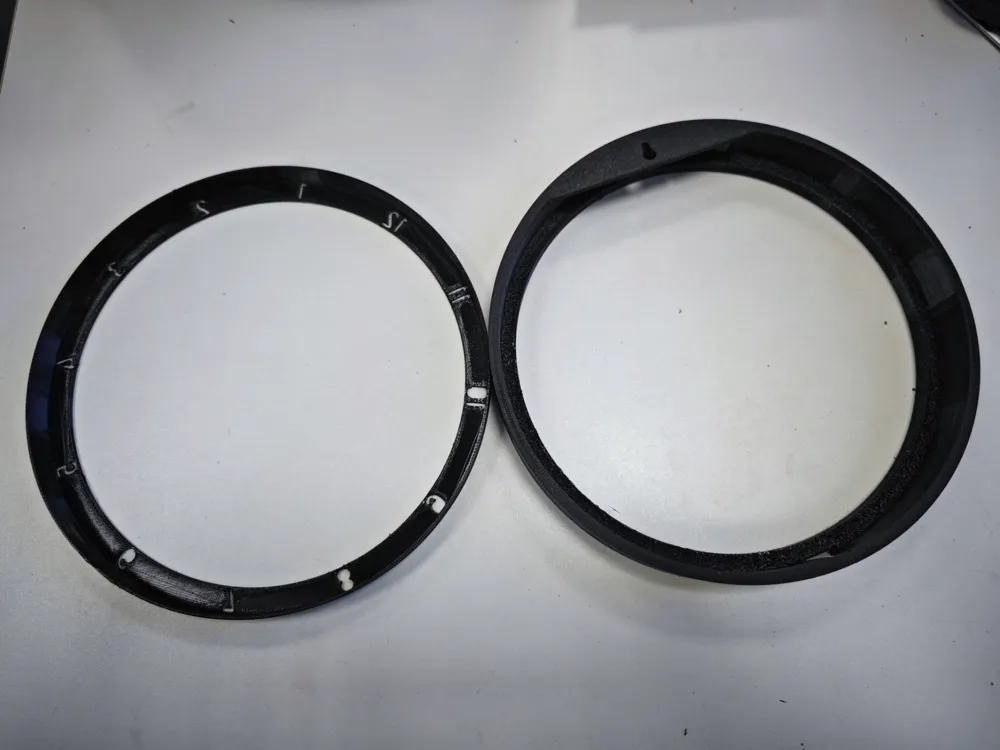

• Outer ring part 1. I cut the outer ring ito two parts so that there would be no problem with removing the supports in the groove for the led strip.



• Outer ring part 2. It fit perfectly so i didn't even glue part 1 with part 2 together.

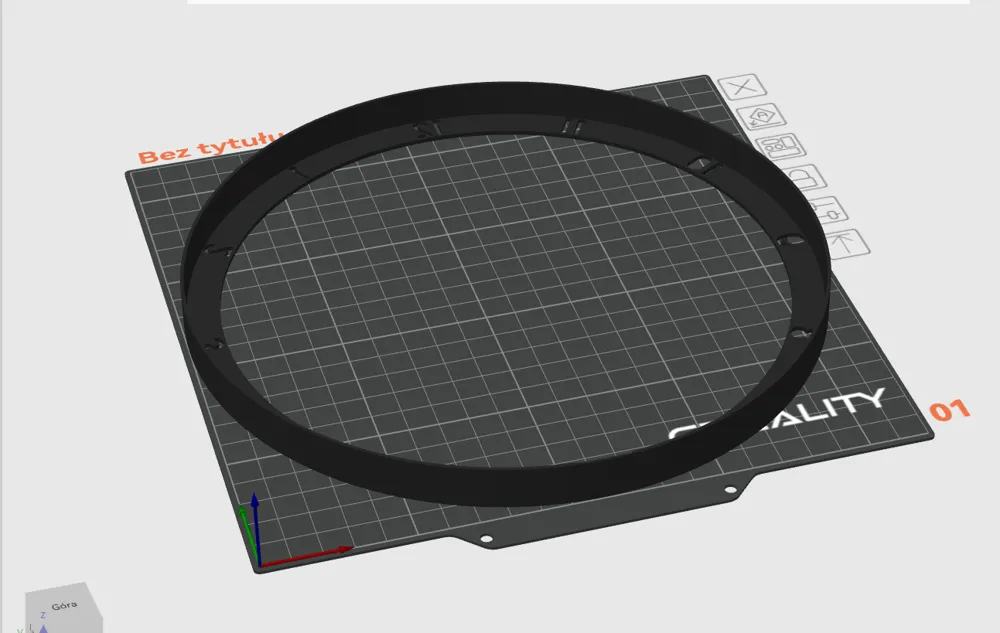

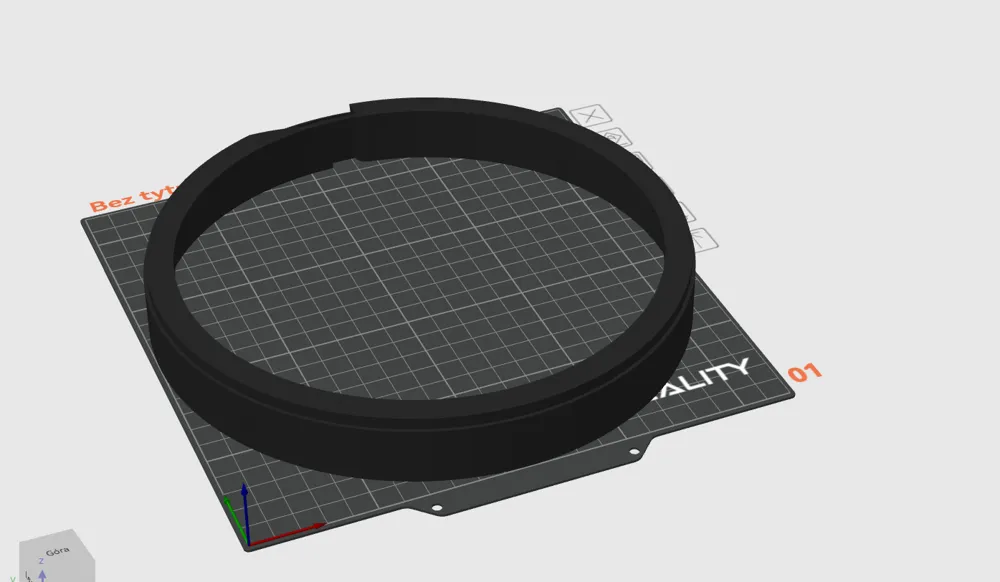

• Outer ring in one part. This is outer ring in one part. I recomended it for those who have calibrated perfect supports or can print supports with different filament.

Outer ring have a hanger if Your clock mechanism doesn't.

All You need:

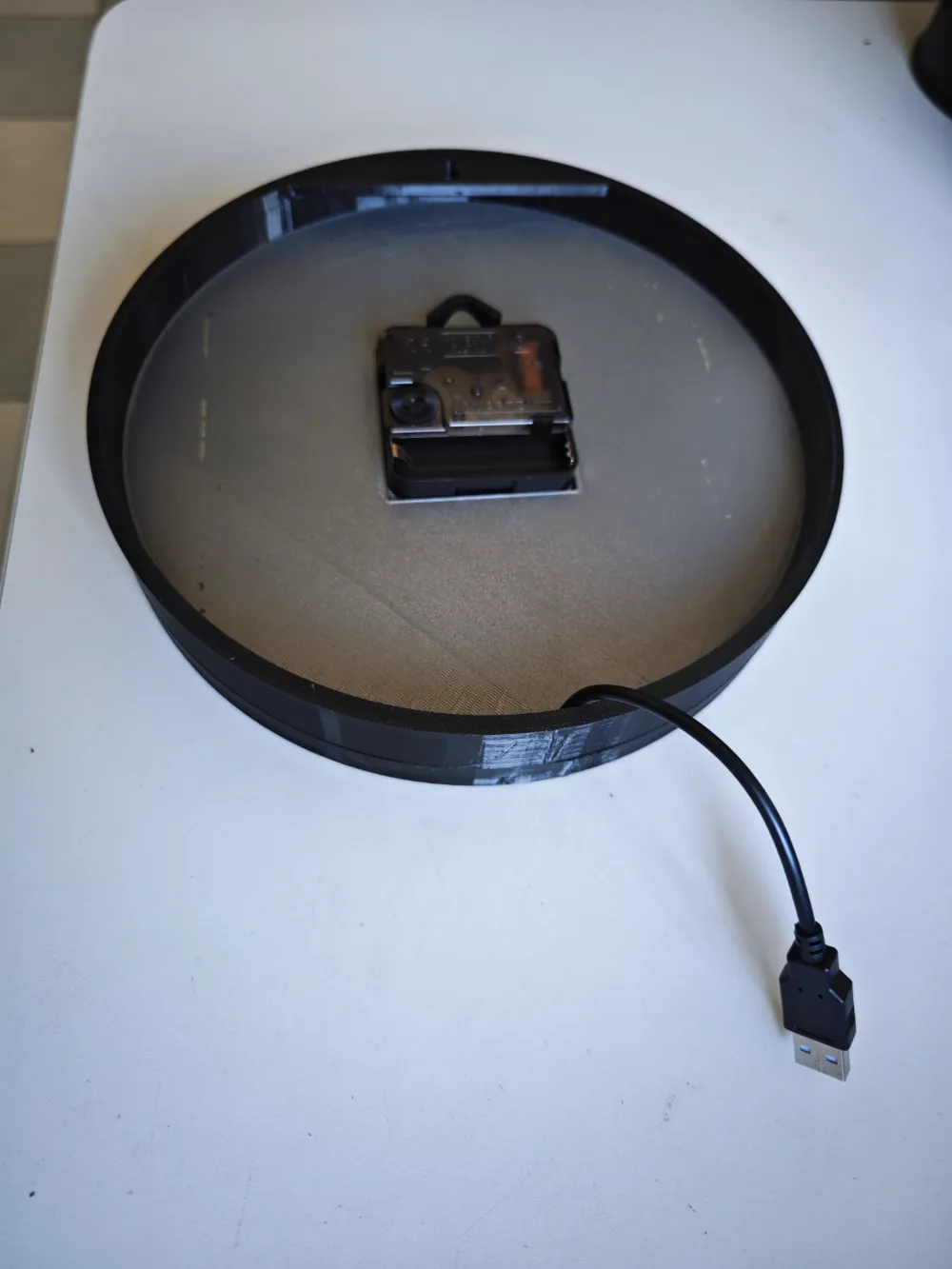

• Clock mechanism. Standard clock mechanism (place in plate: 56x56, hole 7,6mm). Depending on what hands Your mechanism has, You may need to shorten slightly the minutes and seconds hands.

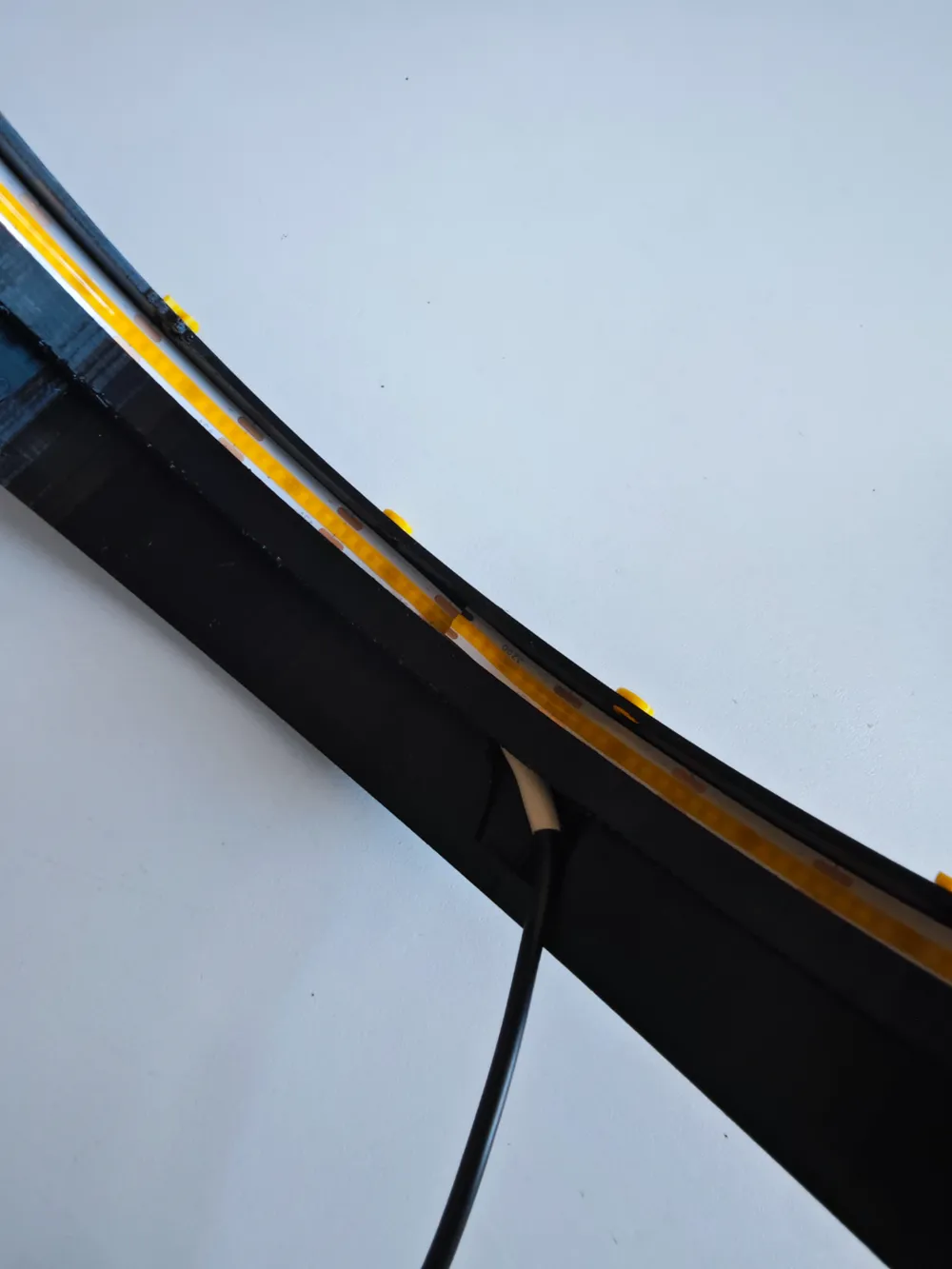

• LED strip: The width of the led strip is 8mm. You need about 70cm length.

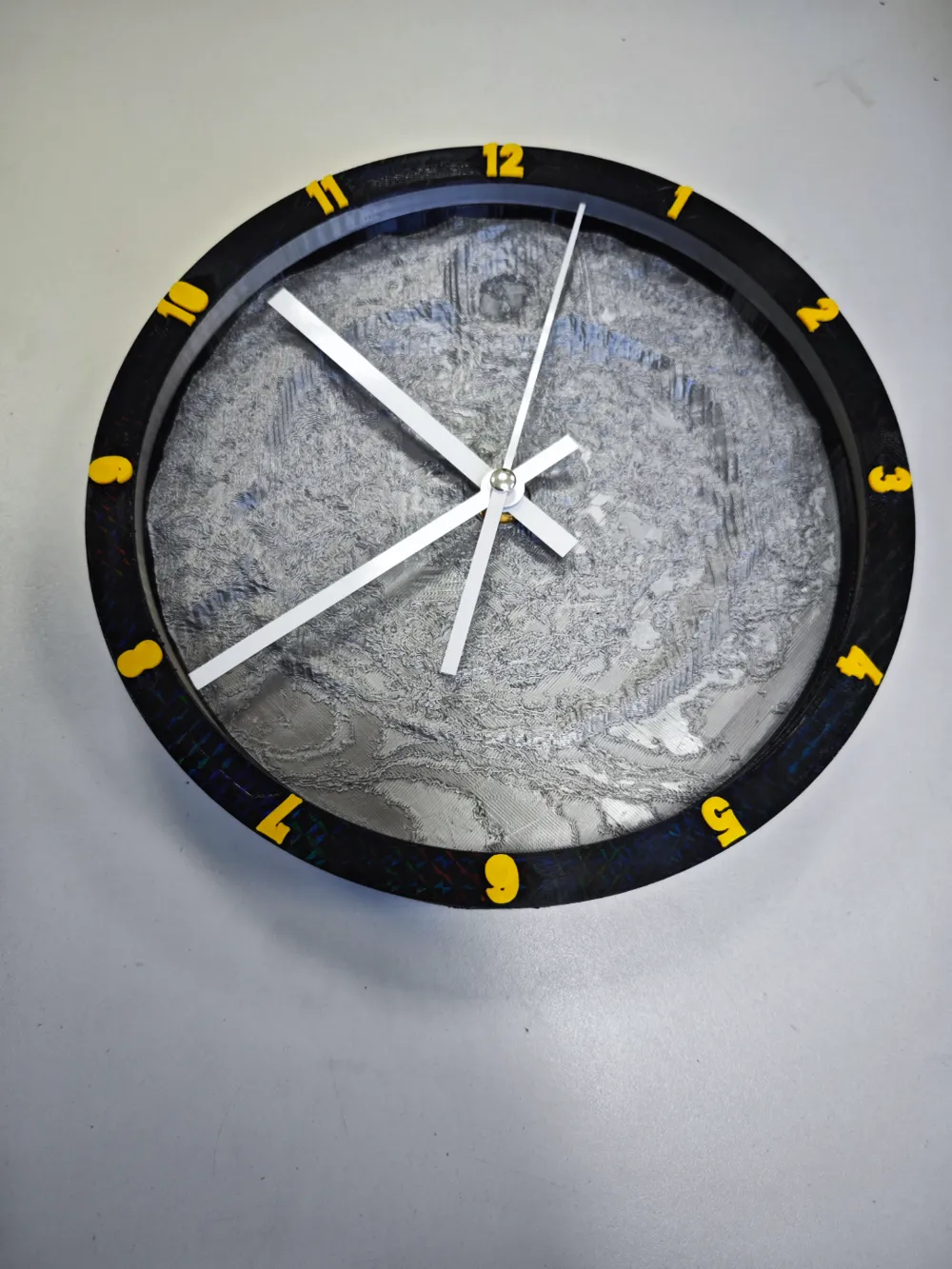

• and filaments :-). I printed plate: silver pla, numbers: yellow, transparent is transparent and outer ring parts: black PETG
