0.2mm layer, 2 walls, 5% infill

Designer

3 h

1 plate

4.8(5)

Lid to prevent bits from falling out

1.8 h

1 plate

5.0(2)

Open in Bambu Studio

Boost

256

186

Released

Description

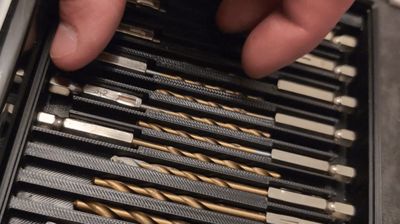

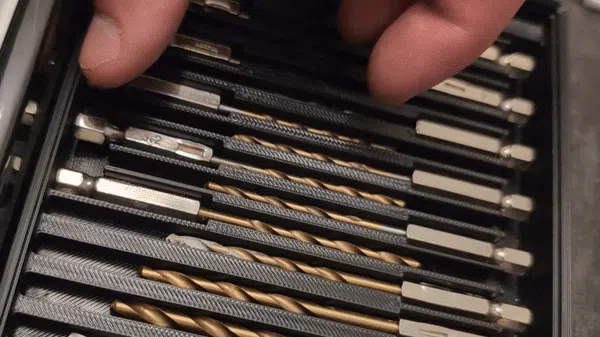

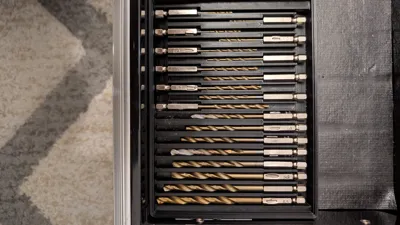

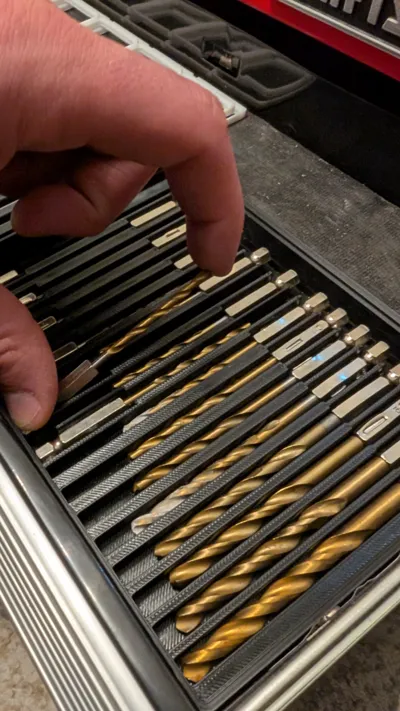

Gridfinity storage container for 19 hex drive drill bits. Goal was to keep this as compact as possible while still being able to easily remove the bits from the case. This was achieved by allowing the end of the bits to be pushed down in order to lift the bit out of the case without having large cutouts for your fingers. Form factor for this is 4x3 3U tall with stackable lip

These are the bits that I designed this around. Please let me know if this works for others.

https://www.amazon.com/gp/product/B08MQLVJCR?ie=UTF8&psc=1
