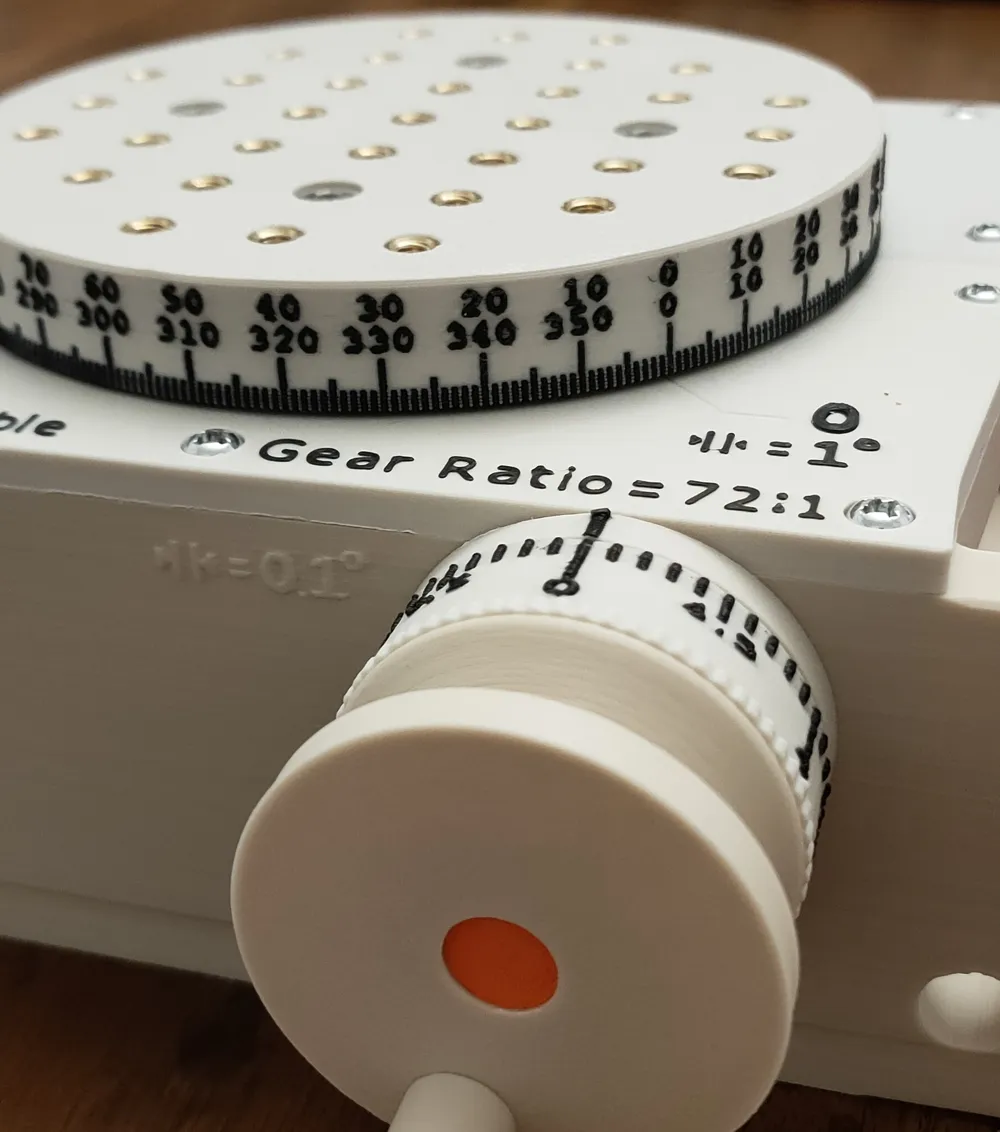

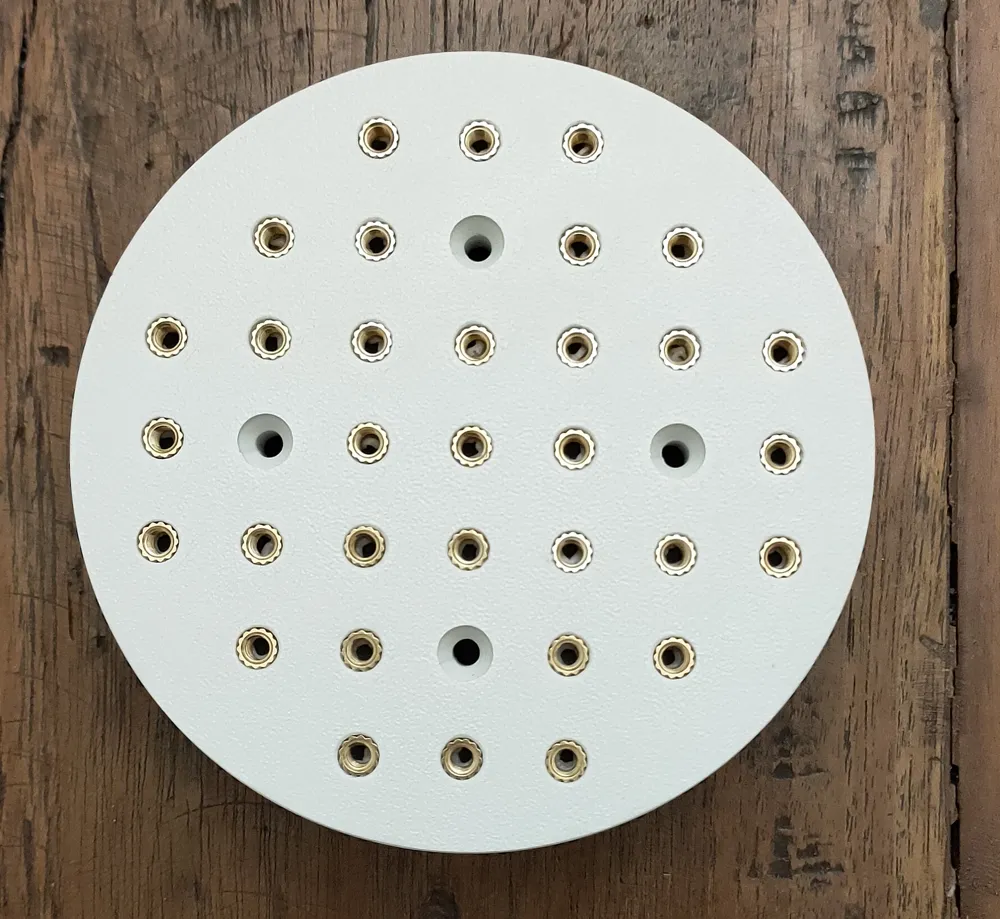

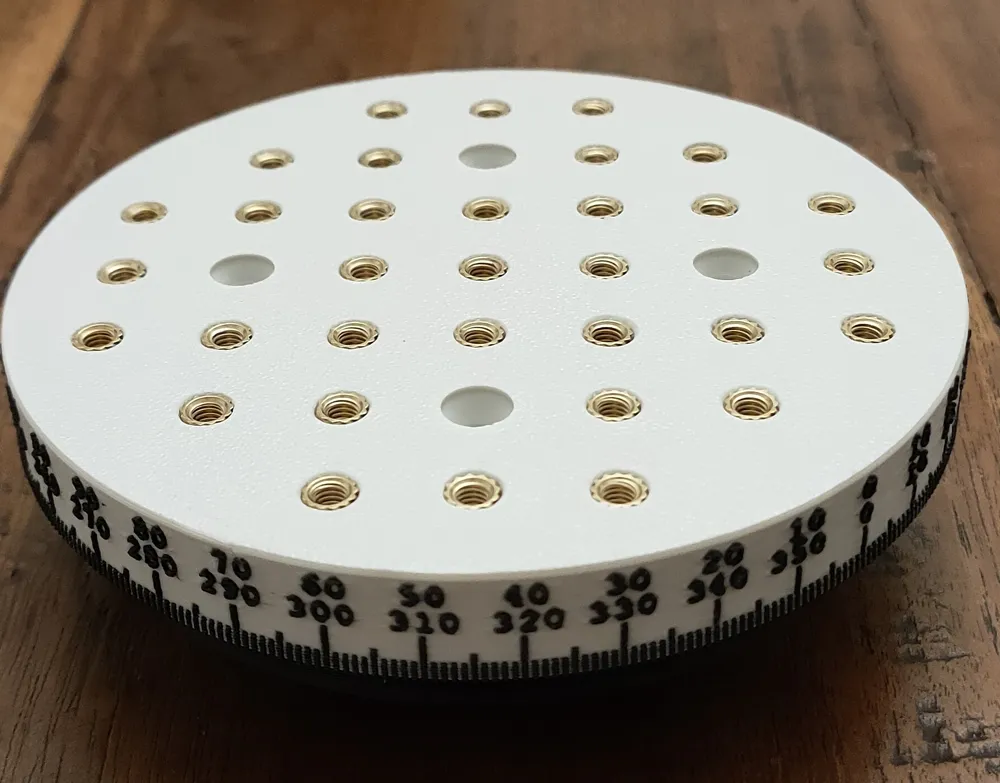

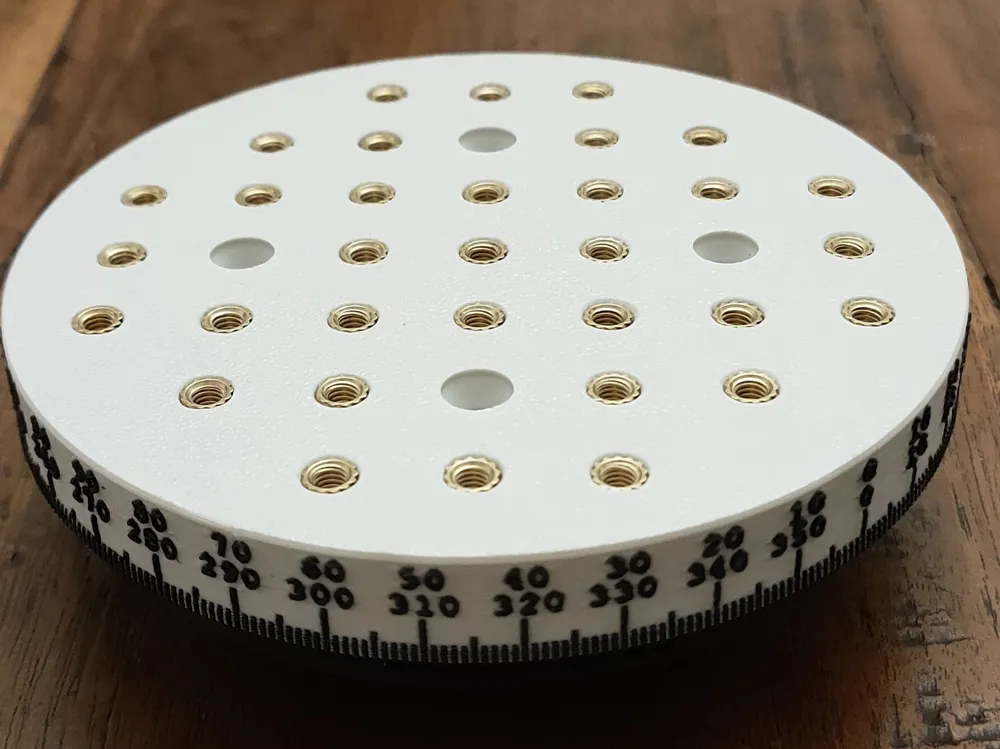

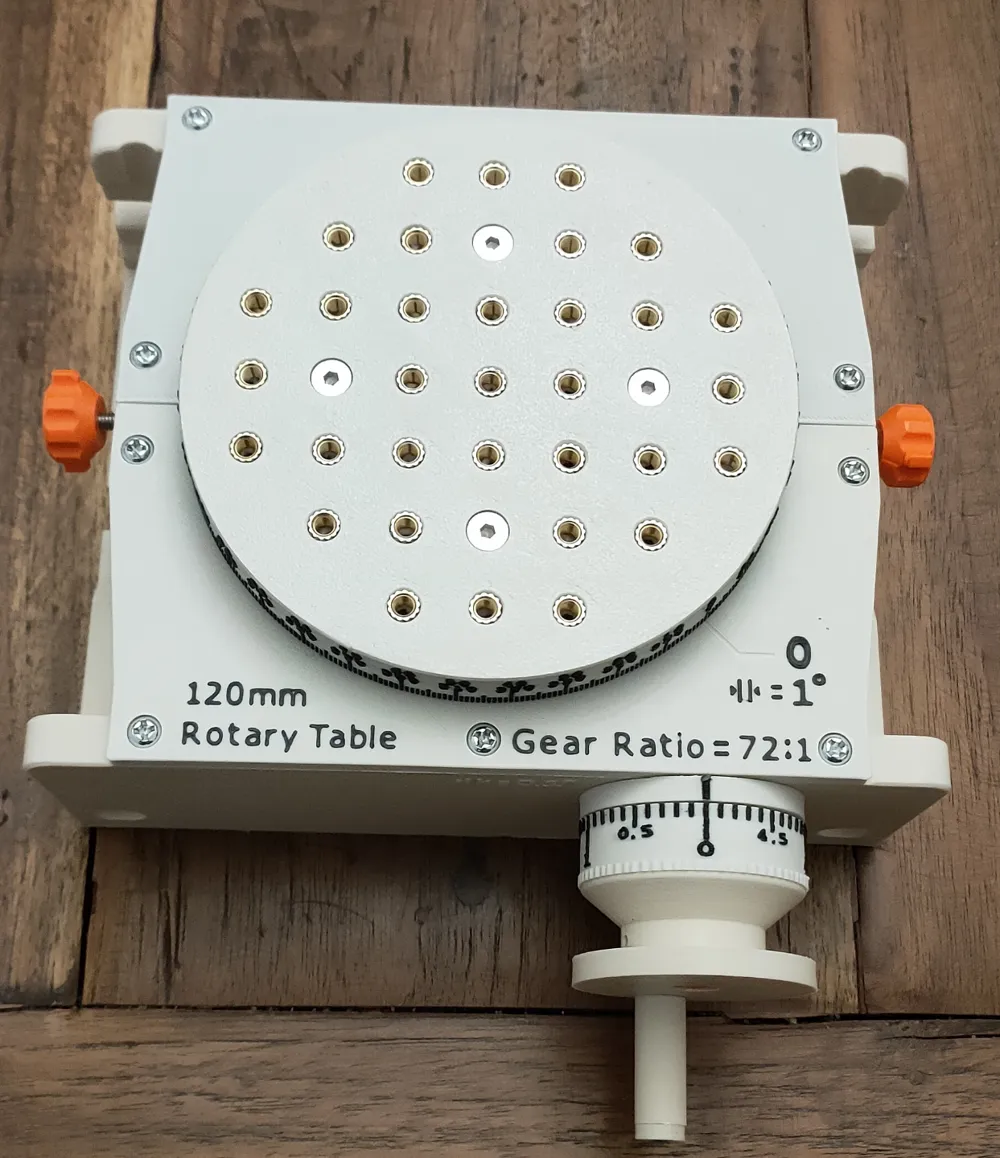

Here we have an alternative head that works with a grid for M4 screws instead of T-slots.
This head is suitable for people who want to work with a screw grid and is also slightly lower in height.

A version that works without AMS can be found in the print profiles. Please also note here - the models are adapted to the respective requirements. The AMS model does not look good when printed in one color, so please use the corresponding model.

Required accessories:
4 x flathead screw M4 x 35 (or 40) mm (connection from turntable to gear wheel)

The four screws from the other head are a little too short here. Please compare the parts list of my 120 mm dividing head.

Boost Me (for free)

Please support me, I have more projects in the works and need your help.

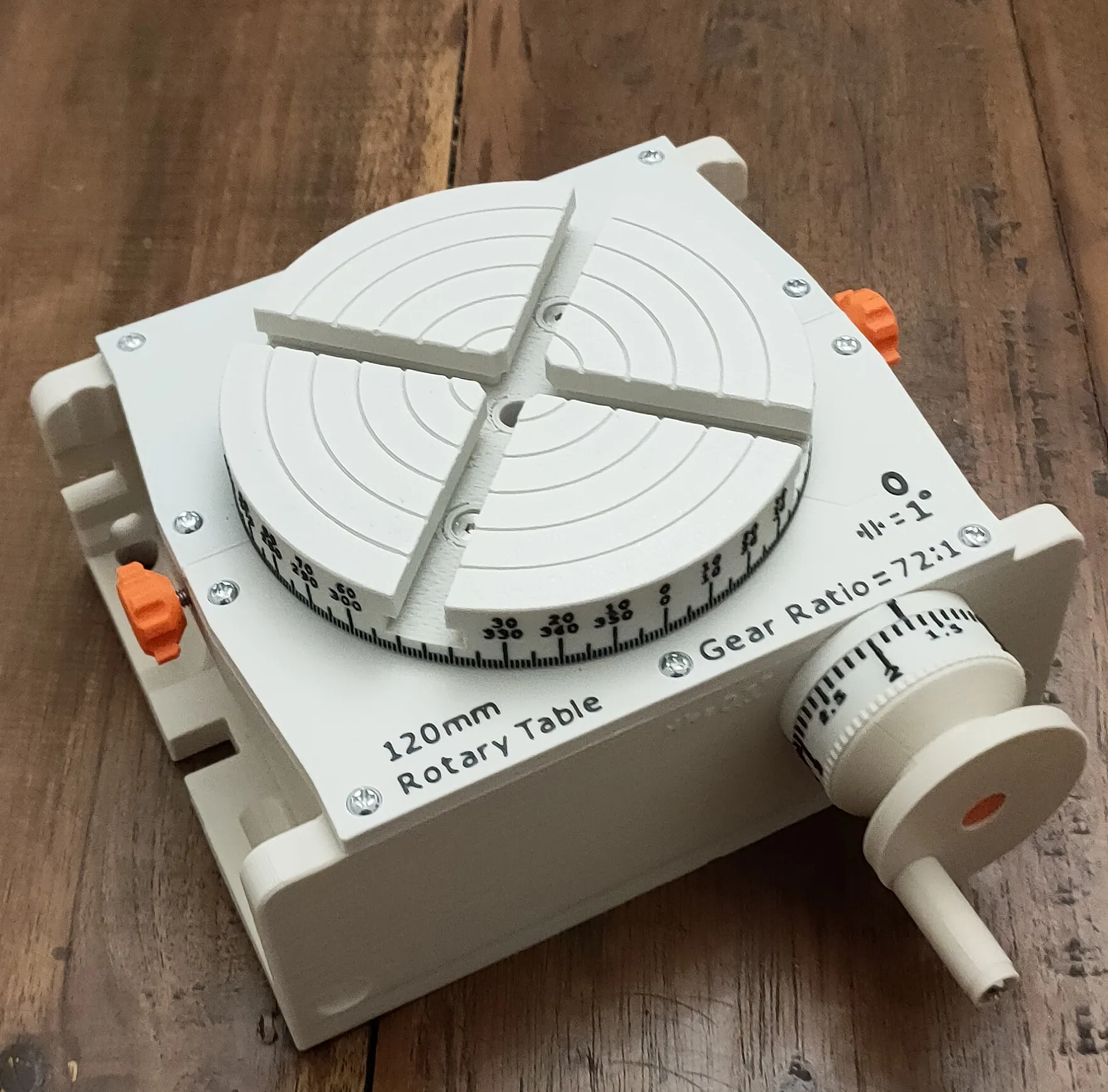

The 120 mm Diving Head:

https://makerworld.com/de/models/883870#profileId-838551
