Description

Update! 02-12-2023

It now uses les fillament then before and the drawers are deeper! This module cost 411,76g. and saved 43.83g vs the older version. And the print time is reduced significantly. From 11h28m to 9h59m on X1C / P1P / P1S. The already printed inserts will still fit the updated version. But new inserts downloaded from now on will not fit the older version of drawers. Inserts used to be 28mm high and are now 31mm high. The line on front of the drawers (benchy hulline) is also removed in this update.

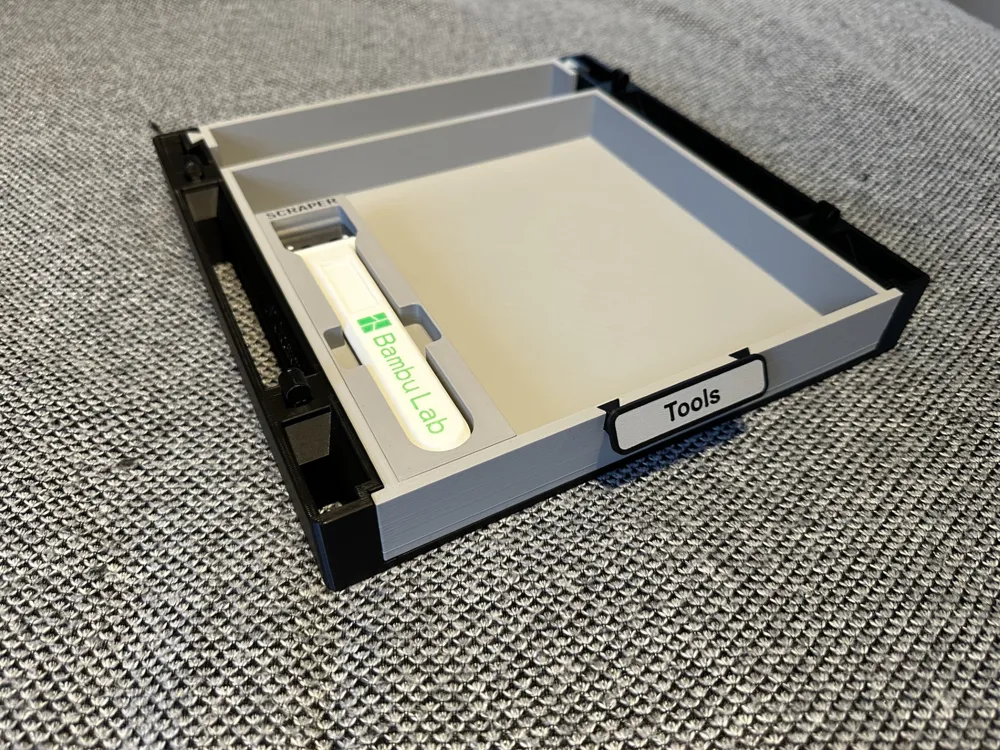

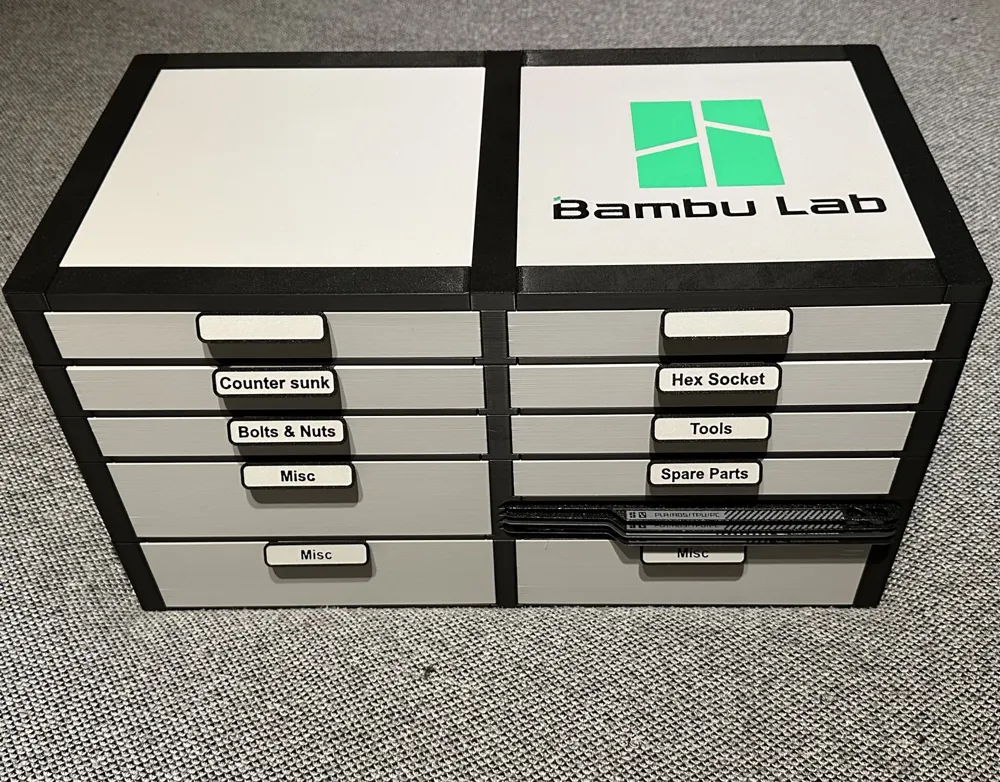

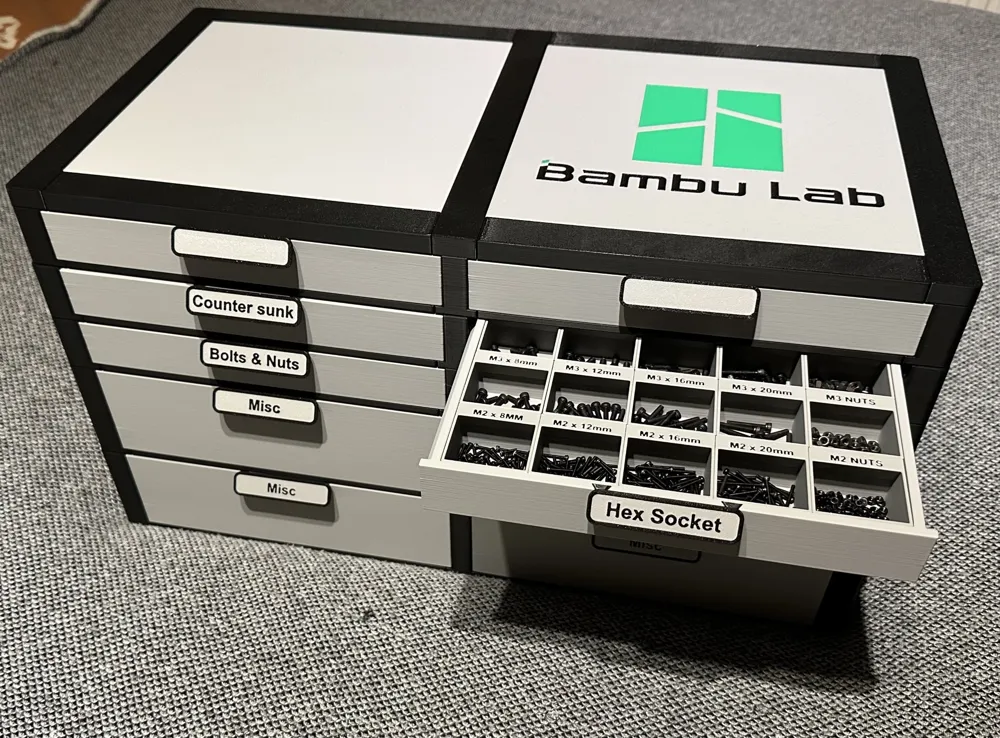

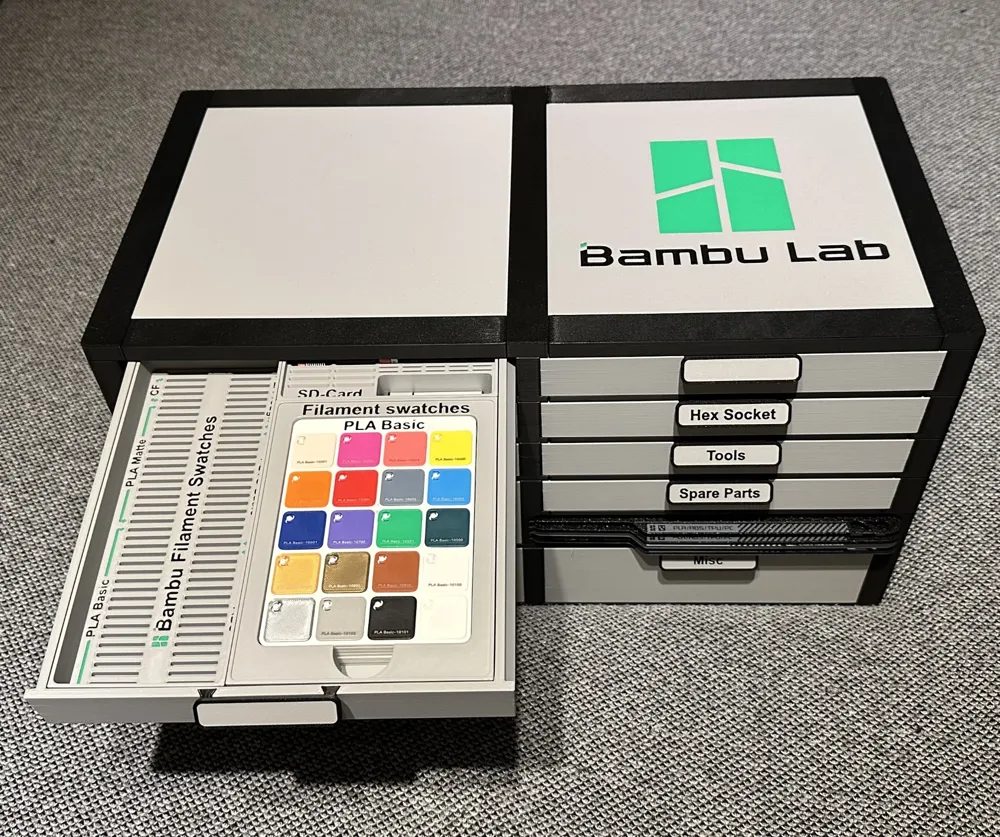

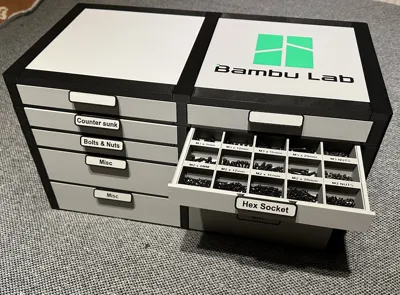

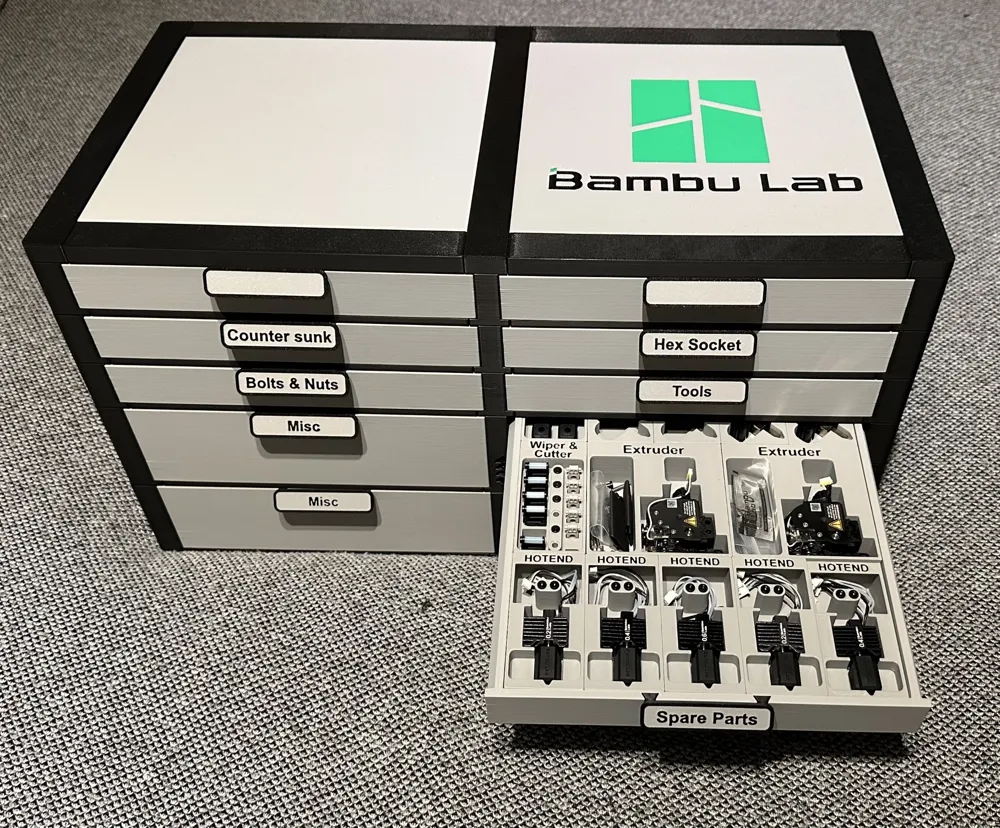

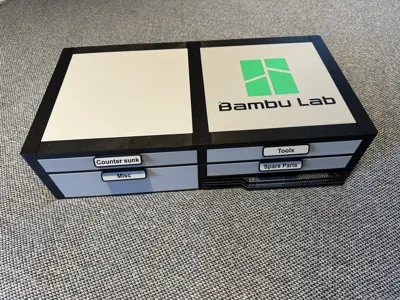

Ive made this modulair sorter station.

You dont need any screw's or bolts to assemble. print it and build it. Everything hookes onto eachother.

No supports needed

No brim needed

15% infill

Its beginner printer friendly. download, print and assemble.

Fillament usage: 411,76g

More upgrades will be available soon!

This wil be a versatile assortment station for al your various objects and hobby's.

If you have any suggestions or idea's let me know in the comments.

You can print this in any material. but i used basic PLA from bambu lab. orther materials may affect the screwless design.

Follow me for continues updates!

Comment & Rating (126)

@OnlyTea

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

A great modular storage set up. I had a problem with warping on the lid but with a bit of aggressive post processing i made it work. Aside from that it printed out great in BL PETG. Thanks for the hard work!

The profile uploader has replied

@LayerFusionLabs

thank you for your review! have you tried printing whitout the aux fan? that thing causes alot of warping😂

(Edited)

@OnlyTea

Boosted

Replying to @LayerFusionLabs :

I did, the lid had the same settings as the drawers and they all came out just fine with the last one printed after too. I don't think it's the profile, I think PETG can just be a bit finicky sometimes. Funnily enough the warping was quite even across the front so it almost looks designed that way! I'm happy to keep it.

(Edited)

@ochiburi

Thanks for posting this modular set on Maker World. I started out with the BaBo set from Willi and then was also frustrated by the fact that he expected payment for some of the modules. IMO this set is superior as it does not need screws. I am changing over to this system. Love your work! Currently printing the build plate module in rainbow silk PLA.

The designer has replied

@LayerFusionLabs

thanks alot for the feedback! means alot to me😁 im familiar with his work😜

@powerjuice

Boosted

I was impressed by your design, which is why it found its way into my workshop. However, I miss the option of a pull-out stop. I have fitted a screw in the best position for this. However, a hole in the drawer and the insert would be better. You could insert a 3 mm bolt here, which you could then remove if necessary. Here are a few pictures of my idea, maybe you can take it up and even improve it.Best regards and thanks for your designTranslated with DeepL.com (free version)

The designer has replied

@LayerFusionLabs

thank you for your feedback! and a drawer stop is something i can definitely improve on! thank you for your input. I’ll take it into consideration!❤️

@powerjuice

Boosted

Replying to @LayerFusionLabs :

Manny Thanks :-)

@JB.3D

Print Profile

0.2mm layer, 2 walls, 15% infill

I love this system. We just need some more options for drawer inserts!

(Edited)

The profile uploader has replied

@LayerFusionLabs

thank you for your make! ive been a bit quiet with uploading due to remodeling my bathroom😂but i’m back to the drawing board💪🏻

@riao

Print Profile

0.2mm layer, 2 walls, 15% infill

Very nice snug connections between the parts

The profile uploader has replied

@LayerFusionLabs

thank you for your feedback and your make!

@opersoon

Boosted

This chest of drawers is really great. No glue or screws required. Everything fits together tightly. Will definitely expand it further. I hope there is more to come as an inlay.

The designer has replied

@LayerFusionLabs

Im glad you like it! more inlay options will be coming soon! New update is about to be launched for the module's.

@motomoosetech

Print Profile

0.2mm layer, 2 walls, 15% infill

came out pretty good, nice interference between parts. I used the discontinued pla tough. kinda disappointed the doors don't reach all the way back into the body but wouldn't fit on print bed I guess

(Edited)

@Fhainer

Print Profile

0.2mm layer, 2 walls, 15% infill

very good design and trouble-free print

Show original

@jon_web

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

awesome!!!

@ironlife3d

Print Profile

0.2mm layer, 2 walls, 15% infill

Simply great. Super easy to print.
