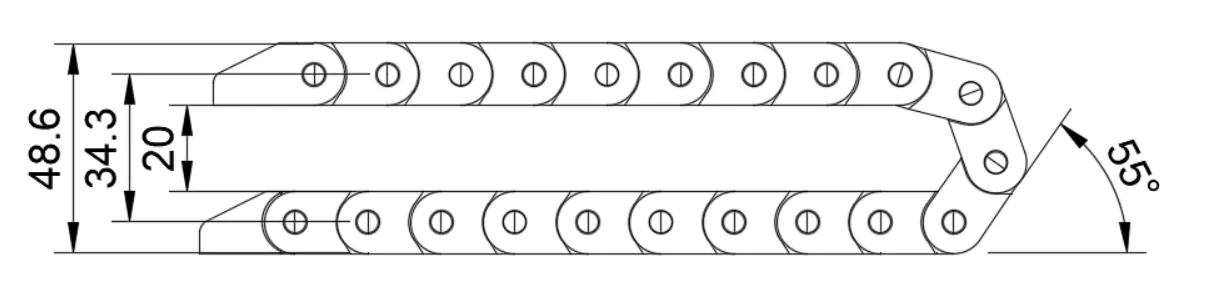

55° angle-0.2mm layer, 4 walls, 40% infill

3.6 h

1 plate

4.7(82)

Open in Bambu Studio

Boost

444

1049

2.3 k

1.1 k

Released

Description

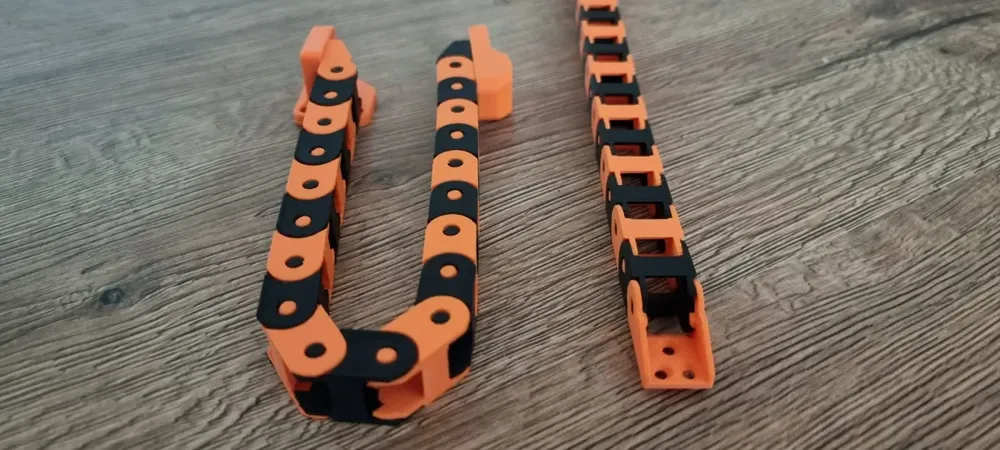

Printable generic cable chain.

A design for printing the generic cable chain yourself.

Can only turn in one direction.

I received some feedback from several users after they printed my previous design version, thank you for that!
this has given me new insights for expansion and improvements of the design.

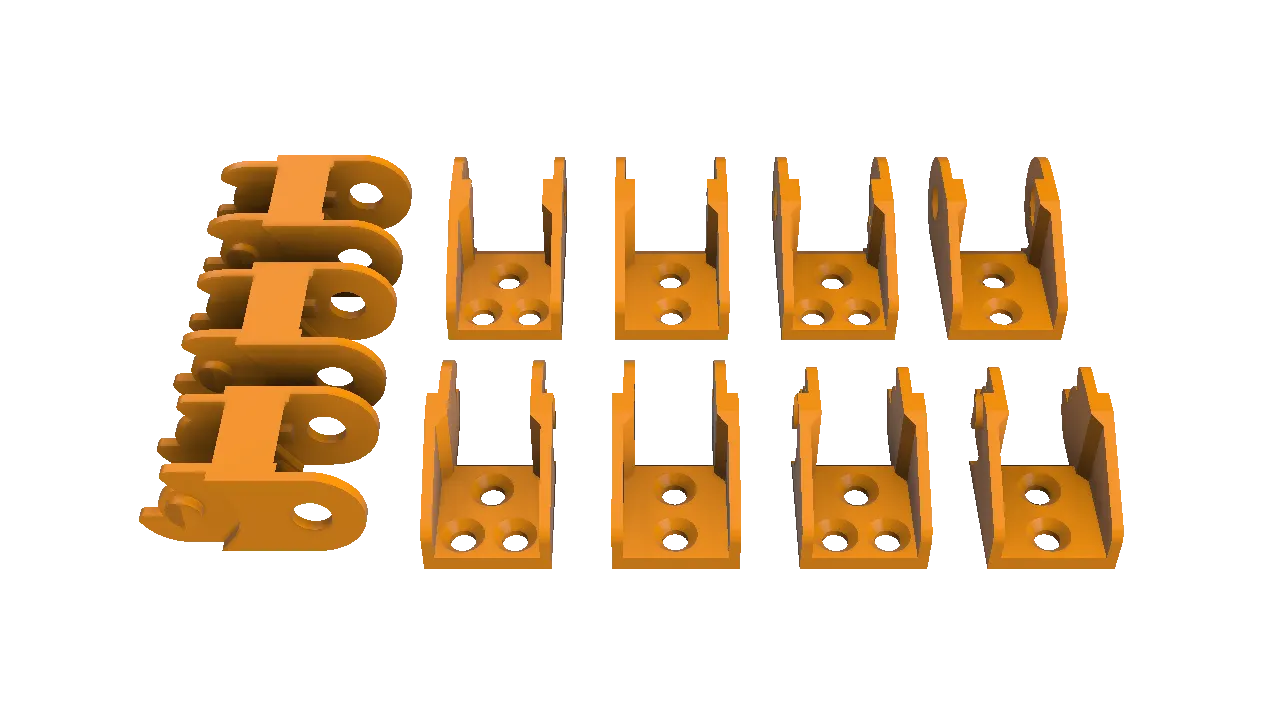

All parts have been tested, some tolerances have also been adjusted between the parts for a better fit.

What has changed in the design:

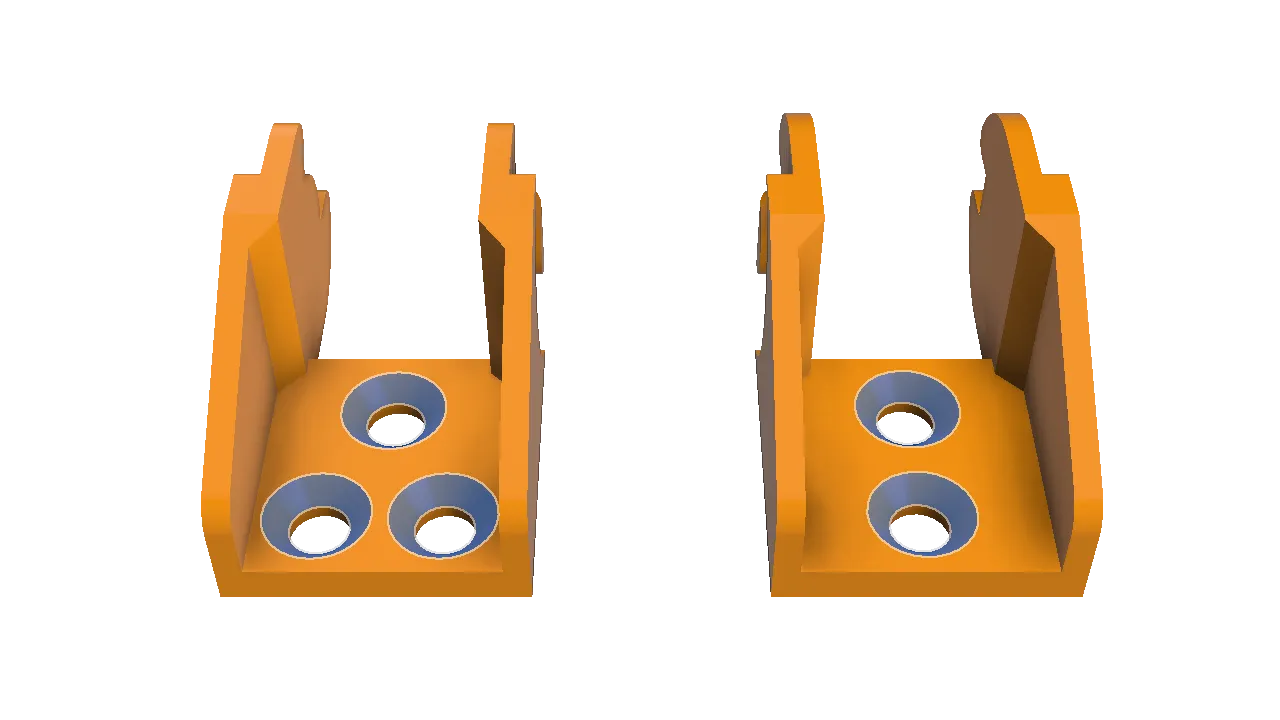

Additional end pieces with two mounting holes have now been added to the design
and the design of end (a) is adapted to the same shape as end (b).

Sharp corners are rounded for better print quality.

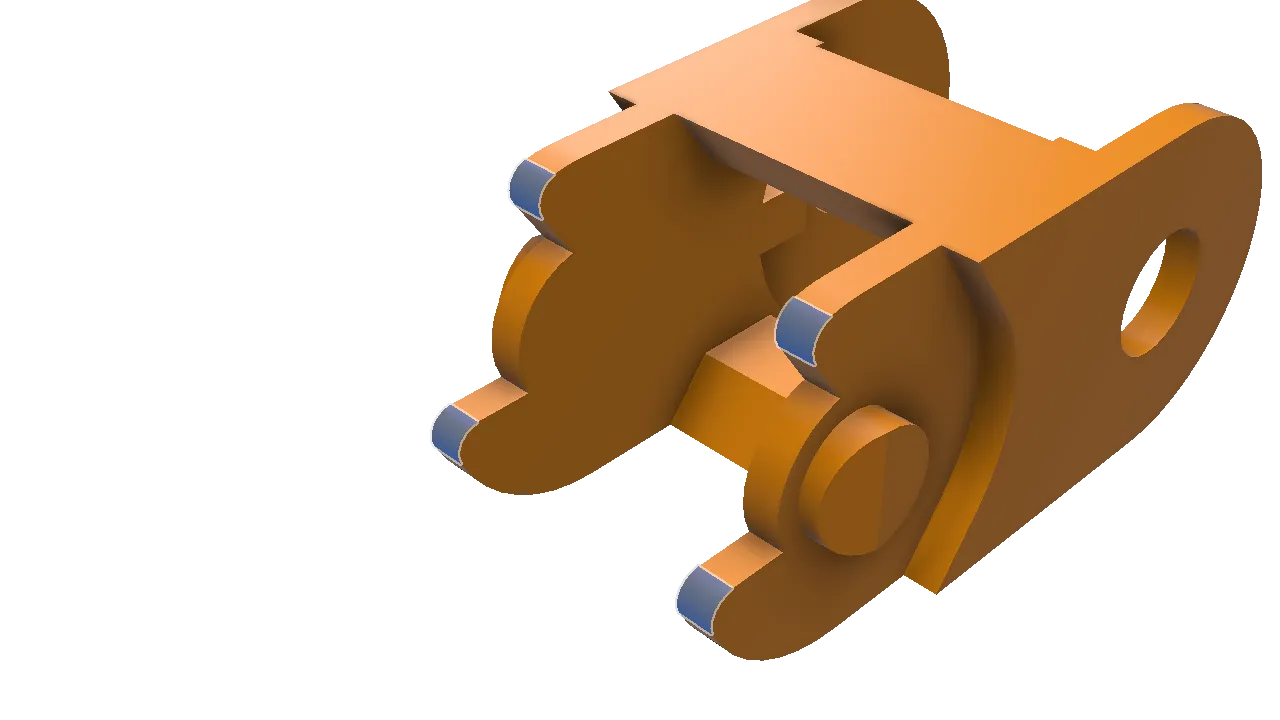

The coupling part is chamfered for easier attachment

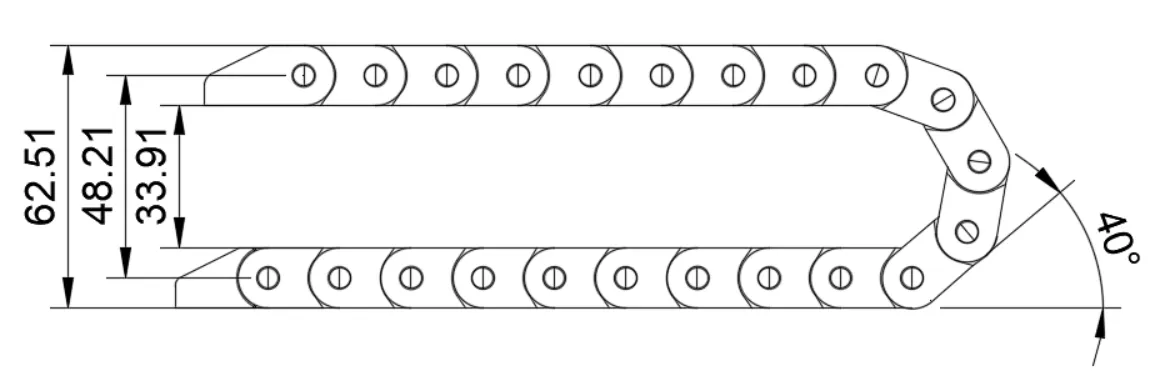

Dimensions 40 degree chain:

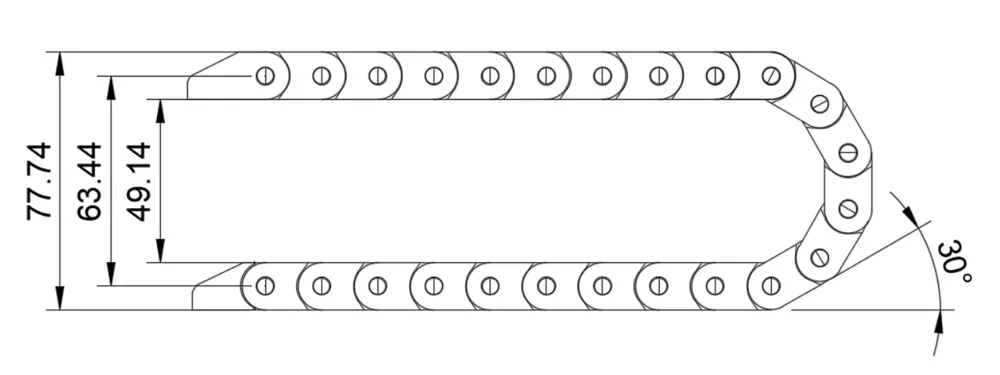

Dimensions 30 degree chain:

The dimensions of a chain are: Wide 17mm High 14.3mm

Boost Me (for free)

This print-in-place cable chain keeps your wires tidy and protected perfect for 3D printers, CNCs, or any DIY project.
If you like it, give it a boost! It helps others find it and motivates me to keep making more functional prints for makers like you.

Material: PLA, ABS or ASA. (ASA recommended).
layer height recommended: 0.2mm.
Extrusion width recommended: 0.4mm.
Fill Type: Grid, Gyroid, Honeycomb, Triangle or Cubic.
Infill percentage recommended: 40%.
Wall count recommended: 4.
Solid top/bottom layers recommended: 5.

Printable without support!

Please follow more designs soon !!!

Comment & Rating (93)

@aussie_printing

Print Profile

55° angle-0.2mm layer, 4 walls, 40% infill

Great

@hugo.workshop

Print Profile

55° angle-0.2mm layer, 4 walls, 40% infill

Looks and works awesome. Stopped me from hitting cables with my feet

@davfiala1990

Print Profile

55° angle-0.2mm layer, 4 walls, 40% infill

Great model and print profile, thank You!

@Thom3918084666

Print Profile

55° angle-0.2mm layer, 4 walls, 40% infill

Excellent, however, some of the links are too loosely connected and do not hold together properly. Moreover, an opening for the cable insertion is missing as it is already attached. I have used a Dremel to work on each link.

Show original

@markjaquith

Note that while the links can only bend in one direction, if you switch the orientation of the links midway through the chain, you can achieve a S shape. So if you have a run where the beginning needs to curve out in one direction, but then the slack needs to curve in the other direction, that can be accomplished.
