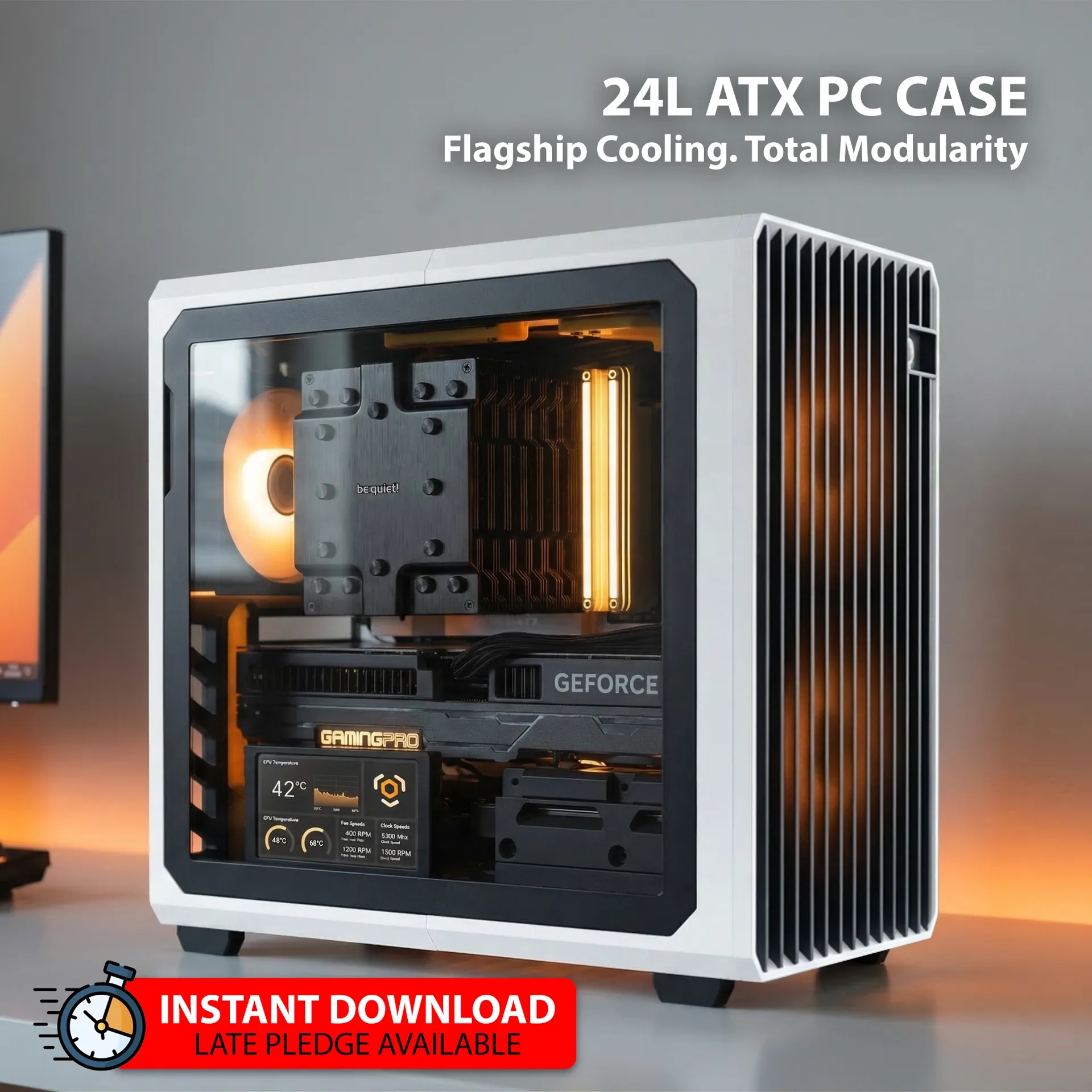

HYPER is a compact PC case that packs full ATX power into a 24L volume. It combines flagship cooling performance with the infinite customizability of a fully 3D Printed system.

WHY HYPER

• Flagship Hardware Fit: E-ATX to ITX. 337mm GPUs. 168mm coolers (NH-D15 confirmed). ATX and SFX PSUs.
• Simple BOM: 2.5kg of PETG, screws, USB ports, and a power button. That's it.
• Formed, Not Assembled: Frame prints in 2 parts, not 20 — easy build, fewer joints, stronger structure. (4 for standard size printers)
• Modular Flexibility: Build a NAS today, a liquid cooling gaming rig tomorrow, or a hybrid Workstation in between. Universal modules make it all possible within the same chassis.
• The Printer Does the Work: Interlocking joints and compliant mechanisms replace complex assembly. Single screw type throughout (BT3×20). Per-model tuned print files included.

HYPER is the most advanced MODCASE to date — bigger builds, refined construction, and more ways to configure than ever before.

WHAT'S IN HYPER PREMIUM

999 boosts and featured by Bambu Lab, the free version proved the chassis — HYPER Premium unleashes the full component library.

COOLING & AIRFLOW

Unlock total build freedom with more fan/radiator positions and new side panels

• High-Flow Side Panels - A collection of different mesh thicknesses for engineering materials.
• 140mm Fan Mount - Multipurpose, it also mounts 280mm radiators anywhere on rails.

• Side Mounts - for 120 and 140mm fans, 240mm and 280mm radiators.



PSU FREEDOM

Reposition your PSU to fit large coolers, long GPUs, and radiators without compromise.

• Front ATX PSU Mount - use ATX PSUs with tall CPU coolers
• Rear SFX Adapter - additional SFX position at the rear of the chassis
• Universal SFX mount - place SFX PSU anywhere on rails
• Rear Cover with Top Cable Exit - free up the entire bottom rail for component mounts.

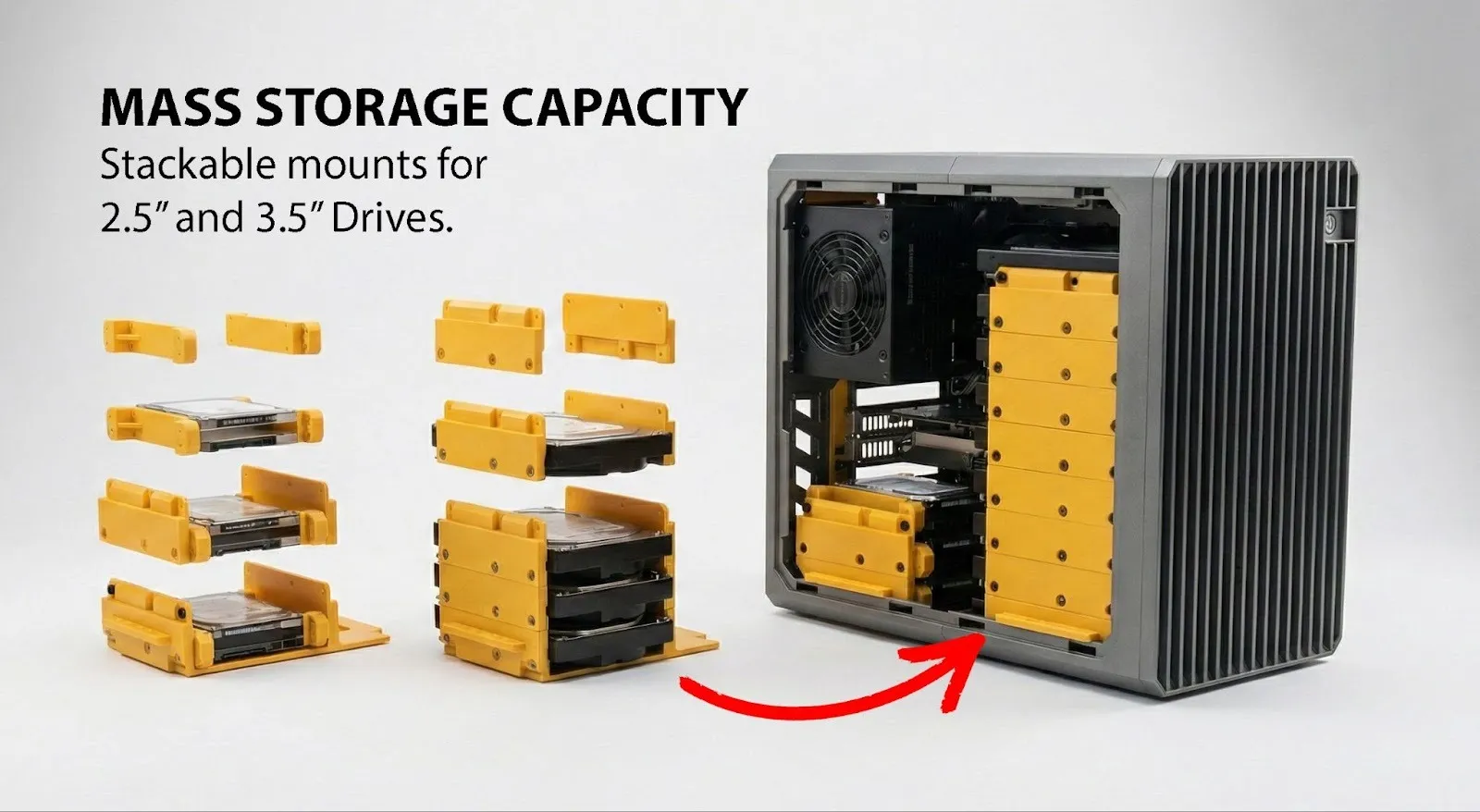

UNIVERSAL DRIVE BAYS

• Stackable 3.5” Drive Bays - Position hard drives anywhere on universal rails

• Stackable 2.5” Drive Bays - Dual 2.5" SSD Adaptors for ultra-dense storage



ADVANCED CUSTOMIZATIONS

• Modular Front Plates — Customizable CAD for DIY front modules. Slat style example included.
• Embedded Displays — 5", 7" and CAD adjustable screen mounts.
• Front Integrated Display — 5” stat screen mount.
• New 2-Part Frame for H2S and bigger print volumes.

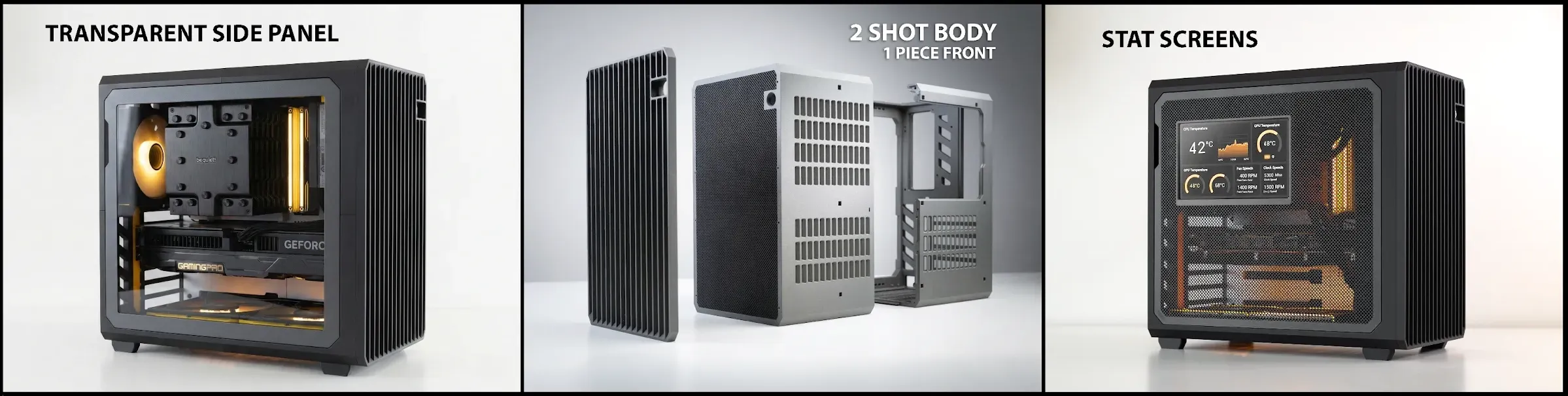

• Transparent Side Panel - Frame for mounting see through materials.

SOURCE CAD (ULTIMATE TIER)

More than just a STEP export - this is the source file that gives you the same level of access as the creator, with clean geometry for easy selection and direct modelling.

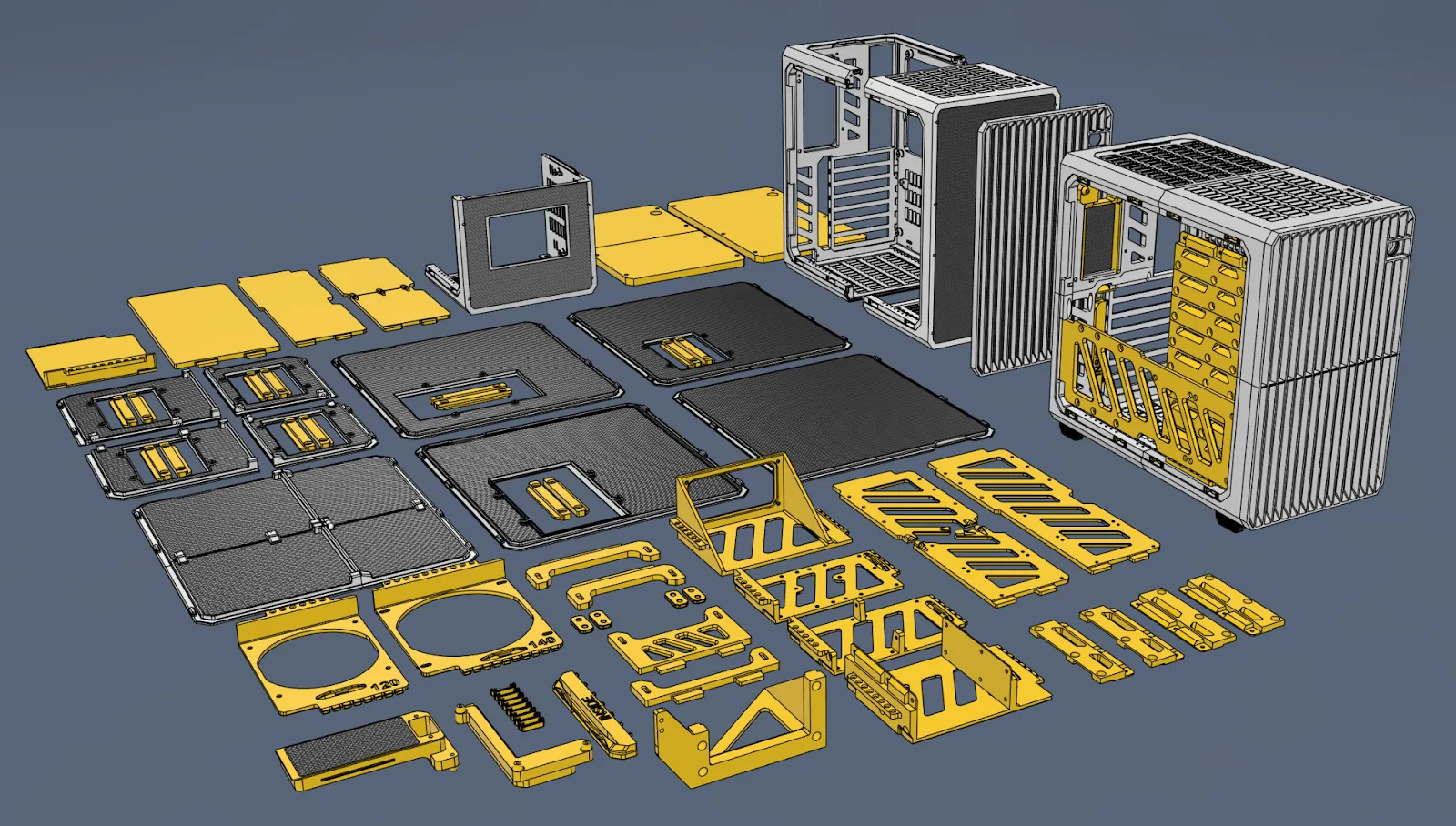

• Full CAD Assembly — Print-ready collection of the entire assembly.
• All Optional Parts — Every alternative module included in CAD form.
• CAD Blank Templates — Clean geometry, precision fit. The fastest way to create your own modules. Includes blanks for side rails, front plates, side panels, and fan mounts.

ALL UPDATES INCLUDED:

All tiers receive stretch goals and updates such as case expansions, new modules and refinements. Your HYPER will always be the latest version.

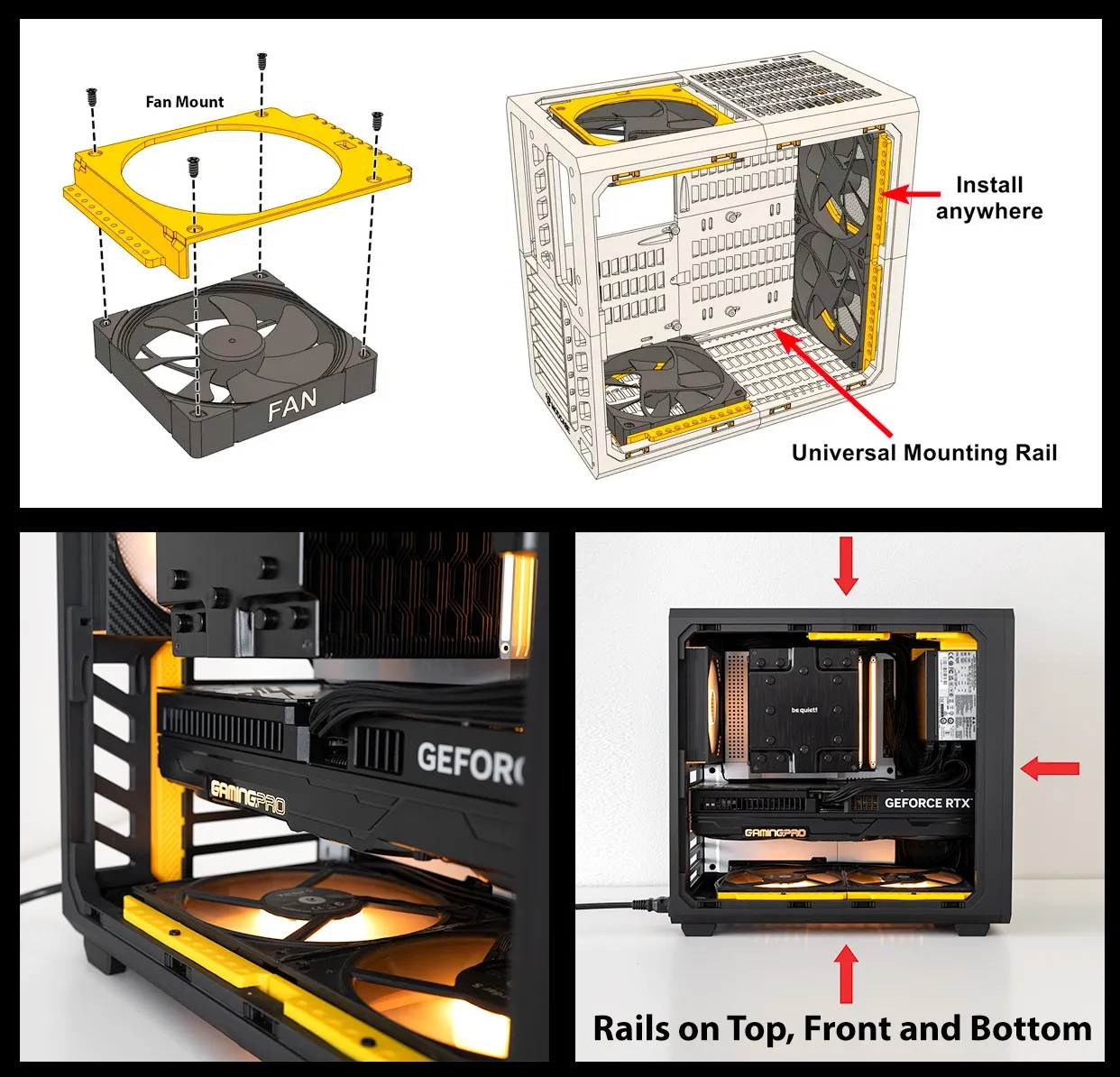

Universal Rail Mount System

Put PC accessories anywhere with a universal rail system on the Top, Bottom, Front of your case. You can opportunistically make use of extra space in your build.

Built on a Proven Chassis

HYPER is a 3rd generation MODCASE chassis — built on three years of refinement, validated by makers worldwide. Its long-term durability is proven through real-world deployment at scale.

Want to try before you back?

Download the free version on Makerworld — All Premium models are cross compatible, no reprint.  Here's what users say:

⭐⭐⭐⭐⭐"How the hell is this a free project? If you ever do crowdfunding, I'll support you without a doubt." — @Ballache

⭐⭐⭐⭐⭐"My complete ATX PC fit without swapping any components. It's a shame you can't give more than 5 stars." — @Iknocks

⭐⭐⭐⭐⭐"I couldn't even find anything to buy that fit these specs. The only case I could find that fit in my IKEA cabinet — full ATX mobo, my 3070 AND a 240mm AIO. " — @schwepe

⭐⭐⭐⭐⭐"Exactly what I was looking for — most 3D printed cases only take micro boards or tiny GPUs. Fit my 9800x3D and 9070XT." — @Tech0verlord

⭐⭐⭐⭐⭐"Printed it more than 4 times and replaced all my spare PCs. Surprising strength despite how little material it uses." — @yamon

⭐⭐⭐⭐⭐ "Best I've seen in my 5 years. I'm simply impressed." — @Toyfactory3000

⭐⭐⭐⭐⭐"Found MODCASE in 2023. Printed an EVO, a MASS, and now HYPER. Can't wait for the paid version." — @chadlietz

SPECIFICATIONS

• GPU Support: 7-Slot, 168mm tall, 450mm long
• CPU Cooler: Up to 168mm (Noctua NH-D15 confirmed)
• Motherboard: E-ATX / ATX / mATX / ITX
• PSU: ATX / SFX / SFX-L
• IO Ports: USB-C, USB-A x2
• Radiators: 120 / 140 / 240 / 280 / 360mm
• Fans: 6x 140mm or 10x 120mm
• Storage: 24x2.5", 10x3.5" (18x3.5" by expansion*)
• Dust Filters: On all intakes. Customizable mesh density.

*HYPER Premium allows for more components to be installed concurrently and with more flexibility than the free version. Its expansion pack unlock 450mm long GPUs, 360mm radiators, 18x3.5" drives, ports expansion and more.

Printer & Materials (BOM)

• Printer Requirement:
  202×200×200mm Min. Volume for 4 Part Frame
  340x202x200mm for 2 Part Frame
• Filament: ~2.5kg Total. PETG Recommended. (no PLA)
• Screws: 40x BT3×20 Self-Tapping Screws (Link) One size for entire case build.
• Electronics: 16mm Power Button (Link), USB-A (Link)

• Optional: USB-C Cable (Link), Power Cable for front PSUs (Link)



COMMERCIAL LICENCE

HYPER is the perfect higher ticket item optimized for print sellers. The Commercial Tier is a one-off payment lifetime license to sell physical HYPER units.

• Save Time: Minimal plate swaps and part count — less assembling, more shipping.
• Cost efficient: Optimized material usage. Single screw type, minimal non-printed parts. No complex BOM inventory.
• Competitive Advantage: Offer what metal cases can't — custom colors, materials, and stand out with modular differentiation on demand.

ABOUT THE DESIGNER

I'm Haydn Bao, an industrial designer with 17 years in manufacturing and product development. During my career, 170 of my projects involved 3D printed designs for clients ranging from Atlas Copco to automakers — now I bring this experience to MODCASE.

Founded 4 years ago with passion, MODCASE has become my full-time focus on what I believe is the future of manufacturing: production-quality products, printed on demand, delivered by the factory on your desk.

Every model carries the same precision and careful planning as a commercial mass production design, with robust cross-printer tolerances and large scale testing.

WHY CROWDFUNDING

A design that works across diverse printers, materials, and build configurations requires dedicated engineering. MODCASE is a full-time independent studio, your backing is what makes it all possible.


More importantly, crowdfunding brings HYPER closer to the community it's designed for. Your builds, your discussions, and your feedback all contribute to a more refined platform — and shape the stretch goals that land in every backer's library.

Your backing funds:

• Design & Engineering — CAD modelling, testing with real PC hardware, and iterative prototyping across a wide range of build scenarios to arrive at a distilled set of modules that cover the most builds.
• Cross-Printer Validation — tolerance verification across printers and materials to ensure prints that just work.
• Documentation — assembly guides, per-model tuned project files, photography, illustrations, and instructional animations.
• Ongoing Development & Support — integrate feedback into refinements, create new modules, CAD updates, and provide direct full time support.
