1/400 Scale Unicorn Gundam [Destroy Mode] by chiz_m

chiz_m

Miniatures>Other Miniatures

Print Profile(1)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Designer

138.8 h

15 plates

4.0(1)

Boost

341

578

710

Released

Description

If you like to show appreciation for the effort that went into creating this model, pls hit that BOOST button!

REVISION HISTORY

2024-05-08 - Foot and lower leg frame has been split to further minimize color changes; Assembly Guide updated to reflect changes
2024-05-06 - Added Assembly Guide
2024-05-05 - v1.0 Multi-color profile released

OVERVIEW

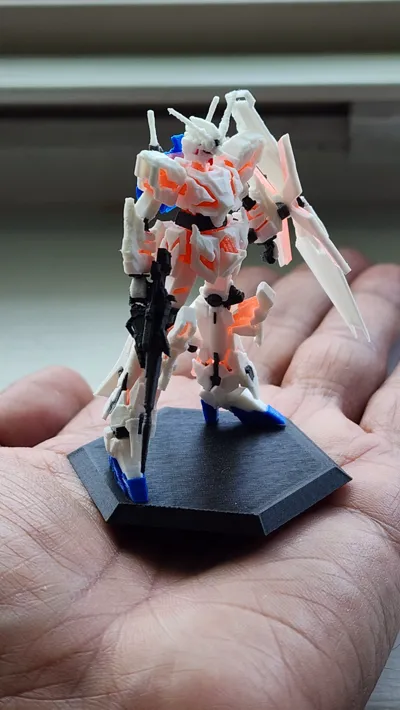

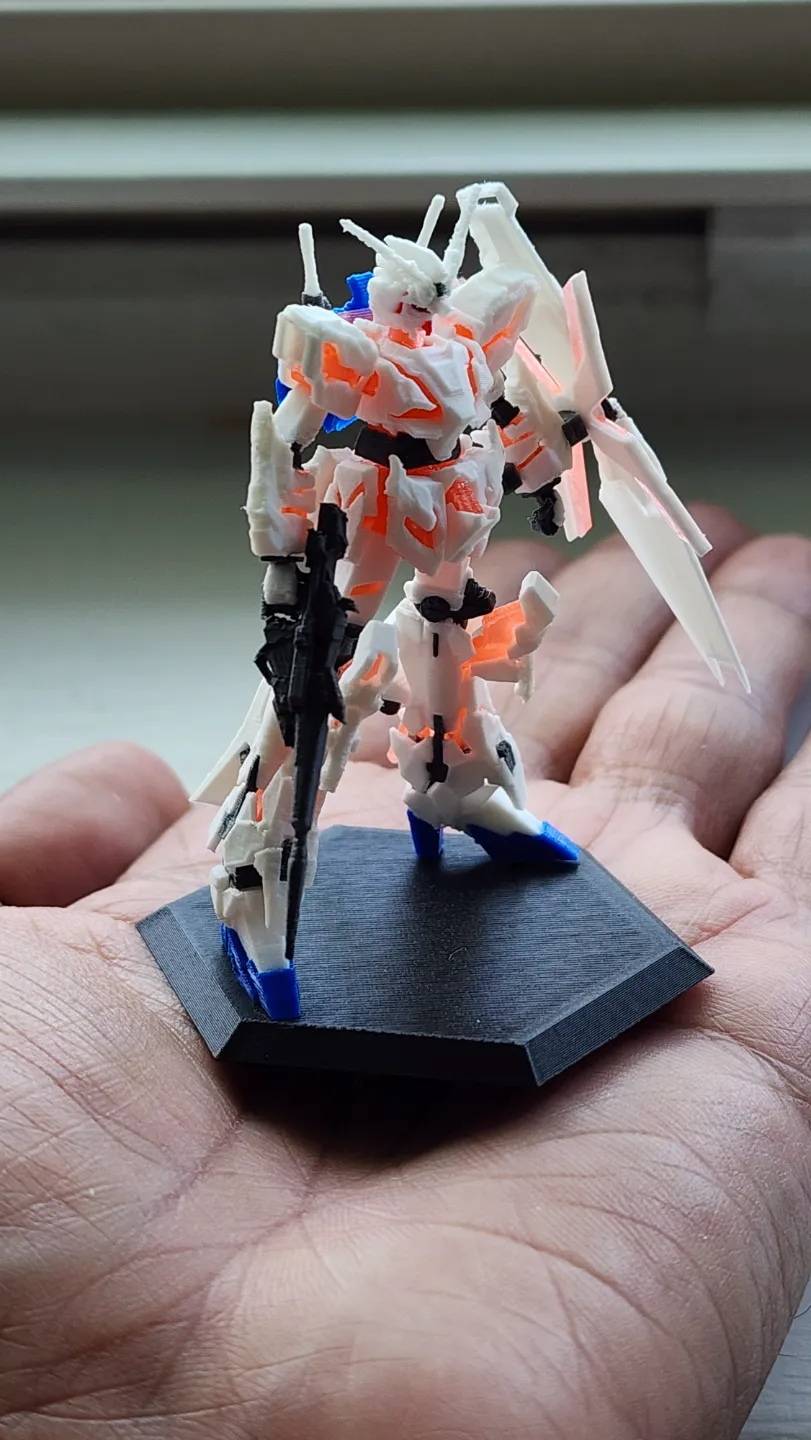

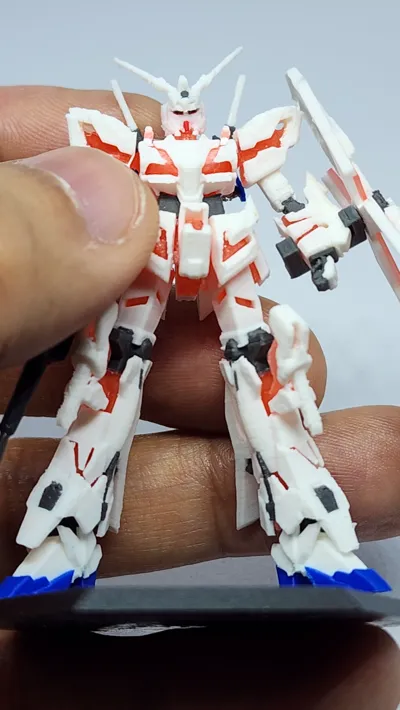

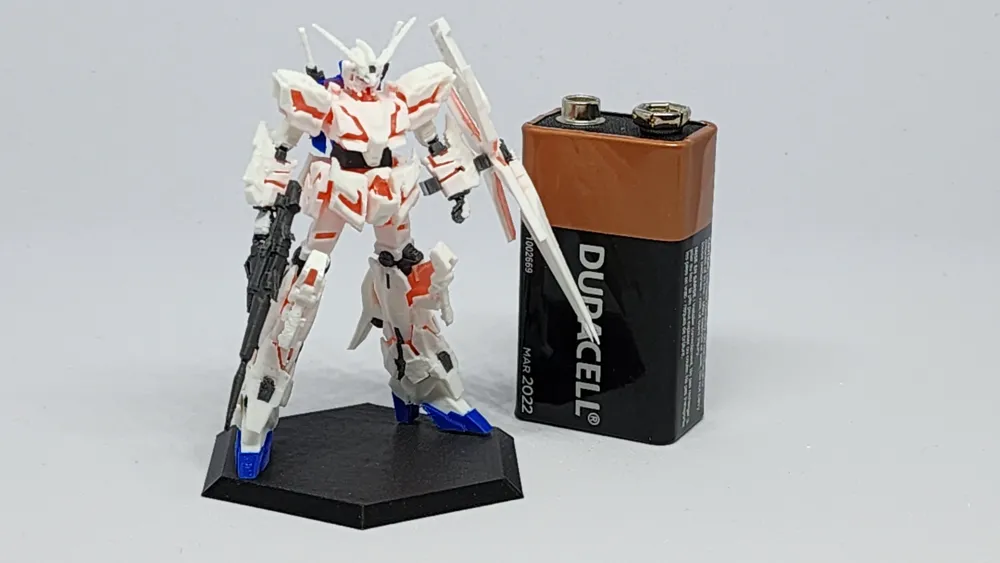

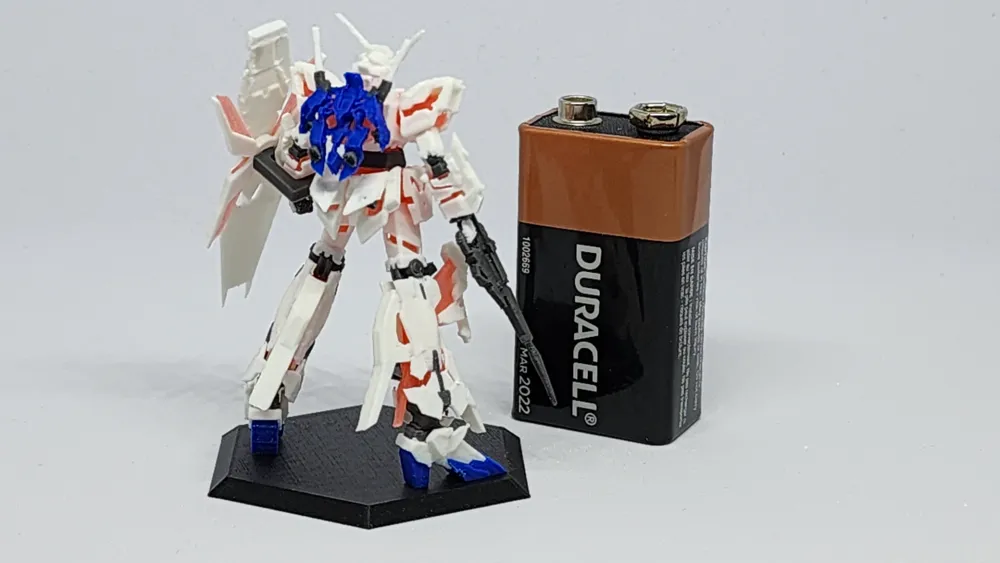

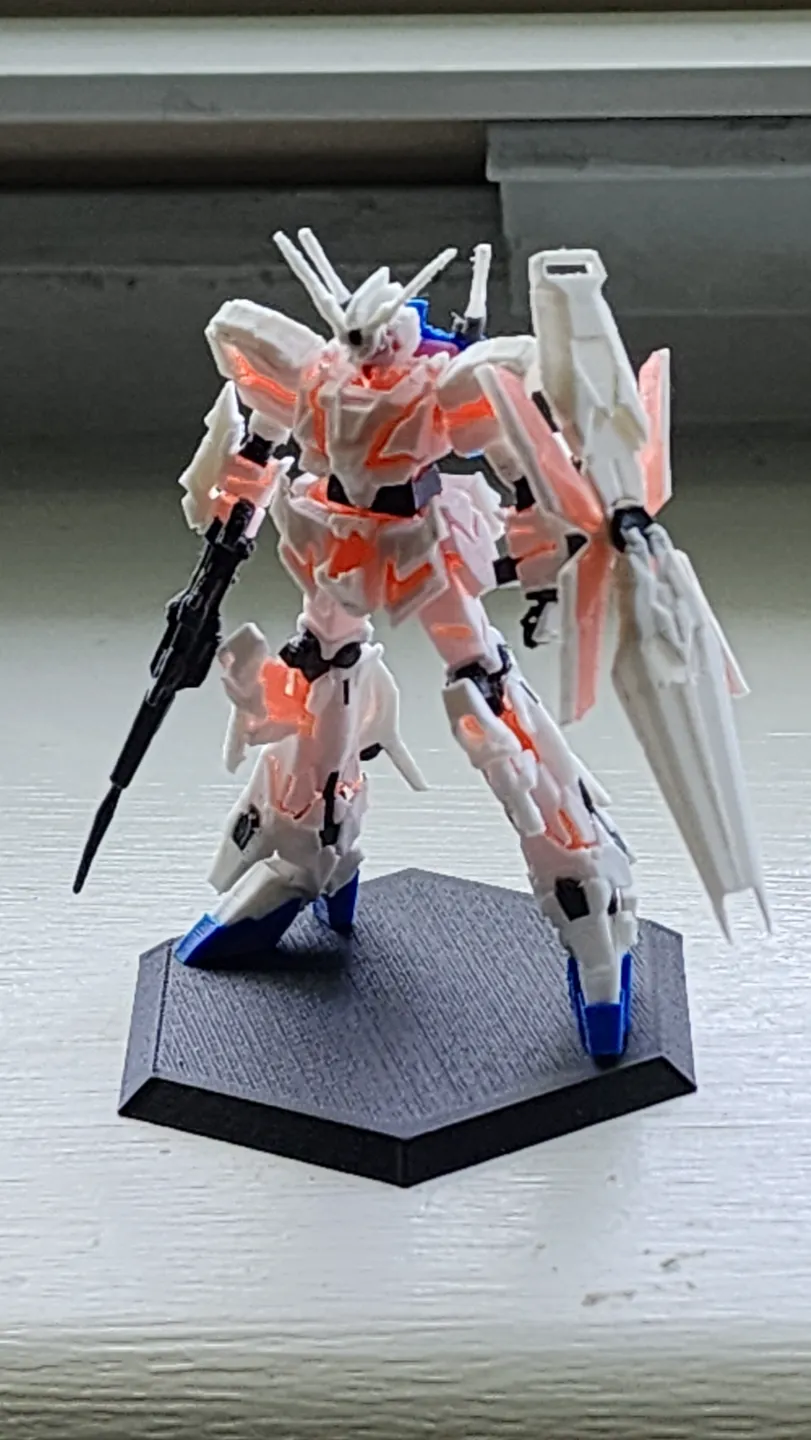

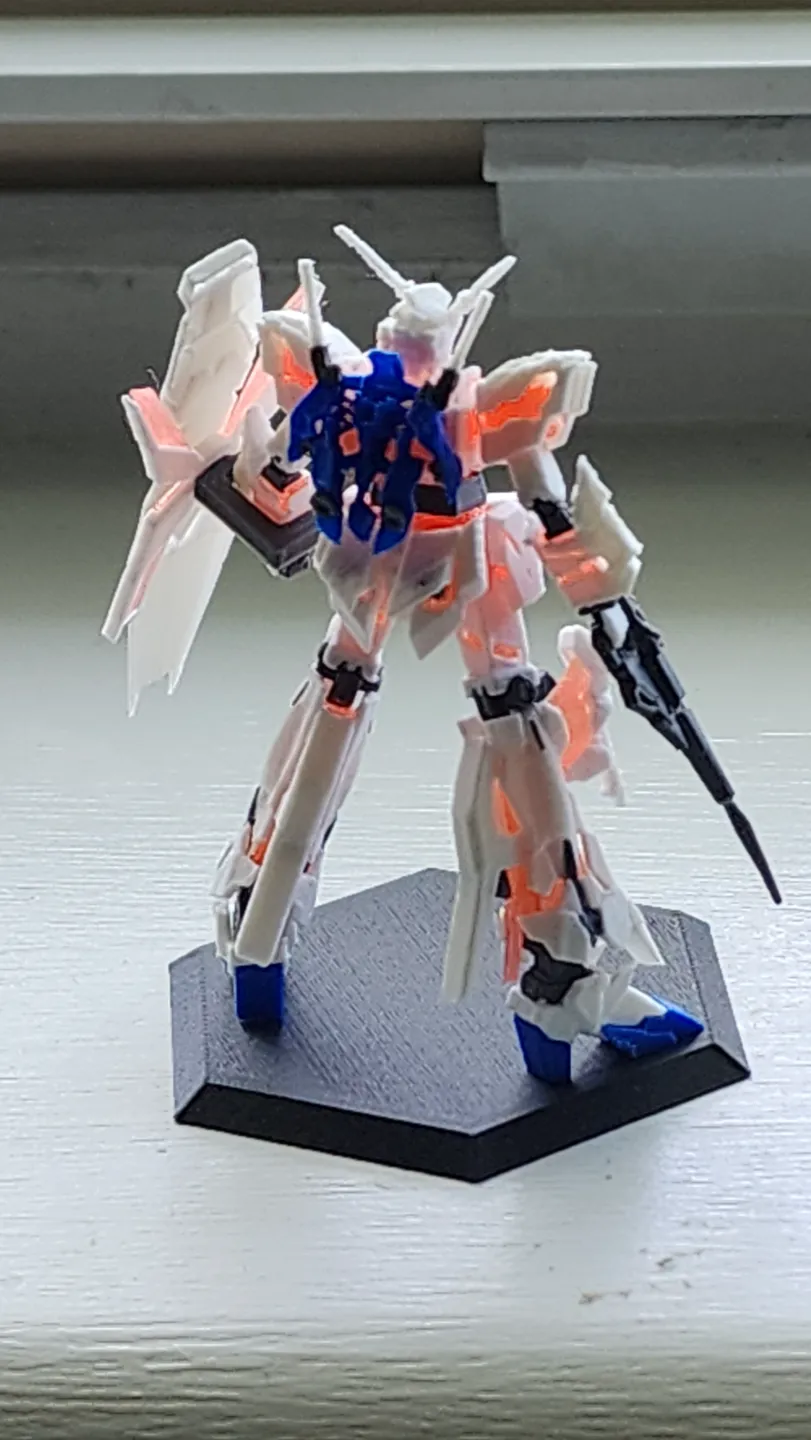

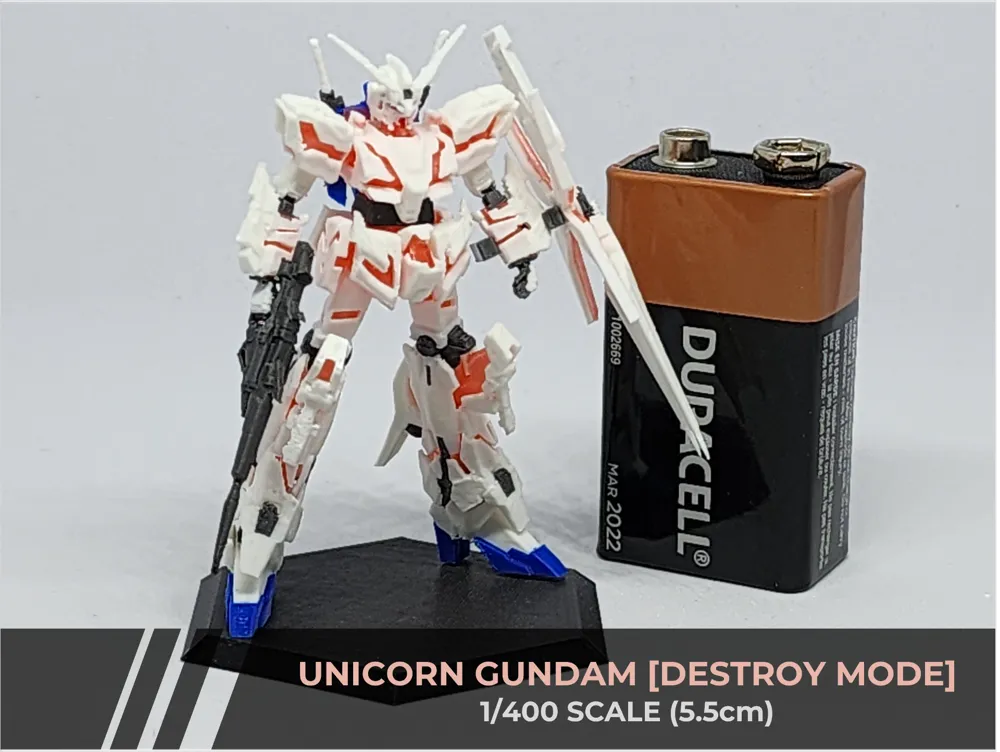

This is a 1/400 scale miniature (aprox. 5.5cm tall) based on Unicorn Gundam (destroy mode) designed to be printed using 0.2mm nozzle.

DESIGN GOALS

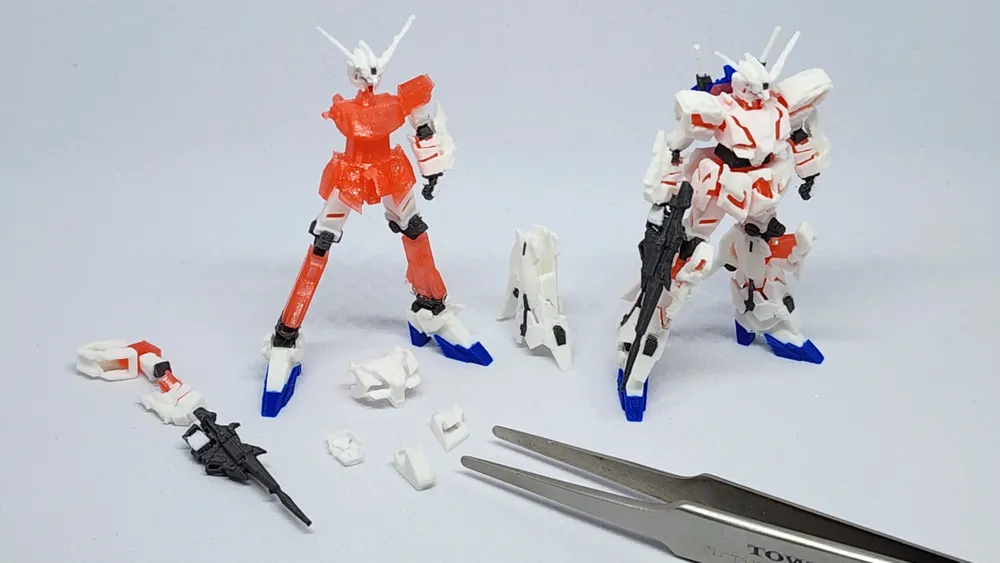

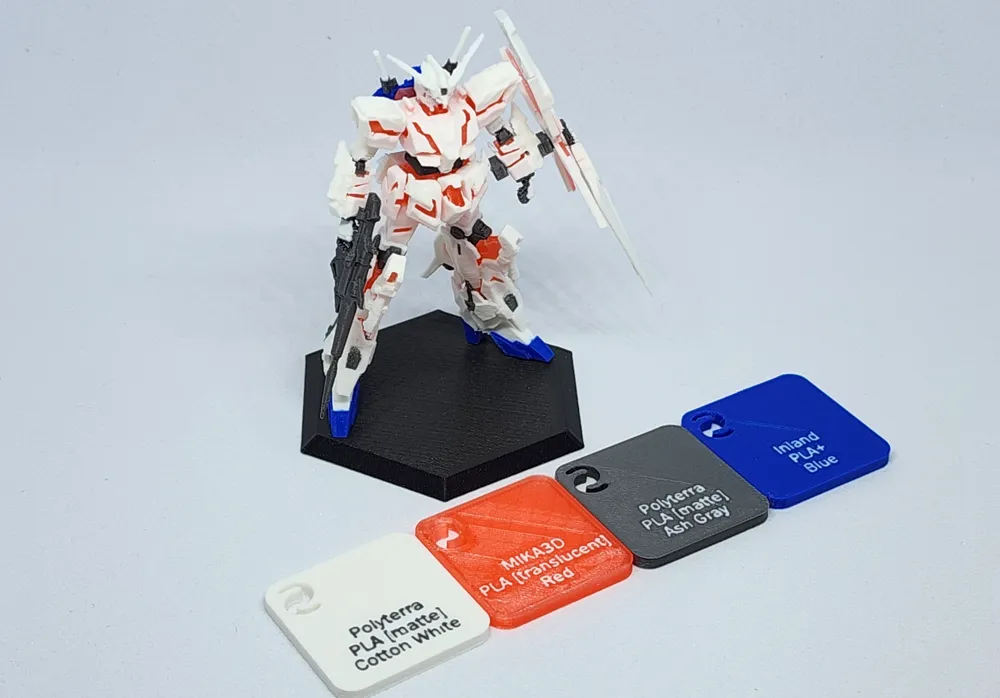

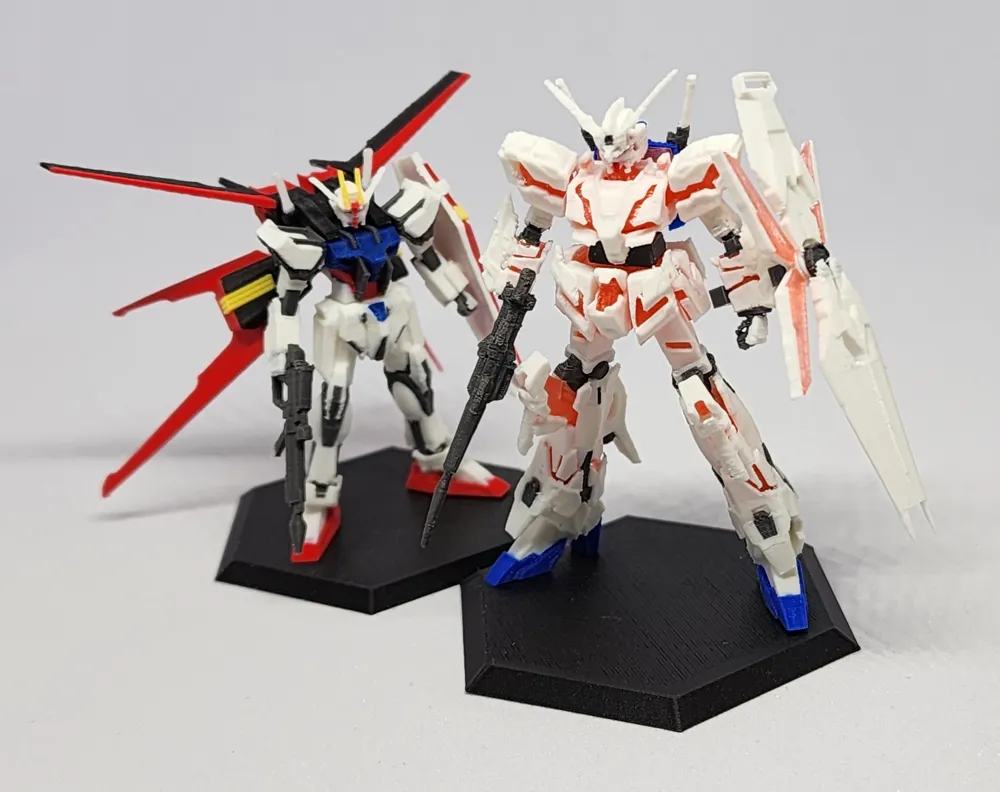

After successfully completing the 1/400 Strike Gundam, I thought of pushing the envelope further on what can be achieved with a 0.2mm nozzle and to challenge myself as well. Besides, I feel that I can create a more improved printable model that produces lesser filament waste so I thought of employing an internal frame/skeleton as patterns running across the model would require lots of color changes and lots of waste. I minimized waste by using multi-color only on really small details that would otherwise be difficult to glue together.

… and which better Gundam model to showcase the internal frame than the Unicorn Gundam!

Based on the Gundam Wiki, the Unicorn Gundam in destroy mode is 21.7m in height, so a scale of 1/400 means I have to work on a model that is around 4.42cm small! Measuring the first few test prints of the internal frame showed that it's just a tad thicker than a matchstick!

Nonetheless, despite of the limitations, I decided to see if I can pull it off and this is the result of that effort. Hope you enjoy this one as much as I enjoyed working on it!

PRINTING INSTRUCTIONS

0.2 nozzle is required to print this miniature.
Print using Silent mode (50% speed) to prevent the parts from getting knocked out from adhesion.
Make sure you have your print bed clean or use glue stick to ensure proper adhesion. Pls do not rate the model low due to adhesion issues as the model contains really small parts that do not have much area to adhere to the build plate.
Parts are intentionally littered with supports to aid in bed adhesion. Be careful removing the supports and parts from the build plate as they are really small, thin parts.
Some parts require CA/super glue for assembly.
Don't get overwhelmed with the amount of parts in the build plates. I provided spare enough to build three (3) copies and as extra in case parts get messed up during printing or assembly.
While it is tempting to use glow filament, PLS DO NOT as it will clog 0.2mm nozzles.

ASSEMBLY GUIDE

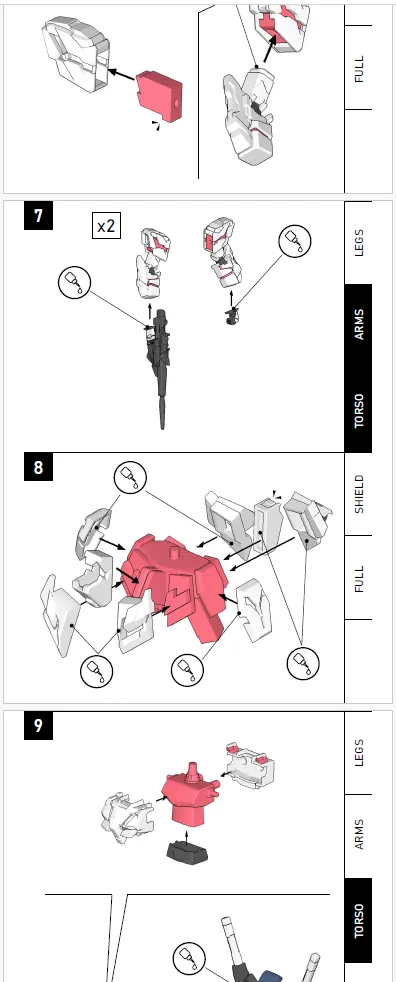

A PDF detailing the assembly steps is available for download under the Documentation section. Sample screenshot below:

Documentation (1)

Assembly Guide (1)

1-400 Unicorn Gundam (Destroy Mode) Assembly Guide 1.01_482b27f7-b935-4945-bd97-5950280f19c7.pdf
