Center Finder with Built-In Width Ruler 140mm by Zwamdurkel

Zwamdurkel

Tools>Measure Tools

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

[MultiColor] 0.2mm layer, 3 walls, 20% gyroid infill

1 h

1 plate

4.8(26)

0.2mm, 3 walls, 1 wall on 1st lyr, 20% infill, gyro, arachne

1 h

1 plate

5.0(6)

Updated Size, Single Color, 0.2mm layer, 3 walls, 20% infill

57 min

1 plate

4.9(26)

0.16mm layer, 3 walls, 20% infill

1.2 h

1 plate

5.0(1)

Boost

396

707

594

458

Released

Description

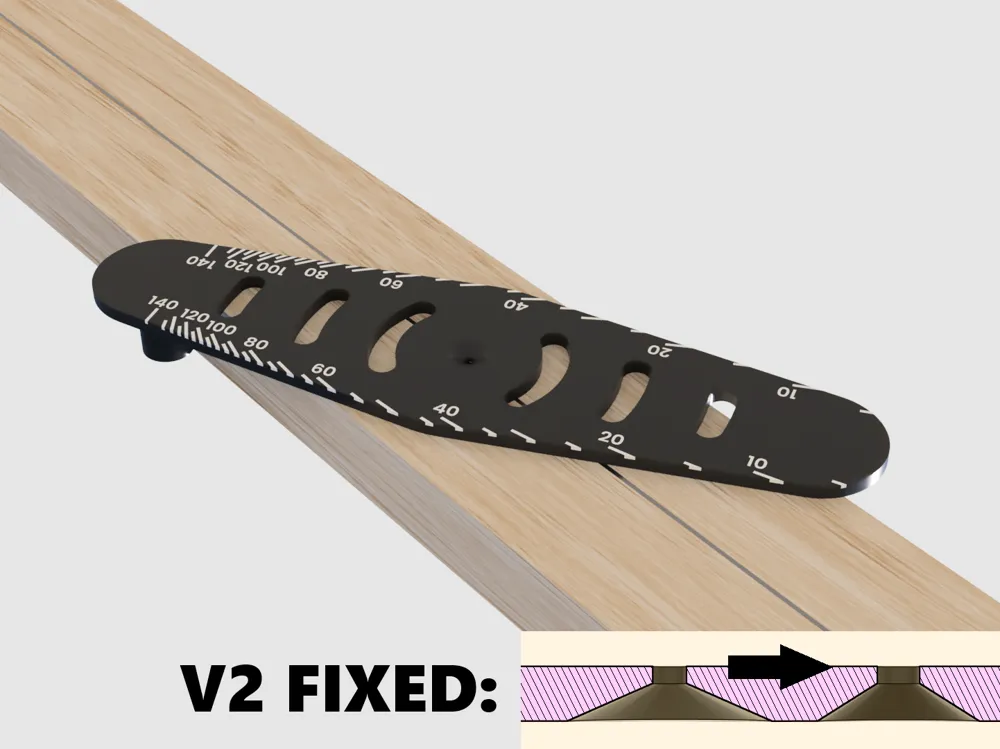

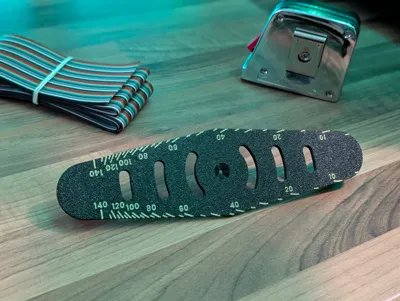

This is a center finder I developed. It can find the center of materials up to 140mm wide. There is also a remix for materials up to 75mm.

75mm version: https://makerworld.com/en/models/448112

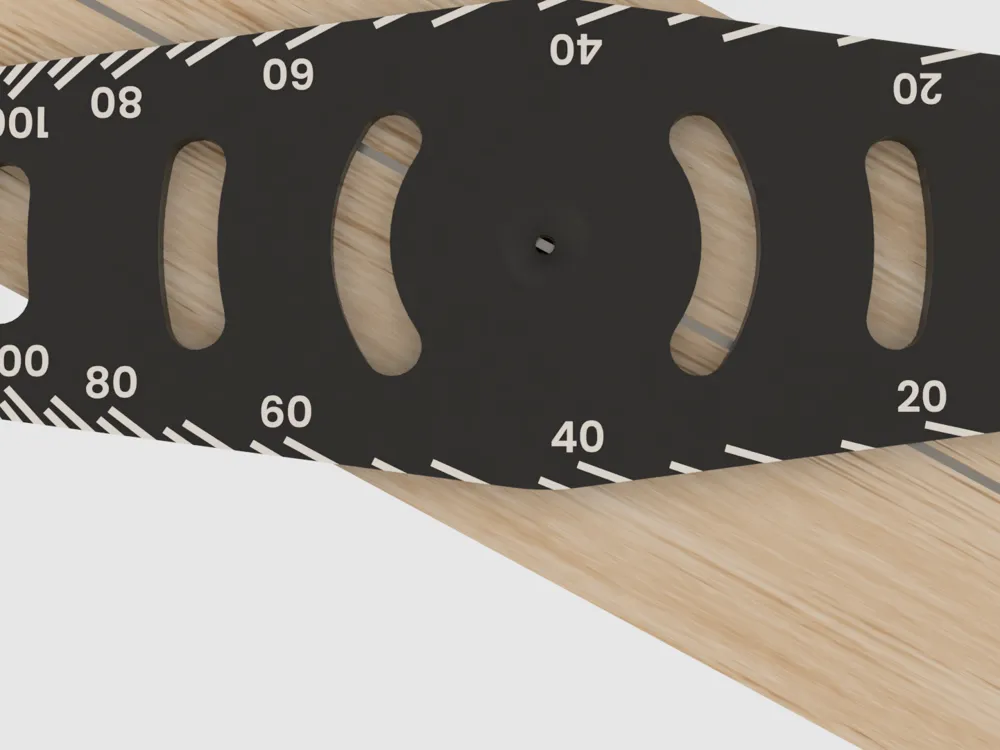

The key feature of this center finder is the ruler that allows you to quickly measure the width of your material in increments of 5mm.

“Arachne” wall generator recommended. Tweak Parameters and see what works:

Arachne Walls, 50 Wall transitioning threshold angle, 60 Minimum wall width

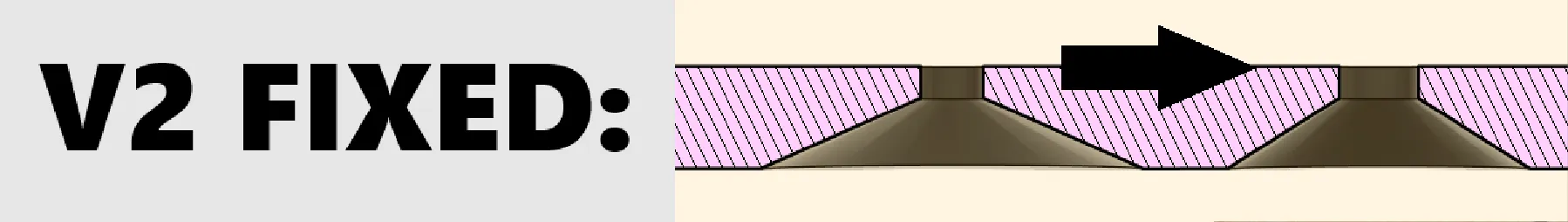

I have provided a multi color version and also a single color version. The single color version uses recessed markings.

Please note that I have included .3mf files, but I have not yet printed them because I do not own a BambuLab printer yet.

Note that if you use the MultiColor.stl, you should split the part and color it yourself:

Everything except the last part is the markings.

I hope you enjoy! Please let me know if there are issues with this print.
