May 2024: Added the Reel and Filament pieces without the card for aesthetic purposes

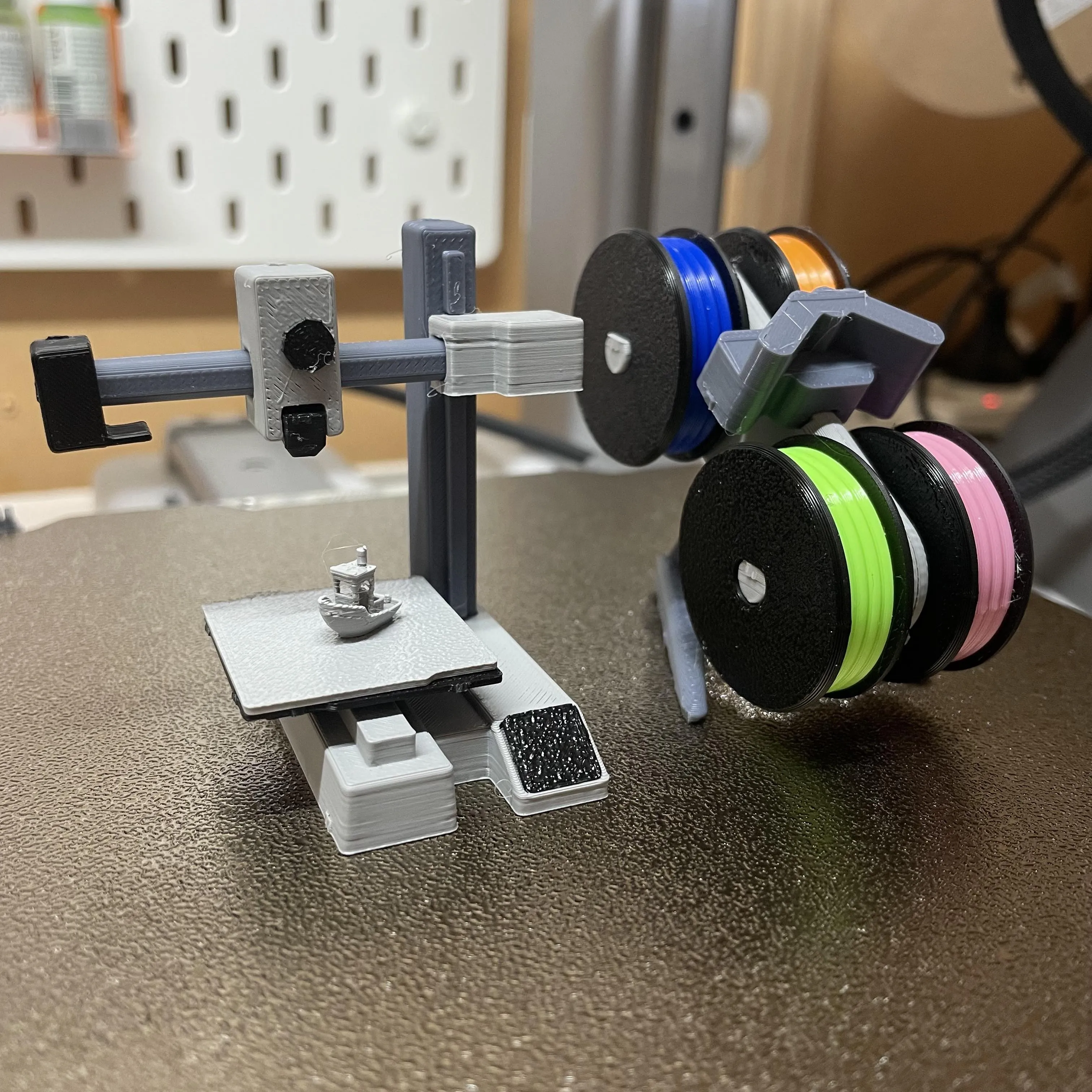

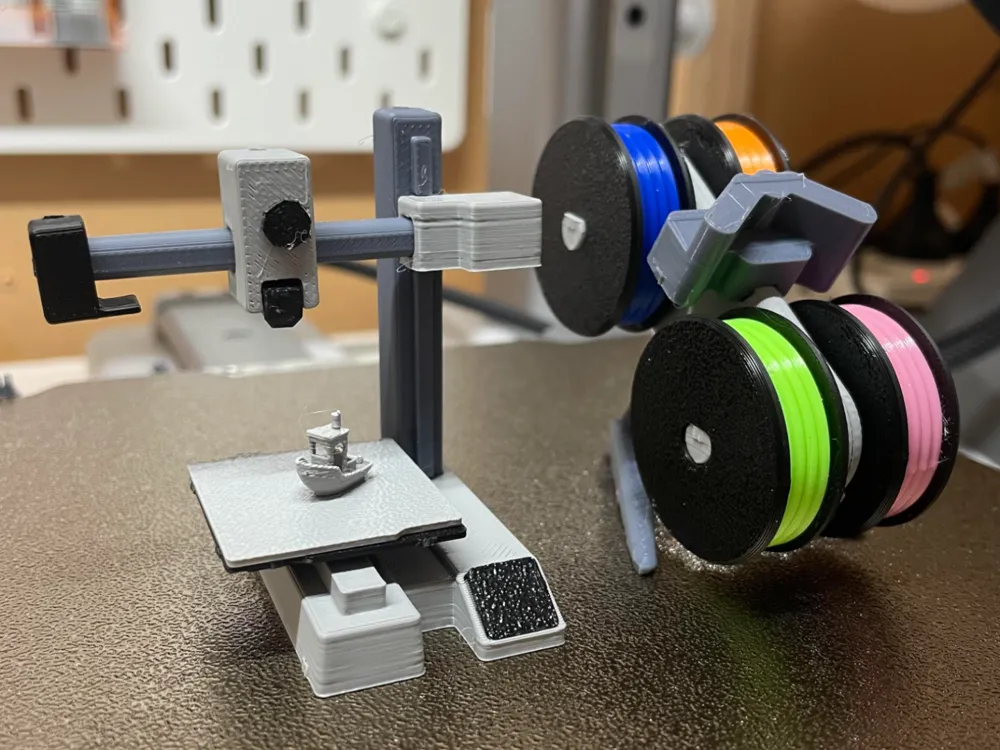

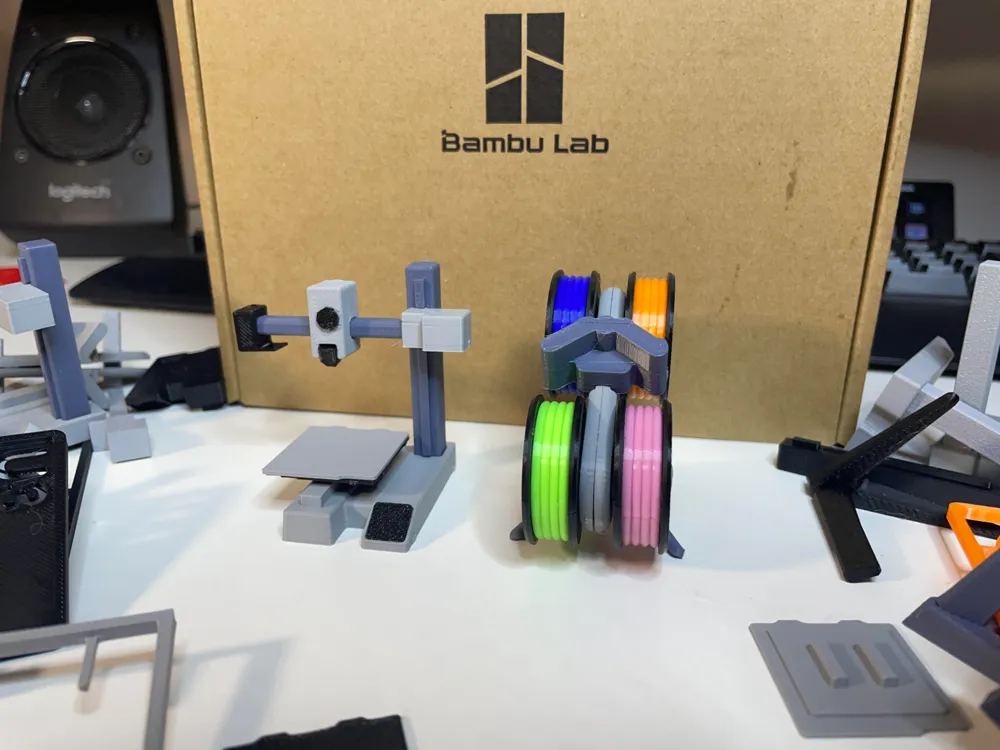

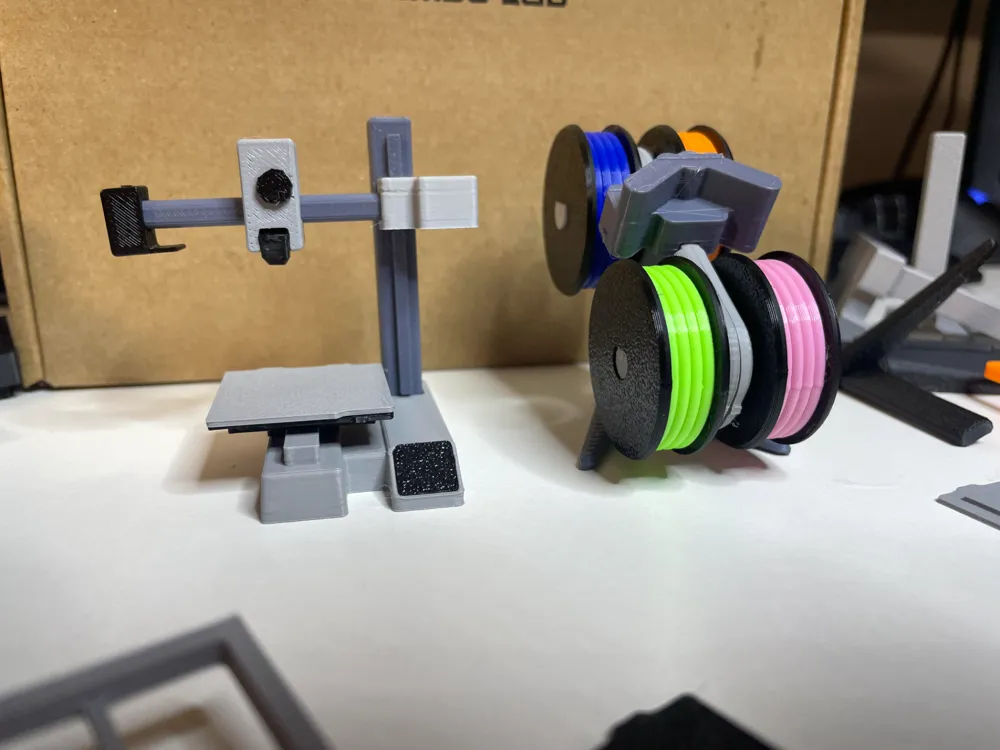

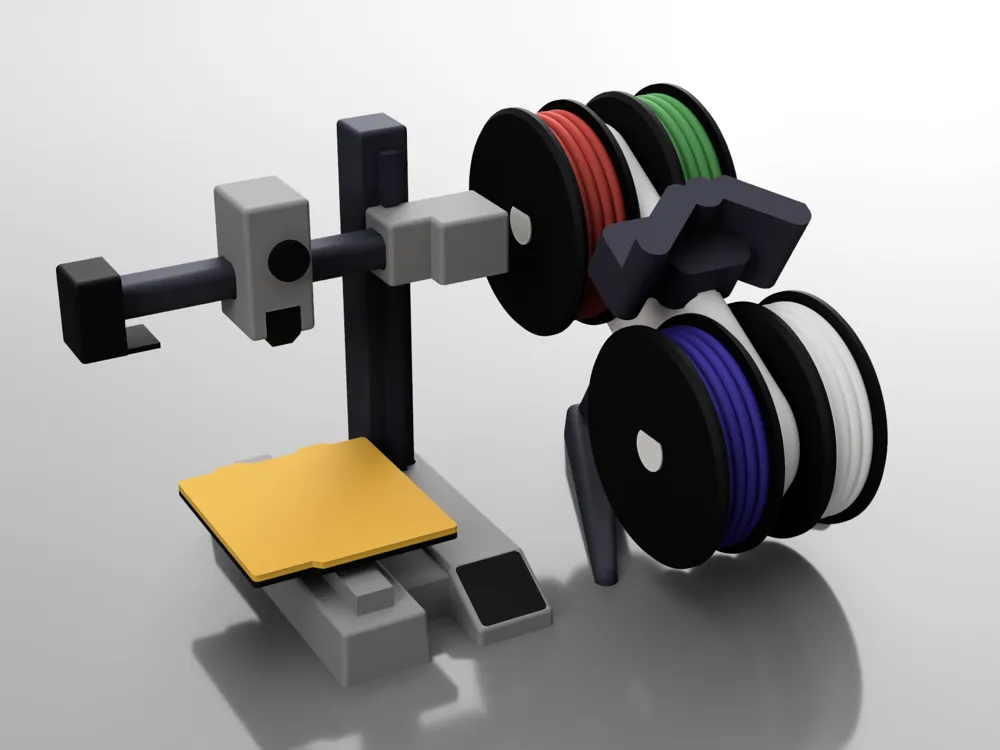

This is my rendition of a Tiny A1 Mini in the form of a Kit Card you can build yourself.

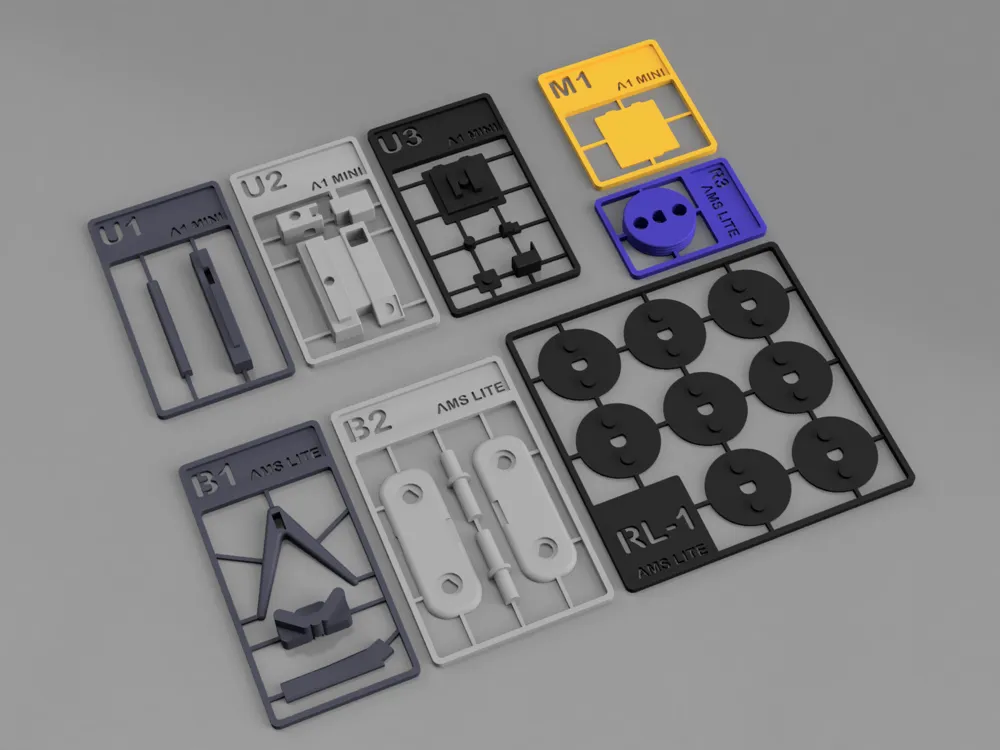

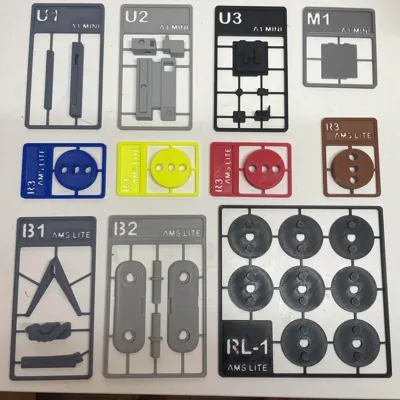

The Kit Card format enables absolutely tiny parts that might not have adhered to the build plate very well to be printed as they are attached to a larger card structure.

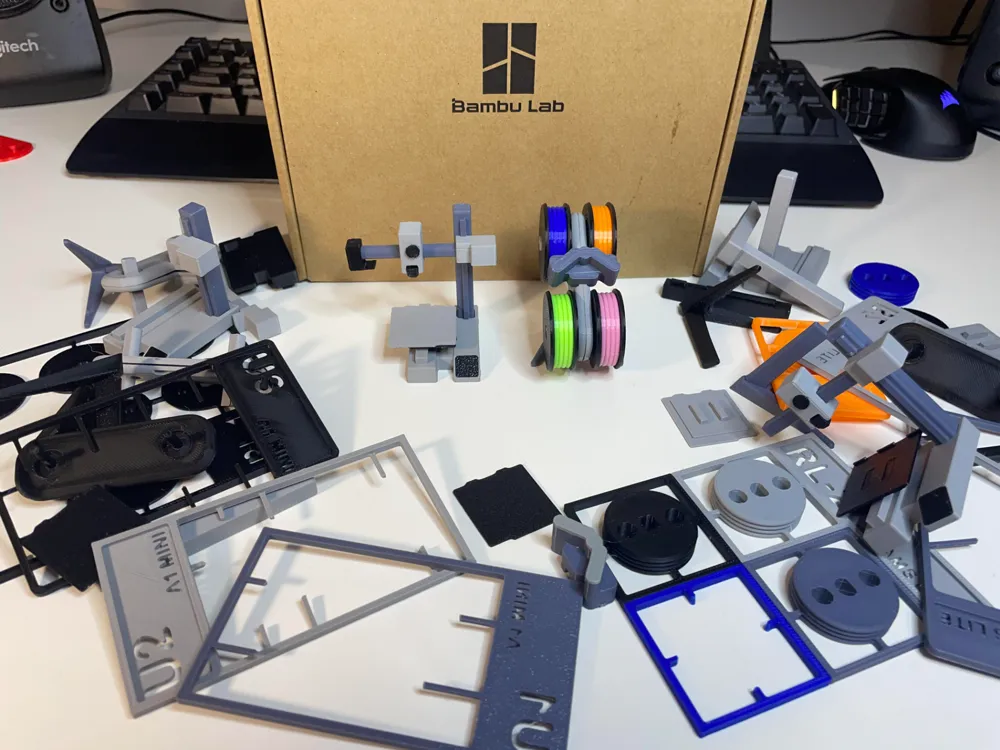

The Parts are all designed to cut out easily, and assembly is fairly straight forward, none of these parts can really fit anywhere other than where they are intended.

The A1 Mini is probably my favorite printer so far because it was the first affordable, prints-out-of-the-box that can also do multi-color.

For me, it fits 99% of what I design, and I find myself using it more than our P1Ps

These parts can be printed in different filaments, or in a single color and you can paint them yourself.

It's not necessary, But I would definitely recommend some glue for keeping the Reels together nicely.

There are two options for the Reels, a Single Filament piece that can be printed off in different colors, or one with all 4 together if you will be painting them to save on changeover times.

Below are some quick Assembly Videos and a teeny weeny little benchy for good measure!

All of my projects are 100% Free. However if you'd like to support me, feel free to buy me a coffee

Comment & Rating (16)

@futureprint

Could you post a version without the frame? So that the connnectors wont mark the pieces And make the connectors narrower where it touches the pieces

(Edited)

The designer has replied

@jaayjeee

I'll see if i can sort that out tomorrow for you, no worries

@jaayjeee

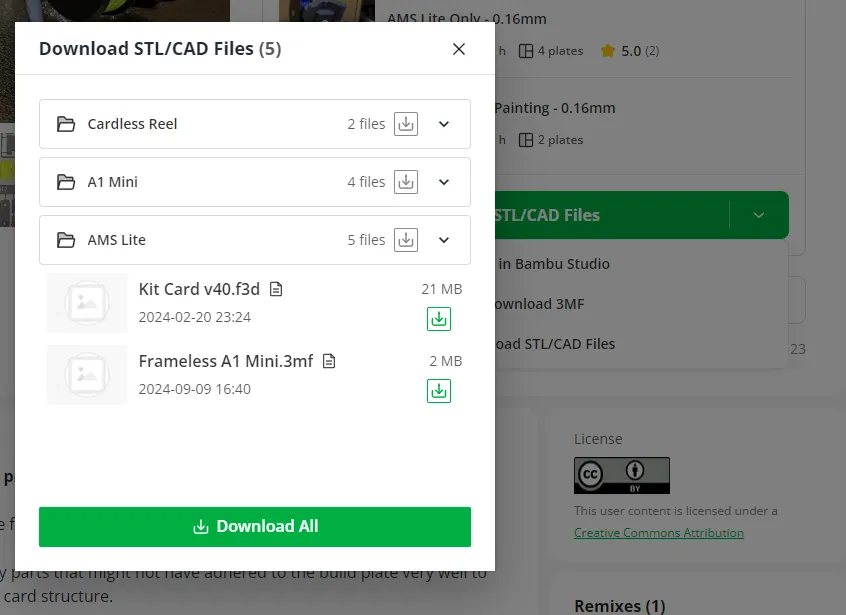

hey there, my apologies for forgetting about this, they have been added as STLs and can be obtained through the Download STLs button. The Fusion 360 file has also been there so if you have fusion you can make changes however you like! Again, apologies for forgetting, Enjoy
