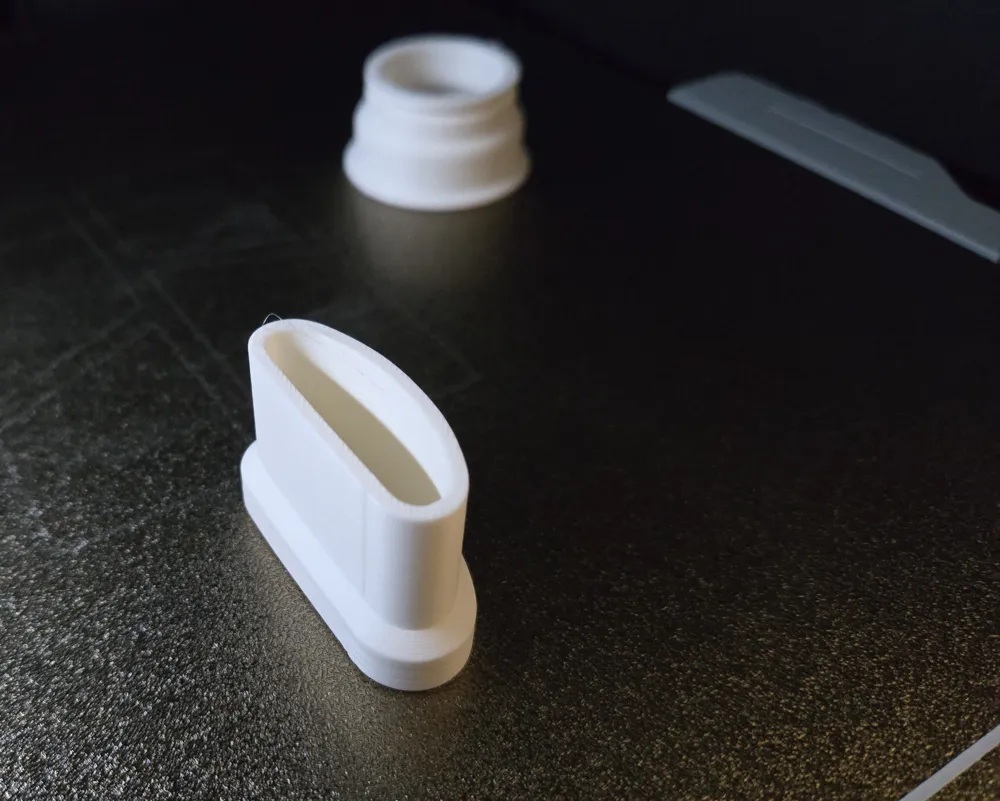

Adapter for Saeco Philips Brita old new cartridge
Print Profile(1)
Description

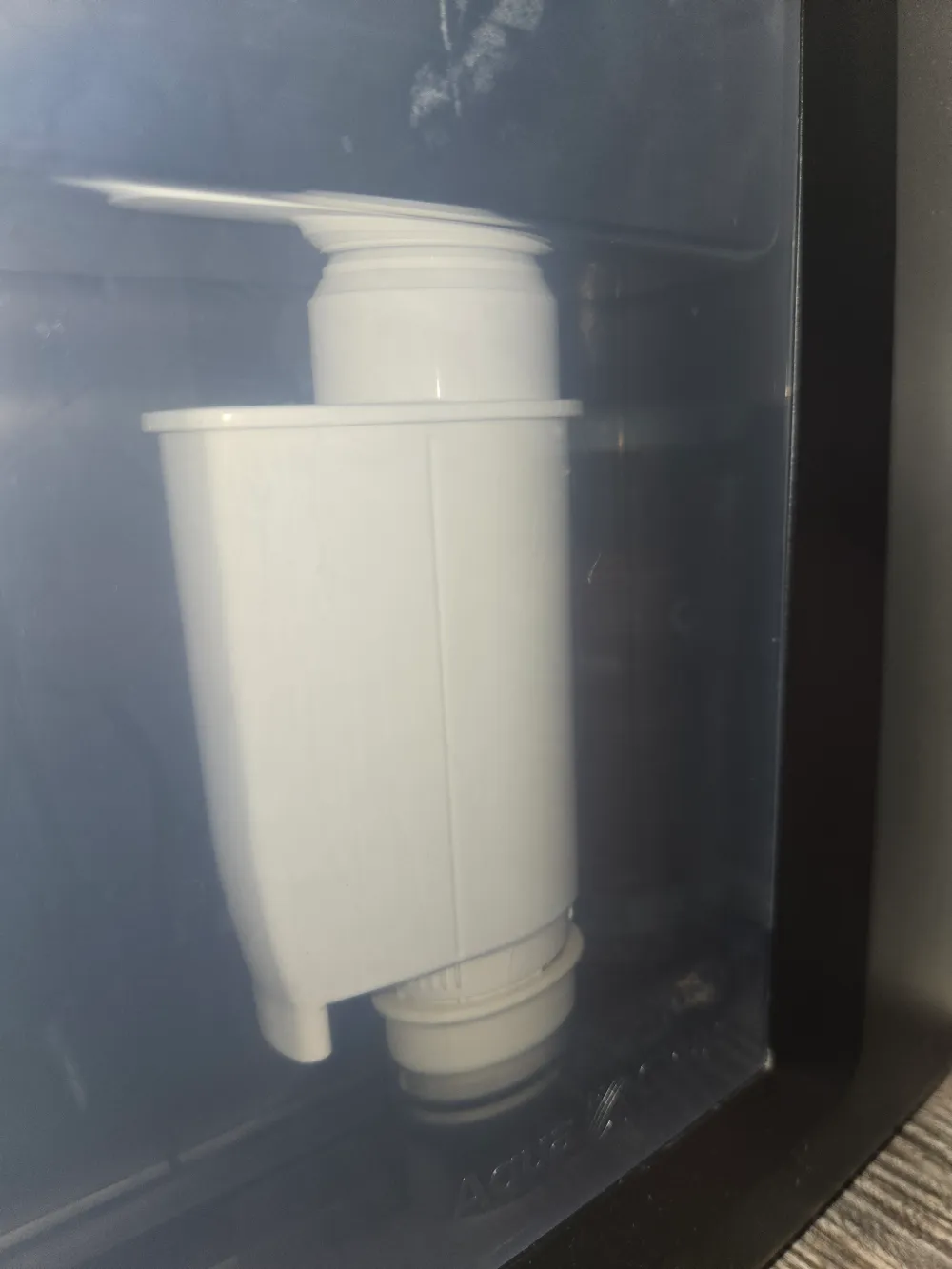

I had remaining stock of Brita Intenza+ water filters and a new coffee machine with an AquaClean system.

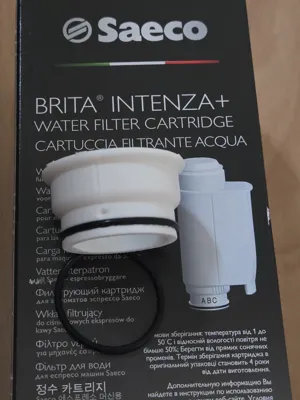

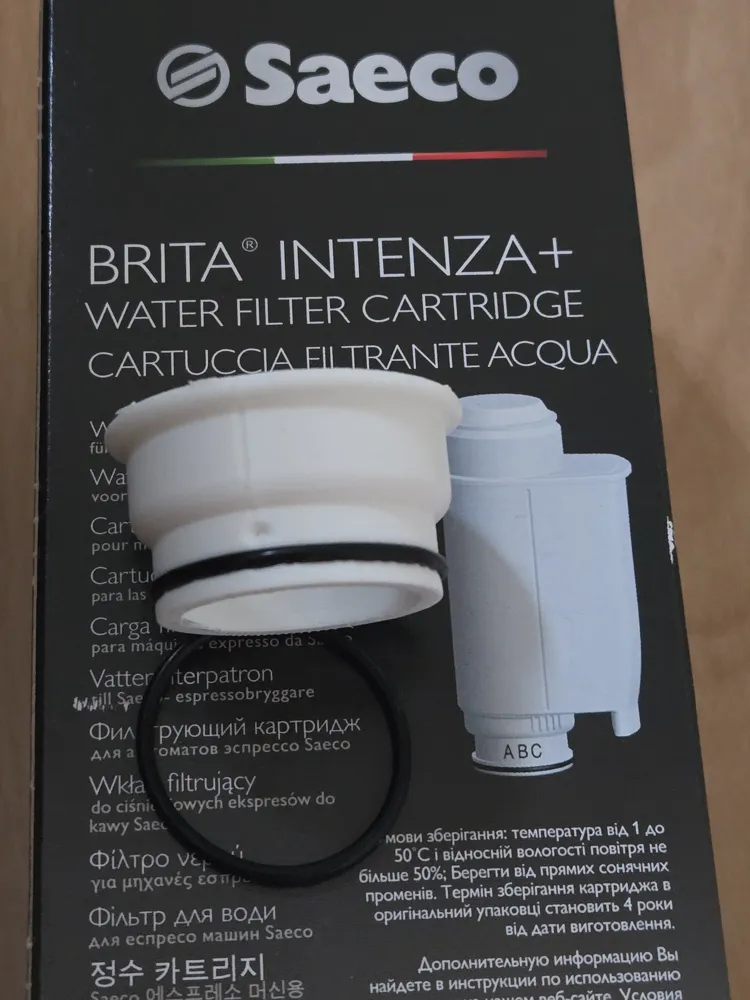

The O-ring from an additional cartridge is also required. If the intake pipe is not used, only the water level detection will not function; the new cartridges have a slightly different design, use at your own risk.

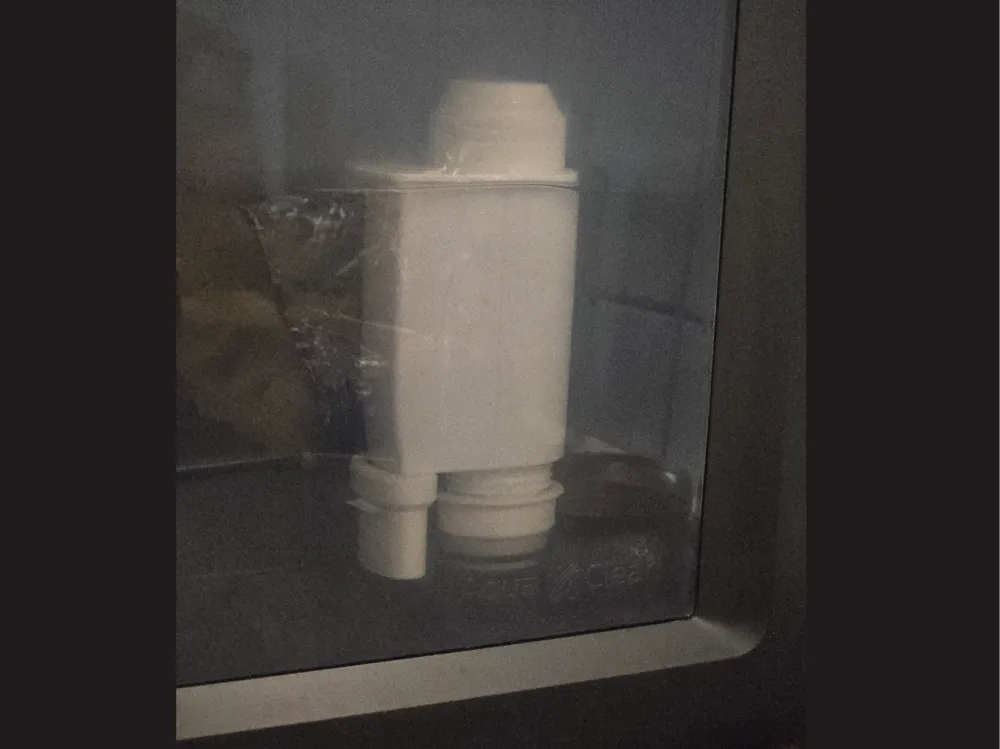

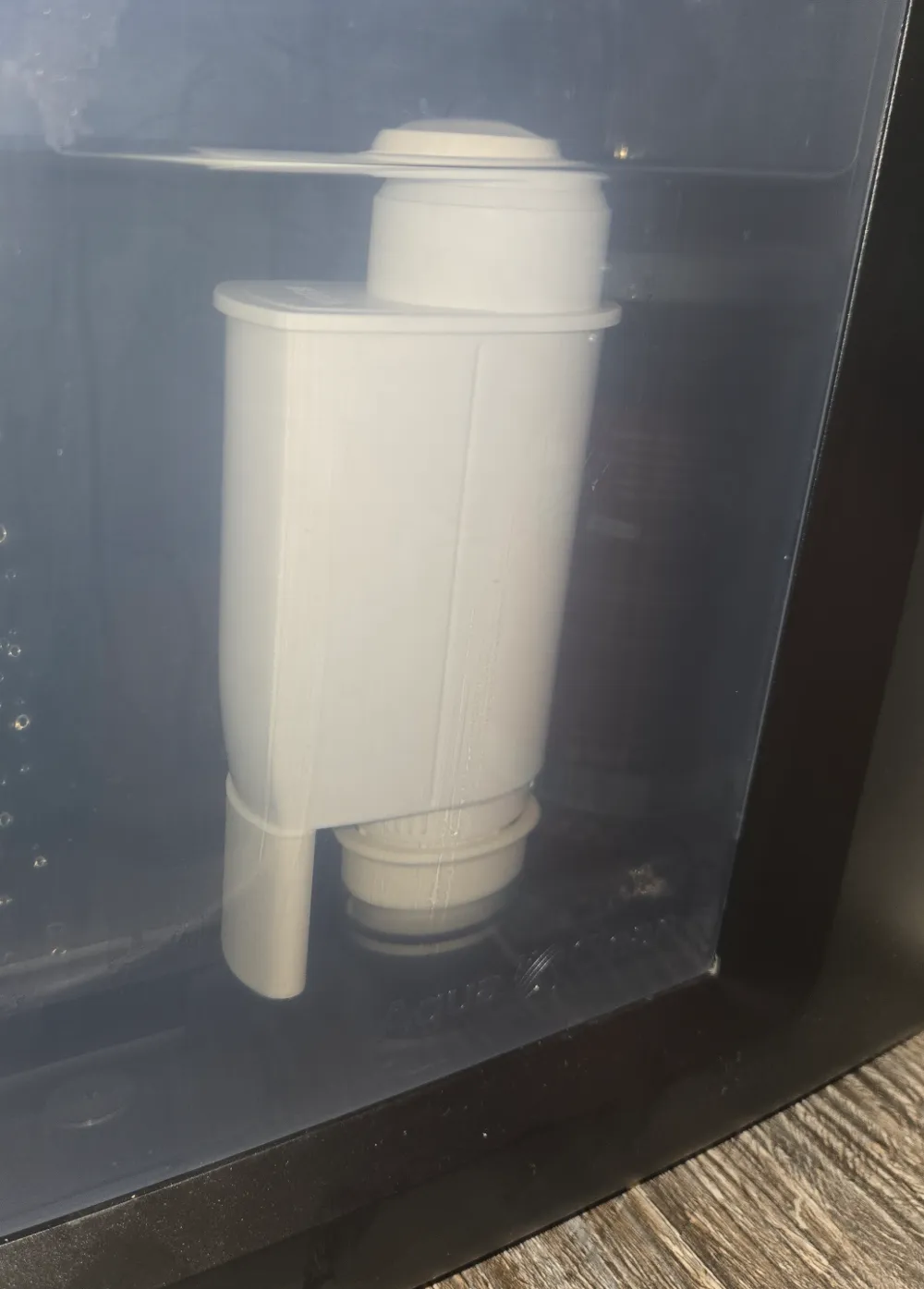

Optional (water level detection):

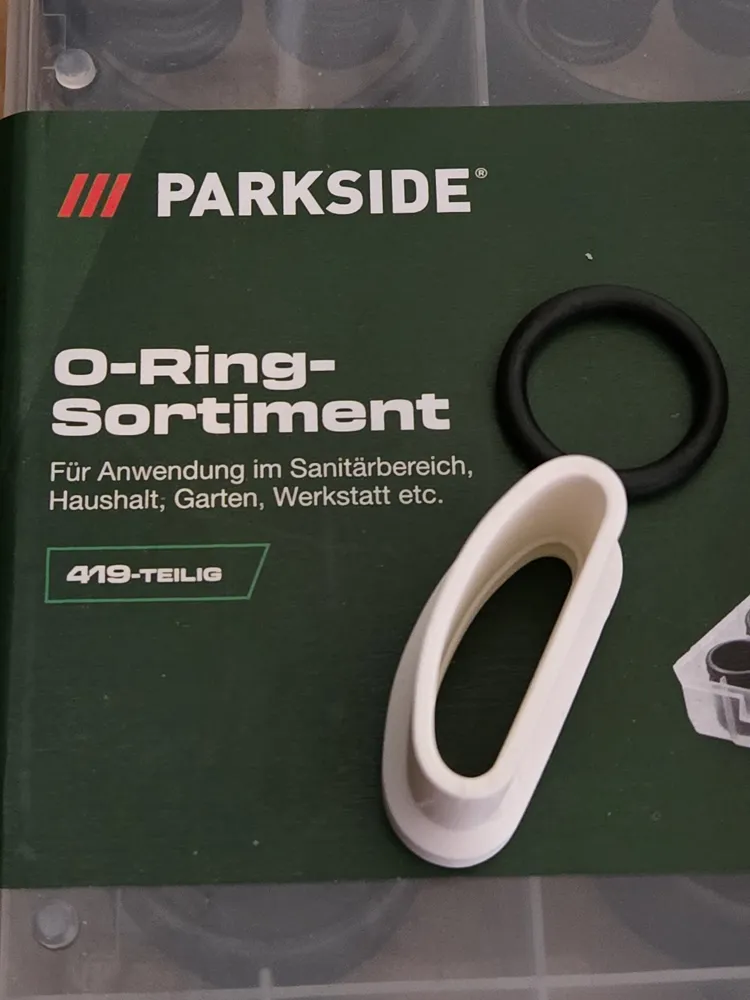

An additional sealing ring is required for the intake pipe:
Thickness: 3.5mm Inner diameter: 20mm Outer diameter: 27mm

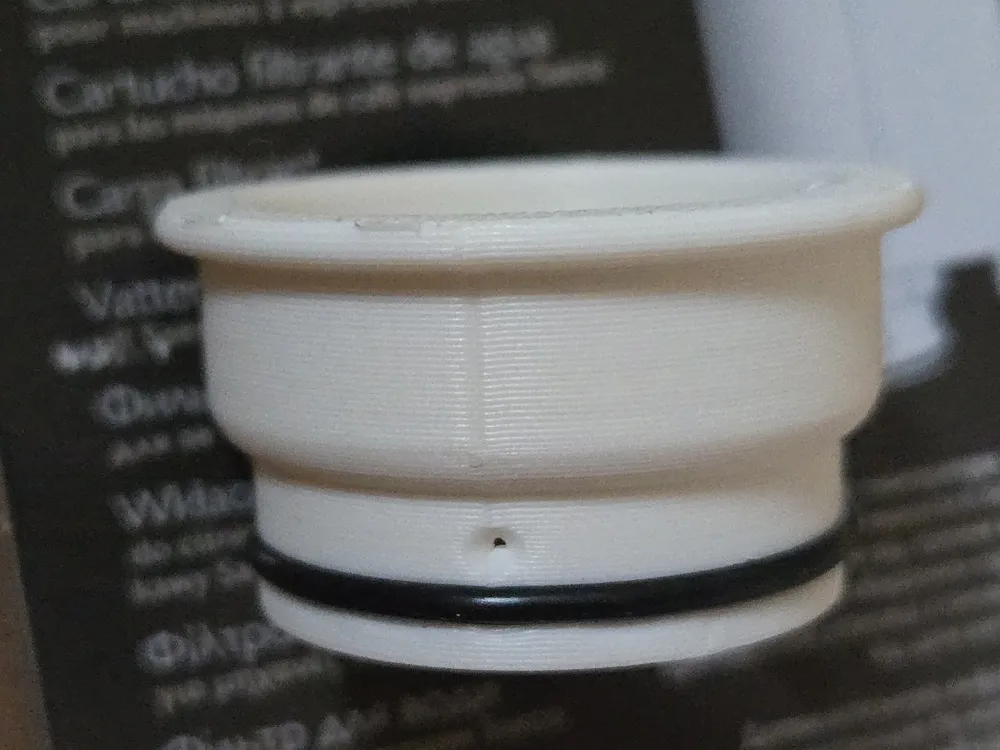

There are two holes in the cartridge that must be sealed from the inside (soldering iron or adhesive) otherwise the cartridge will draw in air.
For this purpose, I have provided a slightly deeper hole in one of the round elements.
Boost Me (for free)
If you like my model, feel free to leave a comment, maybe with a picture or a boost, if not, feel free to write to me, maybe I can help or adjust something small.
