Volvo P2 M66 M56 Shifter Bushings
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 40% infill, brim
Designer
52 min
1 plate
Open in Bambu Studio
Boost
21
47
2
3
33
11
Released
Description

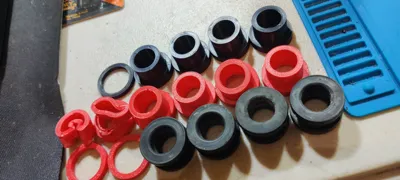

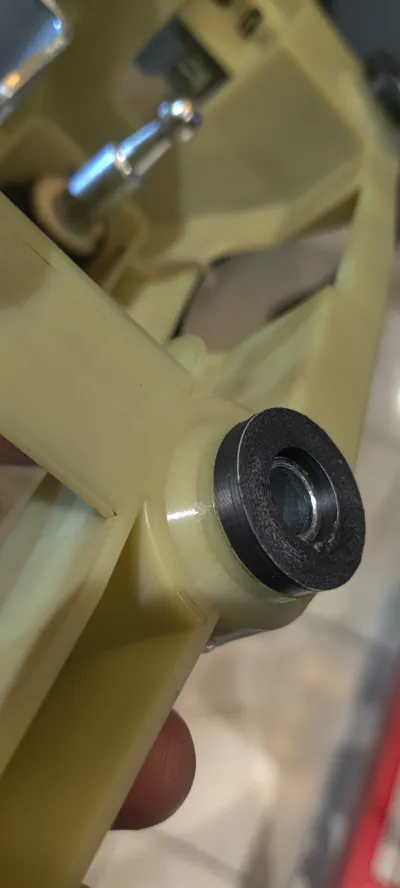

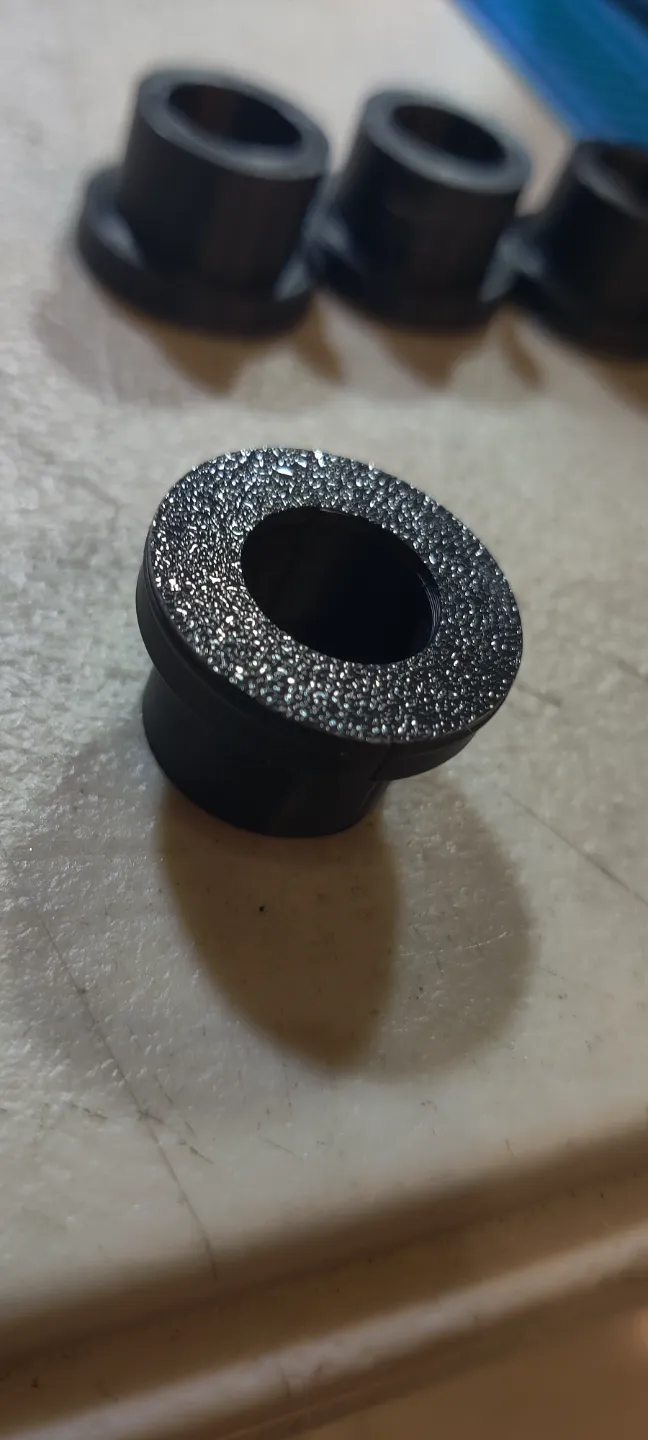

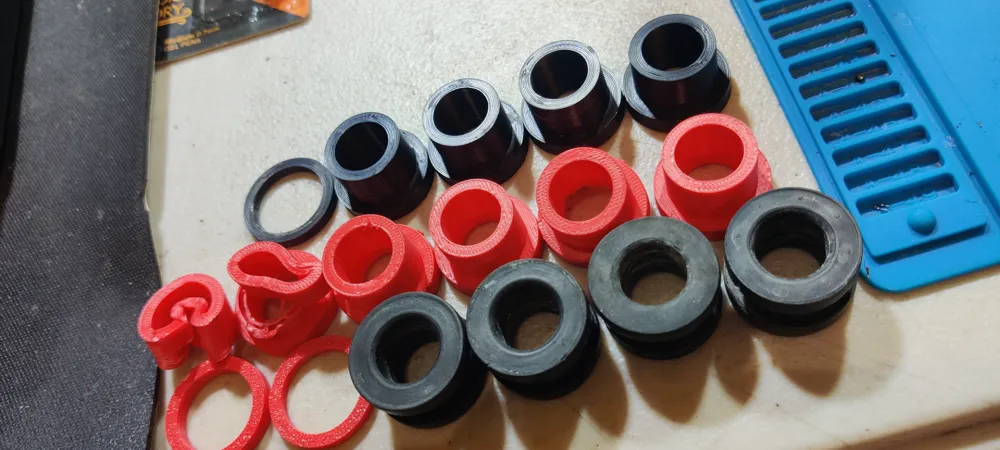

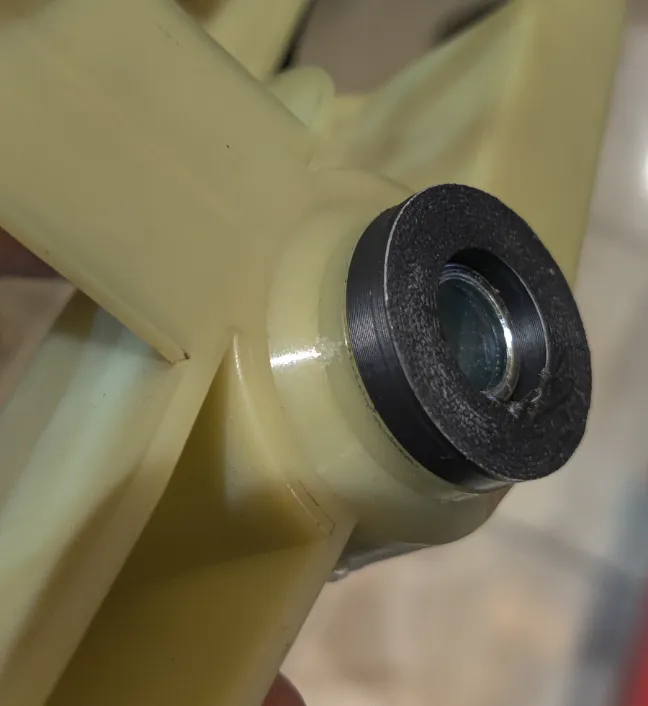

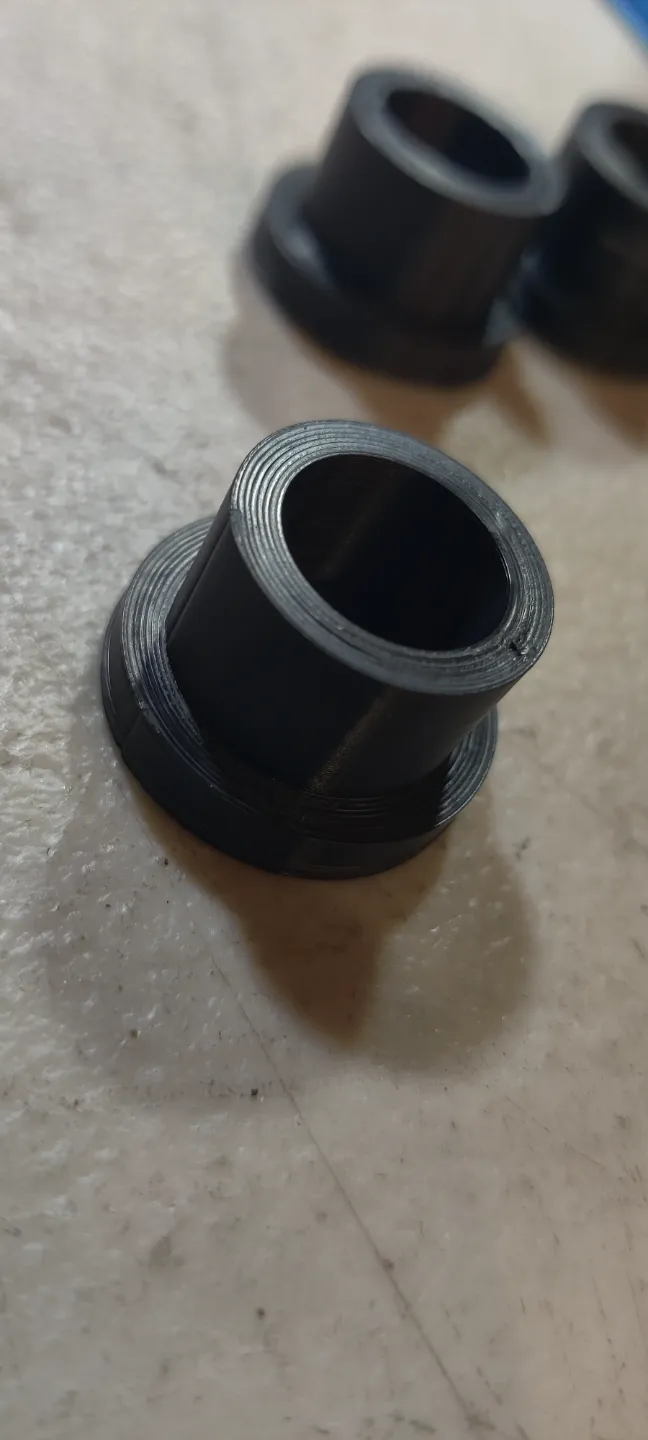

A set of 4 shifter bushings for P2 Volvo S60s. They should work on other P2 chassis cars like XC90s, XC70s, S80s but I have not tested them yet. Print in ABS or ASA. The bushings were made to be a press fit, simply pop the metal sleeve out of your original bushings, remove the bushings and install the base of the bushing from the bottom of the shifter, insert the small sleeve collar at the top and then press the metal sleeve in. A set of slip-jaw pliers makes the pressing in process easy.
License
This user content is licensed under a
Creative Commons Attribution
