Senseo Coffee Pad Dispenser

• My Design for the Makerworld Kitchen Design Contest 2023

Give your pads a good home instead of ugly bags!

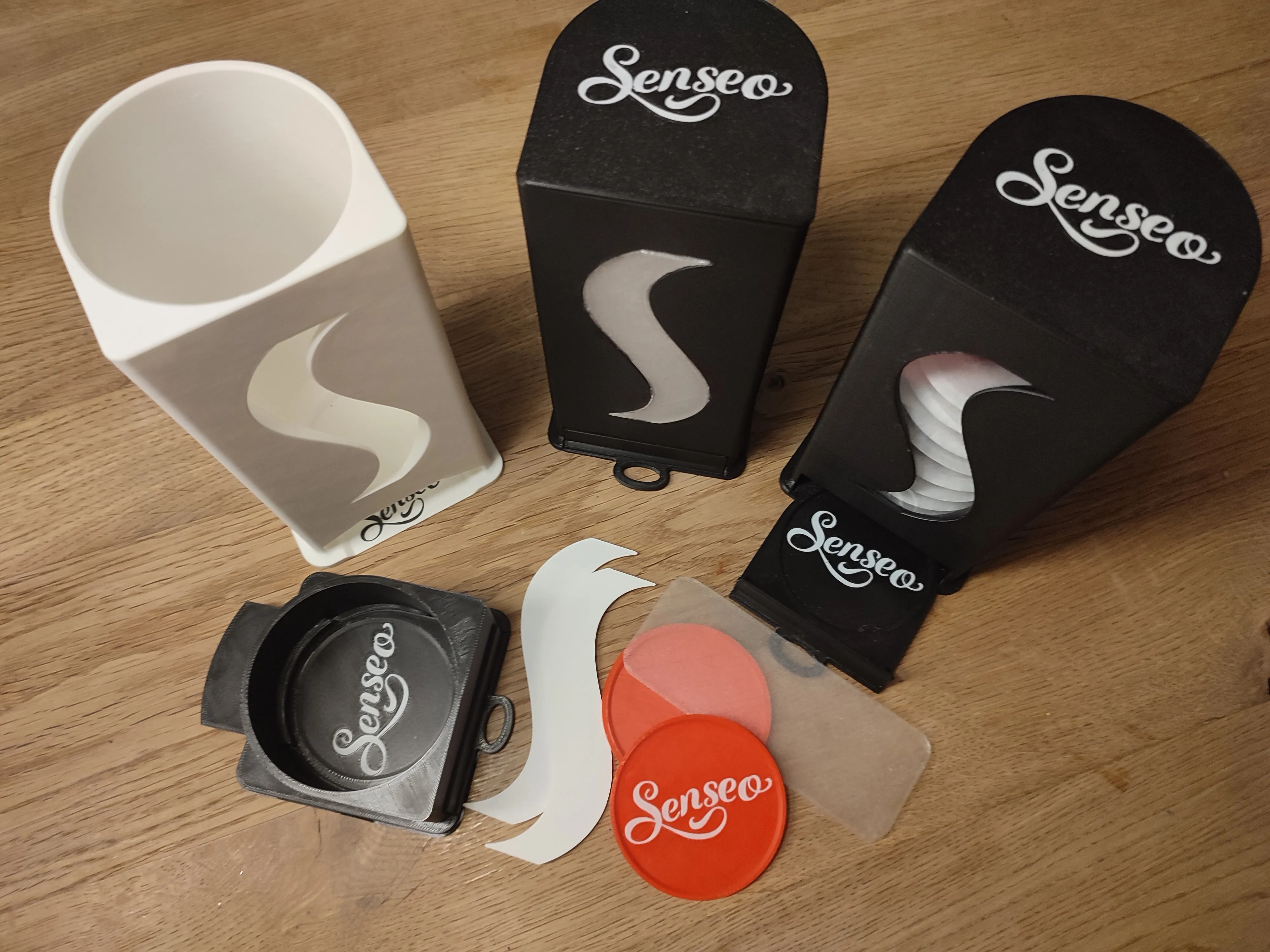

The Coffee Pad Dispenser:

A simple and elegant designed Box for the Senseo coffee pads with lid and drawer.

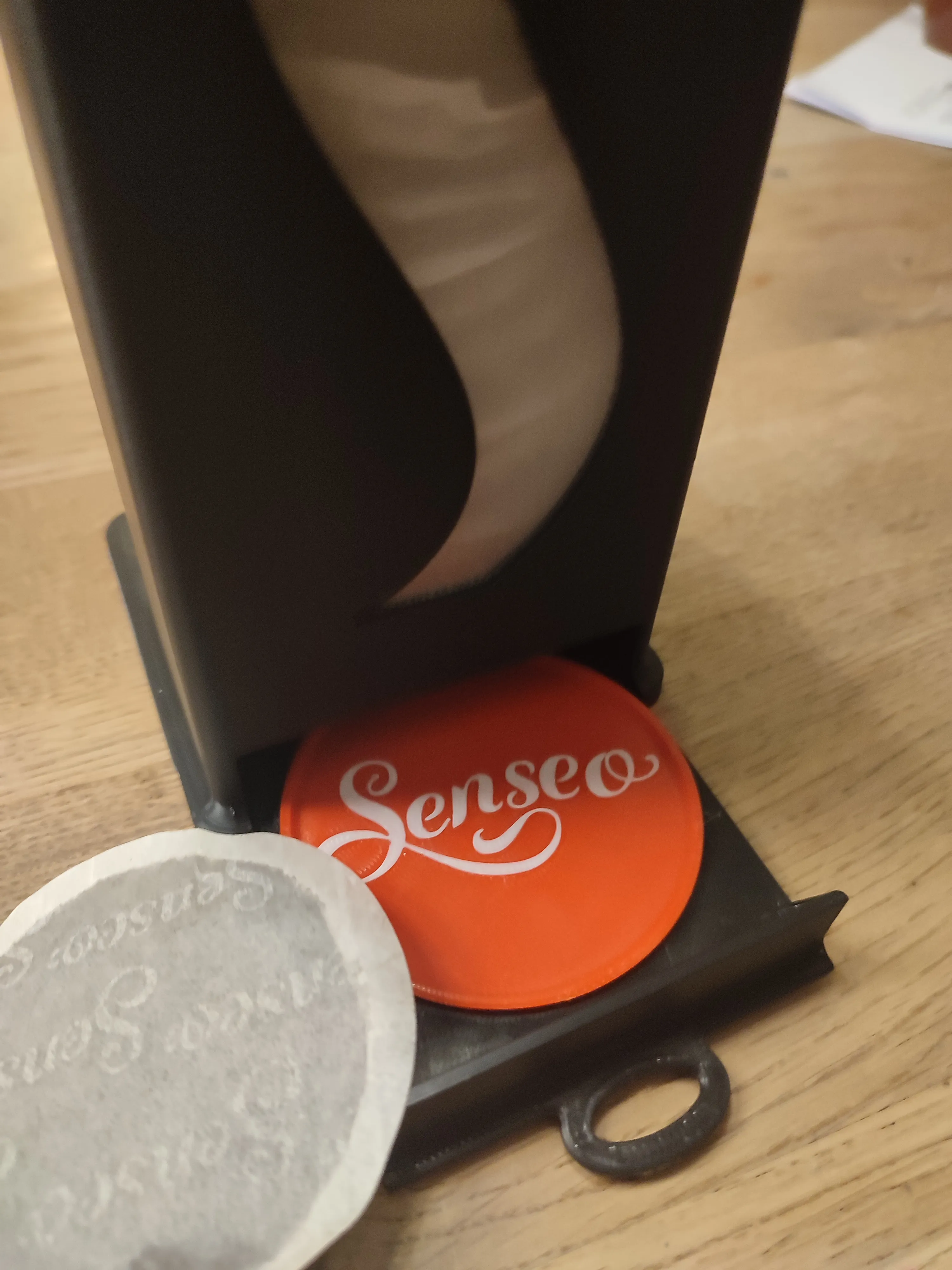

Up to 25 pads can be filled at the top. By pulling out the drawer, one pad comes out and the others are held back.

Its compatible with normal and double pad size. Just insert the adapter for normal size. You can glue if you want.

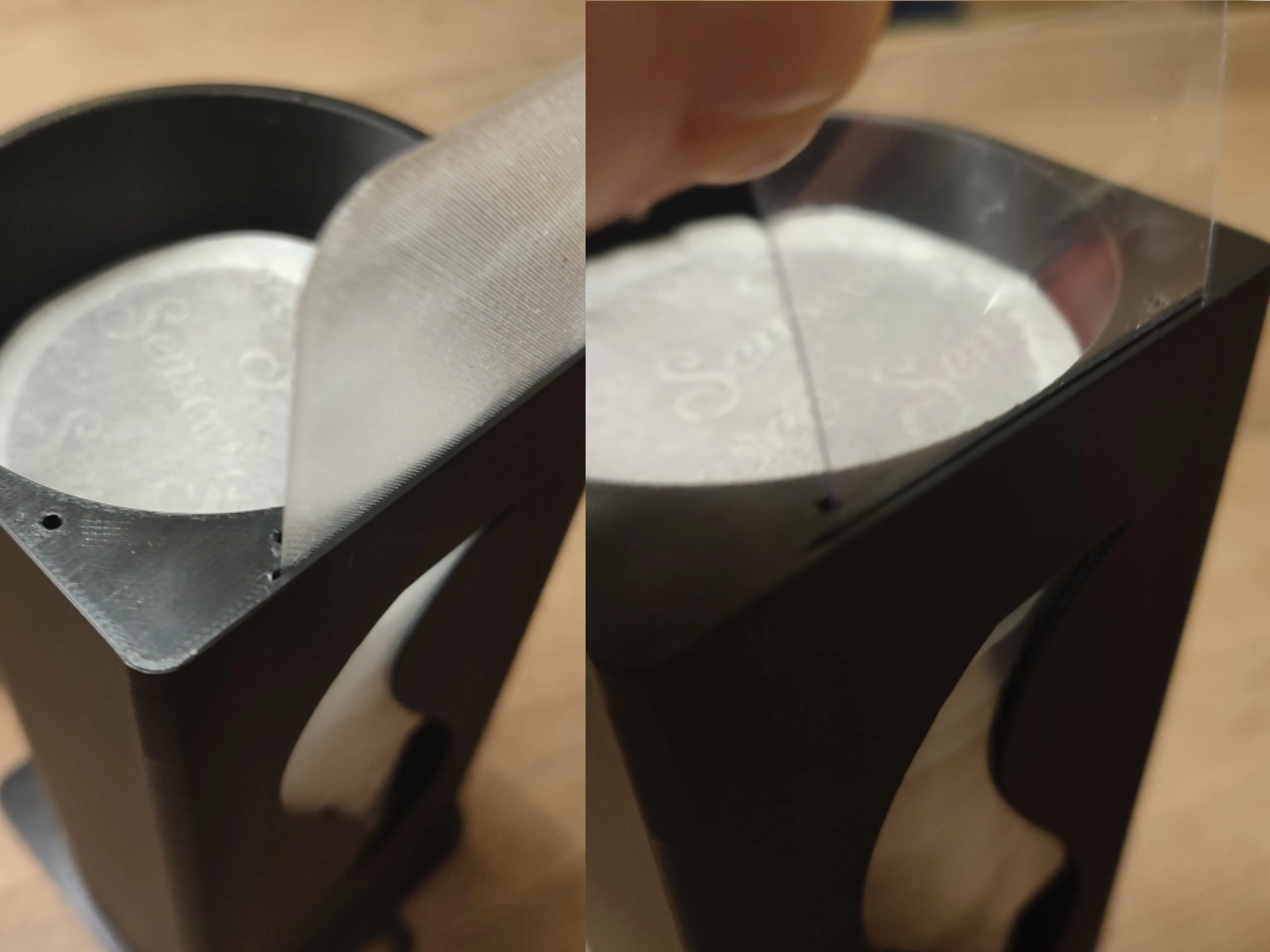

You have the opportunity to print a 2 layer part in translucent or simple use a cut from a cover film (ca. 125mmx 50mm) to see how much pads left.

The base is printed with support, remove carefully complete for good sliding drawer.

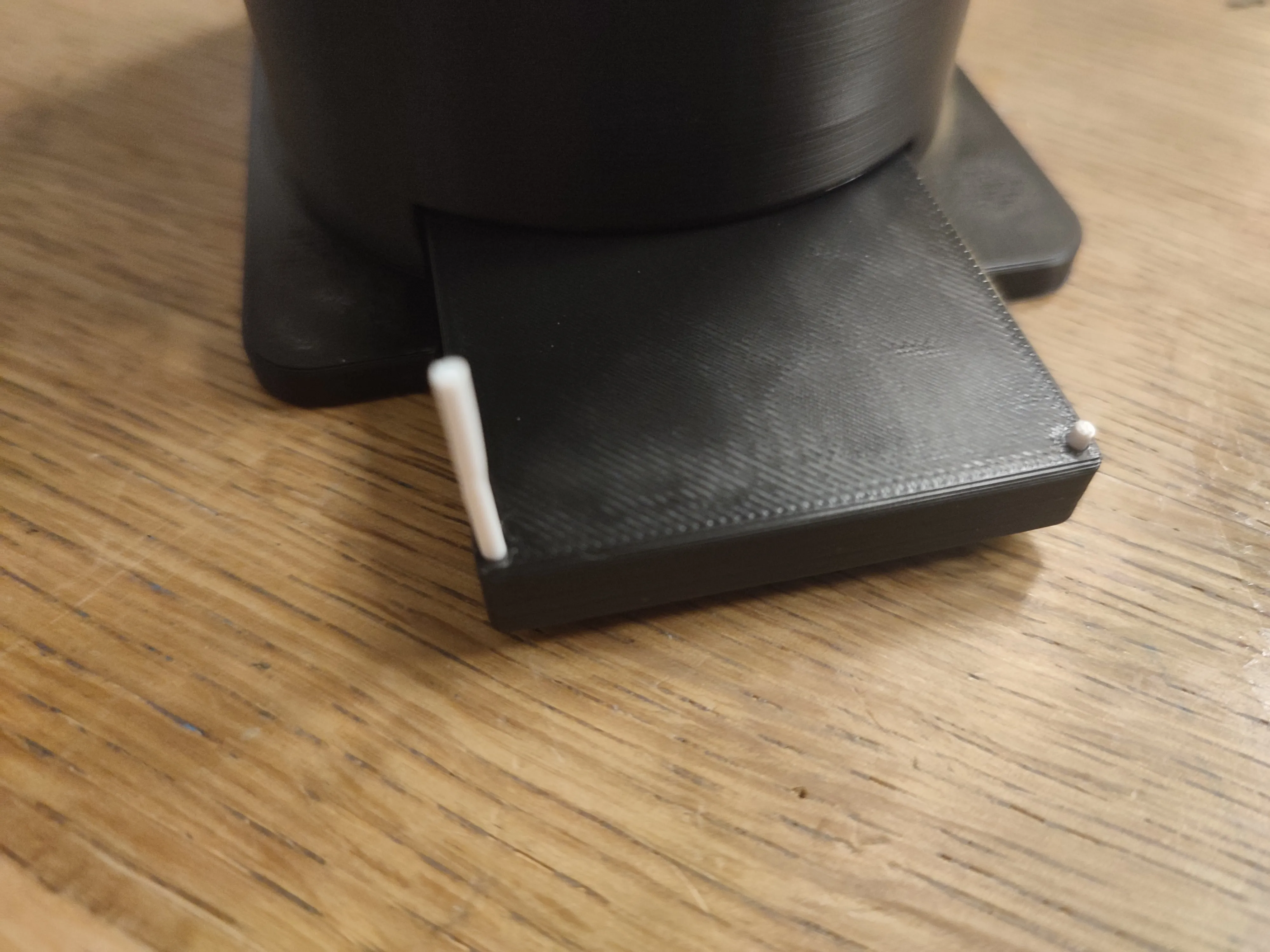

Add two pieces of filament in the holes at the drawer when its in. And cut a bit above, it shoul act as a stop to hold the drawer in place.

In complete its 180mm height, if you like higher to held more pads i uploaded the profile in the raw files. You can simple stack it! For this reason i added 4 holes in the top for filament pieces connection.😉

The dispenser is a must-have for all offices and kitchens that operate with Senseo or other pad machines.

I hope you like it! Enjoy Printing👍

And as always a like and follow costs nothing, just like the 3D model. Thank you🤗

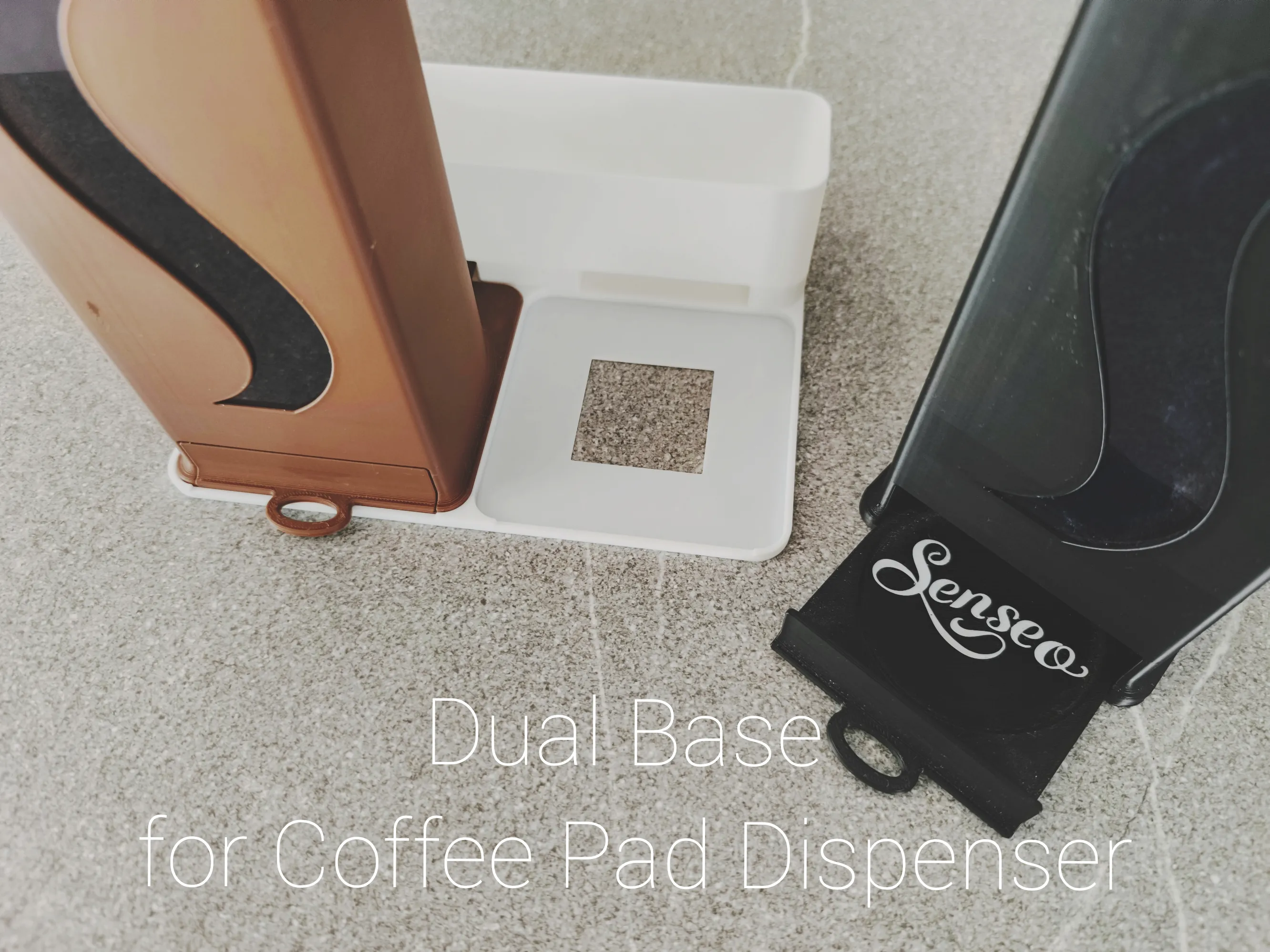

Check the Base for 2 Dispenser:

*Update:

• Added little studs at Lid to fit the holes
• Uploaded a 40mm profile for stacking solution. Simple scale n Z to your wishes.
