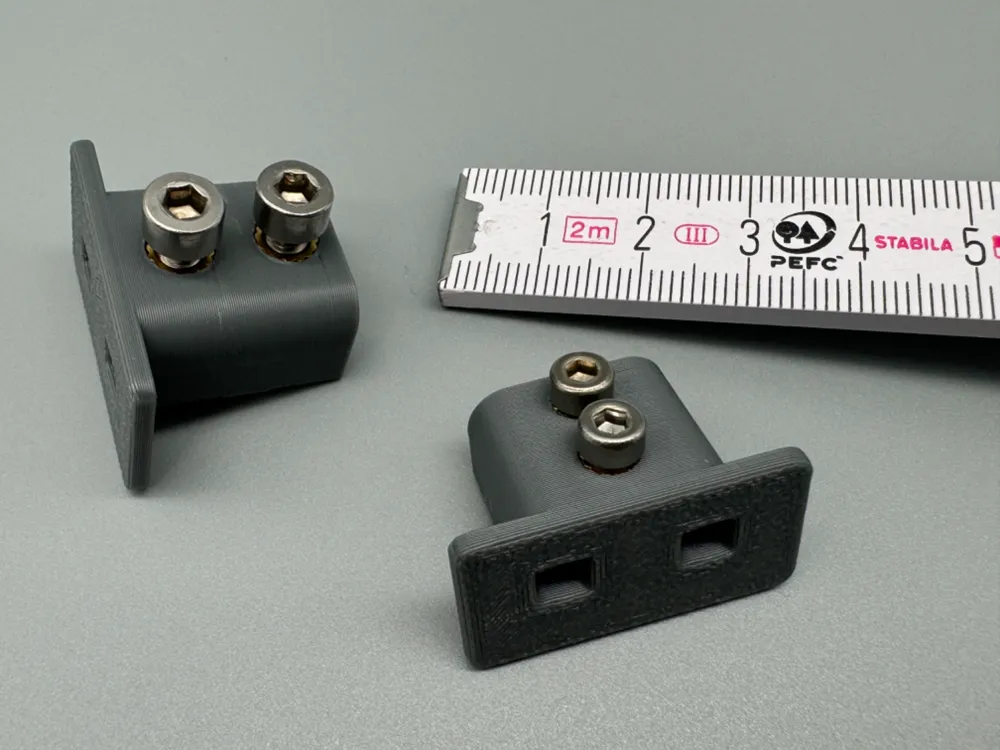

Snap-on stop for the folding rule.

The side stop surface has the same height as the beginning of the folding rule.

This allows for easy and precise measurement with a stop, similar to using a tape measure.

The stop surface is 2mm thick. Easy to use and easy to print.

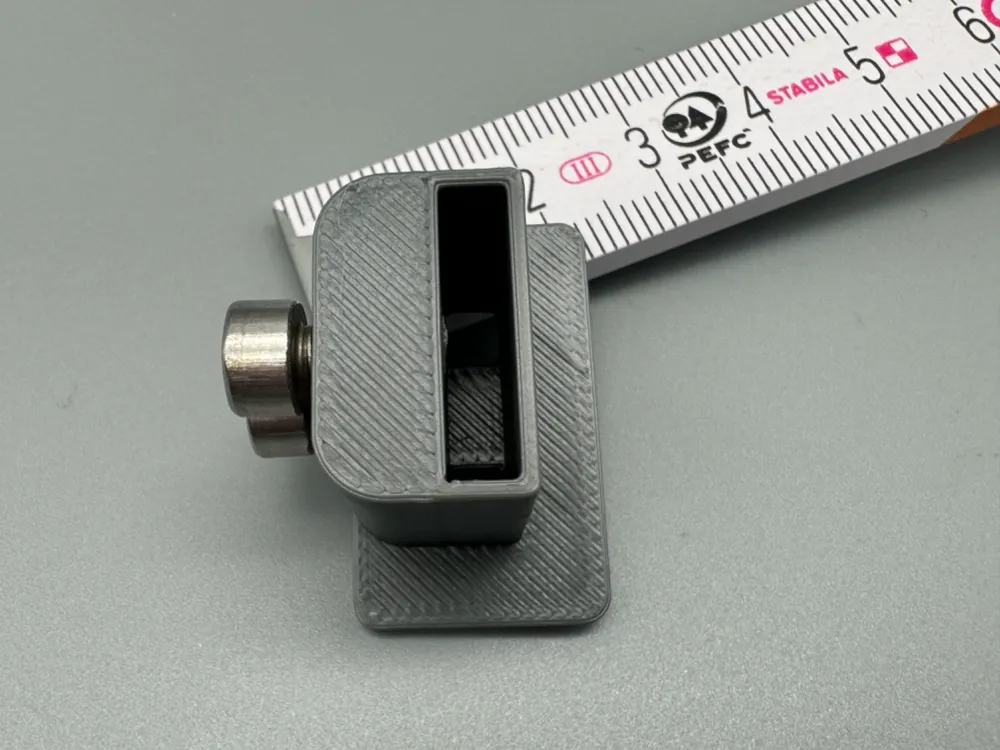

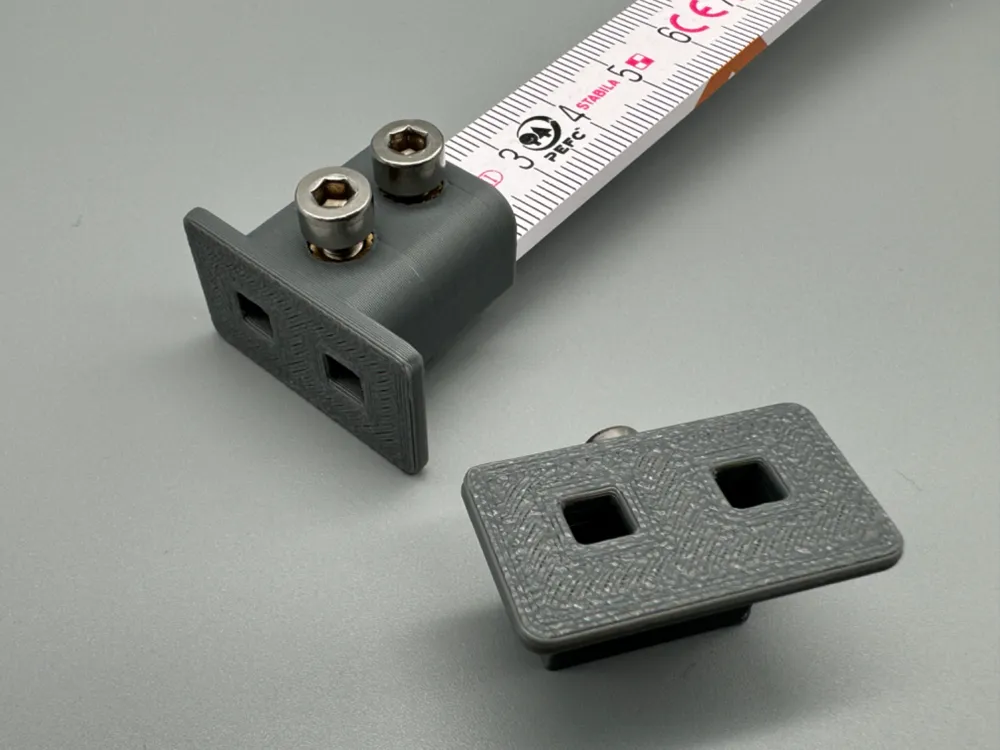

The stop is placed onto the folding rule and clamped with two screws. This prevents it from slipping out during measurement.

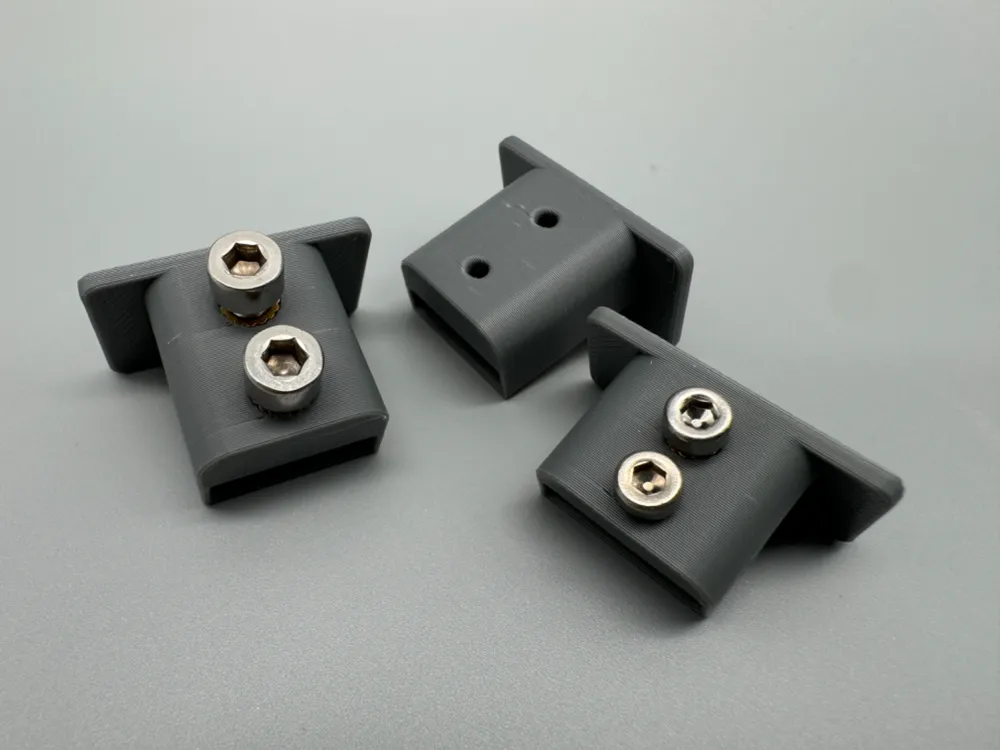

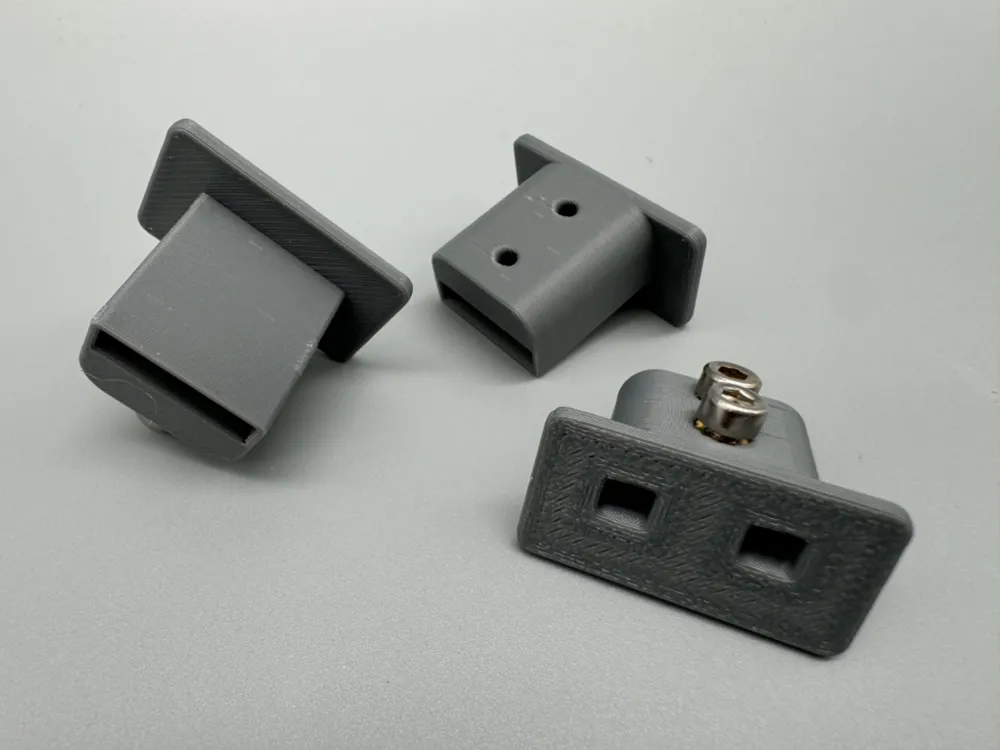

Available in three versions:

For M3 and M4 threaded inserts and screws.

As well as for BT3x8 screws



Very easy to print without support material!



Don't forget to like, rate, and follow so you don't miss any new projects.

Also check out my other useful and practical everyday helpers!

Boost Me (for free)

Enjoying it? Then I would appreciate a boost.



meterstab
tape measure
marking gauge
winnkel
furniture
assemble
measure
heimwerken
tool
easy to print
no support
m3
m4
massband
wood
joiner
carpenter
woodworking
drechseln
crafting
parkett
boden
laying
window
saegen
Circular saw
birdhouse
measure
