Christmas Carousel - Free 3D Print Model

Search models, users, collections, and posts

FilliFuu

Household>Festivities

IP Report

GIF

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

0.2mm layer, 2 walls, 15% infill

Designer

49.3 h

7 plates

5.0(13)

0.2mm layer, 2 walls, 12% infill

Designer

26.3 h

7 plates

Open in Bambu Studio

Boost

208

420

252

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

TT Motor DC5V 59RPM CCW Single Axis(1PCS) - LA001

Description

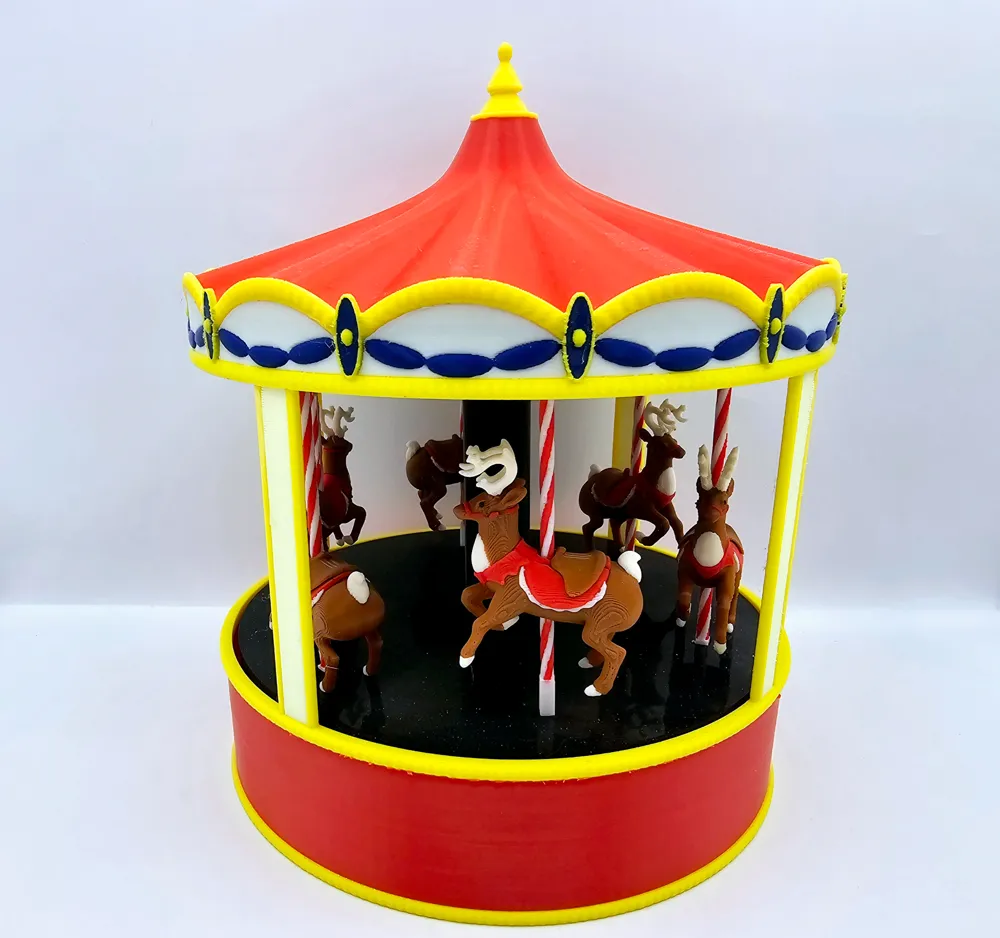

Exclusive to Bambulabs on Makerworld I am pleased to present the automatic Christmas carousel

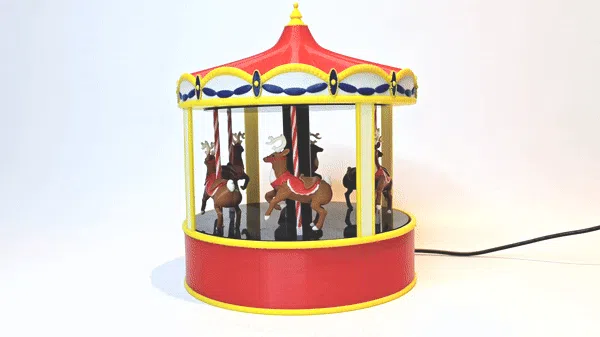

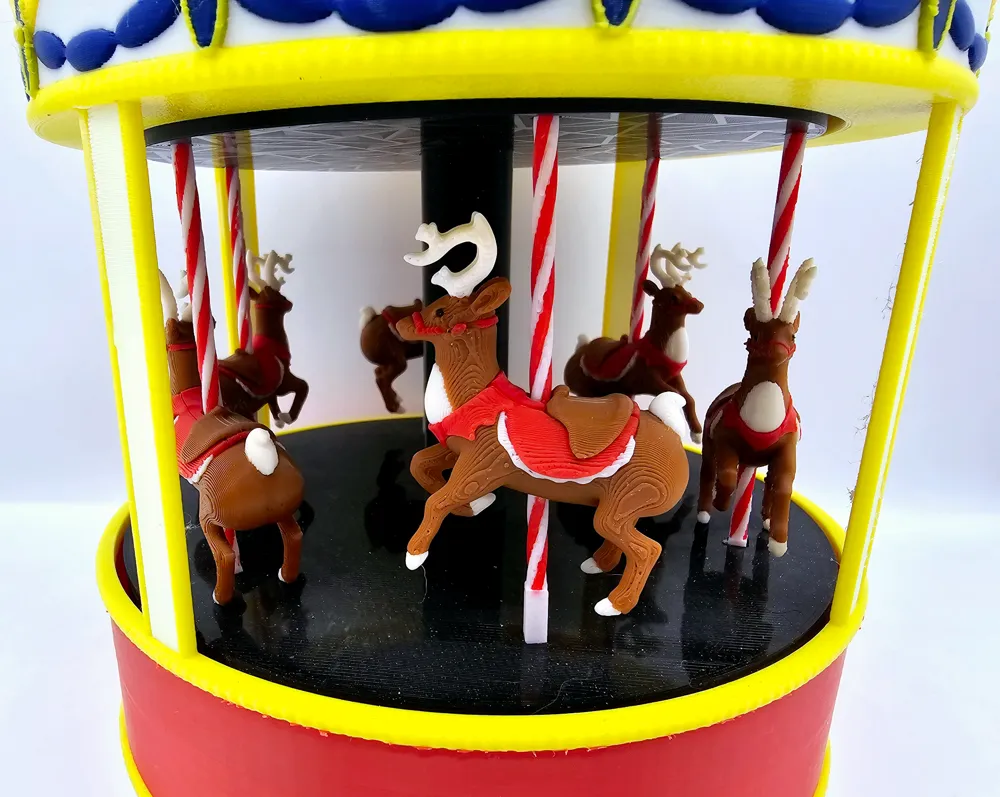

Fully working Christmas carousel featuring highly detailed rotating reindeer that jump up and down just like any real carousel

Simple and quick to build using very few parts supplied by Bambulabs, I want to thank them for all the support I have received to make this beautiful themed product a reality

All you need to make one is 2 screws and 1 motor available easily on the Bambulabs store

TT motor USB powered - get it here

2x screws (BT3-23 Screw *3 supplied in the AMS mounting kit) - get it here (any screw sized 2.5mmx22.5mm should work)

These cheap parts are affordable for everyone so you can make your own carousel easily for a tiny fraction of the price of a store brought carousel, and you can completely customize with your own color scheme and once printed can be built in under 10 minutes!

Designed to also be printable on the A1 mini

I will include a fully colored print profile if you want extra colored details on the carousel and reindeers for AMS users but you can print each part in any single color you choose for a multicolour carousel without AMS

Print guide for anyone not using the 3MF file :

Recommend printing the 6x reindeer and poles horizontally with tree supports for maximum strength - carefully extract supports and clean after printing
Rotary bed, roof and small cog and centre pole can easily be printed with standard slicer settings
Roof it is recommended to print using tree supports but should work without for those who wish to save time and filament
Base is recommended to print at 120ms for the walls and infill at default speed, enable z-hop under your filament section to print smooth uprights - trees supports recommended for a smoother surface under the base where the motor is inserted

Once you have removed all supports please refer to this quick YouTube build guide for instructions -

Enjoy and any further questions I will help as best as possible - Merry Christmas

Comment & Rating (33)

@dvjaureliohdez

Boosted

I decided to print it it printed well but it would be much better if it were in separate pieces but it looks good

(Edited)

The designer has replied

Show original

@FilliFuu

Looks great, thanks for sharing )

@Cookie_1447122

Print Profile

0.2mm layer, 2 walls, 15% infill

Thank you for this Print I love it and the Carousel makes a beautiful addition to my Christmas village otherwise known as Whoville!!

The profile uploader has replied

@FilliFuu

You've very welcome )

@Rivo1971

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

awesome print

@3DprinterguyCC

Boosted

Great print!

@Ghos7echo

does the center pole / larger disk rotate at all?

The designer has replied

@FilliFuu

Yes the centre pole, rotary base and roof all rotate together.

@Ghos7echo

Replying to @FilliFuu :

thanks, thinking of trying to add lights somehow

@FilliFuu

Replying to @Ghos7echo :

That would be cool - I myself thought of this but didn't want to add any extra components - would love to see what you come up with.

@user_825521730

Boosted

I noticed that the Upper supports for the top are very fragile. would it be possible to make the lower base 1 or 2 walls thicker and make pockets for the supports like you did on the Roof??? I think this would help with the supports not breaking off and also cut down on print time

The designer has replied

@FilliFuu

it was a long time since i made this one so I'm not sure if I did it this way for a reason but I could look into it

@user_2262000528

Great model! I personally Will NOT print this since all Carousells move counter clockwise. (I know, because i’m in the amusement park business) Other than that: Great work!

The designer has replied

@FilliFuu

Thanks, but that actually depends on the region )

@LaughingModeler

Isn't it possible to reverse the polarity of the motor wires and then mount the reindeer facing the other way to convert it to counter-clockwise?

@user_716071821

Do you have a model wiithout the Christmas theme?

The designer has replied

@FilliFuu

I don't sorry

@PsEiKo

Print Profile

0.2mm layer, 2 walls, 15% infill

the motion is a bit "scratchy". fixed with teflon tape as slider. Amazing print file and addition to the yearly growing christmas village. Thank you for that great file

The profile uploader has replied

@FilliFuu

Great idea and thank you

@prtalbany

Boosted

making 3 of them now, very nice project I'm doing them with silk gold multi color change and sparkle red will post photos when done even though I'm not good at assembling Thanks for the great model and I used up the last of my boost on you, just sorry I only had 3
