Adaptive Width Pressure-Sensitive Label Rewinder

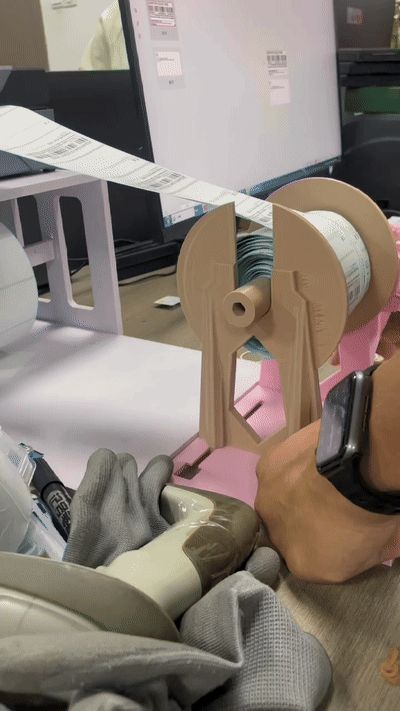

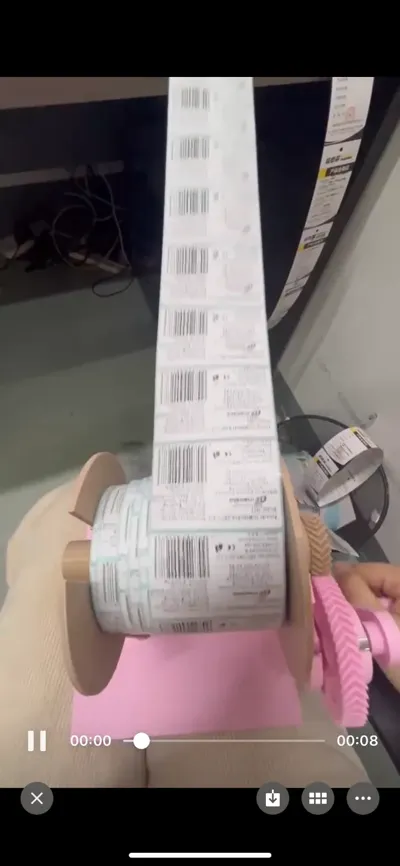

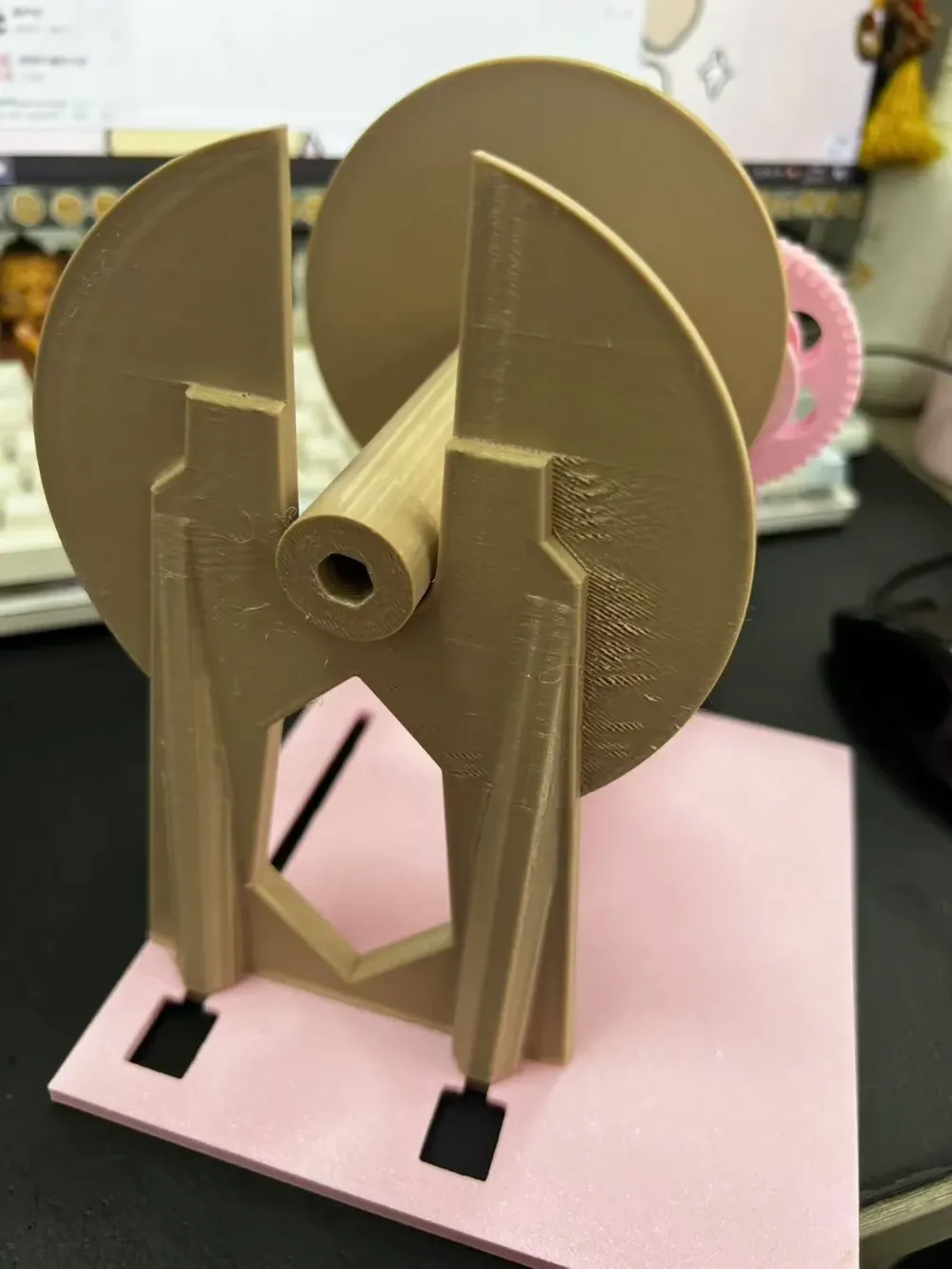

Embarking on my first modeling endeavor, and lacking significant expertise, I drew inspiration from existing filament spool designs. Building upon a pre-existing STL file, I employed Bambu Slicer to refine and augment the model, ultimately achieving this creation. This device's primary function is winding labels, proving particularly useful for e-commerce label printing, though theoretically adaptable to various applications. By adjusting the sliding track, the machine accommodates diverse label sizes, ensuring operational flexibility. For optimal sliding track performance, regular lubrication is recommended.

Required hardware components include:

• Two 608zz bearings, measuring 8*22*7 mm.

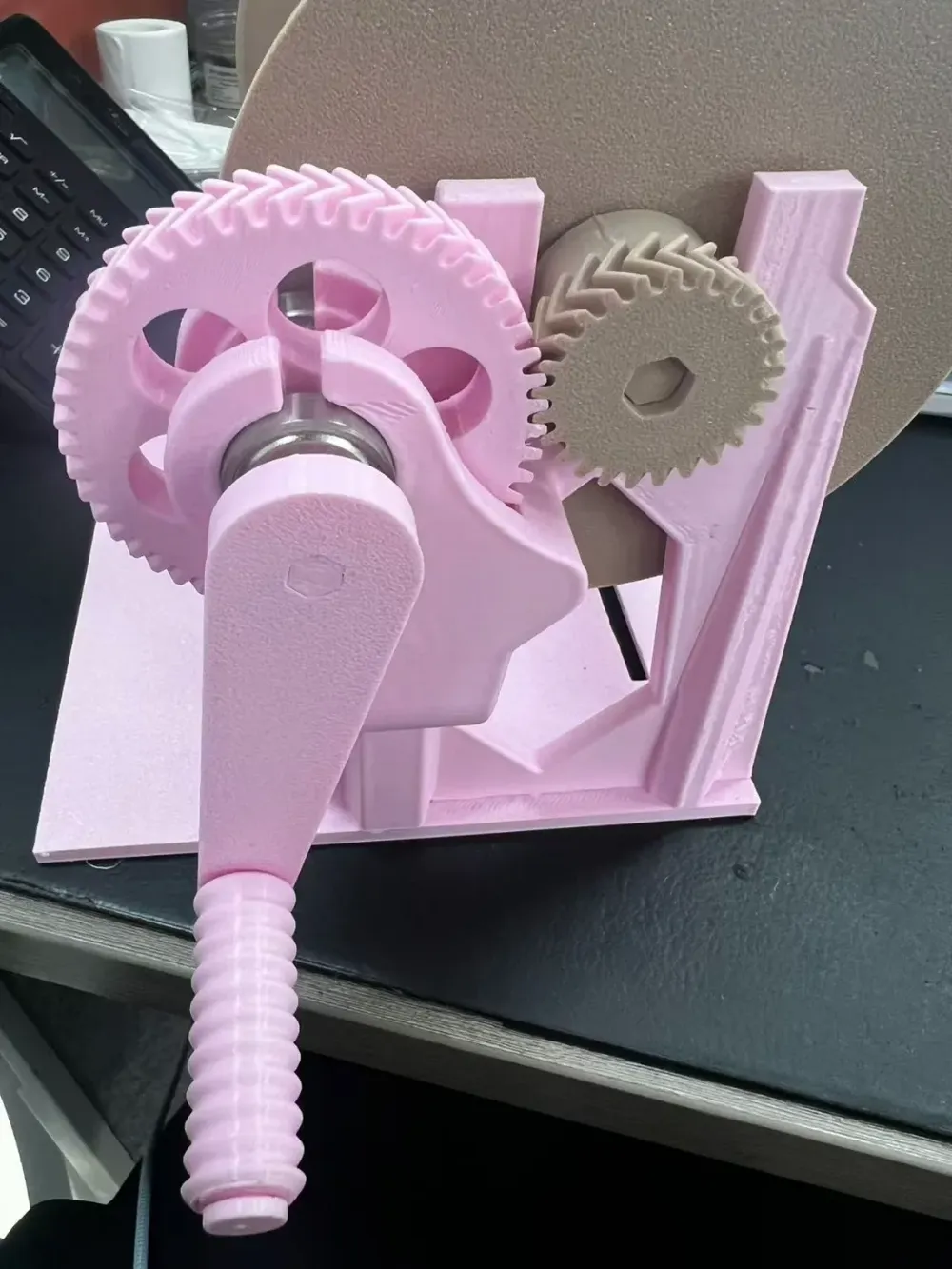

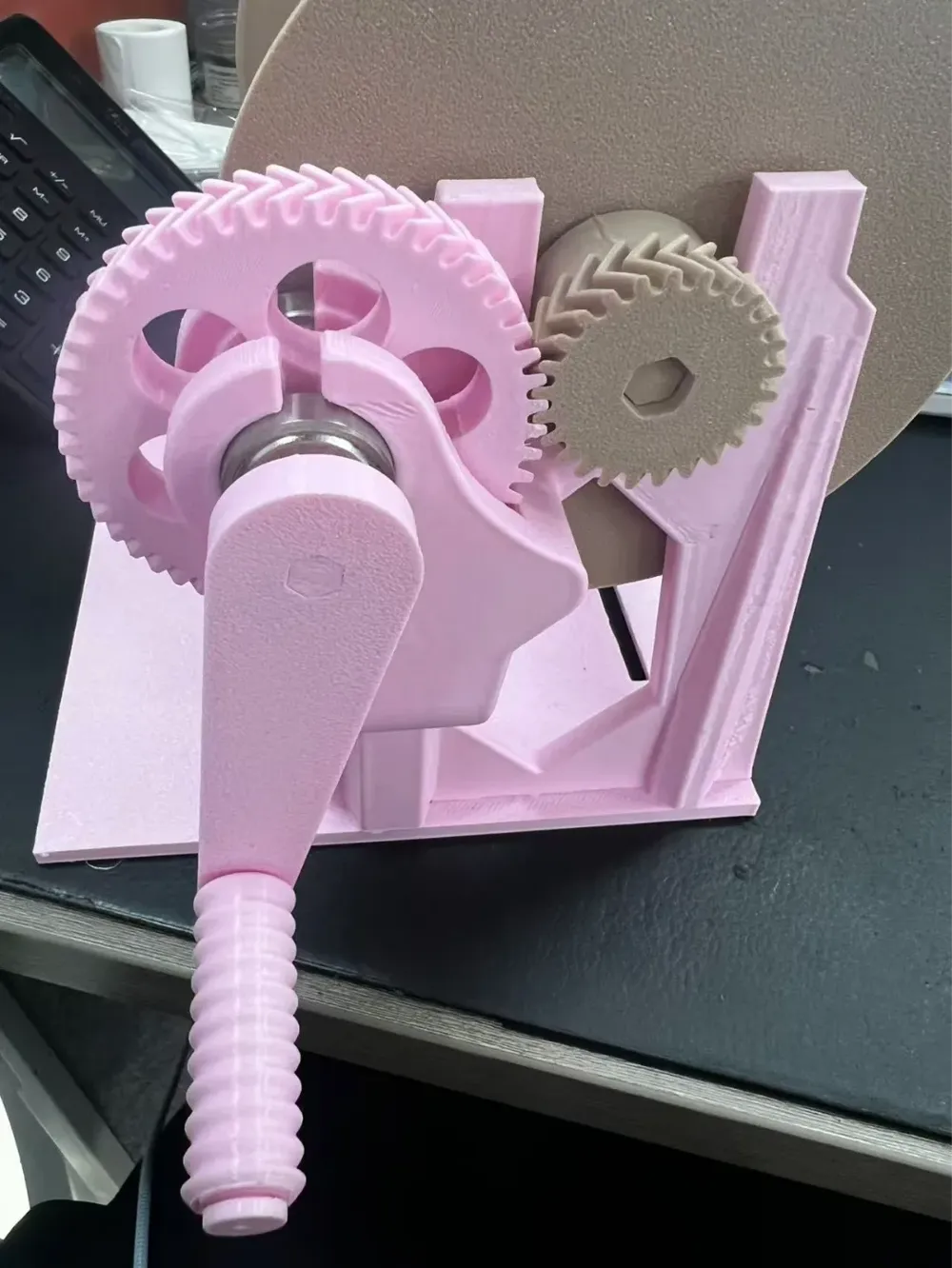

If a crank is desired, a small self-tapping screw can secure the crank's stop. Screw dimensions are largely inconsequential; sufficient stability for the stop is paramount.
