Modular Hunsn Cluster Shelf

Modular Hunsn Cluster Shelf

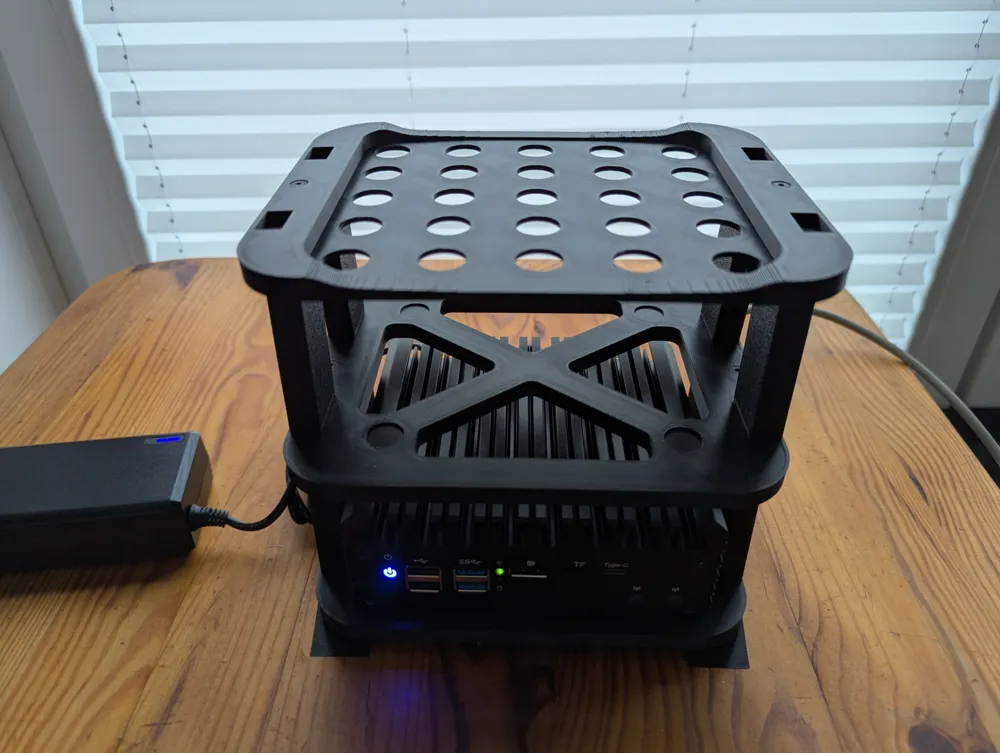

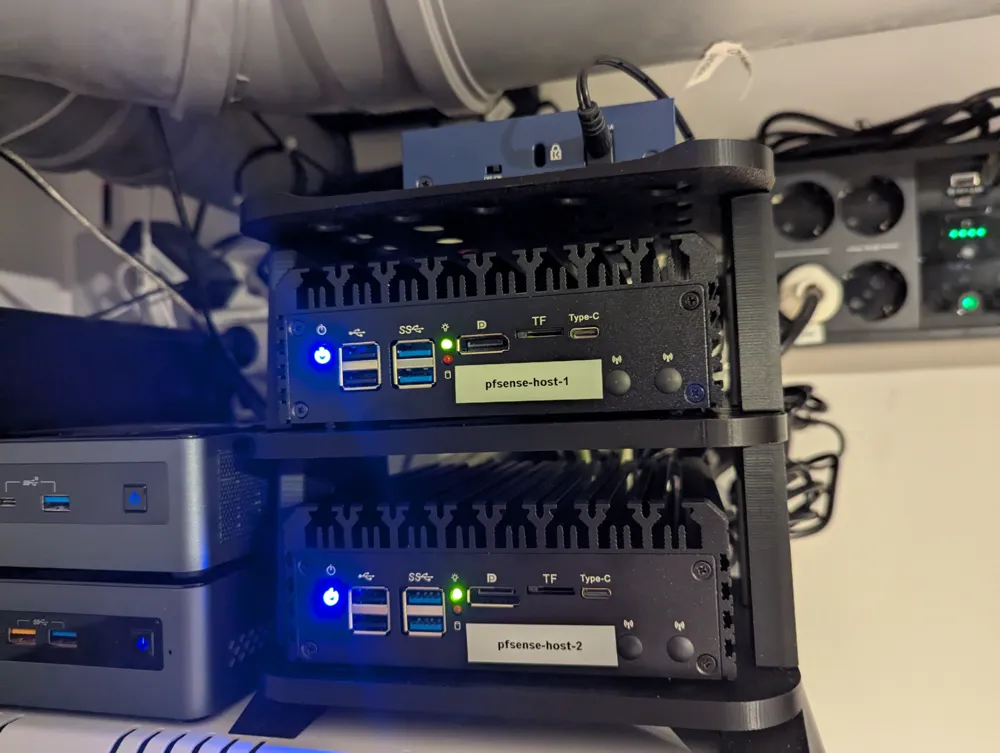

This shelf can be used to stack multiple Hunsn RJ42 Micro Firewall Appliances.

The system is modularly designed. The necessary parts are printed.

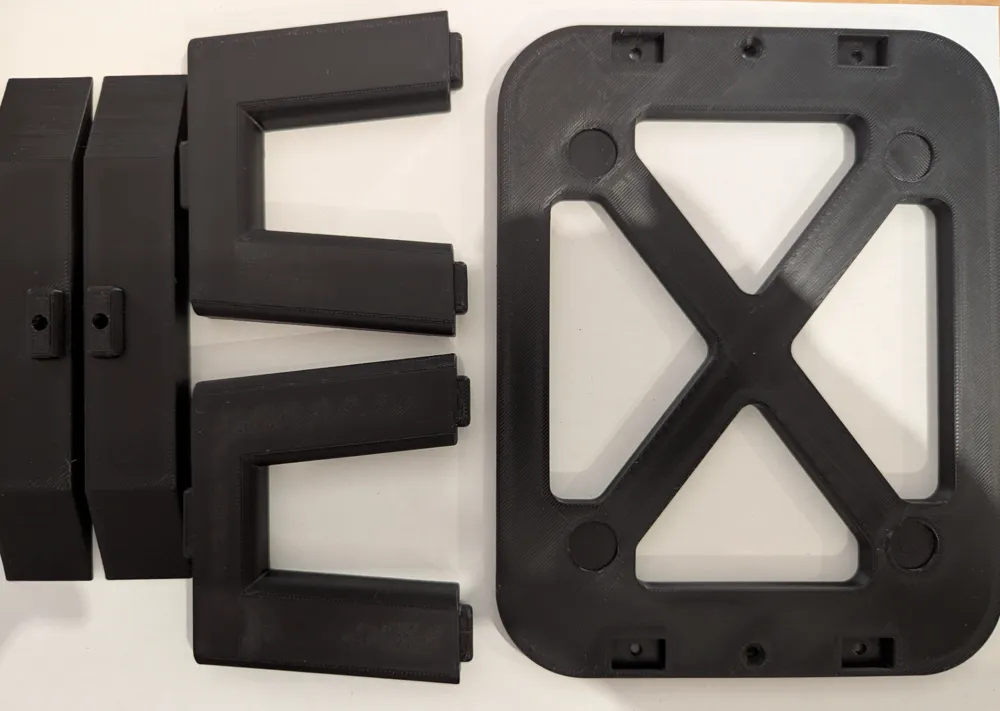

Included are:

• Feet
  • serve as spacers for the first shelf from the floor so that air can flow through the shelf from below.
  • Each foot requires 1 x M3 threaded insert and 1 x M3x8 screw.

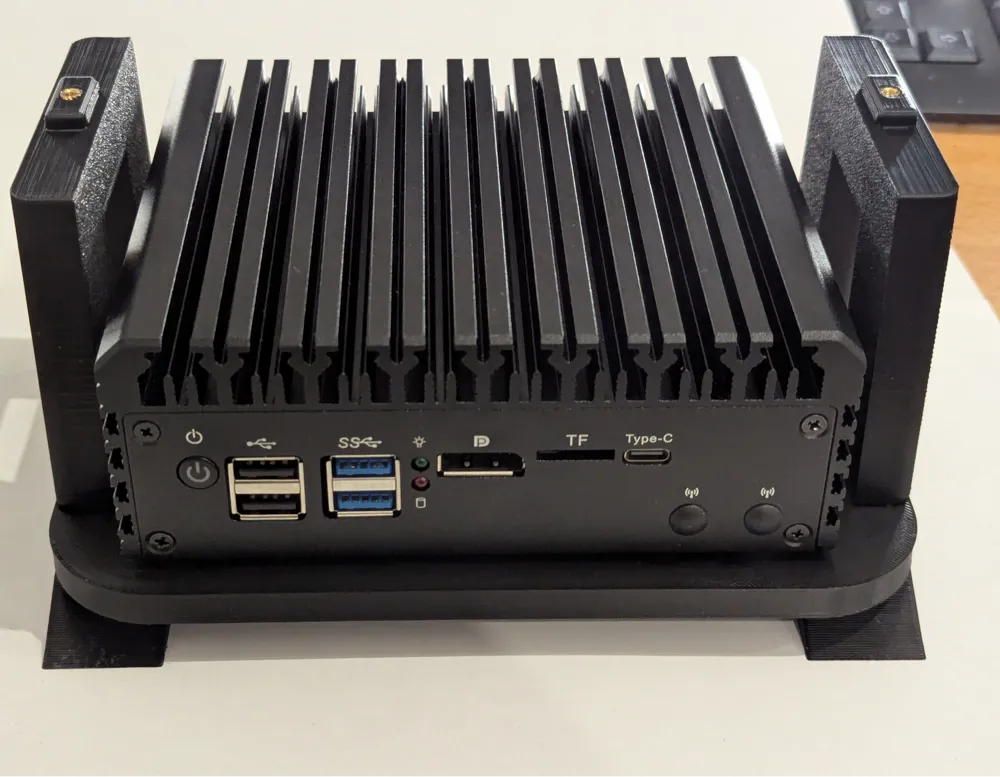

• Hunsn Shelf
  • Stable shelf for the Hunsn Firewall Micro Appliance.
  • Air vents are present.
  • Recesses for the rubber feet of the firewall housing. Prevents the device from slipping out of the shelf.
• Walls
  • 2 walls are needed between the Hunsn shelves / peripheral shelves.
  • These are higher than the firewall devices, so that warm air can escape.
  • Each wall requires 3 x M3 threaded inserts and 3 x M3x8 screws.
• Peripheral Shelf
  • Optionally serves as the final shelf top.
  • Can be used to integrate peripherals, such as small switches, Raspberry PI, into the cluster shelf.

Required parts

The following parts are needed for each wall:

• 3 x M3 threaded inserts
• 3 x M3x8 countersunk screws

Material

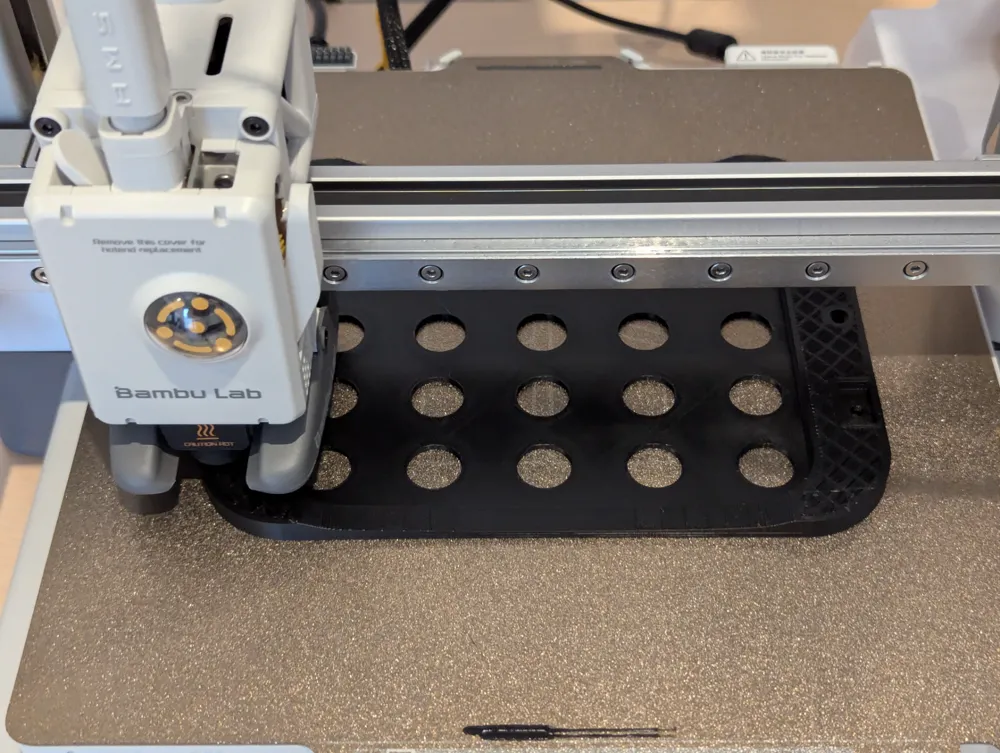

I printed the parts with the filament Sunlu PLA+ 2.0 in black.

Assembly instructions

After printing, the support structures must be removed:

• 3x per wall
• 2x per Hunsn shelf
• 2x per peripheral shelf

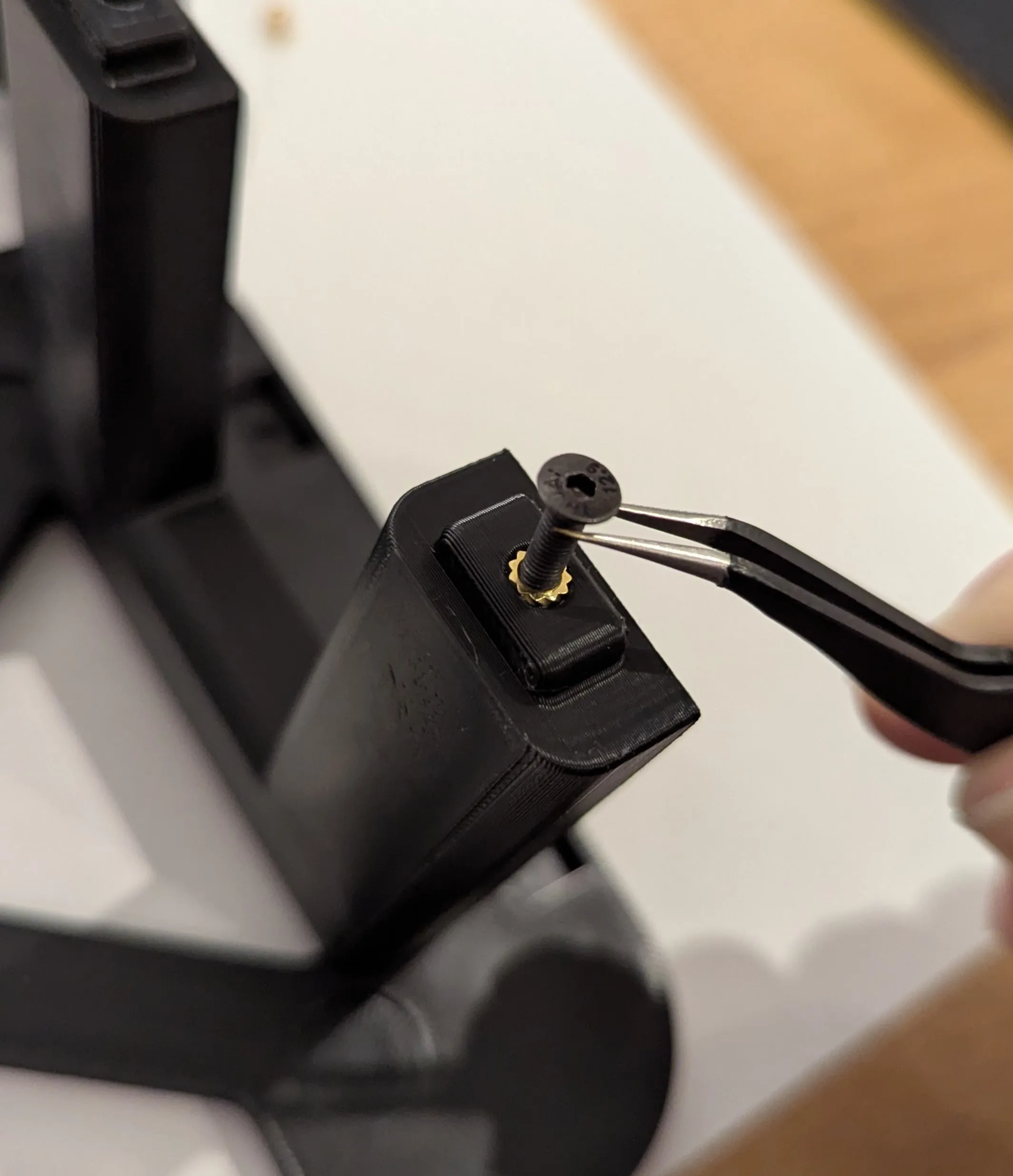

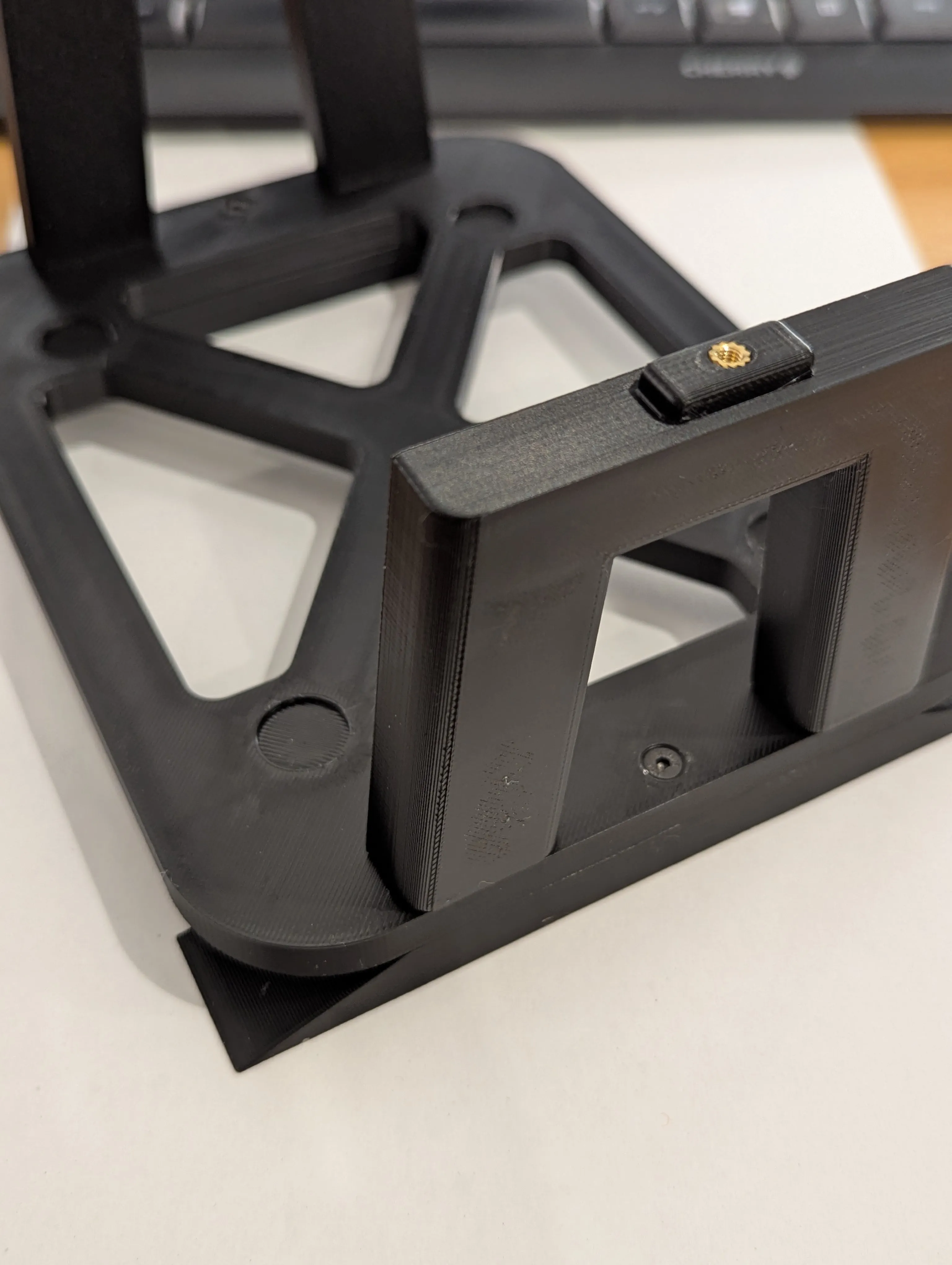

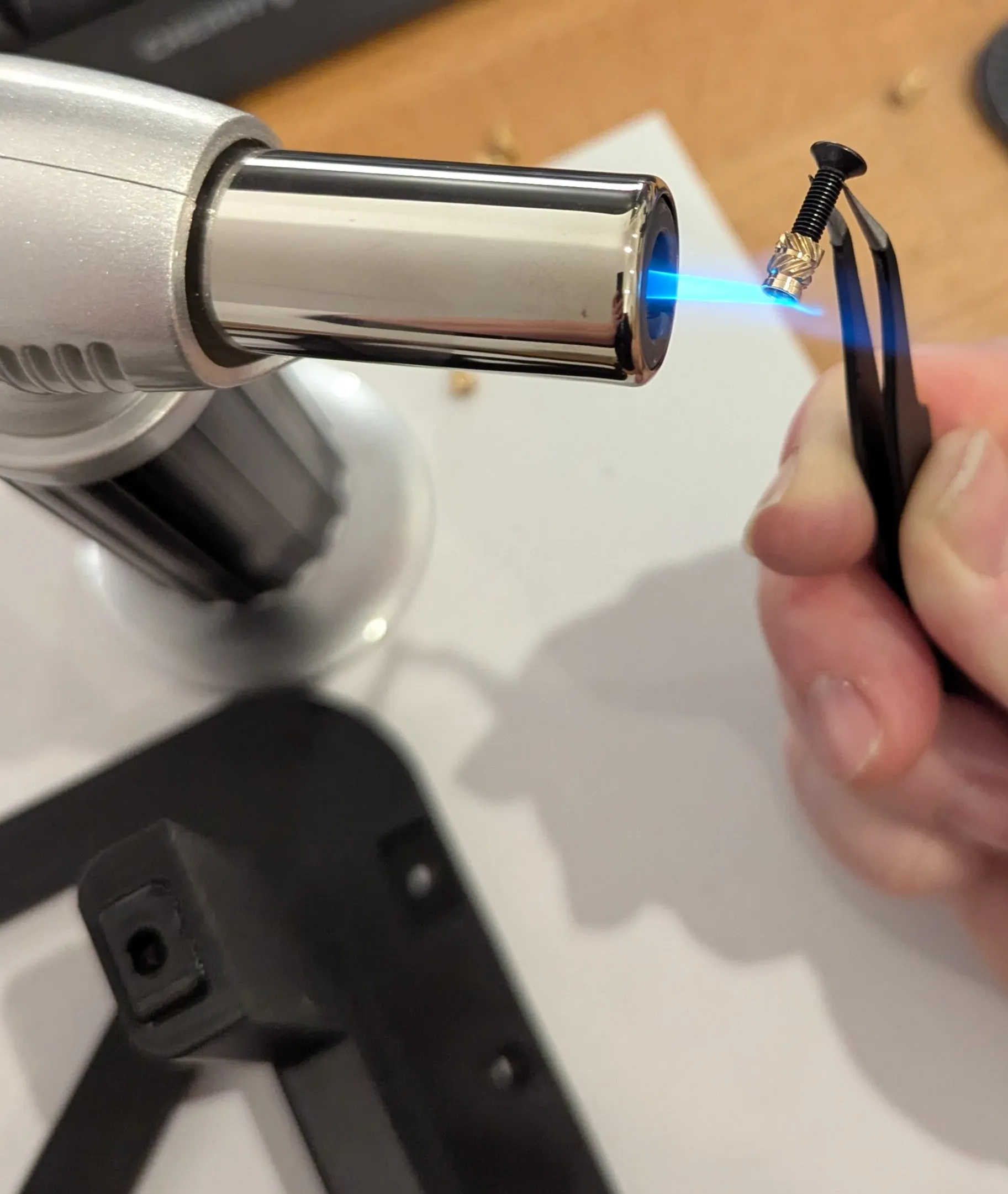

Then the threaded inserts are inserted into the wall elements. For this, the threaded inserts are heated and inserted into the pre-printed holes:

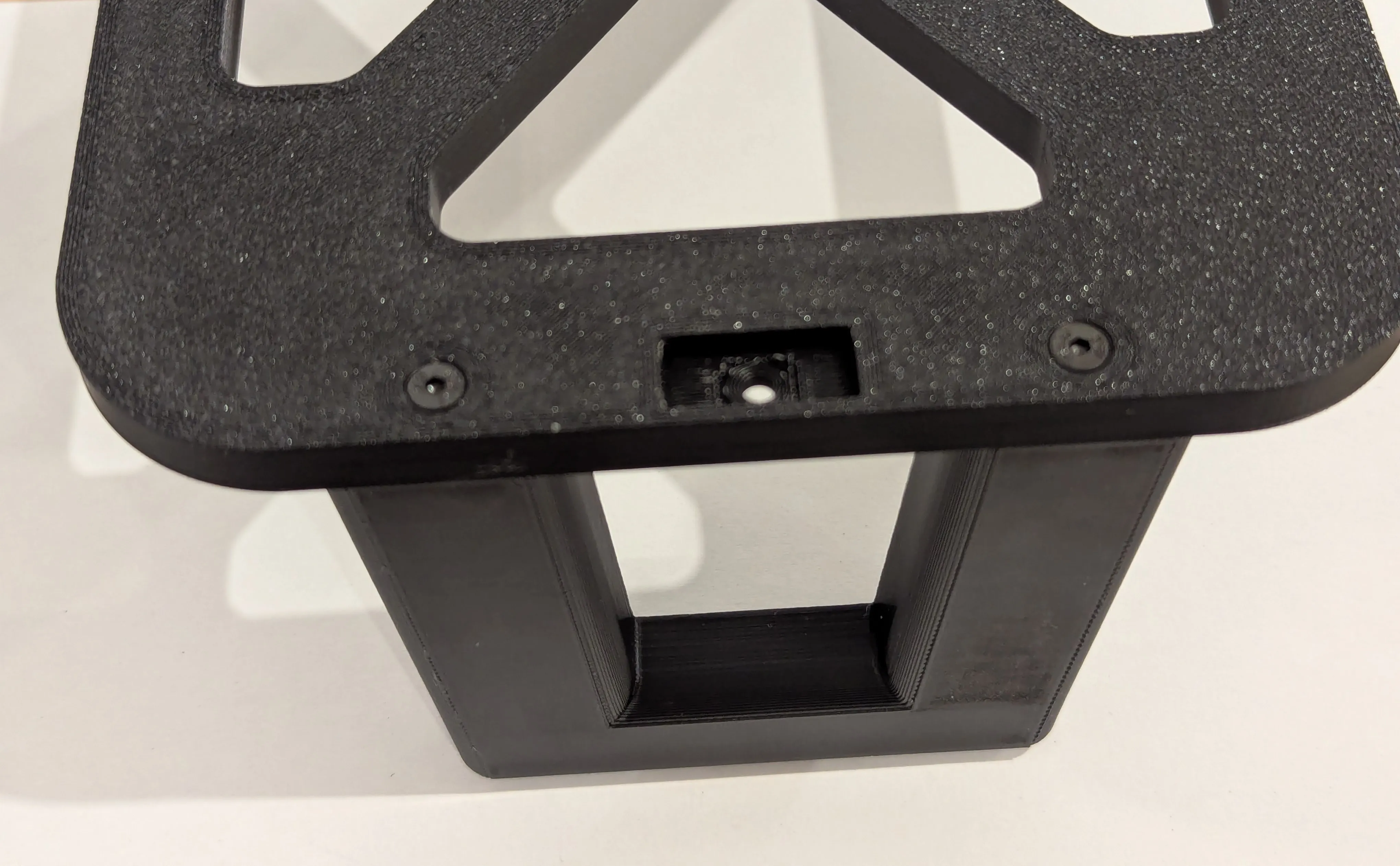

When assembling the shelves with the walls, it is important that the upper walls are first screwed to a shelf. For this, 2 x M3x8 countersunk screws are needed per wall and are fixed from below on the shelf. The following picture shows a shelf from the underside.

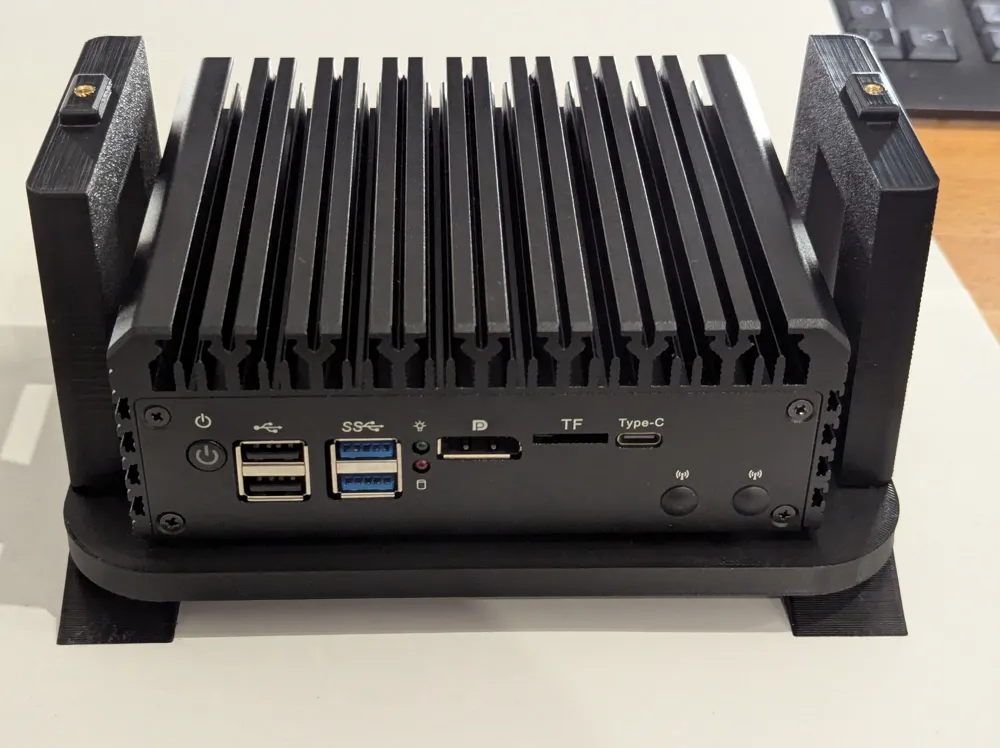

Only then are the lower elements of a shelf screwed to the shelf from above. Here you can see the feet:

This can be repeated as often as desired.
