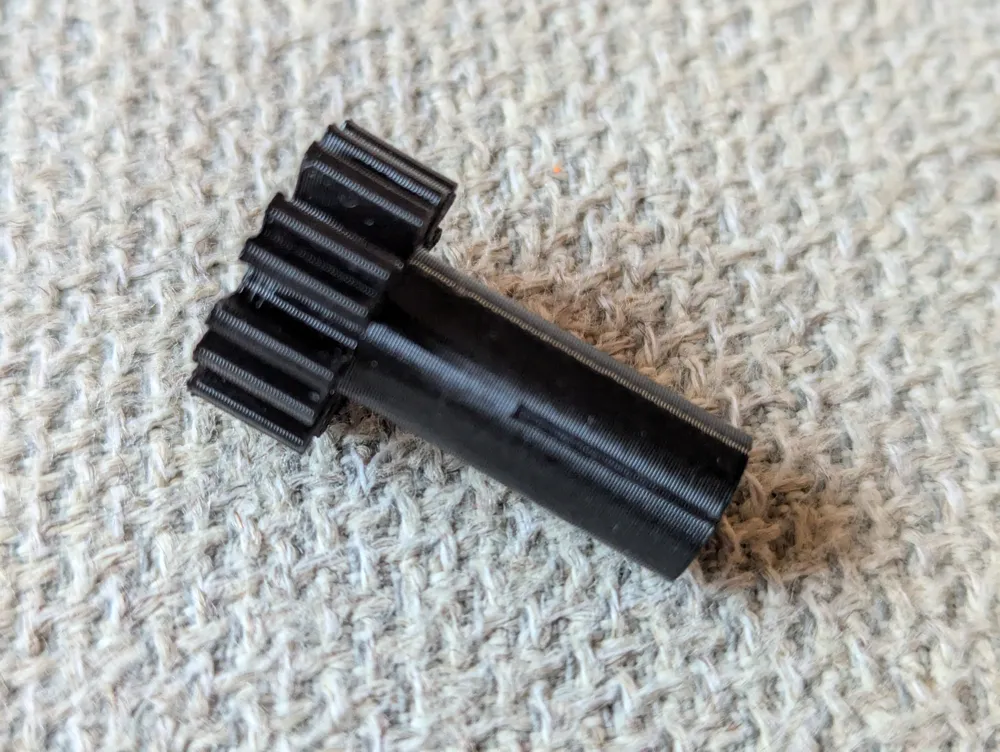

Adapter for Pedicure Attachments to Electric Drill

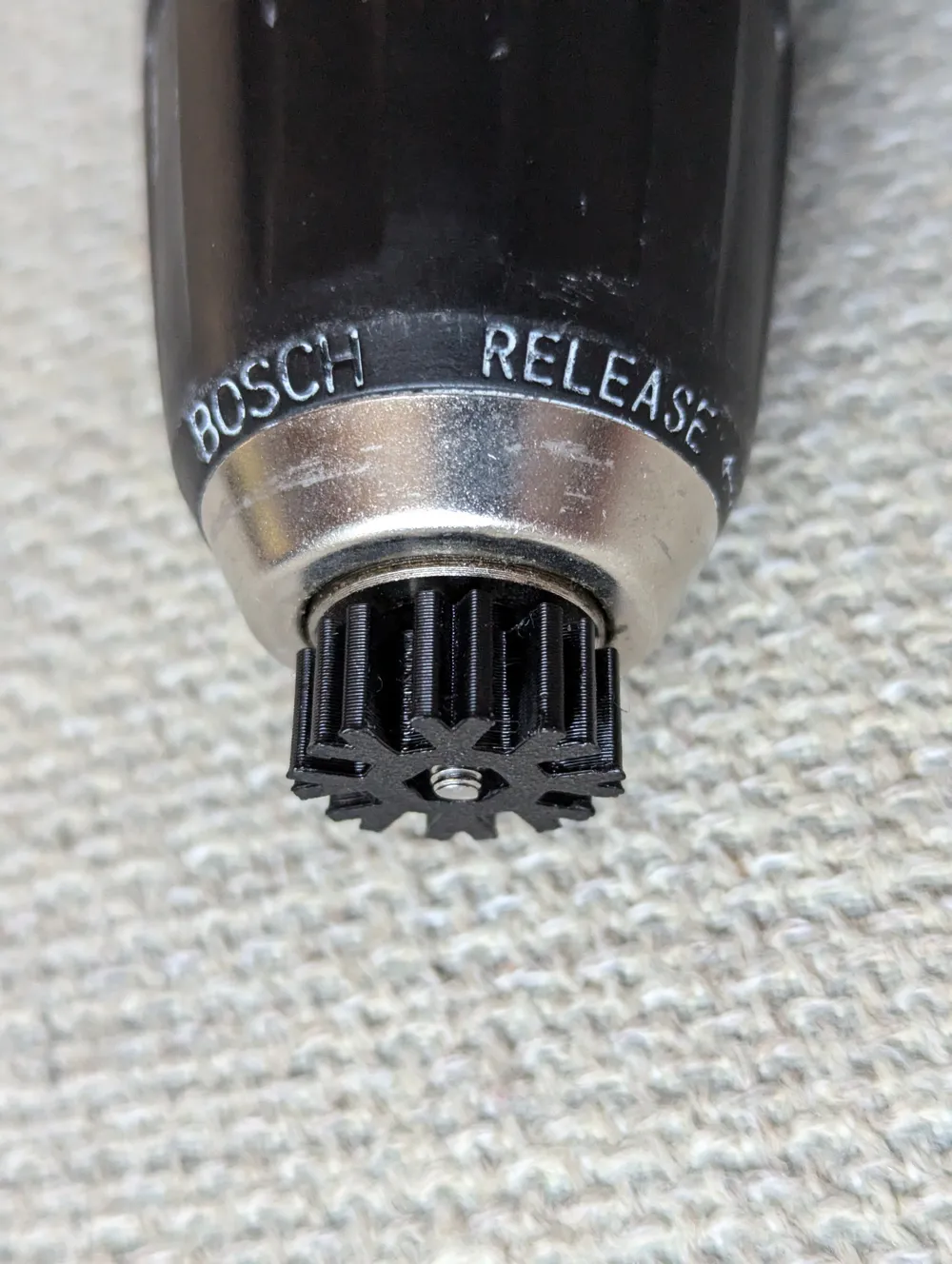

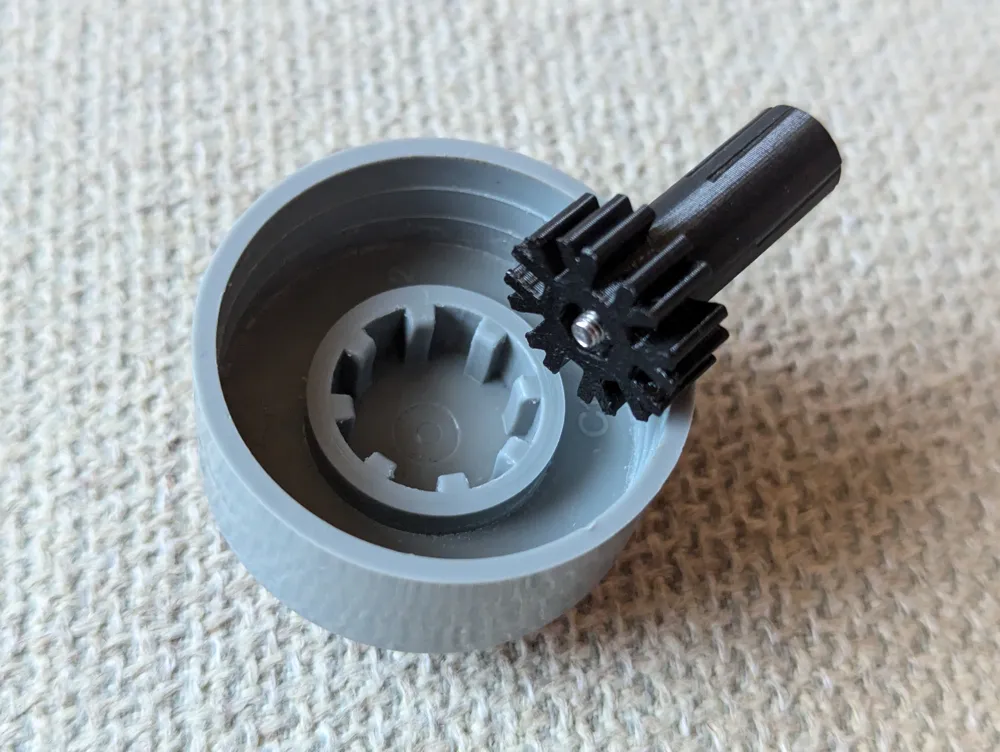

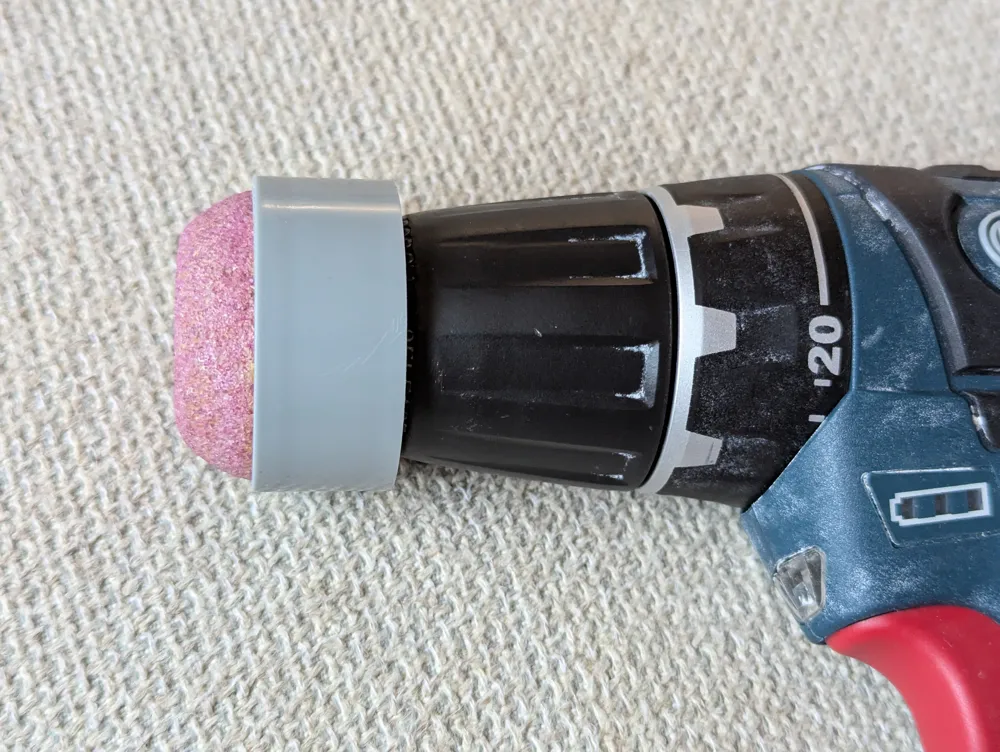

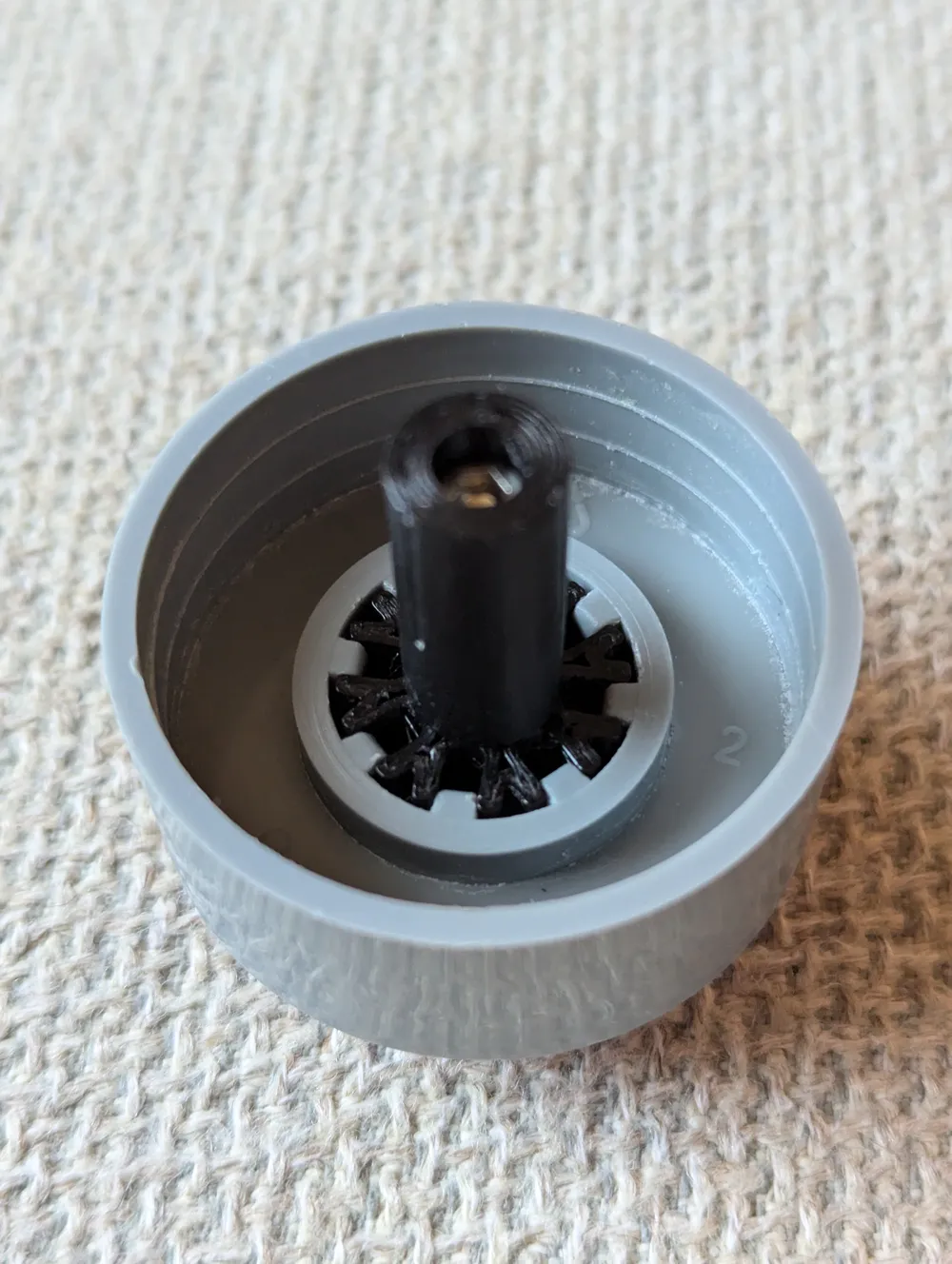

If you want to use the pedicure attachments from your Beurer FB 50 foot spa independent of the foot spa this adapter allows you to drive them with an electric screwdriver or drill. You can insert the adapter into the screwdriver/drill like any other bits. The other side of the adapter attaches to the pedicure attachments.

If you don't have a Beurer foot spa you may try printing the model https://www.printables.com/model/826026 instead.

Due to the higher flexibility of PETG compared to other materials, I recommend using it for printing but you may try your chances with different materials if you like.

I also recommend increasing perimeter walls for extra strength. Additional strength is provided by an M3 screw and nut that fit into the hole of the adapter. If you don't want this extra level of strength there is a version without the screw hole as well.

I printed with 0.2mm layer height. This is also the recommended setting, in particular since it allows printing the model with the screw hole in a clean way without support structures.

I also attached the OpenSCAD sources if you want to customize the model.
