WS2812B LED Connector

I have been having a hard time soldering the LED with the jumps due to many movements that make me solder my hand with the table. None of the solutions that I found were proper to my case, I wanted something straight forward that holds the jumpers in its place and center the jumper rod exactly into the soldering point of the LED.

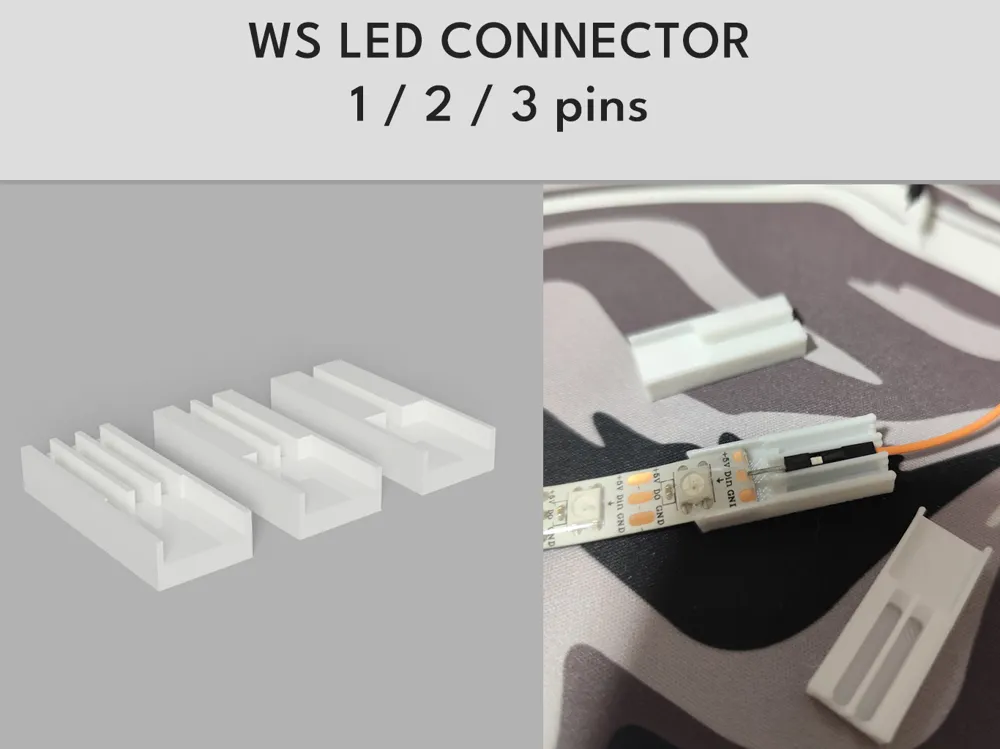

This connector comes in 3 pins formats: 1-pin, 2-pins and 3-pins. It also comes in two design formats: LED to Jumper and LED to LED.

The original file is provided, so that you create your format in the way you like. Basically, you only need to copy & paste the jumper object and maximize it based on your dimensions and pins number.

The LED placement is suitable for any LED that has 1 to 3 pins with the width of 10mm.

Print suggestions:

• Infill: 10%
• Support: None.
• Nozzle head: 0.4 is optimal.

How-to:

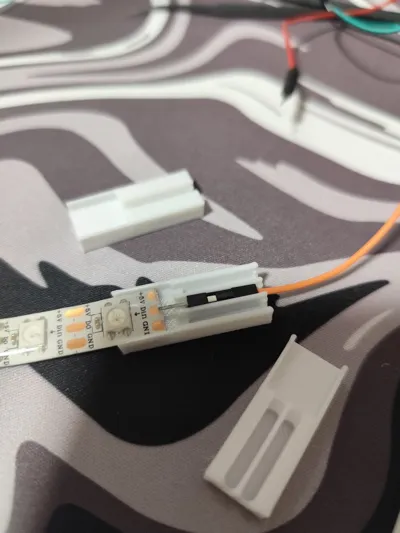

1. Print the desired pin-connector.
2. Push the jumper into it.
3. Place the LED into its place.

Available formats:

• Print profile
• STL exported models
• Original design in Fusion360 environment

Remixes, Editing and publishing:

• You're allowed to download, print and modify the exported models based on your needs.
• You're allowed to modify the original design and implement your own modifications.
• You're allowed to publish the new modifications in the form of a remix or a new model.
