Description

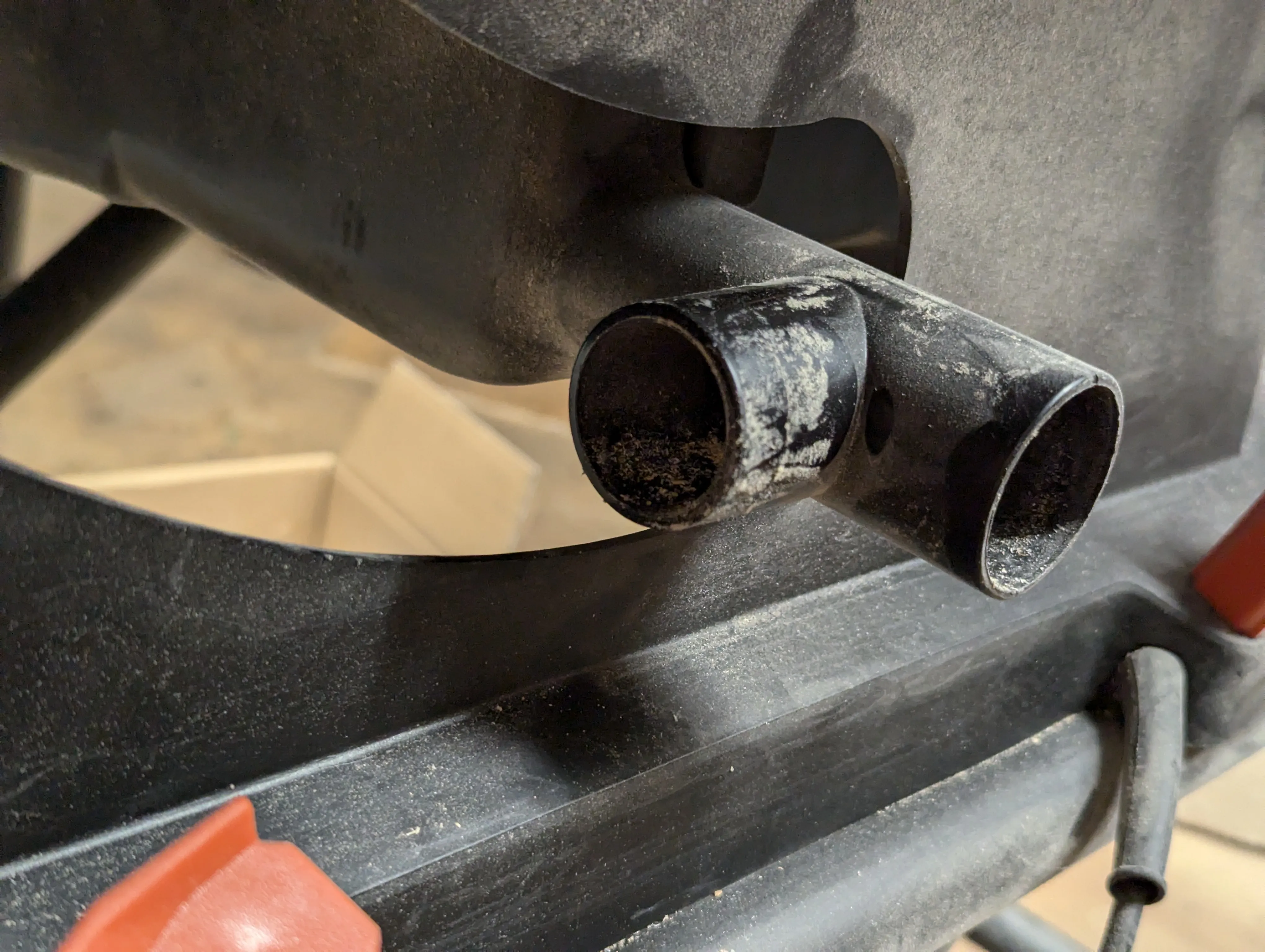

On an Evolution Rage 5S table saw the dust extraction is in 2 parts, one from underneath the blade and one for the blade guard. The blade guard has a tube that goes to a T-Junction under the table so you only need to connect a single dust extraction source.

If you are not using the blade guard, then you are left with part of the extraction pipe sucking nothing useful.

This needs to be banked off to direct all suction underneath the blade.

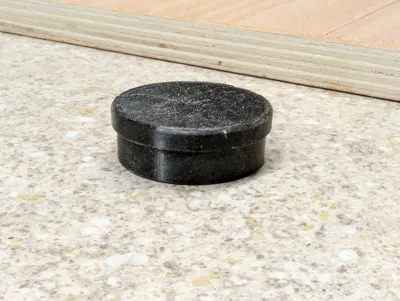

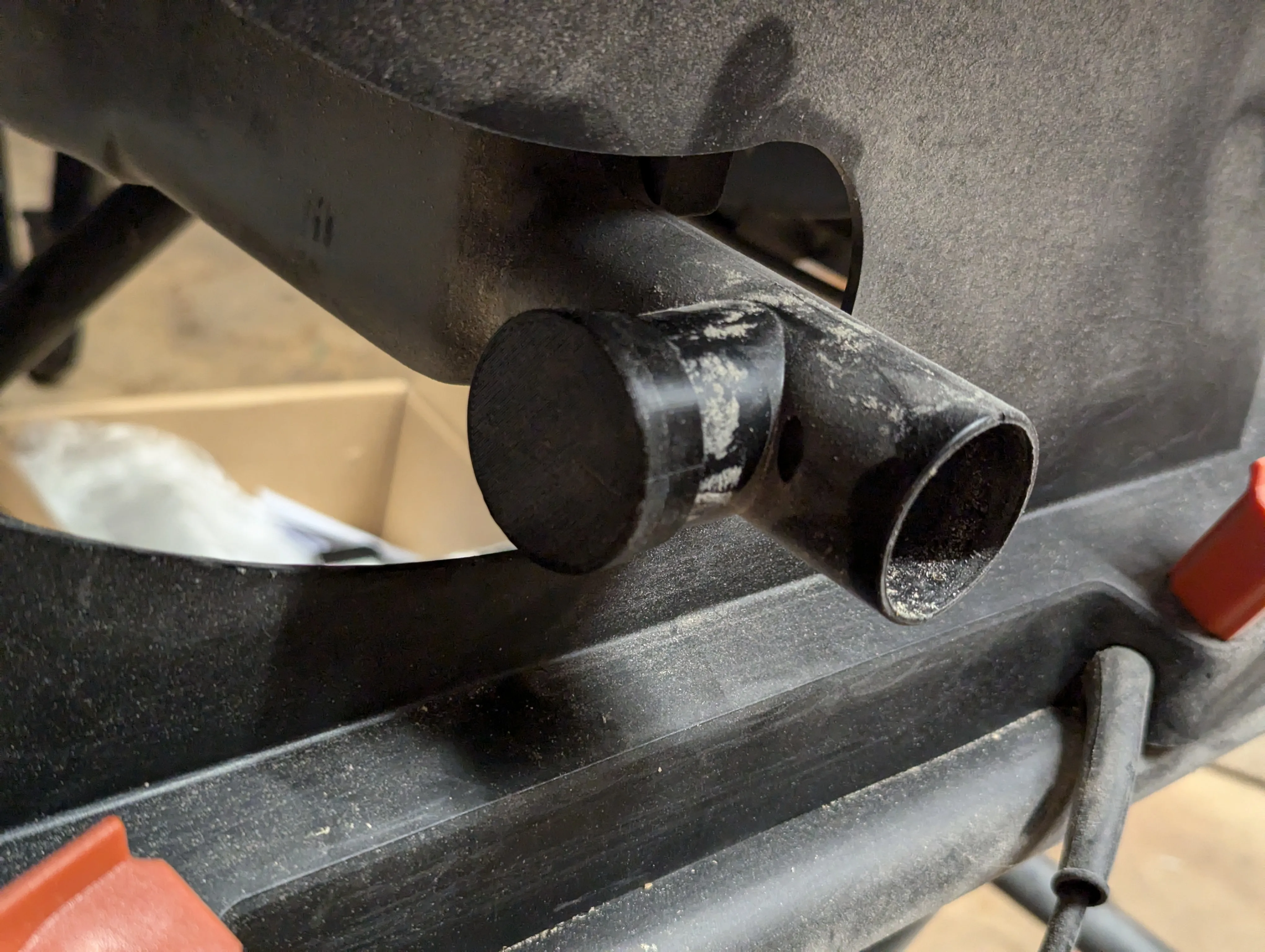

This very simple print simply pushes onto where the dust extraction pipe would be connected to the blade guard.

Comment & Rating (5)

@wolfgang1958

Print Profile

0.2mm layer, 3 walls, 15% infill

Thanks for that it worked great and fits exactly Material ABS
