V1 G29/G920/G923 shifter H-pattern & sequential

NEW V2 VERSION!

USE THIS LINK TO GO TO MY V2 VERSION OR VISIT MY PROFILE: https://makerworld.com/en/models/1143720#profileId-1146525

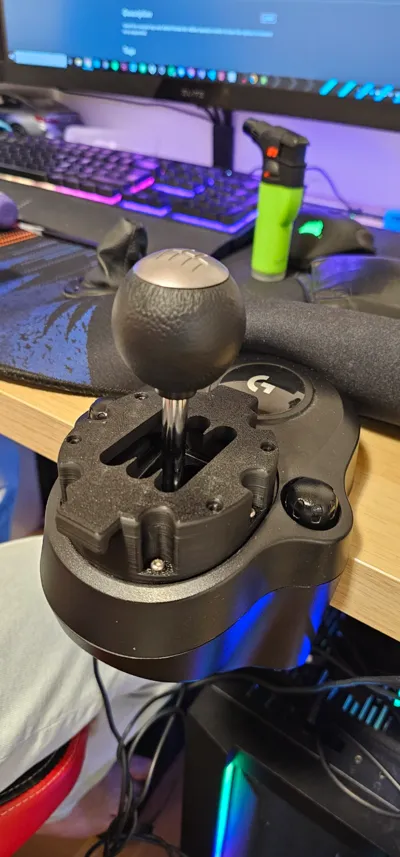

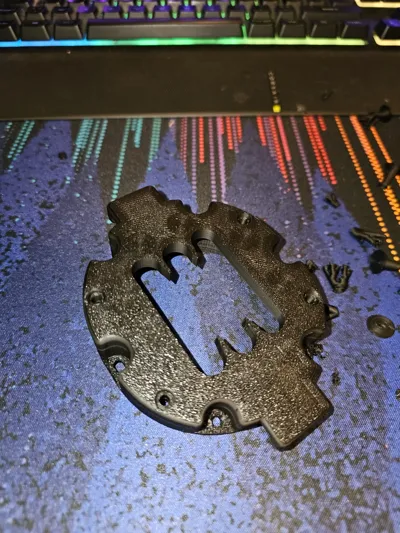

Transform you Logitech Shifter into an H-Pattern OR Sequential box with this easy to install model.
This upgrade is compatible with ALL Logitech Shifters (G25/G27/G29/G920/G923).

Features:

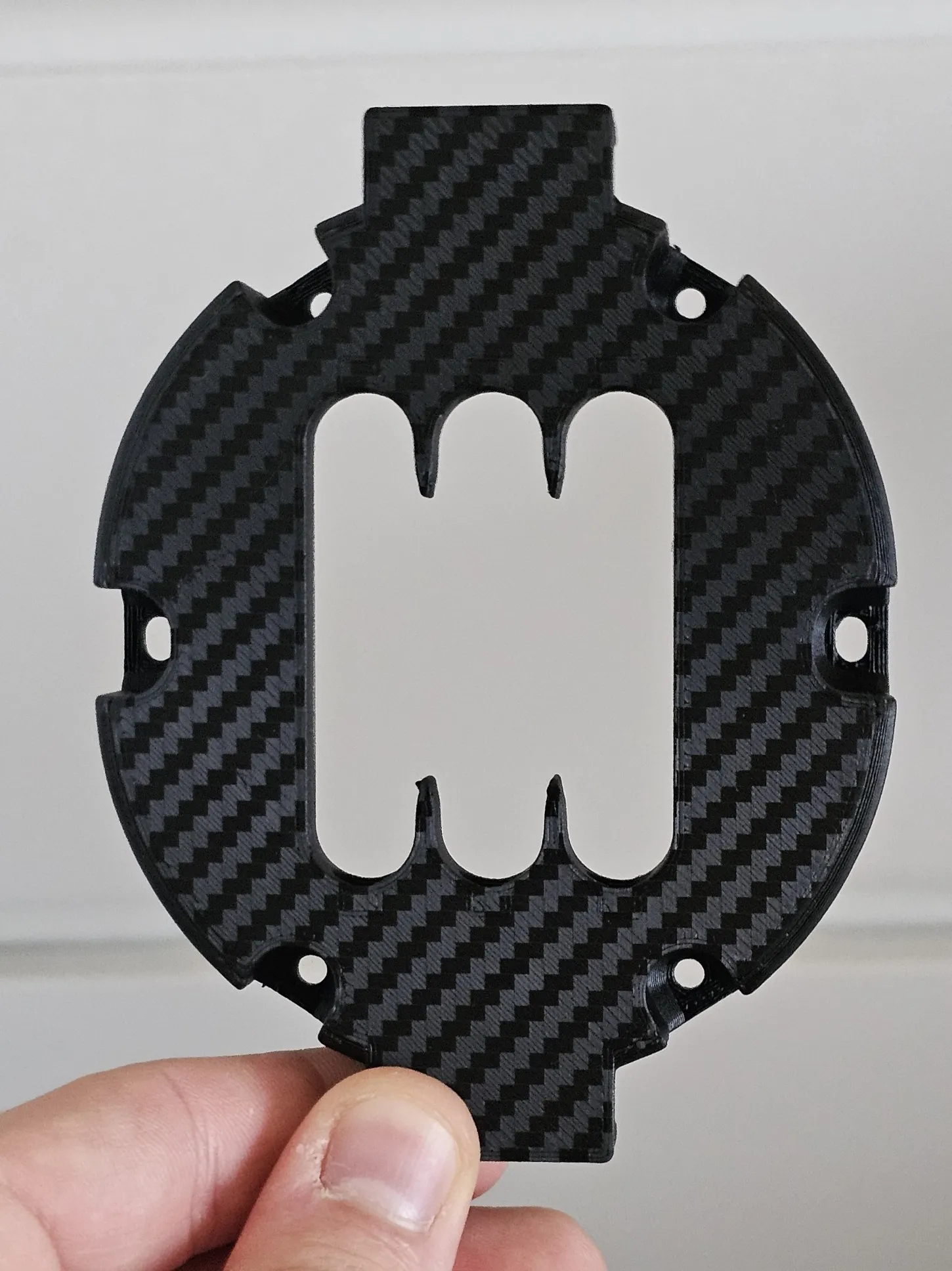

• Sleek design with optional Carbon Fiber look (with 3D-effect sheets)
• H-Pattern
• Sequential box using rubber bands
• Easy to install

Assembly guide:

1. Remove shift knop by lifting up the grey cover on top. Use a screwdriver with PH2 tip.

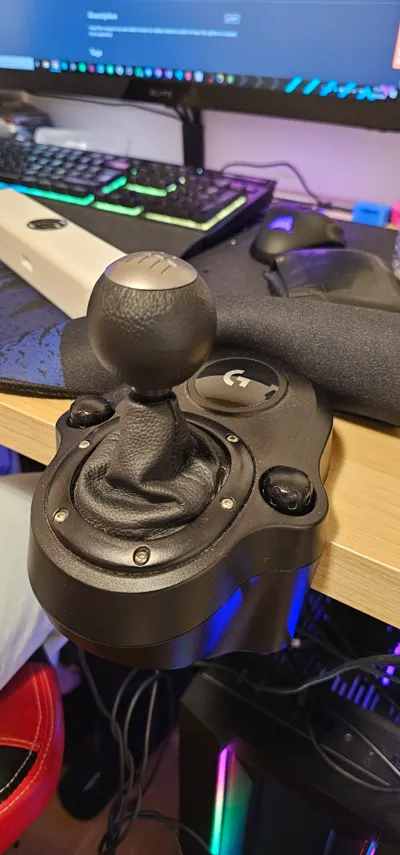

2. Remove standard cover by unscrewing 6 grey screws. Use a screwdriver with HEX tip.

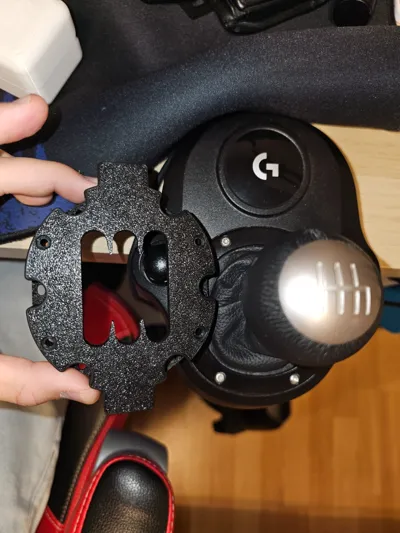

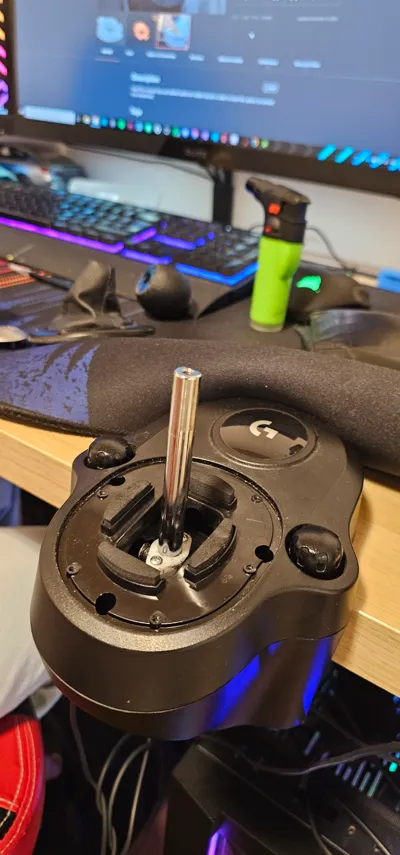

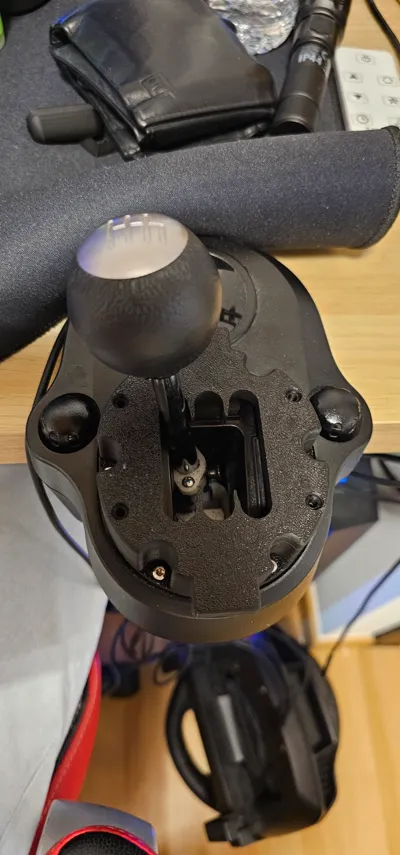

3. Lift up the leather part and replace it with printed mod.

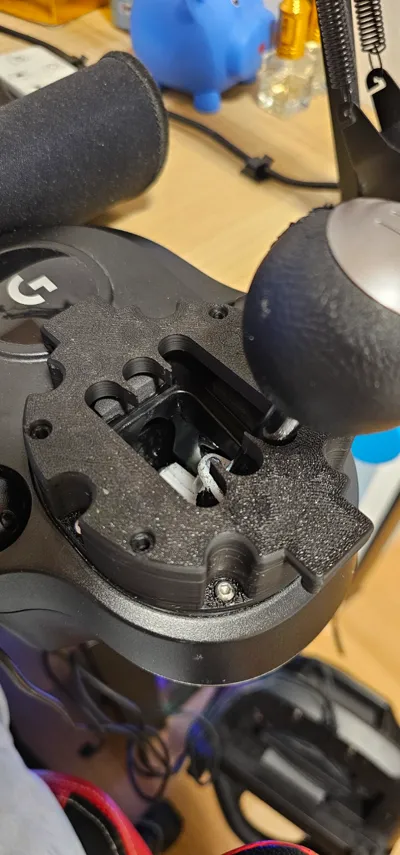

4. Use the 6 original screws to screw the printed mod into place. DO NOT OVERTIGHTEN
5. Reinstall the shift knob, screw it in and reinstall the grey cover on top.

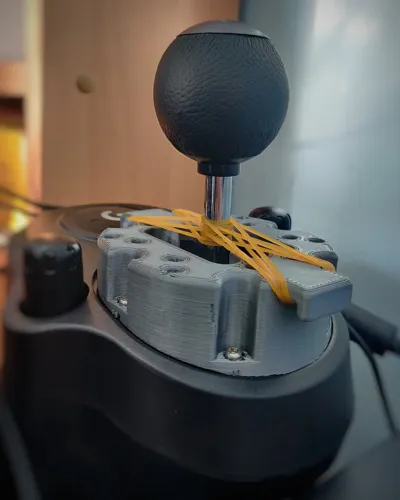

6. To use the Sequential box, install rubber bands.
7. ENJOY!

Bill of Materials (BOM):

• PLA or PETG filament
• 2 or more rubber bands (optional, for Sequential box)
• PH2 and HEX screwdriver
