Prusa Mini Revo Micro Mount and Duct
Remixed by
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
2
5
0
0
1
0
Released
Description

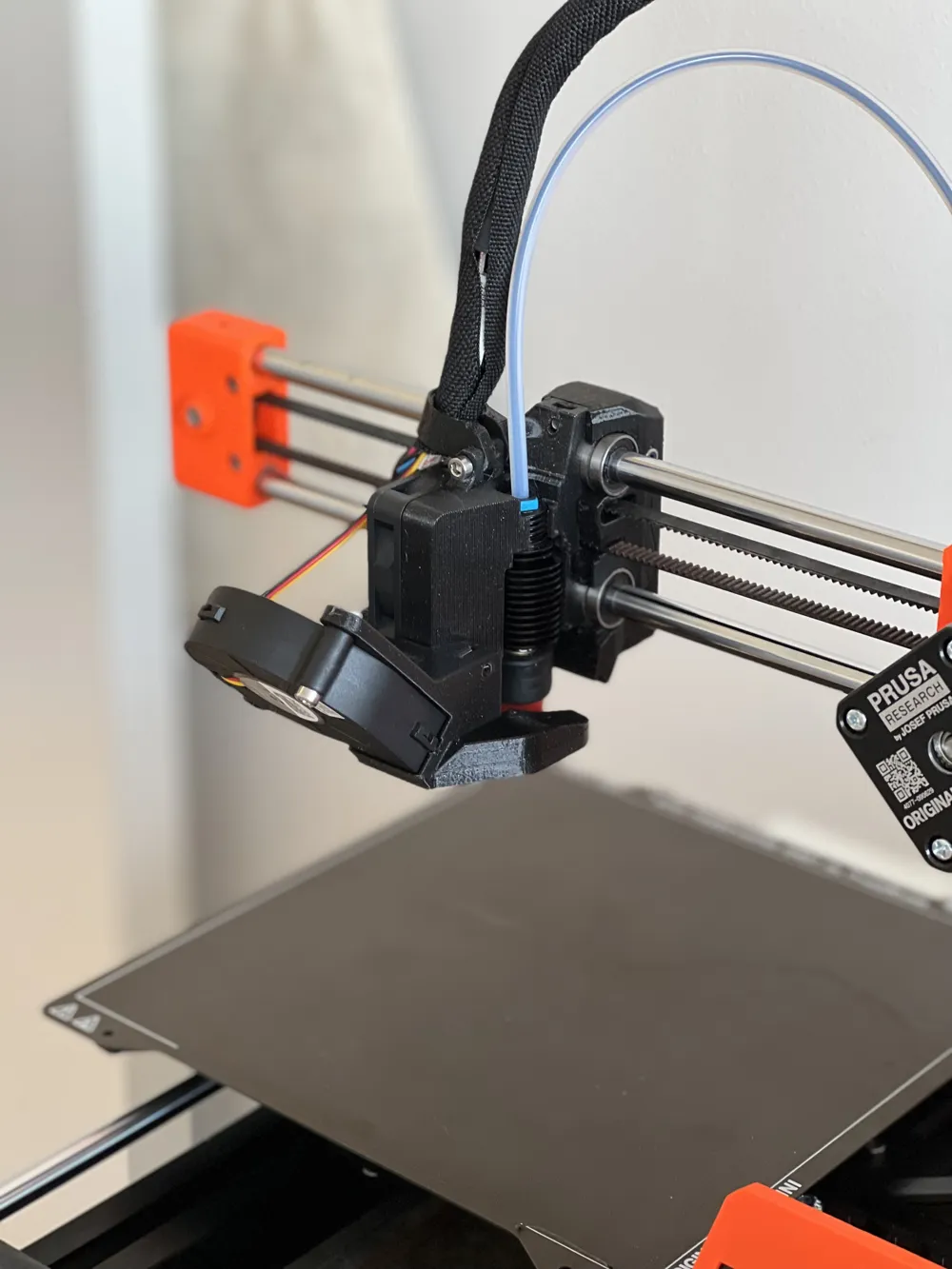

This is a remix of the great Prusa Mini RHD Fan Duct by Olaf Ogland and the Revo Micro Prusa Mini mount by E3d.
The Revo Micro mount has been adjusted to remove the logo and the lower M3 bolt hole is now a clearance fit to allow a 30mm M3 bolt to hold on the new fan duct.

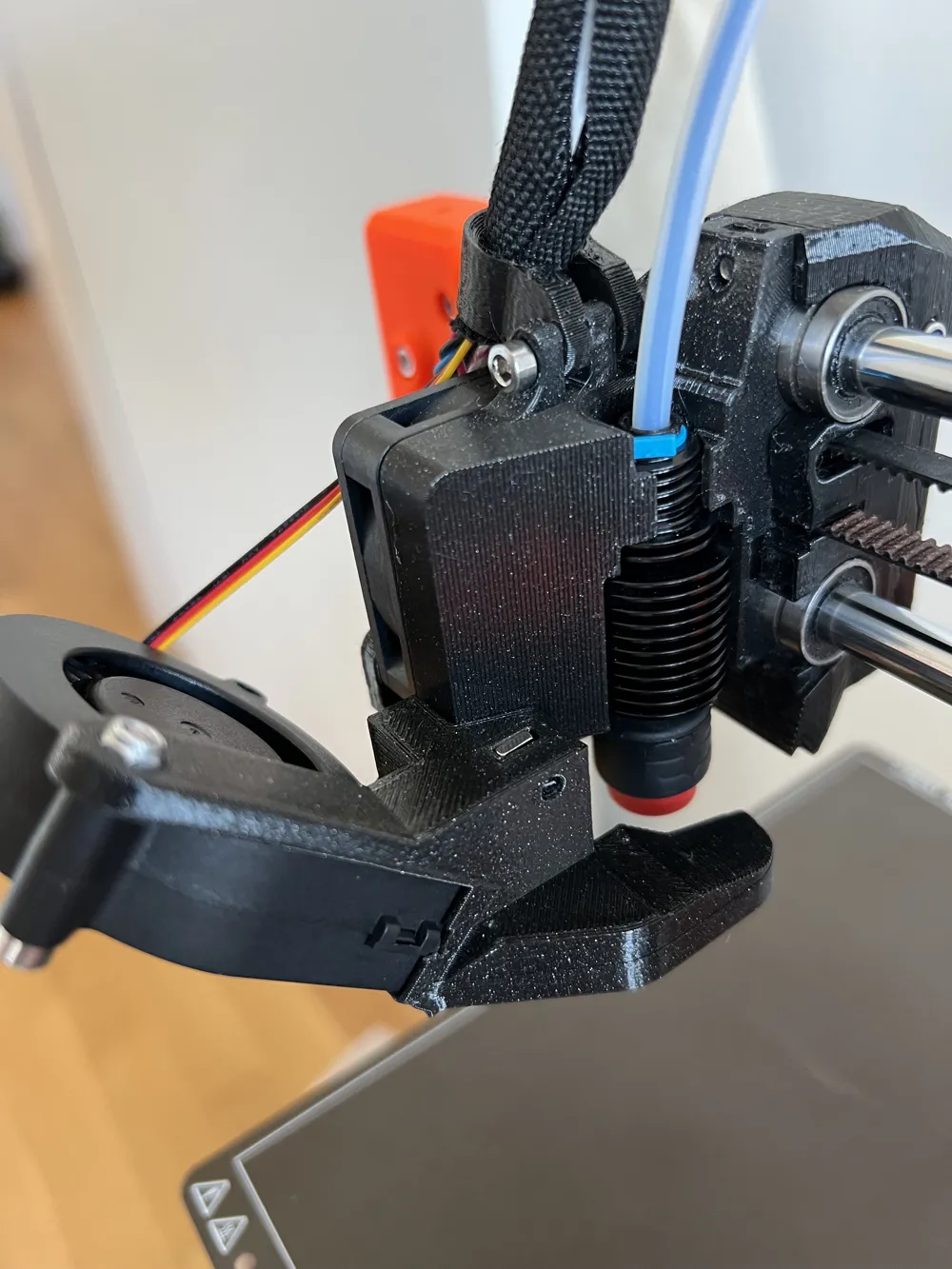

The fan duct has been modified to work with the revo micro mount (lowered and support added) and uses a square M3 nut to firmly secure the ducting to the mount.
Additional parts required:
- M3 x30mm bolt
- M3 square bolt

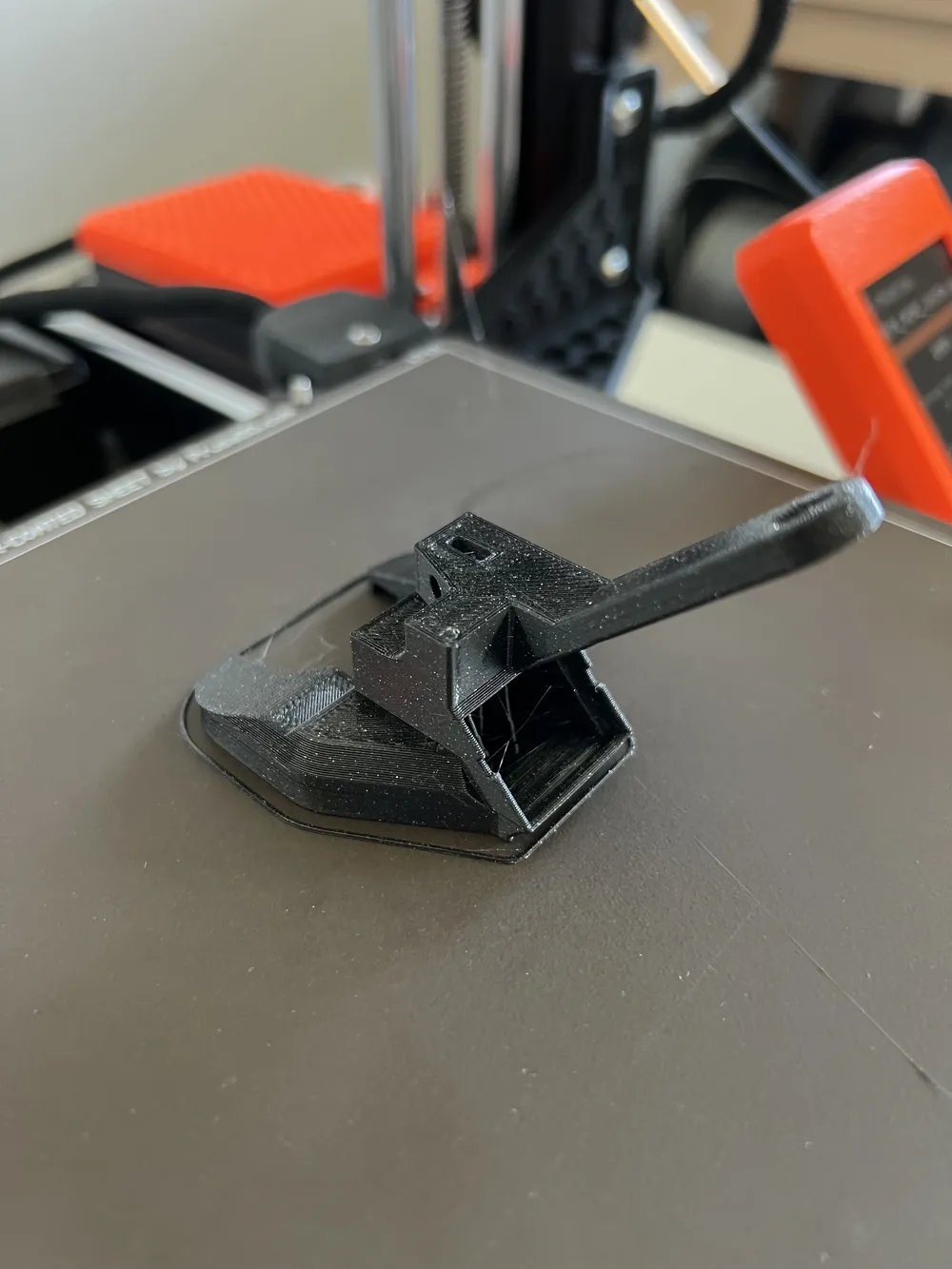

Printed in PETG with 0.2mm layer height.
