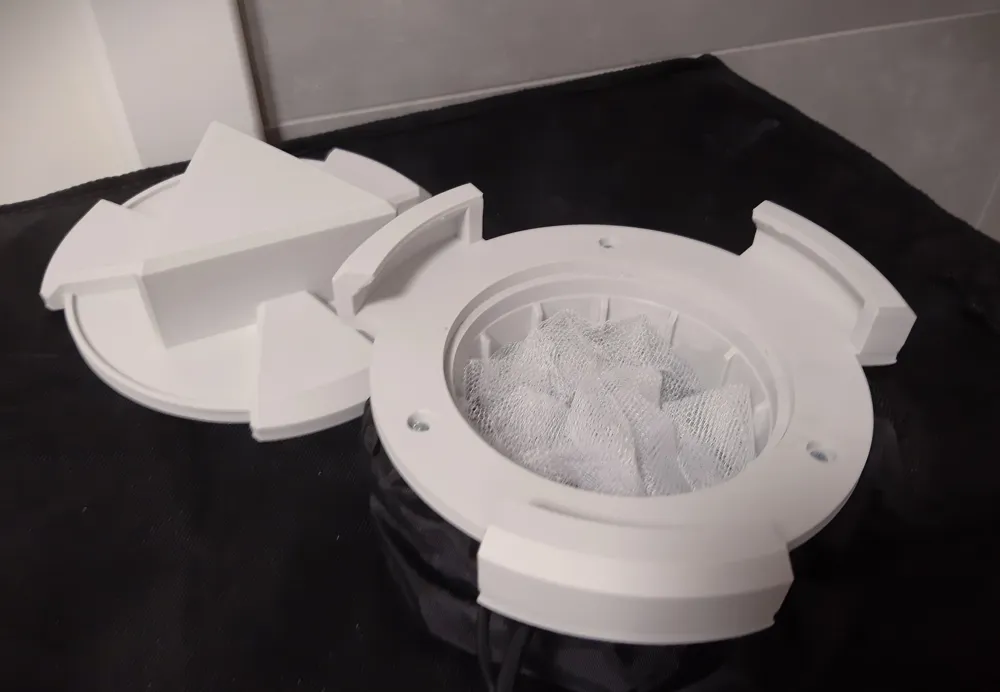

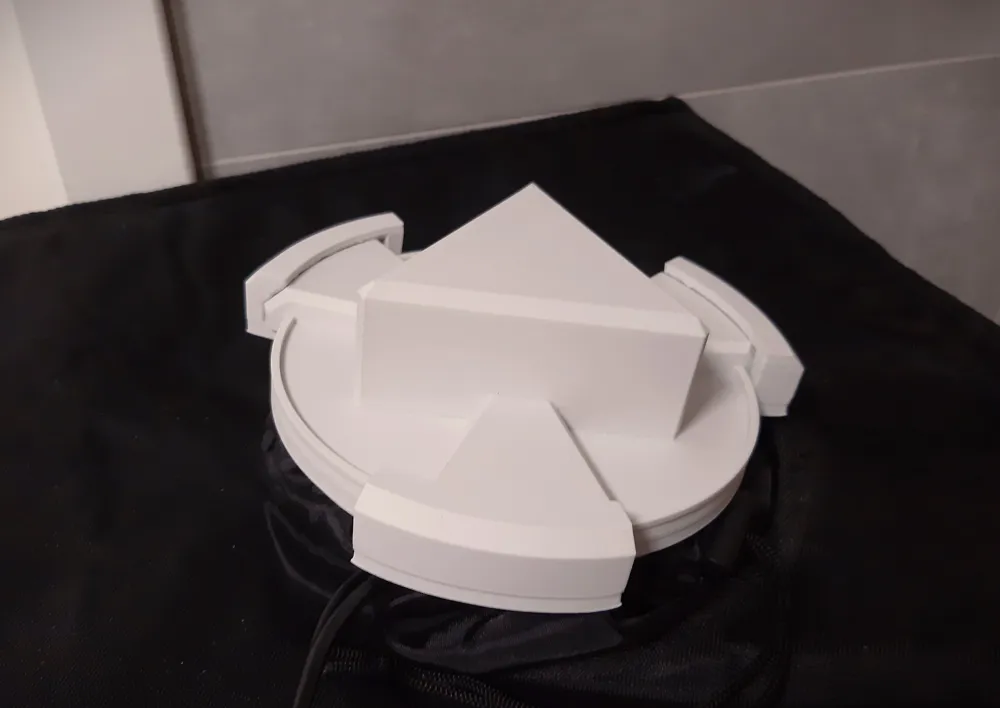

Grow Tent Ventilation Cap

Vent extension for a resin printer enclosure / grow tent. Model should fit over tent beams which anchor it in place.

There’s some space for extra filtration medium, like activated carbon, which can improve the smells and VOC capture (to some small extent).

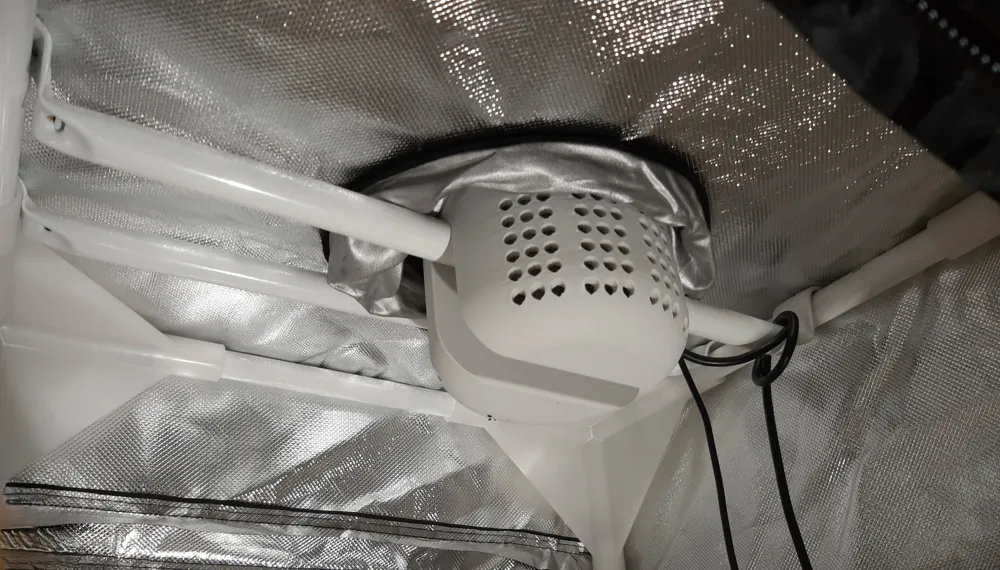

It’s designed to more or less match Quick Disconnect Ventilation V3 by OIASS https://makerworld.com/en/models/487870 (scaled up to 120%-123% from default) and can be connected to it with eg. M2.5 screws. That’s the model I’ve beed using to close off the vent and mount an inline fan.

Print:

• orient the model so the mounting plate lies flat on the print bed
• this version can be printed without additional supports
