Description

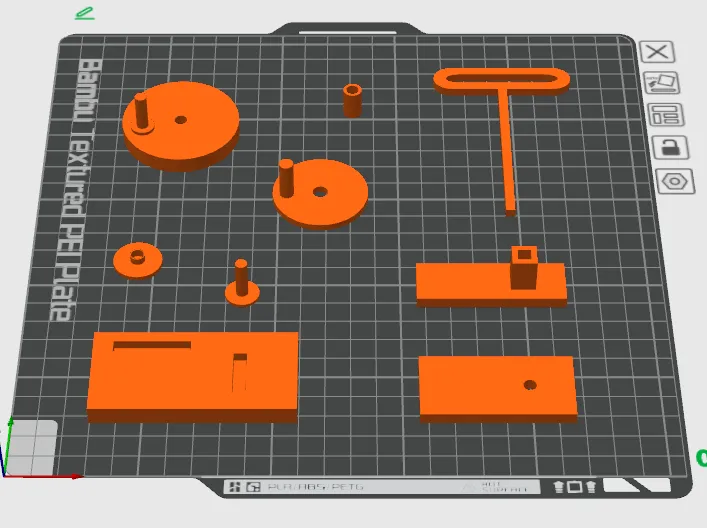

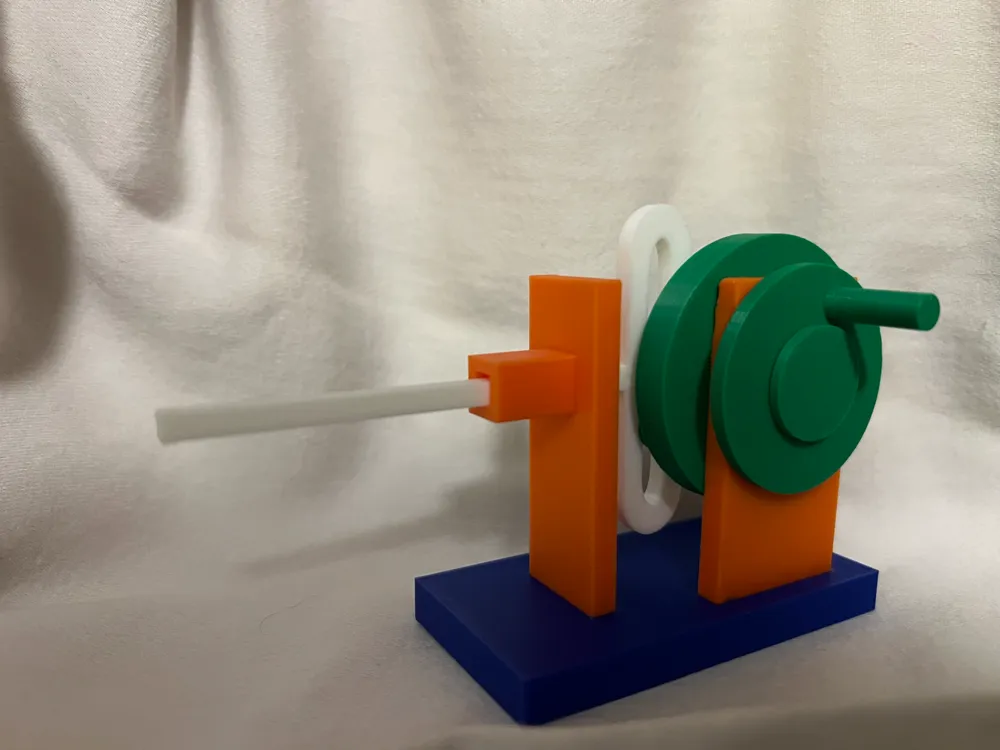

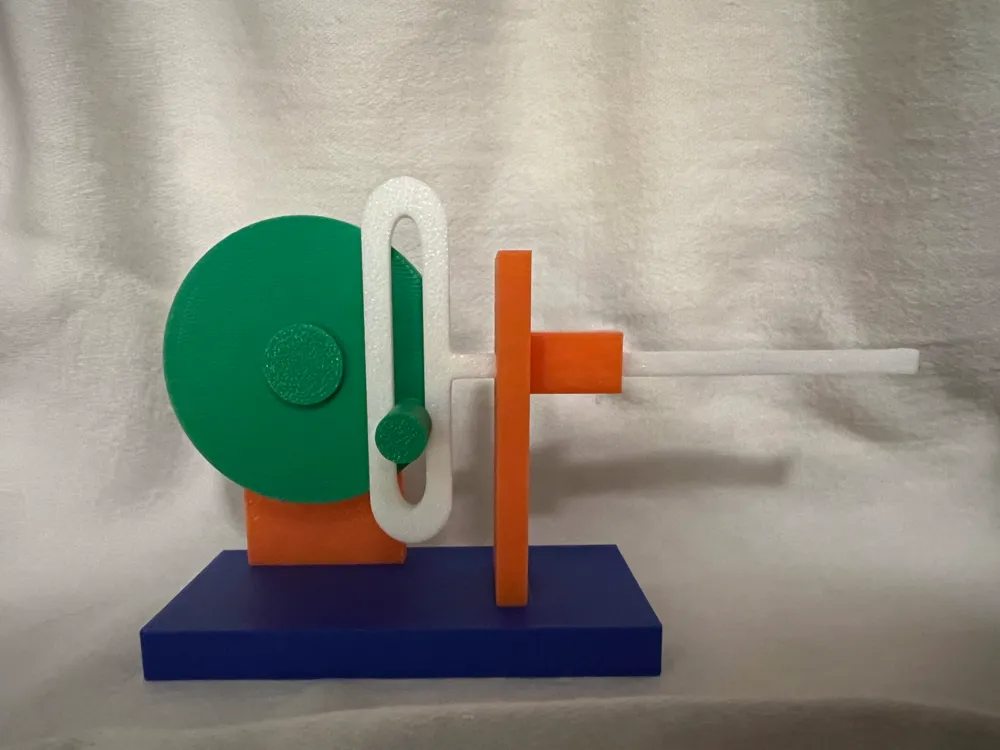

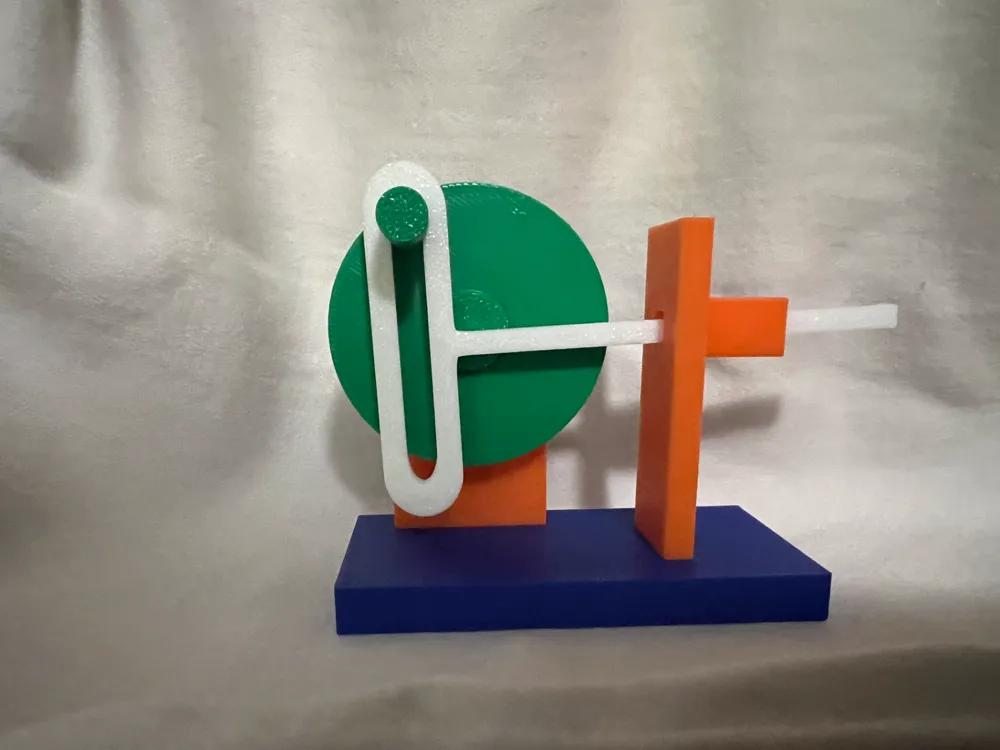

This is a simple model of a scotch yoke mechanism. It fits together without glue. It is useful for teaching mechanical principles. It is the first in a series of models that I am creating. You can use the stl files to print various sections in different colors or print the entire model in one color.

Comment & Rating (17)

@timmy.

Print Profile

0.2mm layer, 2 walls, 15% infill

part tolerances are too loose the pinion didn’t fit together tight enough

@user_1315600960

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfecto!

@user_3451168911

Print Profile

0.2mm layer, 2 walls, 15% infill

using Bambu Lab ori always

@LearnWithMe3D

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed using a .4 nozzle on a PS1. I have an engineering classroom and needed various examples of different mechanisms. Passed this around to a bunch of High School students and an exemplar. Thanks for the file! Saved me from mocking one up myself. I did not have my filament tuned as well as I would have liked. As a result, some of the dimensions were off. Nothing a little sandpaper couldn't take care of.

@CLSFABLAB

Print Profile

0.2mm layer, 2 walls, 15% infill

Excellent design — prints beautifully and the structural integrity is impressive. Highly recommended.

@user_1233504186

Print Profile

0.2mm layer, 2 walls, 15% infill

Great model. Only issue is that the connection between the gears slips sometimes so that turning the back gear doesn't make the front one turn. Gonna work on printing a pin that I can glue in there somehow. Thanks for making this! Very useful in my classroom so far.
