D16Z6 Camshaft Timing Marker (Honda 11840-P08-010)
Print Profile(1)
Bill of Materials
- M6x1 Threaded Heat Insert x 1:
Description

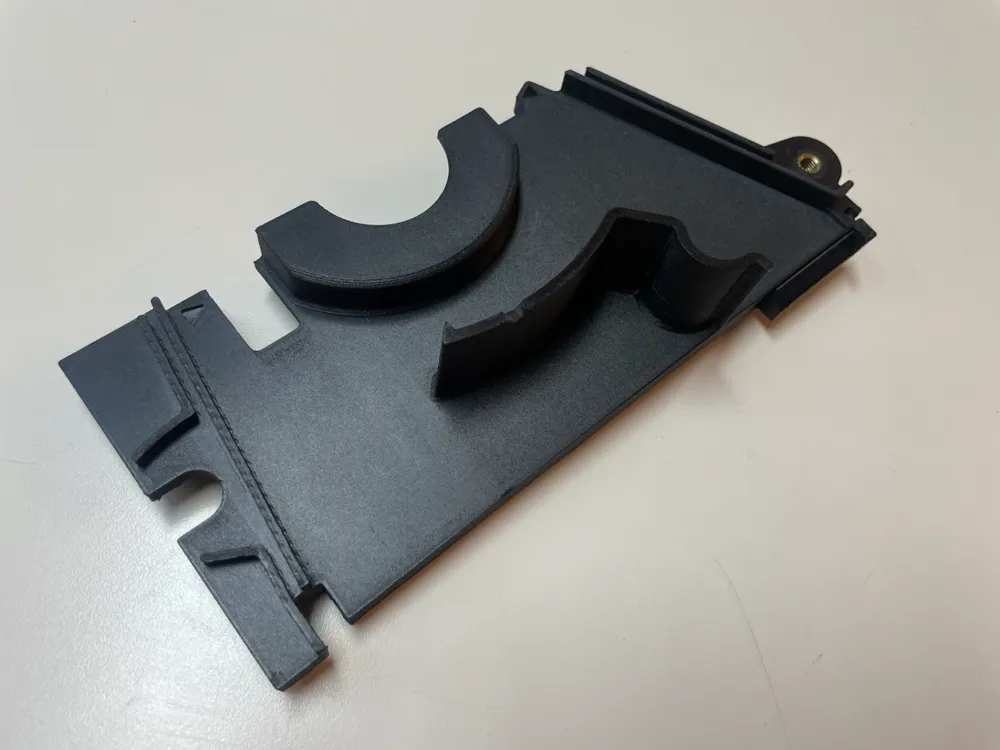

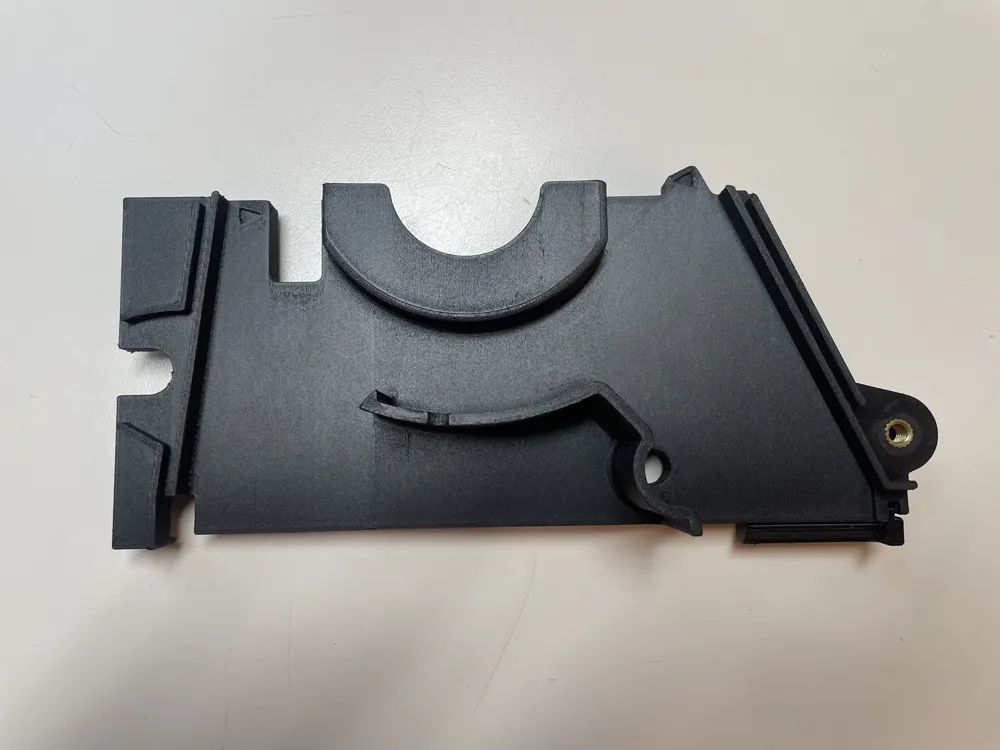

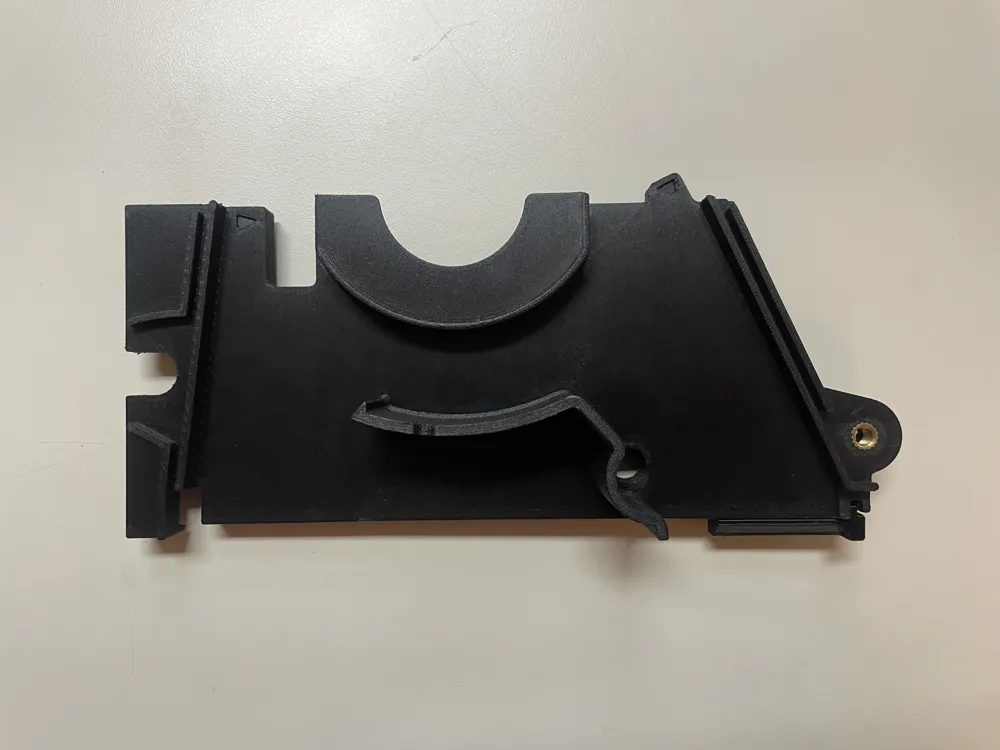

This is the camshaft timing marker for the D16Z6 engine, commonly found in many 1992-2000 Honda Civics and Del Sols. It's a part of the upper timing belt cover, and it is used to properly identify the position of the cam-gear/camshaft. This print provides a more affordable, more rigid, more heat tolerant, and more aesthetically appealing version to the original, with true and accurate timing marks and geometry.

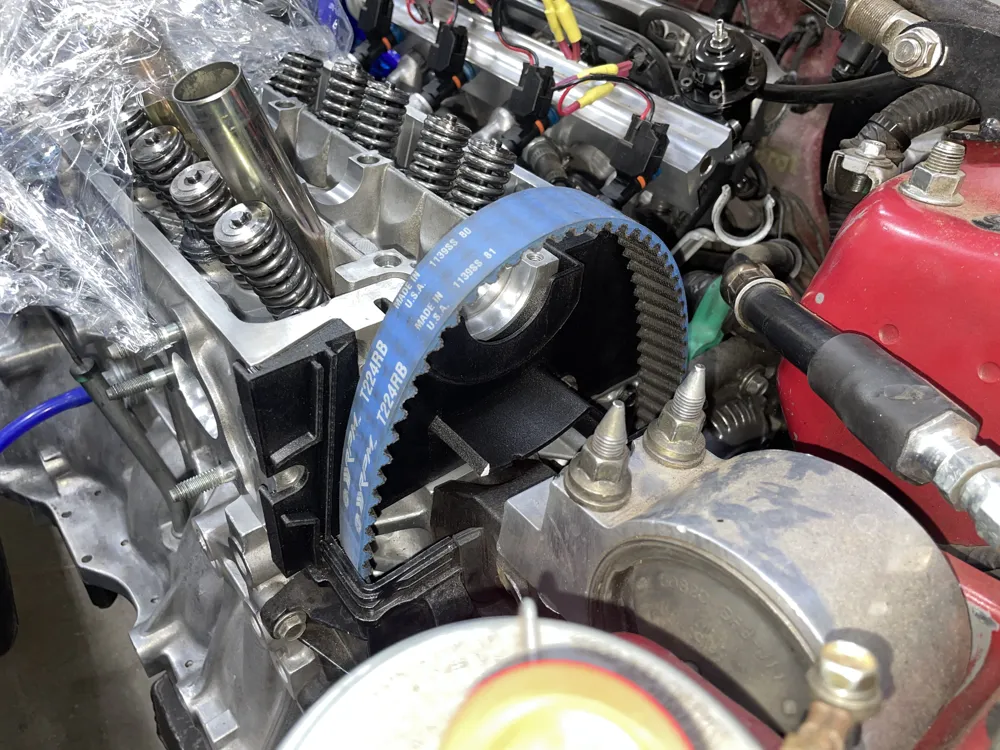

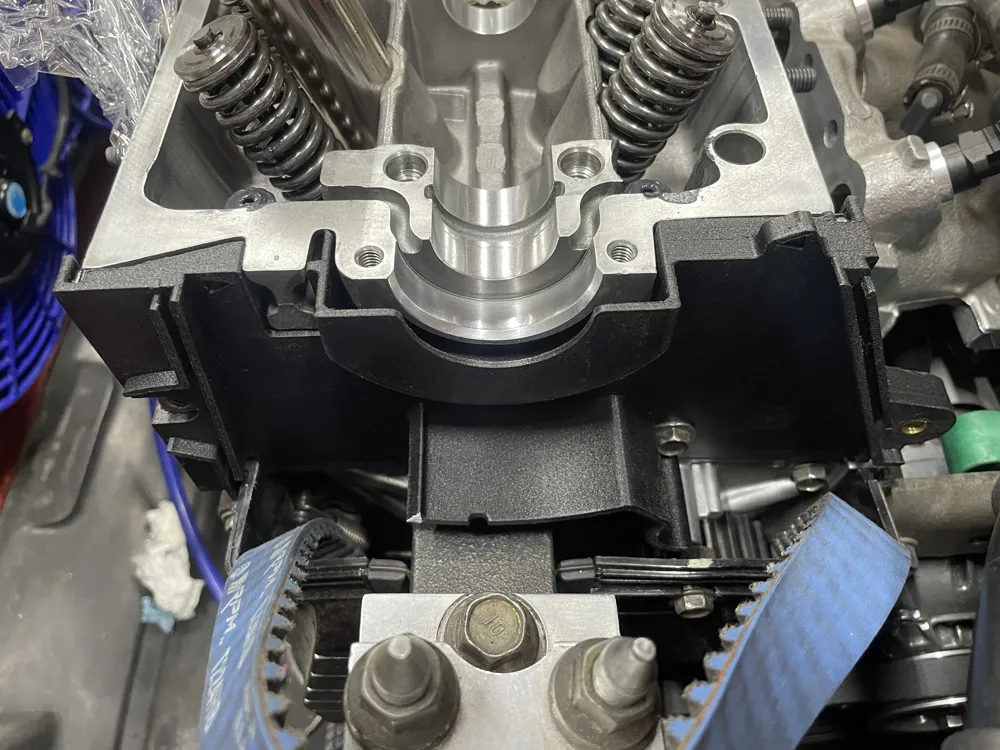

*I have this installed on my own modifed D16Z6 (see pictures), making ~350whp with no issues and proper timing.
- Timing marks are precise and accurate to the original.

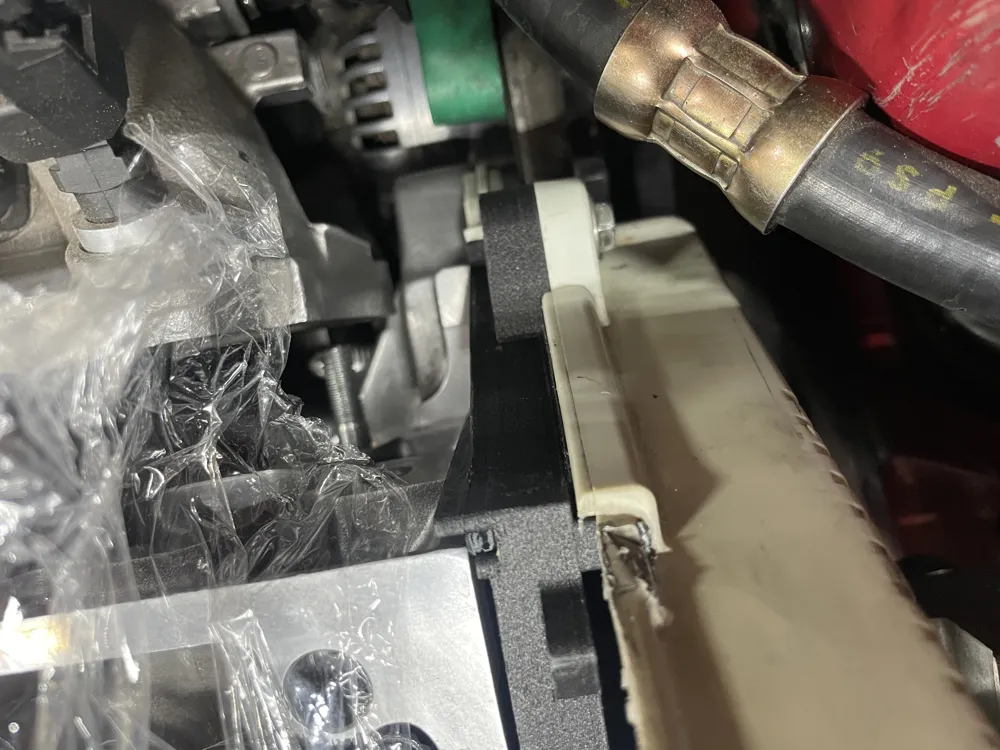

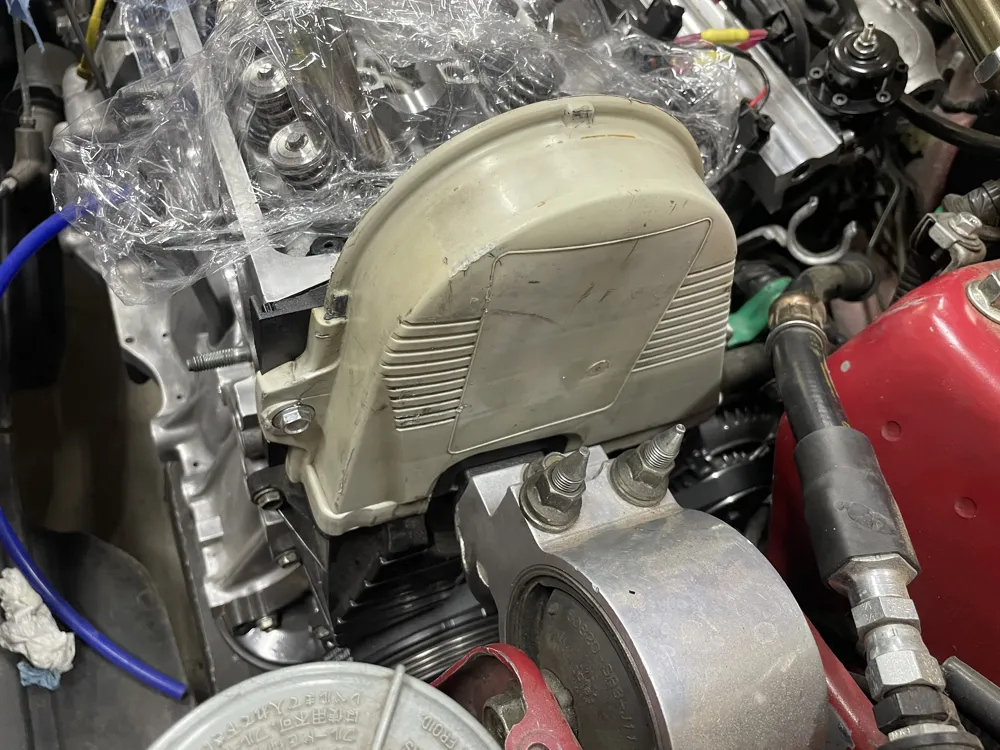

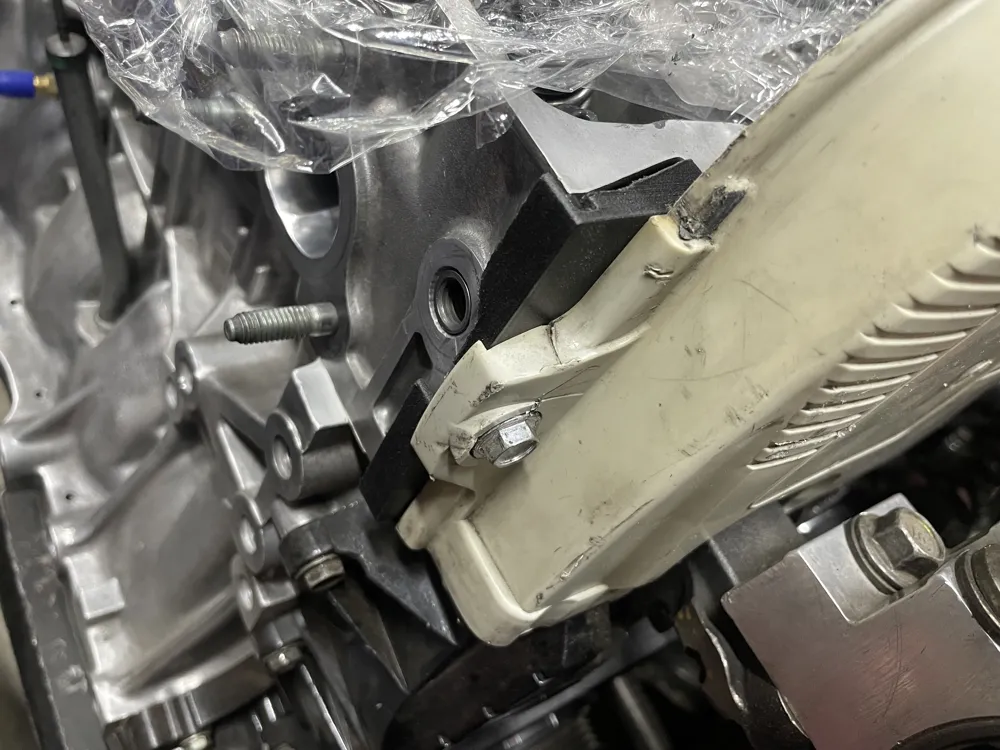

- Designed to fit with all OEM harware; original timing belt cover will fit overtop, as shown in pictures.
- If printed with PA6-CF, or similar, it will be more resistant to warping than the original.
- I reccomend printing in PA6-CF with ABS-GF, ABS, or ASA as a support interface (it removes much more easilly than support for PA).
