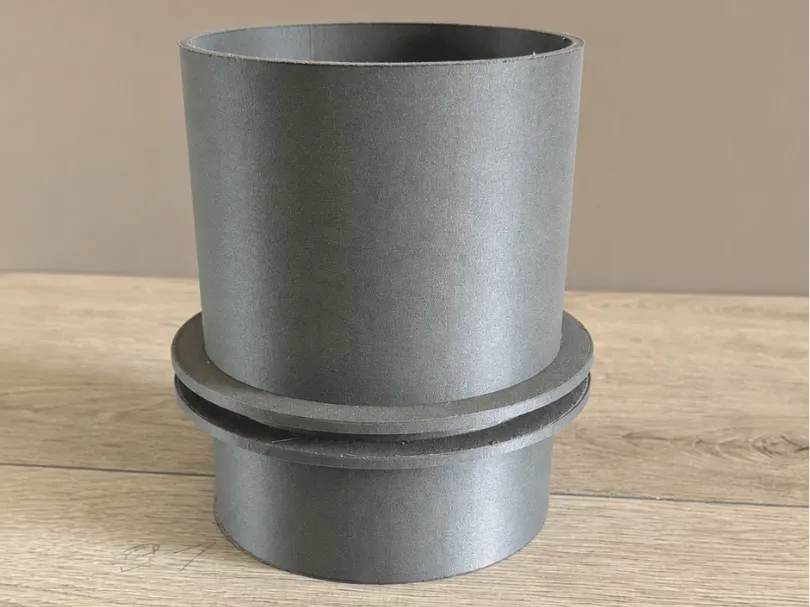

Portable air conditioner exhaust sleeve - Floorboard pass-through

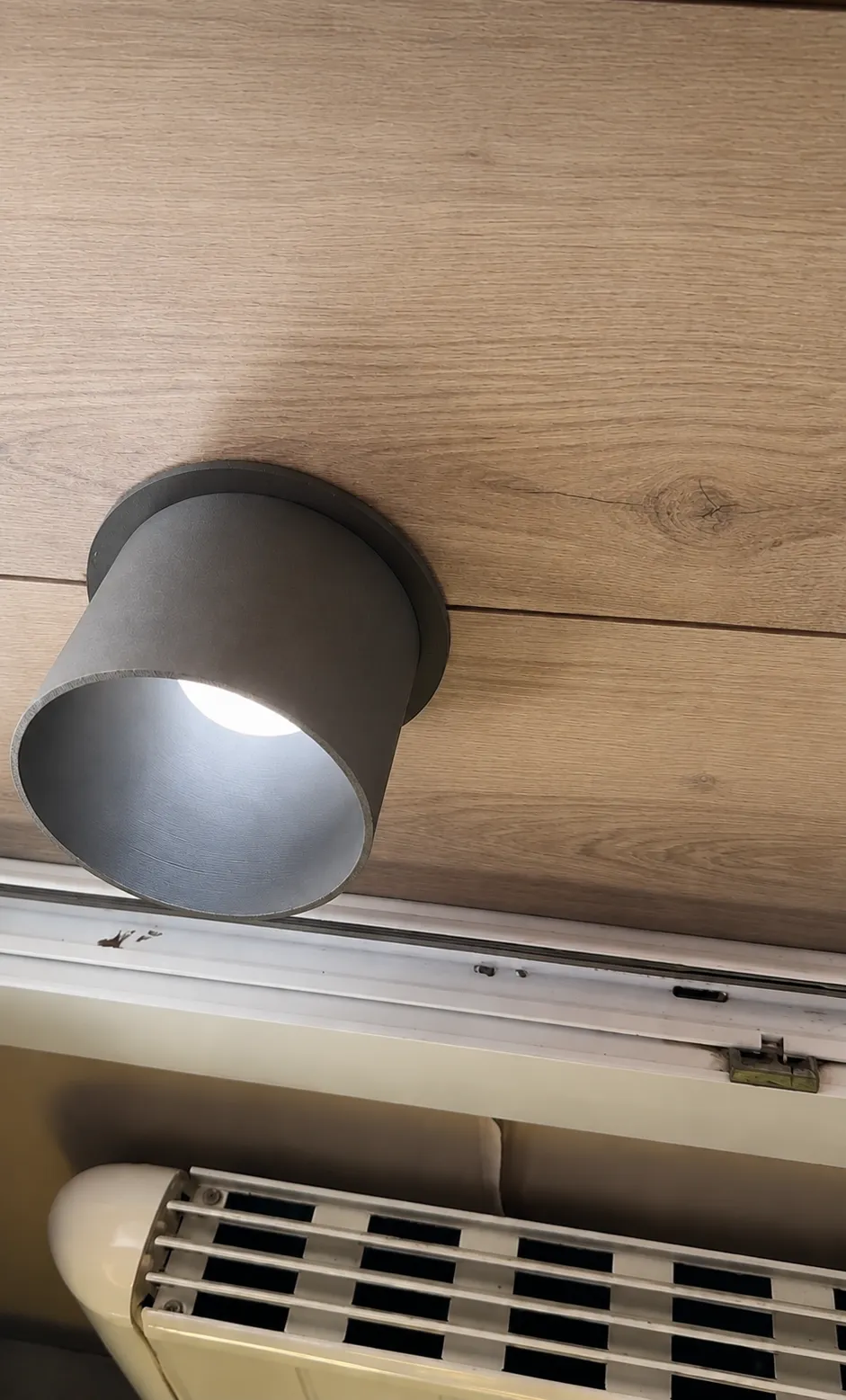

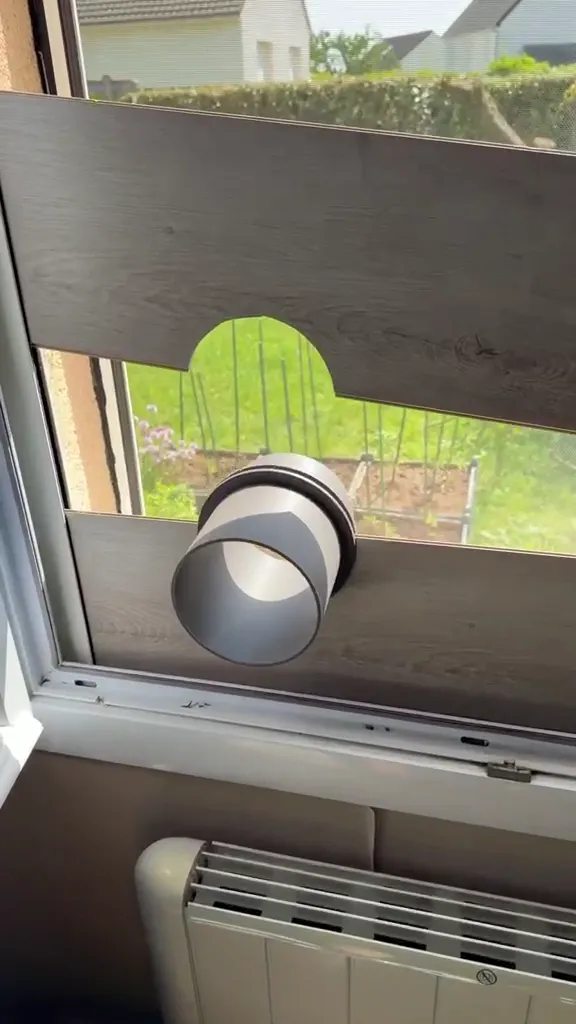

Sleeve designed to pass the exhaust hose of a portable air conditioner through a floorboard (or any other thin panel) acting as a window plug.



Features:

Outer tube diameter: 130mm (the hose fits over it)
Inner diameter: 124mm
Wall thickness: 3mm
Inner side length: 100mm (hose insertion)
Outer side length: 50mm
Supported panel thickness: 8mm
2 flanges sandwiching the panel for a solid hold
Hole to drill in the panel: 130mm



Recommended printing:

Personally printed in ASA GF for better heat and UV resistance, ideal for outdoor use.
Material: PETG required (PLA softens with the heat from the exhaust hose)
Layer height: 0.2mm
Perimeters: 3
Infill: 15% minimum



Tested with a Beko BA312C - compatible with most portable air conditioners with a 130mm hose.
