Router guide for 18mm round bar
Print Profile(1)
Description

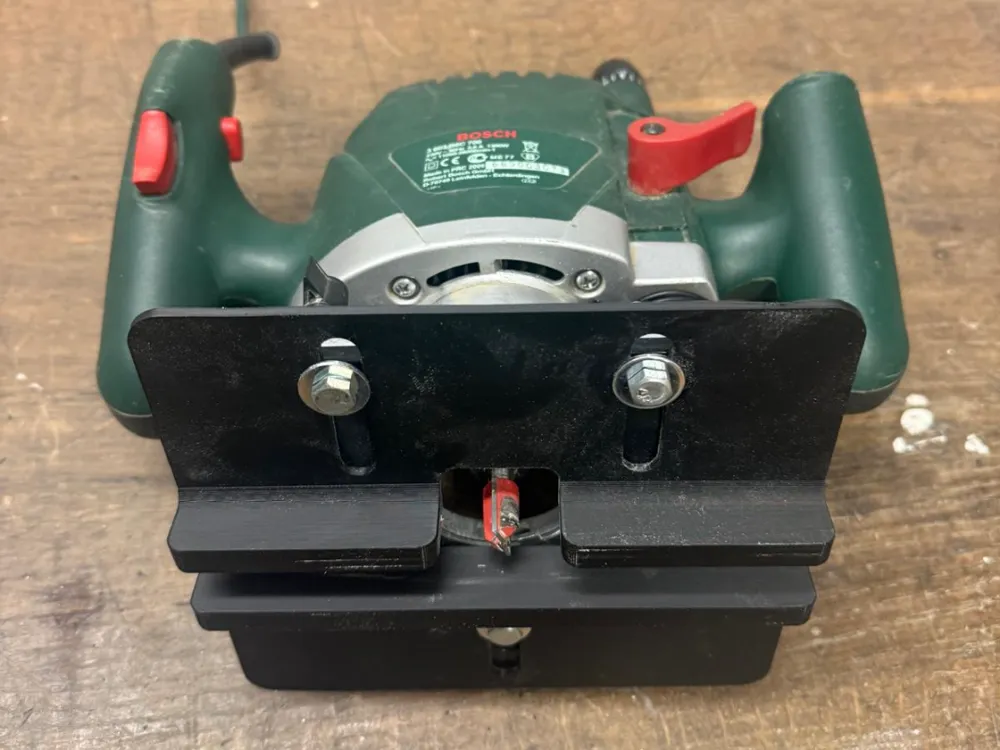

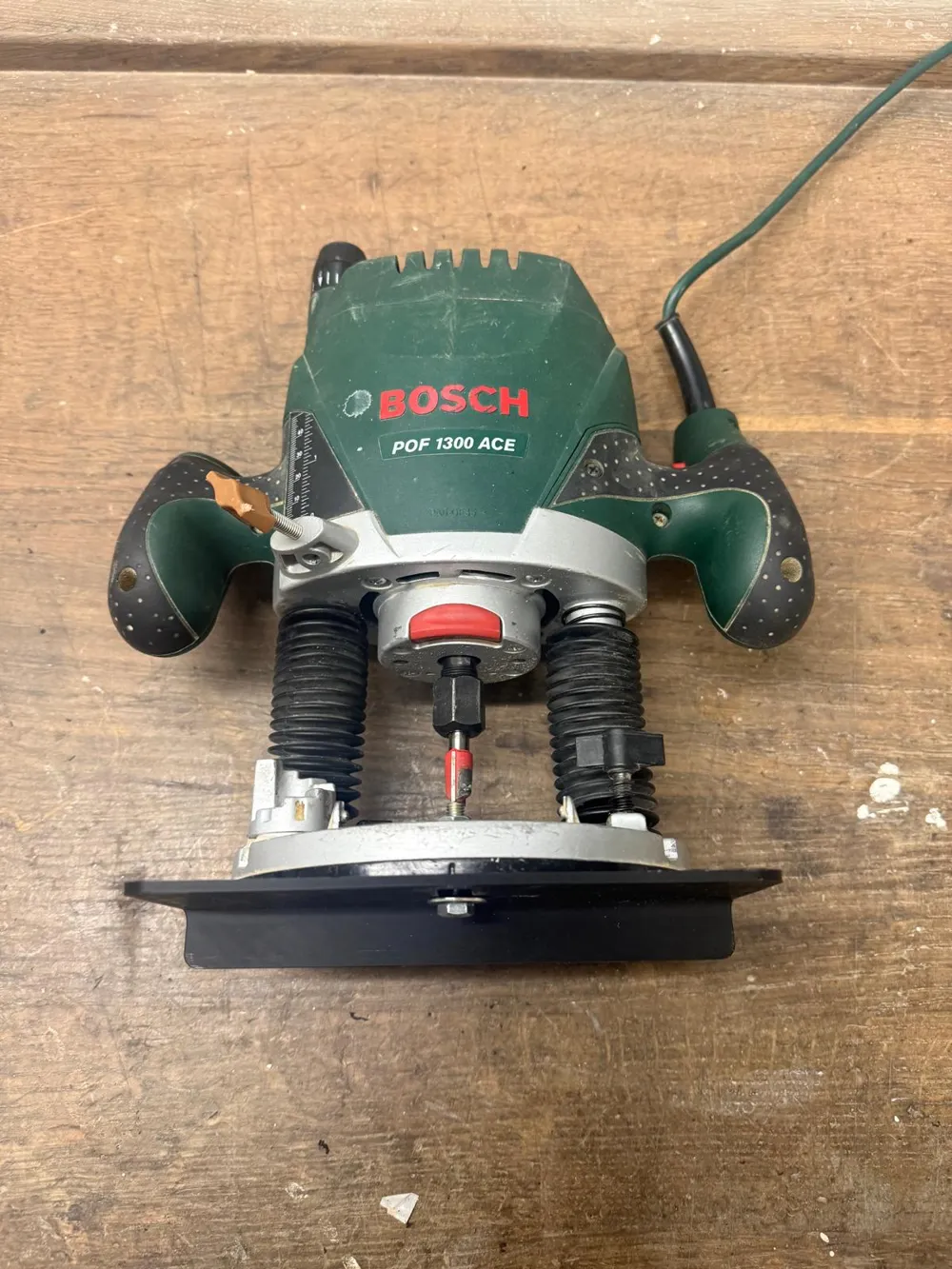

This is a custom-made, stable guide for routers, primarily developed and tested for Bosch POF 1300 ACE models.
The special feature of this design is the precise mount for a standard 18mm wooden dowel (round bar). This allows the router to be guided stably and without play along edges or on individual radii – a cost-effective and highly functional alternative to the original parallel guide.
Features & Specifications:
- Fit accuracy: Optimized for Bosch POF 1300 ACE guide mounts.
- Rod diameter: Perfectly dimensioned for 18mm round bars / wooden dowels.

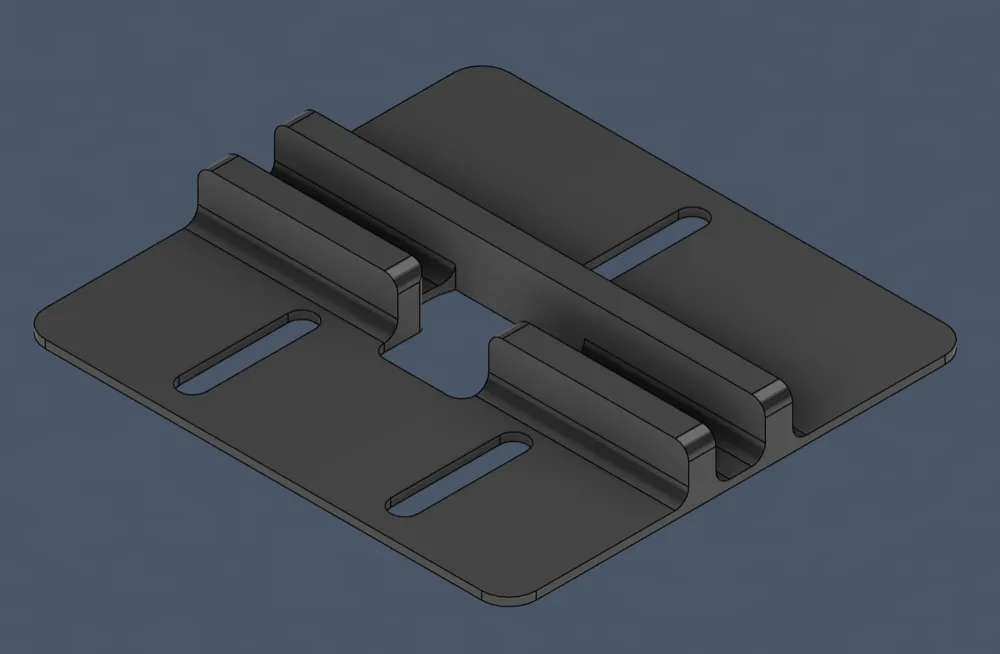

- Adjustable: Integrated slotted holes for flexible and rock-solid fixation using standard screws and nuts directly on the router base.
- Stability: Continuous reinforcing ribs on the guide grooves prevent material warping under pressure.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
