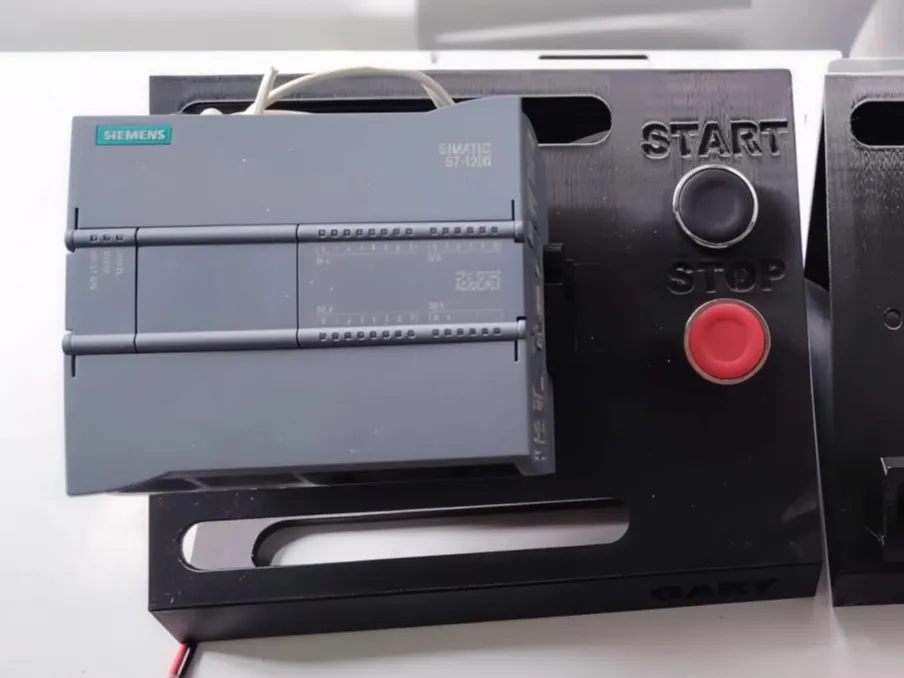

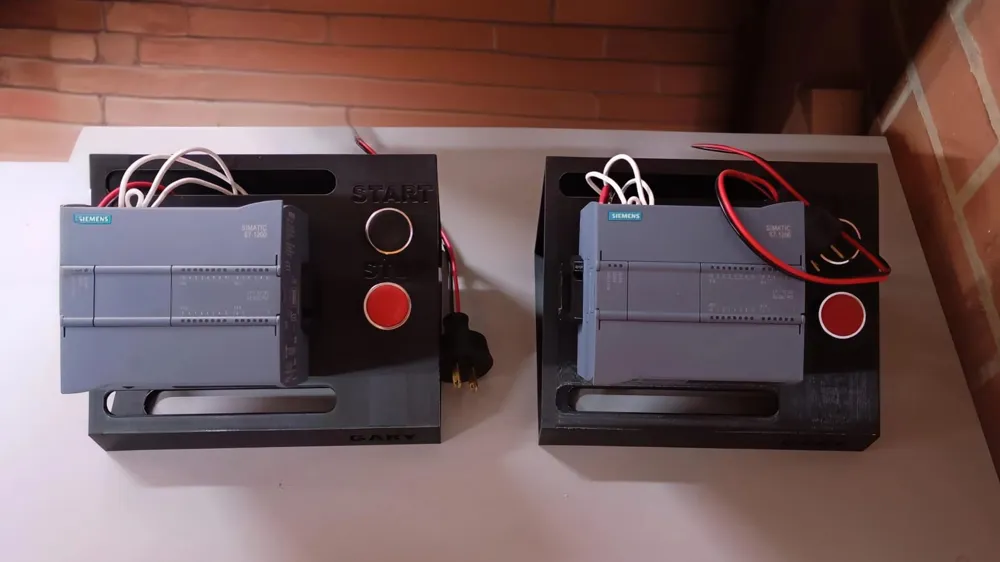

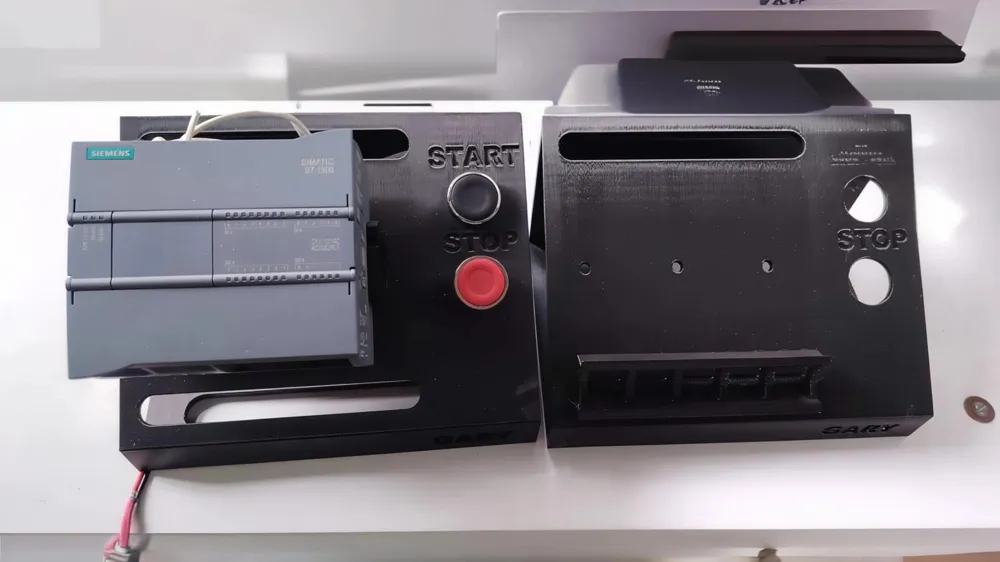

This 3D design is intended for the implementation of PLC modules, integrating two industrial pushbuttons: one normally open (NO) and one normally closed (NC). The structure allows for a more stable, secure, and organized connection during electrical practices and assemblies, improving both safety and efficiency in its use.
The design considers the standard dimensions of industrial pushbuttons used in automation, with 22 mm diameter mounting holes (a universal measure for NO/NC buttons). The separation between buttons must allow for comfortable and safe handling.
