Panda Breath P2S Button Spacers

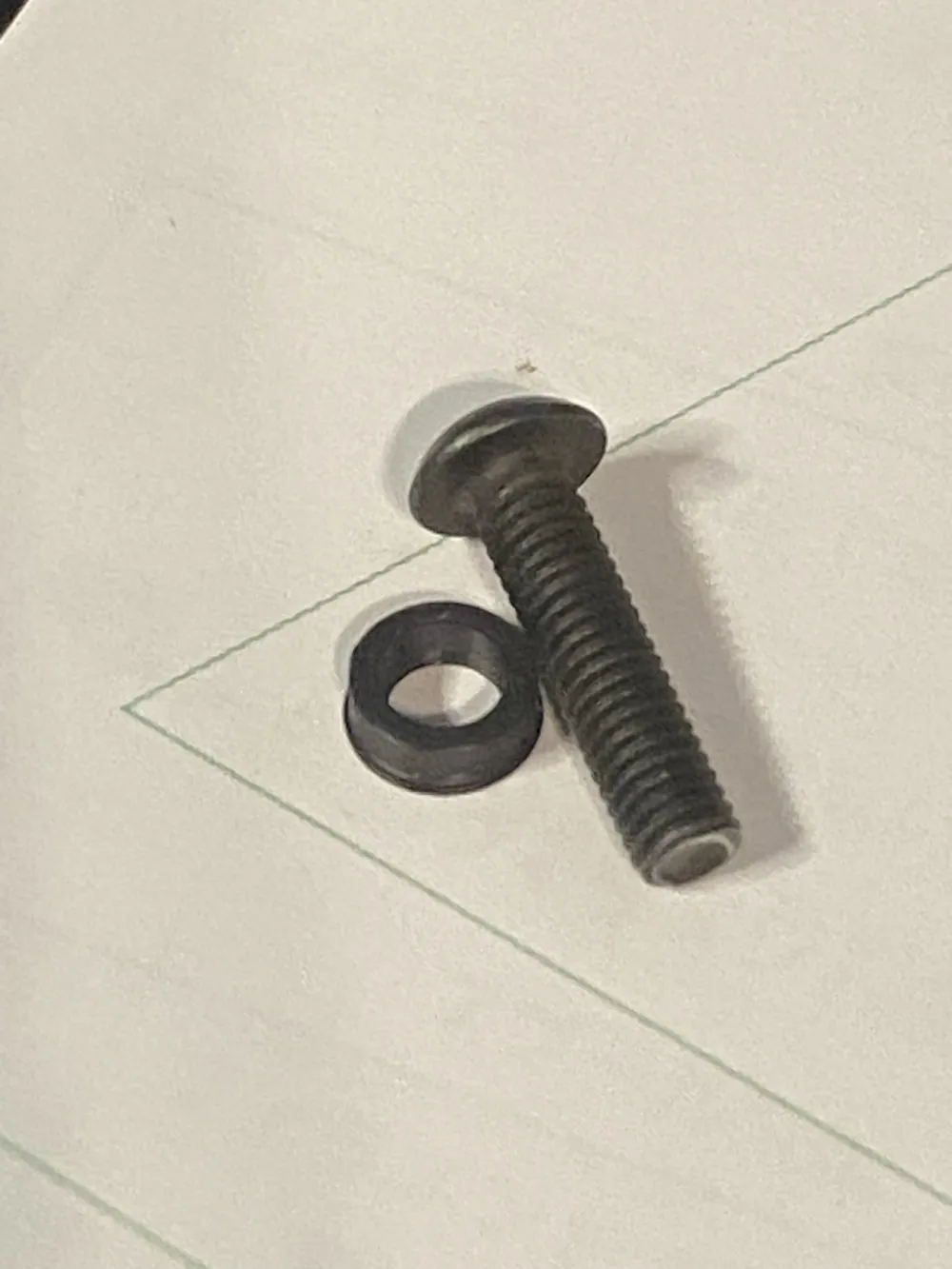

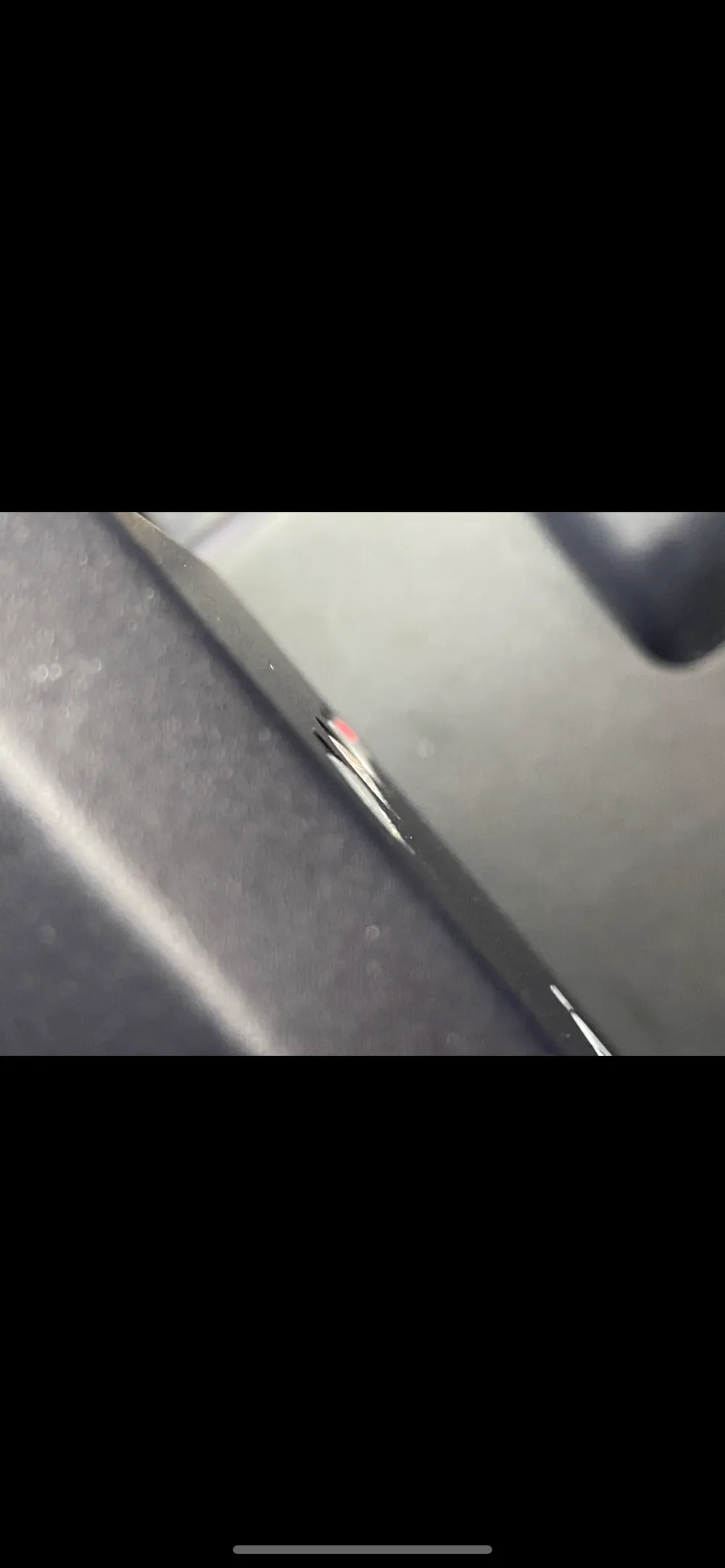

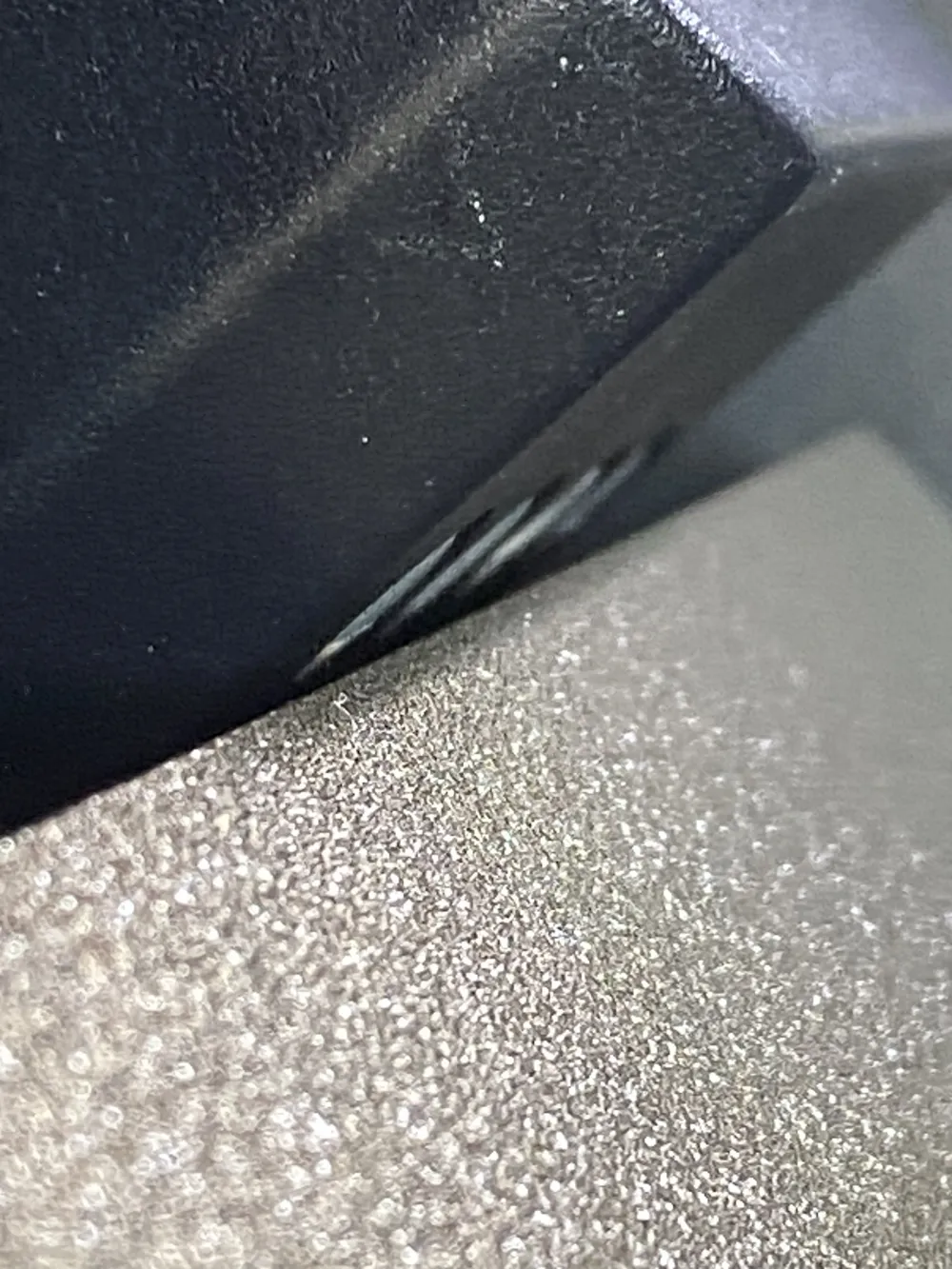

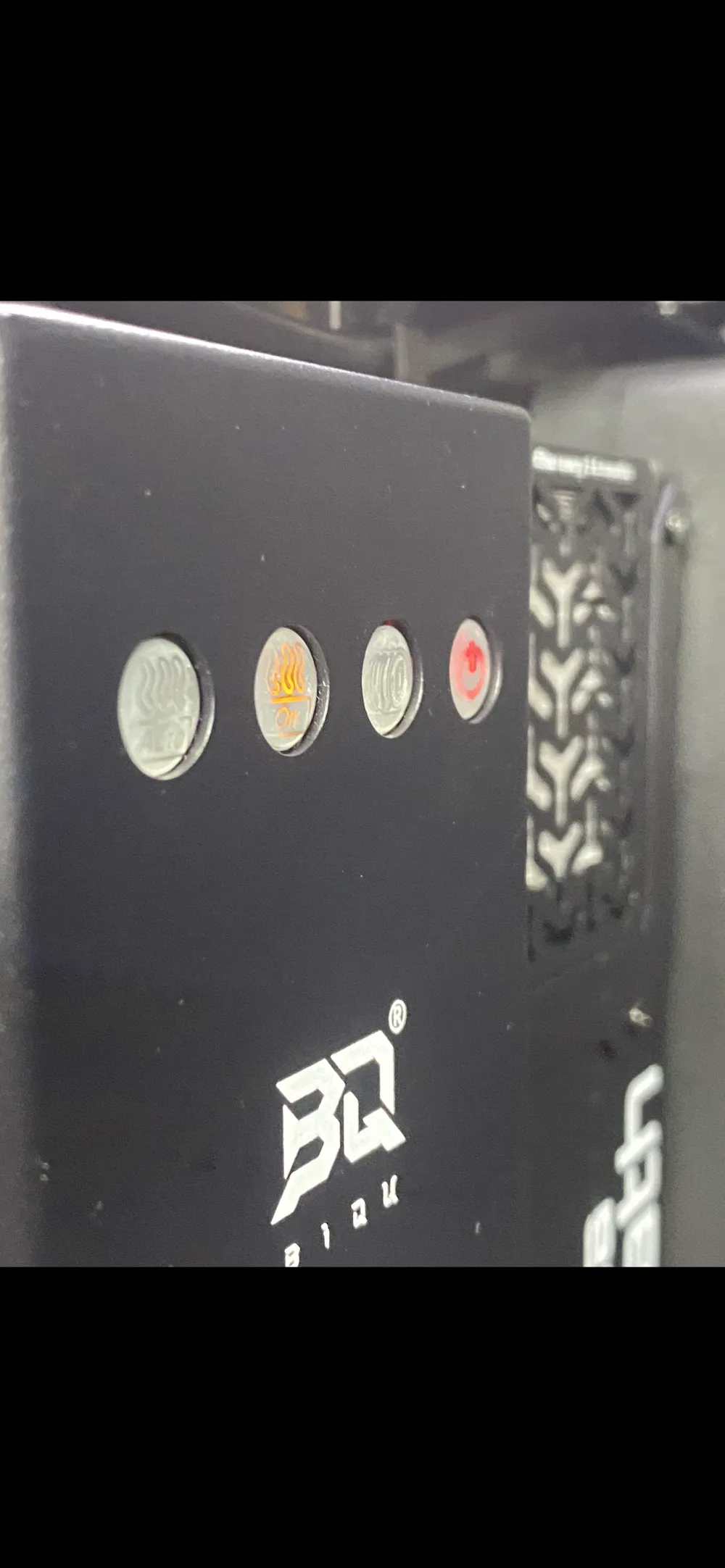

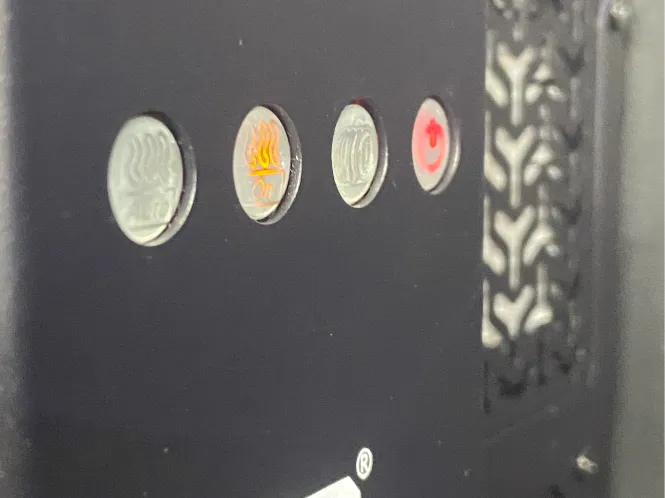

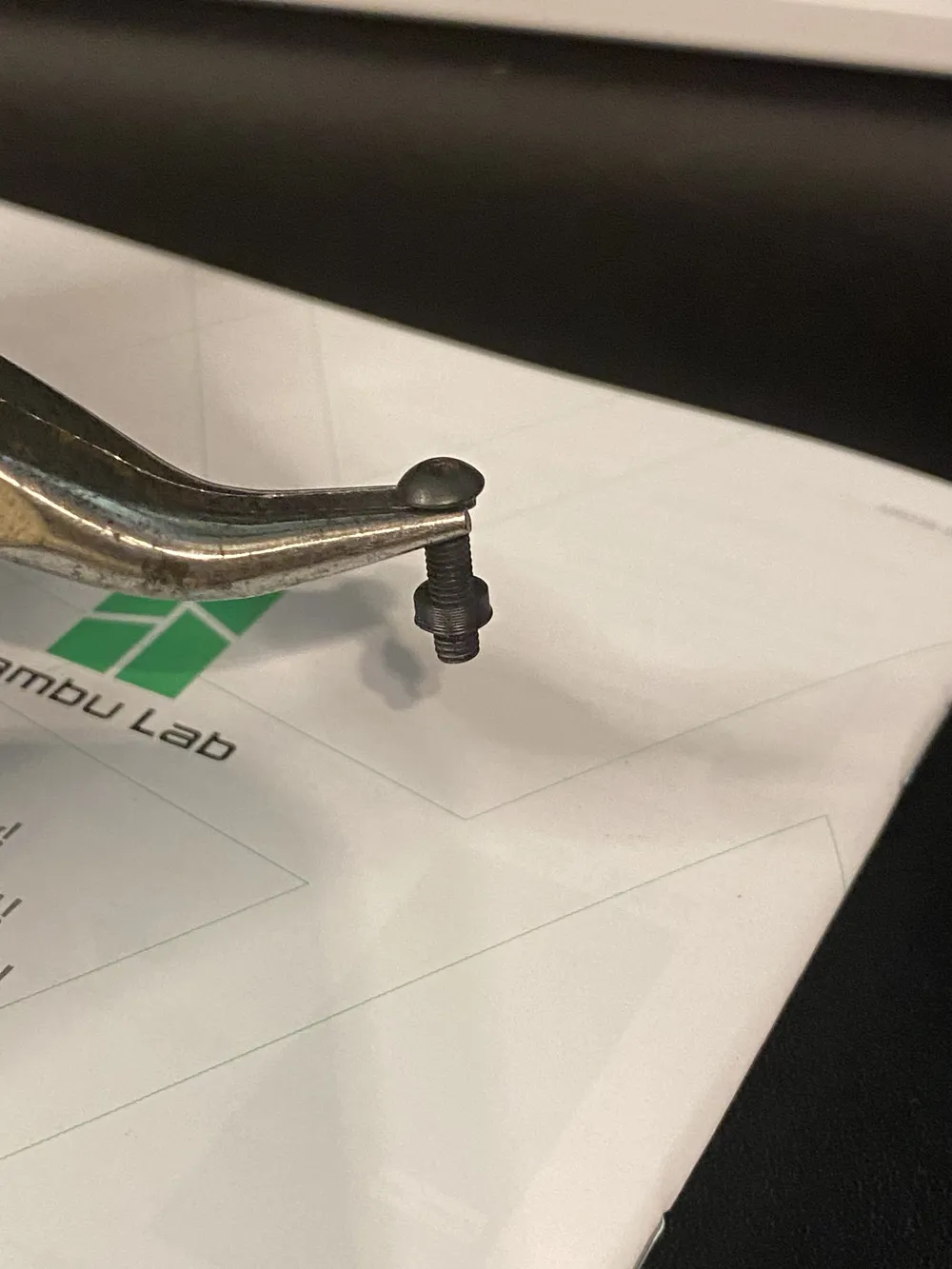

These spacers/washers eliminate the issue of the print bed hitting the buttons mid print as the print bed lowers. They were designed to be installed on slightly longer M3 screws that hold the circuit board down, they go between the circuit board and the case of the heater which sets the buttons inward giving the clearance needed. I suggest at least m3x8mm. The buttons are spaced so they just barely protrude and are still nice to use. The spacers are designed a little tight so you can pre install them on the circuit board beforehand and they will not fall off when you flip it over making install much easier. Getting this heater into your P2S is a massive upgrade when it comes to engineering materials. Increased enclosure temps up to 58C and get it acting more like an H series than a P series. This is a modification to your printer and adding a heater so attempt at your own risk! Give me a boost if you find this helpful!

UPDATE: I forgot to mention in order for the circuit board to sit and play nice with the case of the heater you will need to file the case a little bit, its unfortunately unavoidable but so worth it.
