1.8" 44pin IDE to Compact Flash Adapter CF

Remixed by

Print Profile(1)

All
H2C
X1 Carbon
X1E
X1
H2S
A1
X2D
H2D Pro
A1 mini
P1P
P2S
H2D
P1S
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
25 min
1 plate

Open in Bambu Studio
Boost
0
1
0
0
2
1
Released

Description

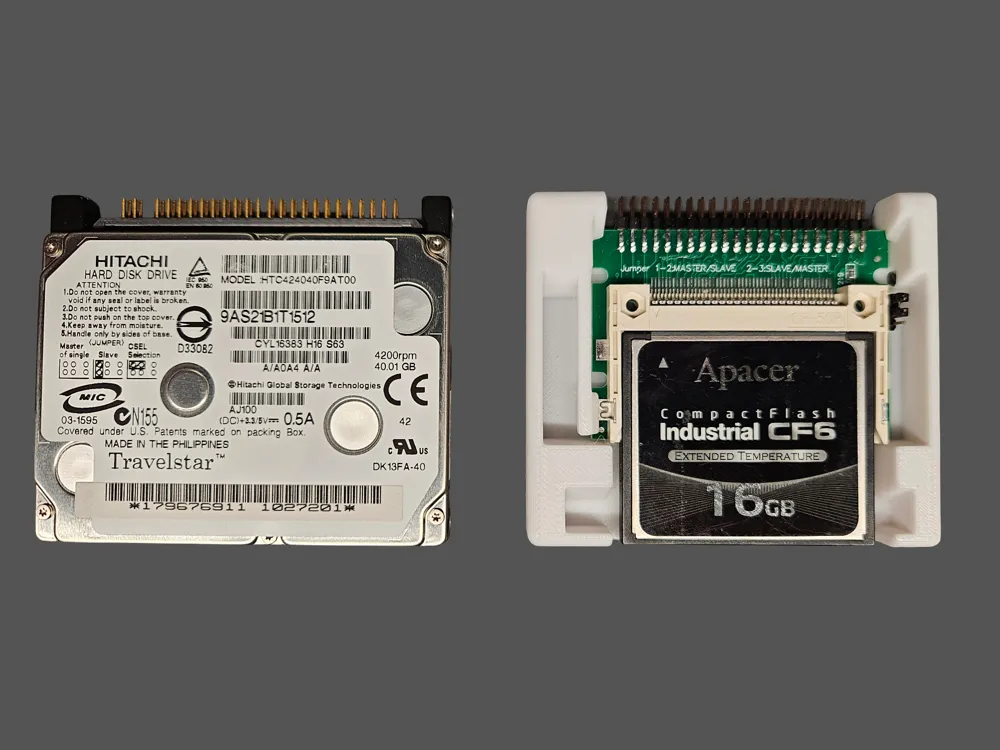

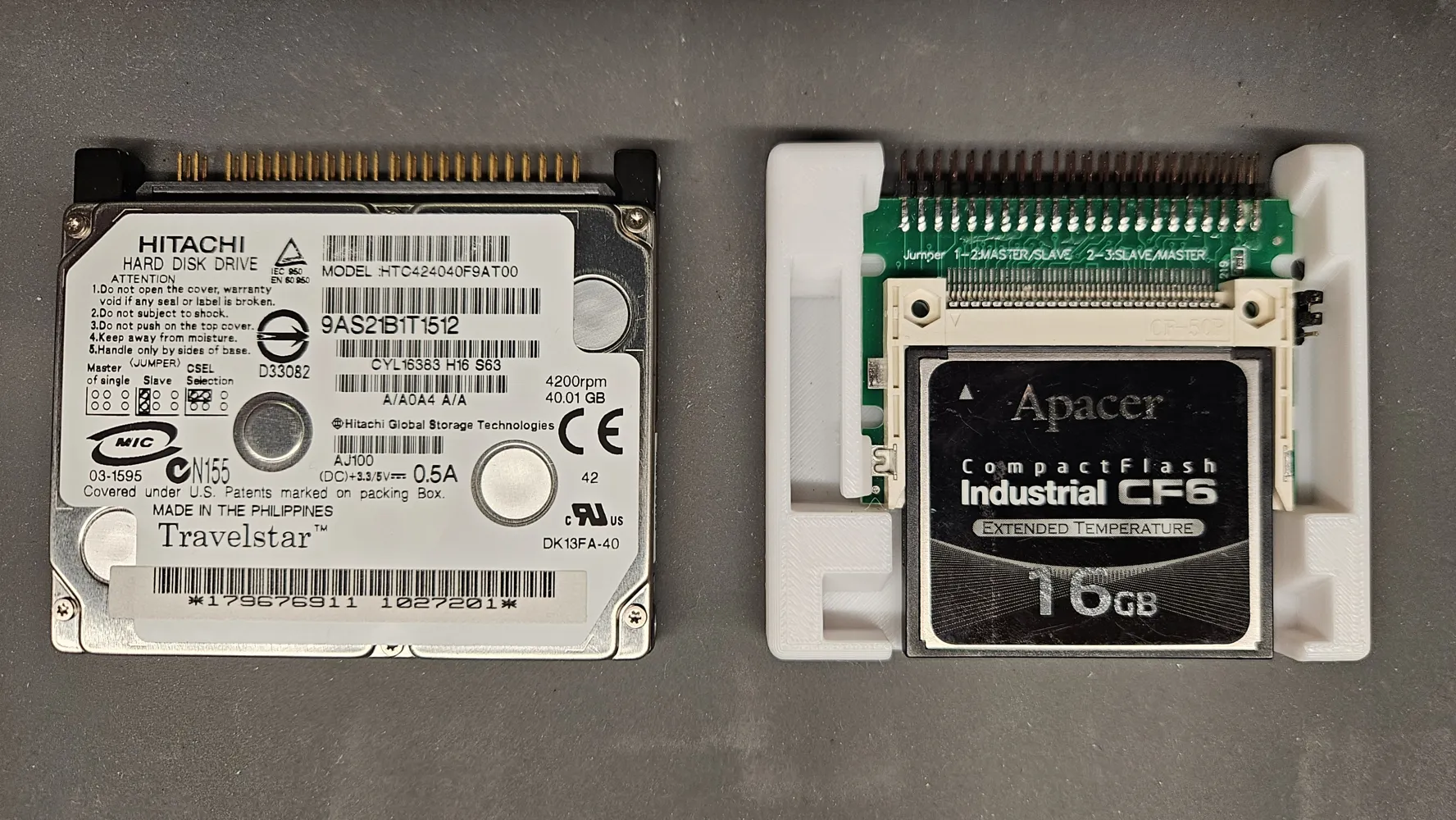

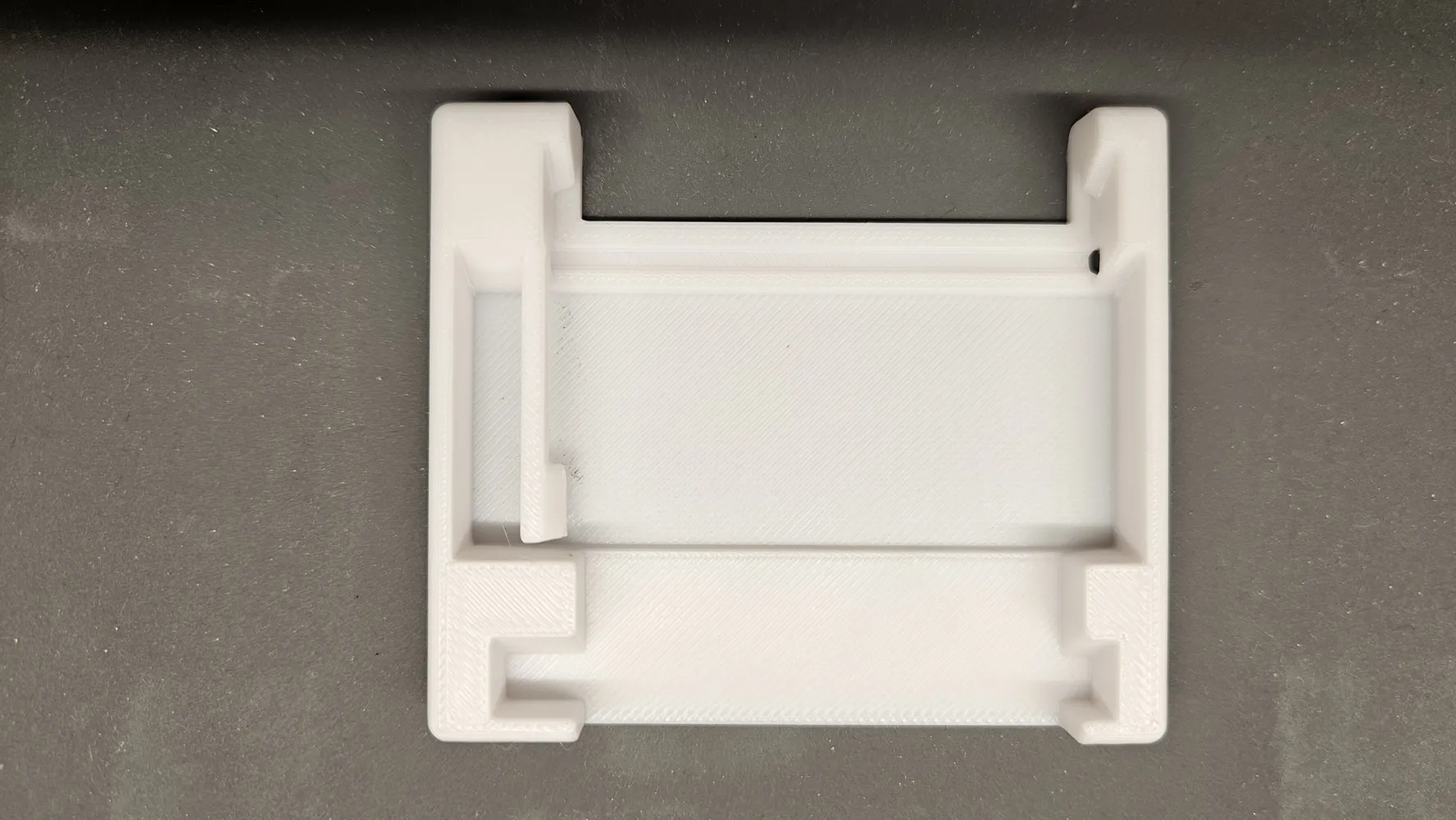

Uses the common 44 pin CF adapter typically used with 2.5" adapters, I did a quick modification of rwingnut's model in tinkercad to work with the uncommon 1.8" IDE drives. It holds in place, I used a little double-sided tape as well. I printed on my P1S using tree (auto) support for less cleanup. I left in one of the original sets of screw holes, the 1.8" drives use the outermost sets. Used successfully in my Vaio PCG-TR3A
