height-adjustable landing platform
Print Profile(1)
Bill of Materials
Description

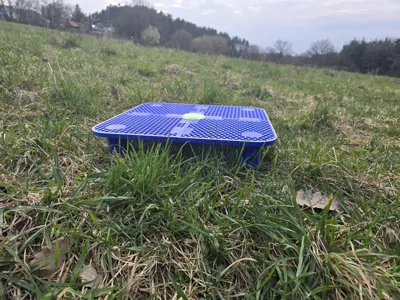

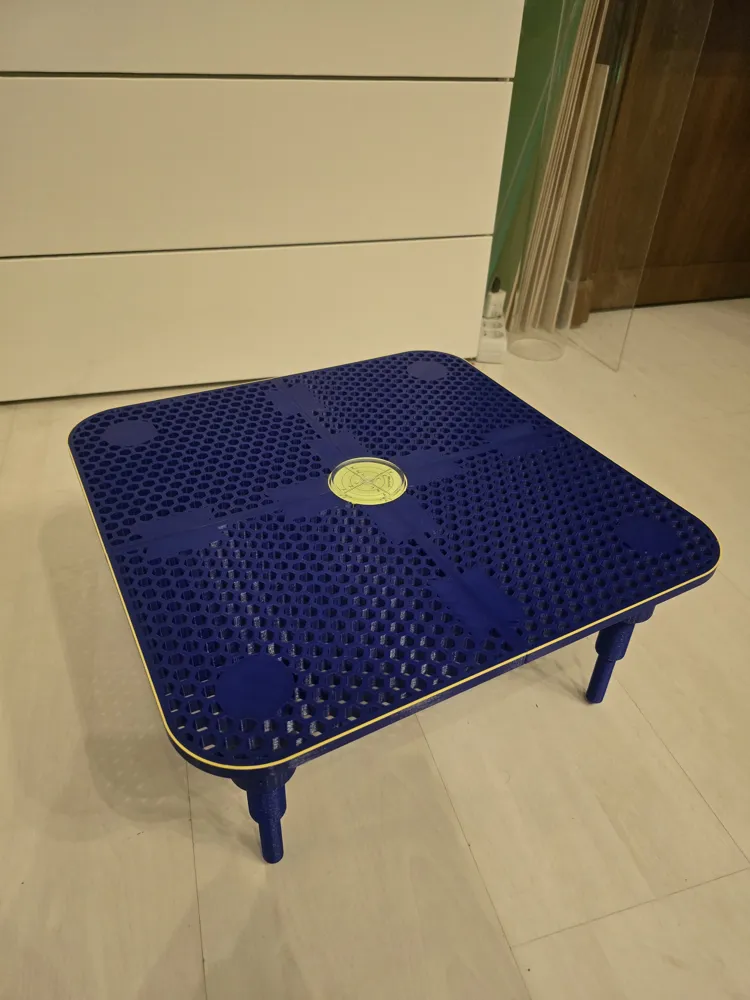

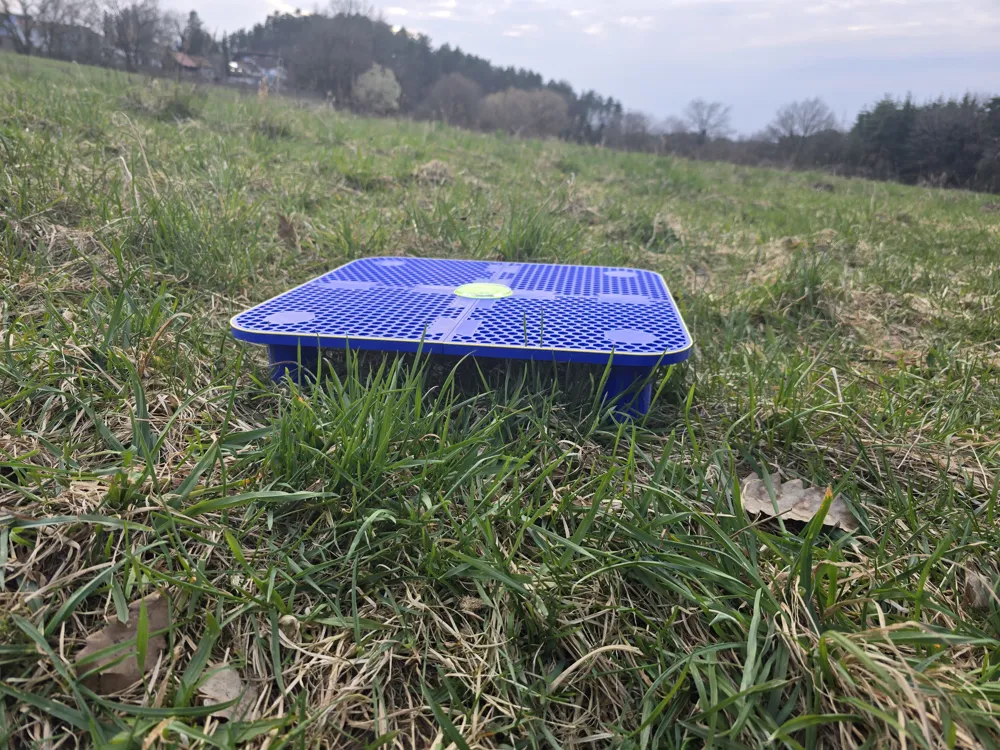

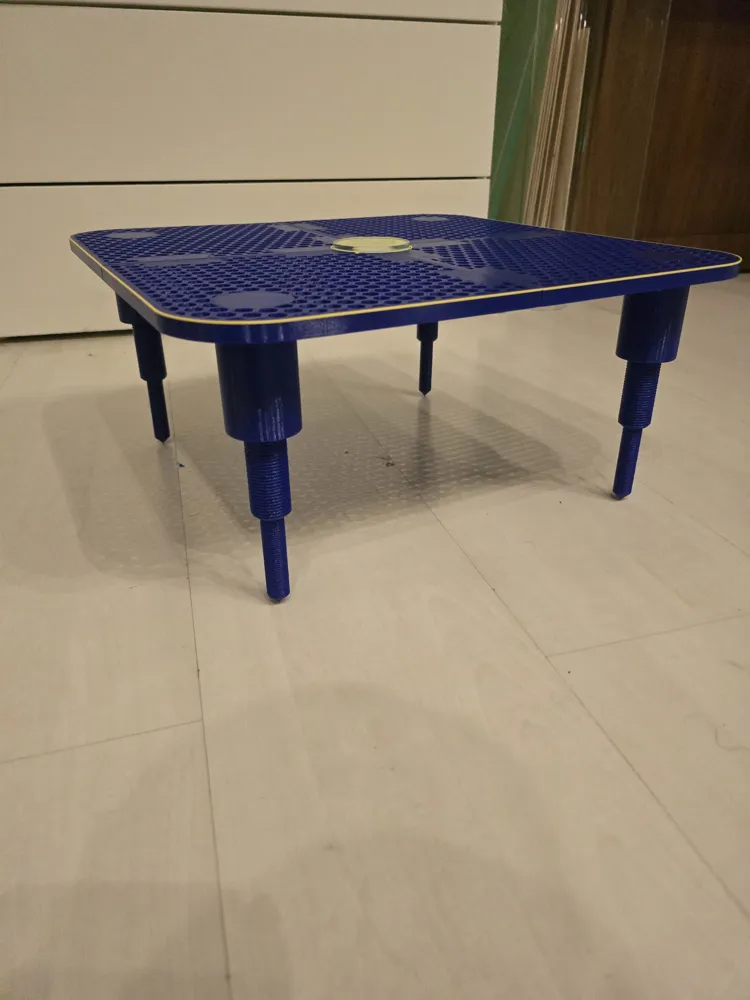

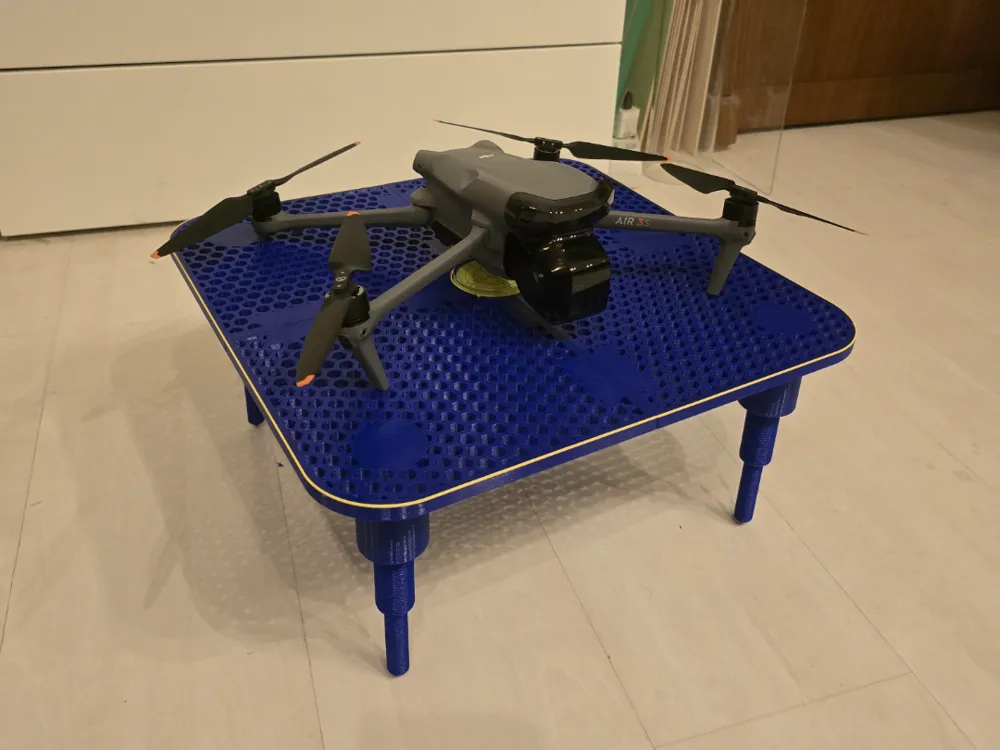

This is a height-adjustable landing platform for drones with a surface area of 40x40 cm. The feet can be extended up to 14 cm, which can compensate for a slope of 25°. I printed the model in PETG due to environmental influences. A 60 mm diameter spirit level can be inserted into the center of the platform. Optionally, a cleaning aid (plate 6) can be printed to eliminate printing errors in the platform. The platform requires 16 round magnets 10x2 mm which are glued in. To ensure the correct polarity of the magnets, I have integrated indicators.
