Sidewinder to MP5 NGRS Magazine Adapter

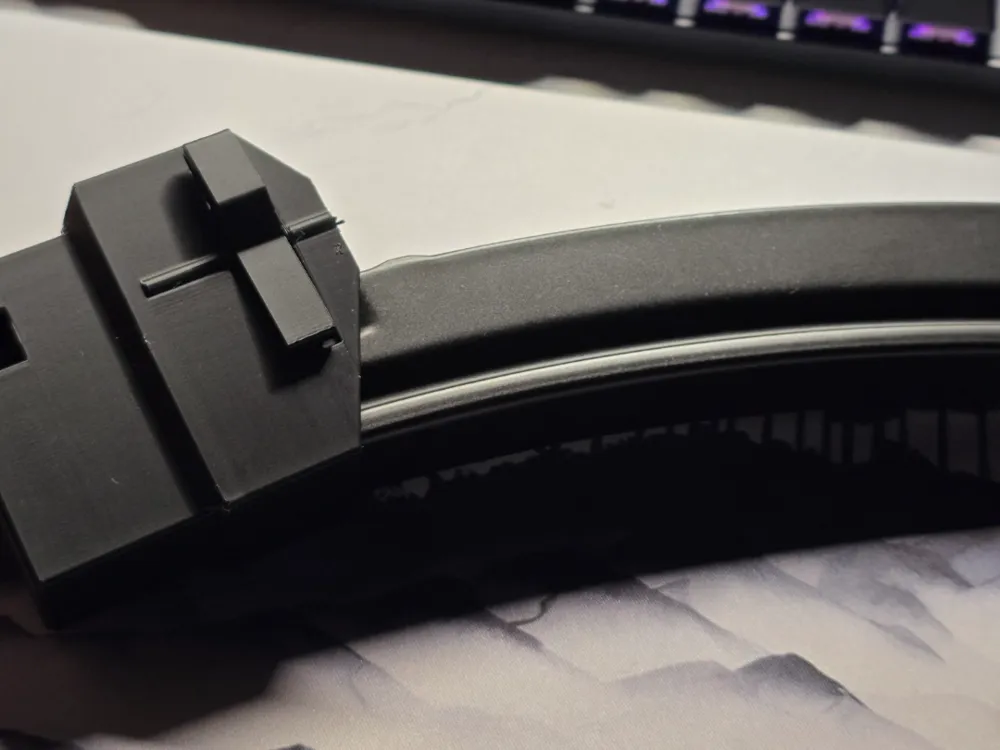

This adapter allows you to quickly and easily load Tokyo Marui MP5 NGRS (Next Generation Recoil Shock) magazines using an Odin Sidewinder Speedloader (or compatible clones). It features a custom, spring-loaded mag release mechanism to securely lock the magazine in place during loading.

Hardware Required:

• 1x Half of a standard ballpoint pen spring
• 1x Piece of a standard metal paperclip

Assembly Instructions:

1. Cut a standard ballpoint pen spring in half.
2. Straighten a paperclip to use as the hinge pin for the mag release.
3. Place the half-spring onto the small nub located on the main adapter body.

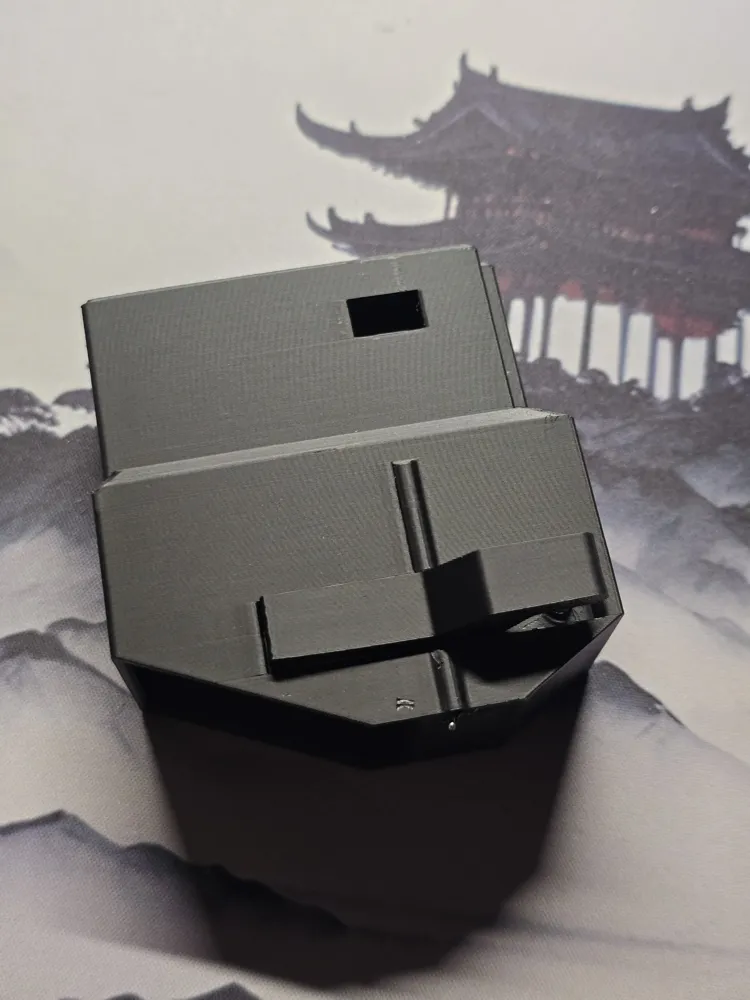

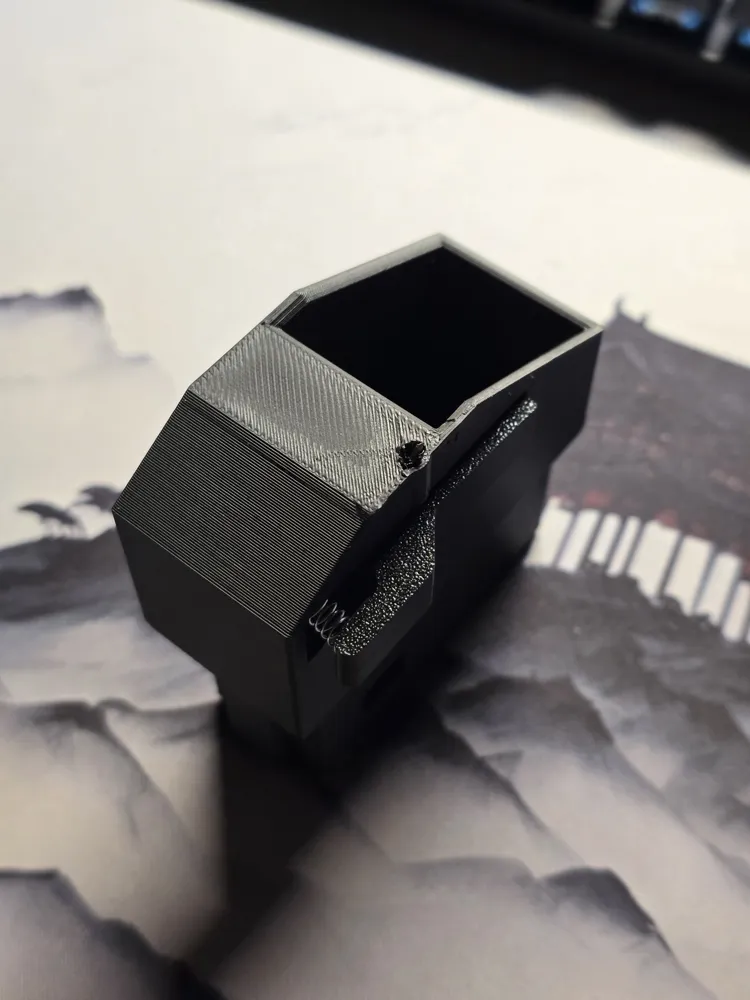

4. Align the printed mag release lever with the spring and the hinge holes on the body.
5. Assembly Tip: Heat up the straightened paperclip slightly (e.g., with a lighter) before pushing it through the hinge holes. The heat helps the wire glide smoothly through the 3D-printed plastic and ensures a very tight, secure fit once it cools down.
6. Snip off any excess paperclip wire flush with the sides of the adapter.

If there are any problems, please let me know :)
